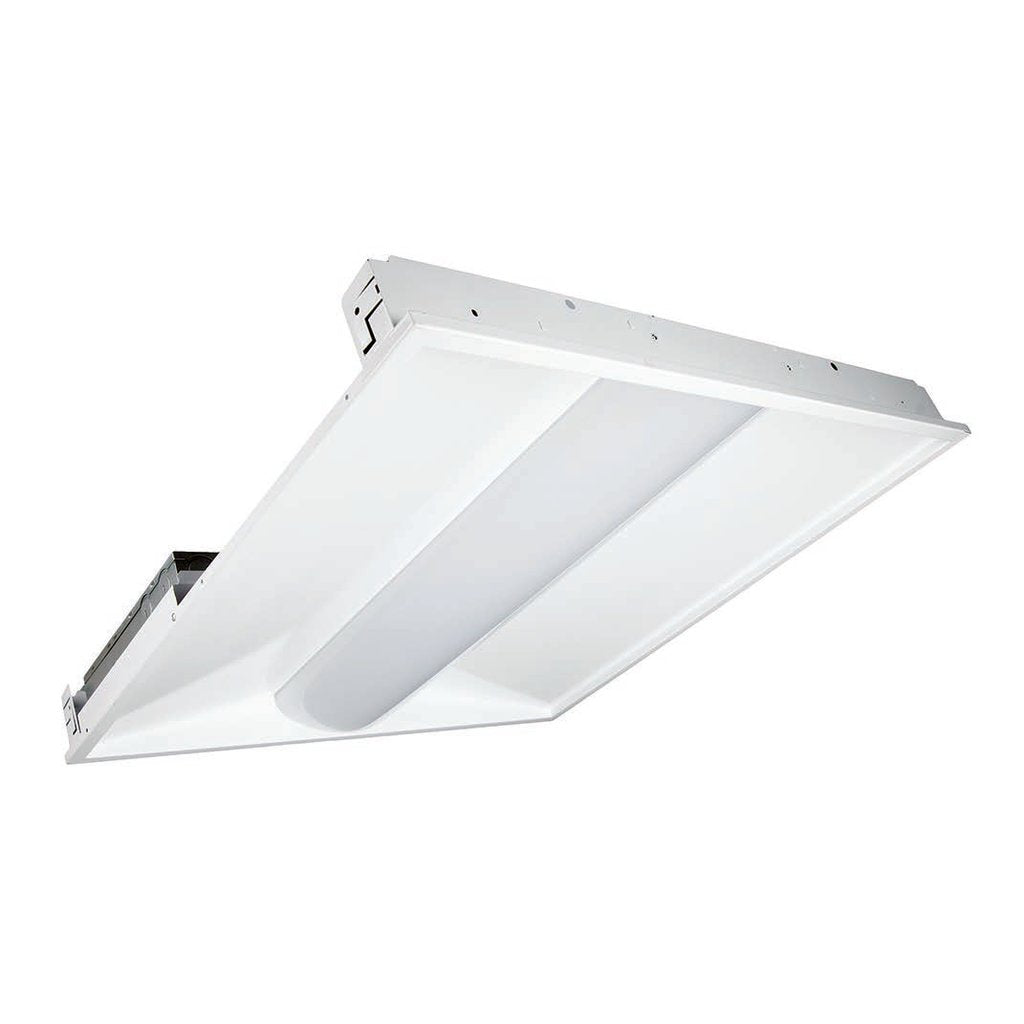

TCP’s LED Volumetric Troffers offer a high-efficiency alternative to T5, T8 and T12 linear fluorescent systems. They provide long life with consistent color and superior lumen maintenance. Designed to mount in a variety of grid ceilings, the rugged, cold-rolled steel housing is post-painted with a highly diffuse white finish. The acrylic diffuser provides a low-glare, wide distribution, and the sloped reflector softens the contrast between the luminaire and ceiling. The LED Volumetric Troffers offer a cost-effective solution to maximize savings and take advantage of utility rebates without sacrificing performance.
• Long 50,000 hour rated life
• Excellent color consistency & CRI
• Mercury free
• Fits standard 1” and 9/16” T-bar grid ceilings
• Acrylic diffuser with sloped housing design
• Slim, low-profile design
• Retail Stores
• Schools
• Hospitality
• Restaurants
• Healthcare
Reasons to choose the LED Wattage Selectable Volumetric Troffers from TCP
• Up to 61% less energy than fluorescent alternatives• Long 50,000 hour rated life
• Excellent color consistency & CRI
• Mercury free
• Fits standard 1” and 9/16” T-bar grid ceilings
• Acrylic diffuser with sloped housing design
• Slim, low-profile design
Ideal Applications in T-Bar Ceilings
• Offices• Retail Stores
• Schools
• Hospitality
• Restaurants
• Healthcare
Product Information
Part Number
TRV2UZD2335K
Brand
TCP
Product Code
TRV2UZD2335K
UPC
762148284376
Specifications
Technology
LED
UL Listed
true
Emitted Color
Bright White
Wattage
23
Input Voltage
120-277V
Color Temperature
3500K
Lumens
3100.0
Hours
50000
CRI
80
Dimmable
true

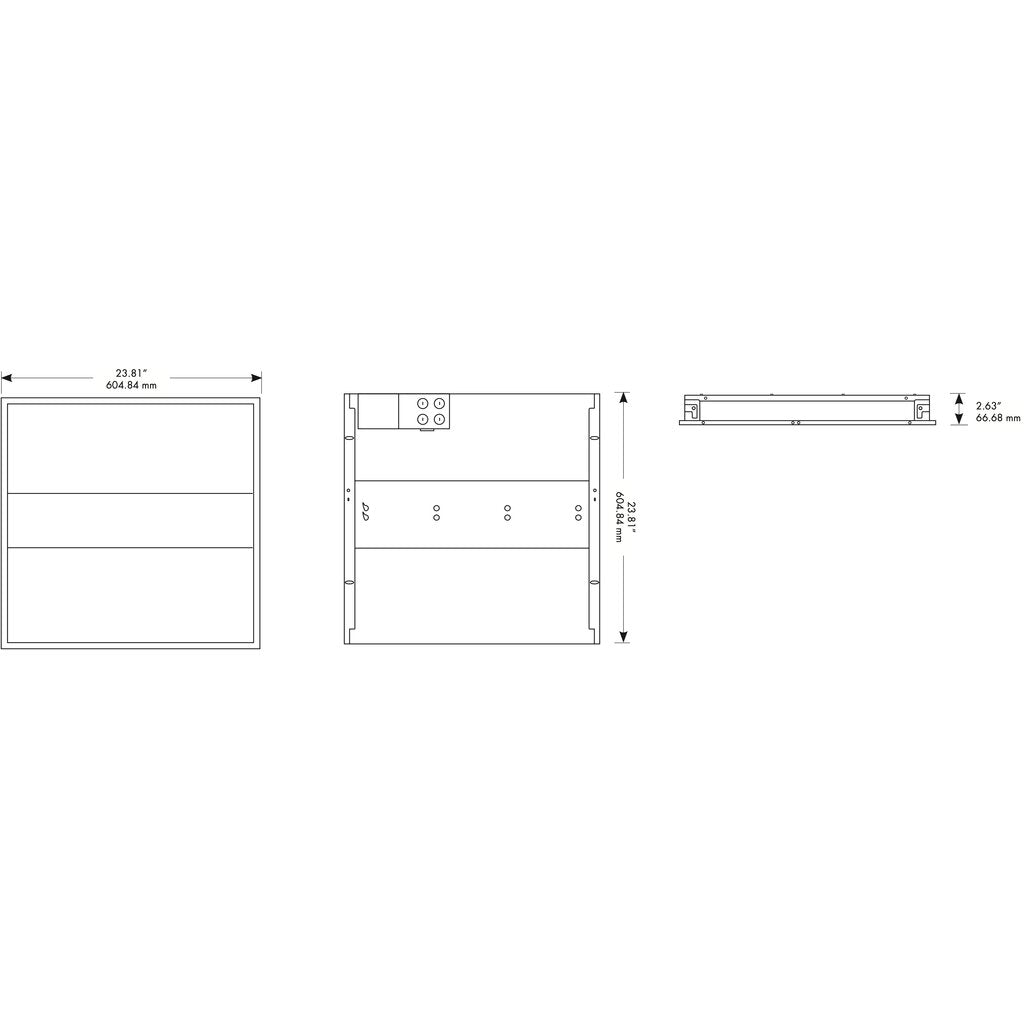

Dimensions
Length
24.8 in
Width
3.7 in
Height
25.3 in
