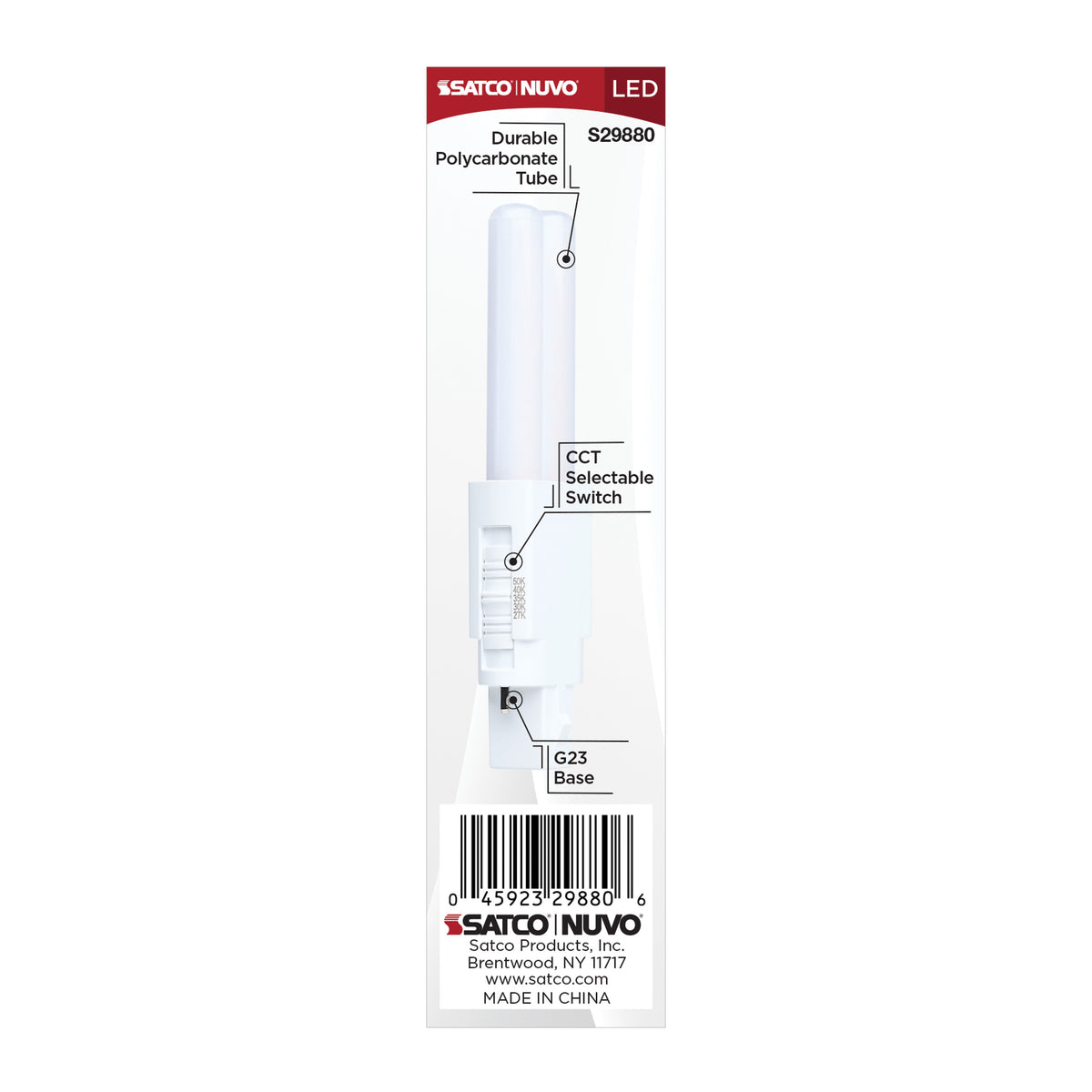

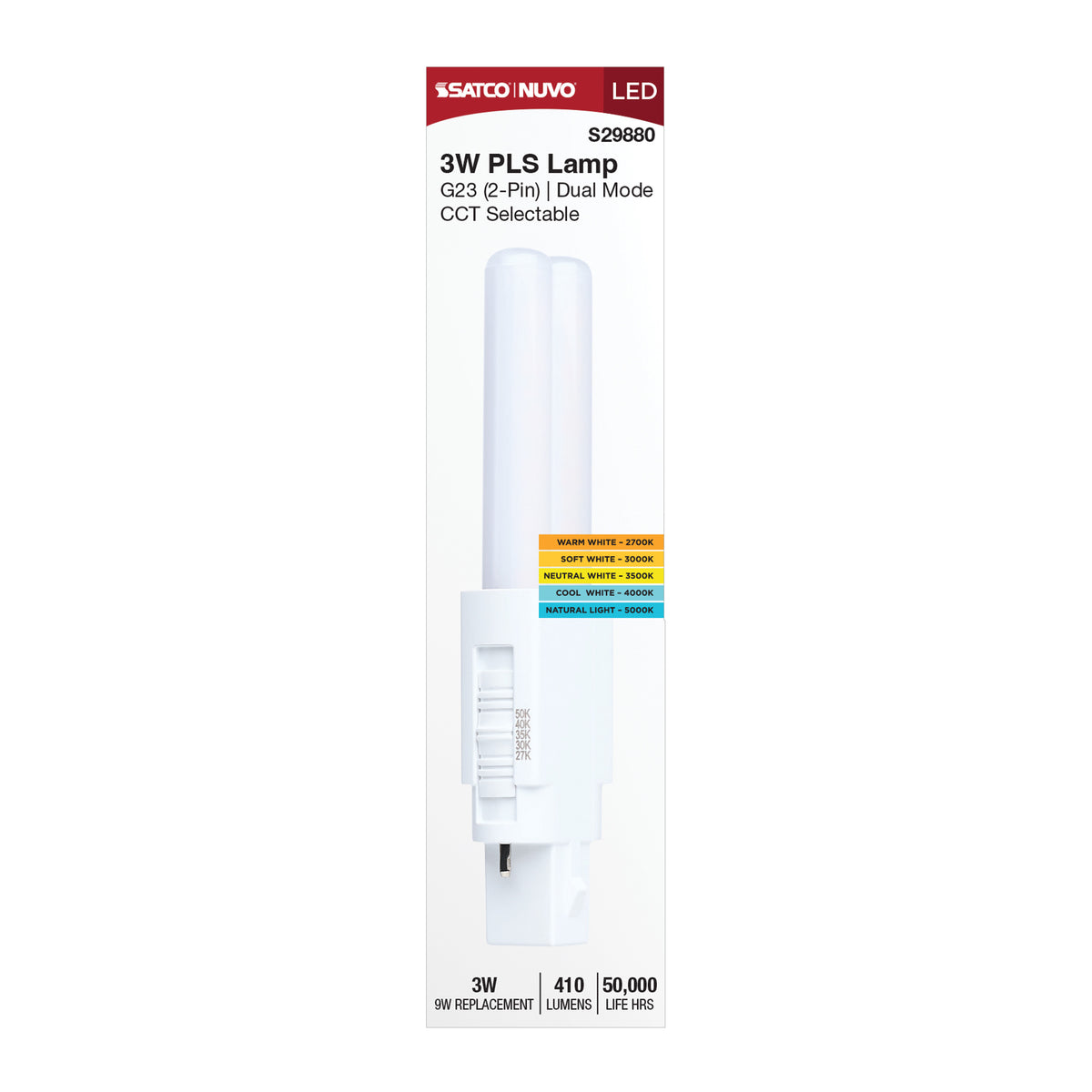

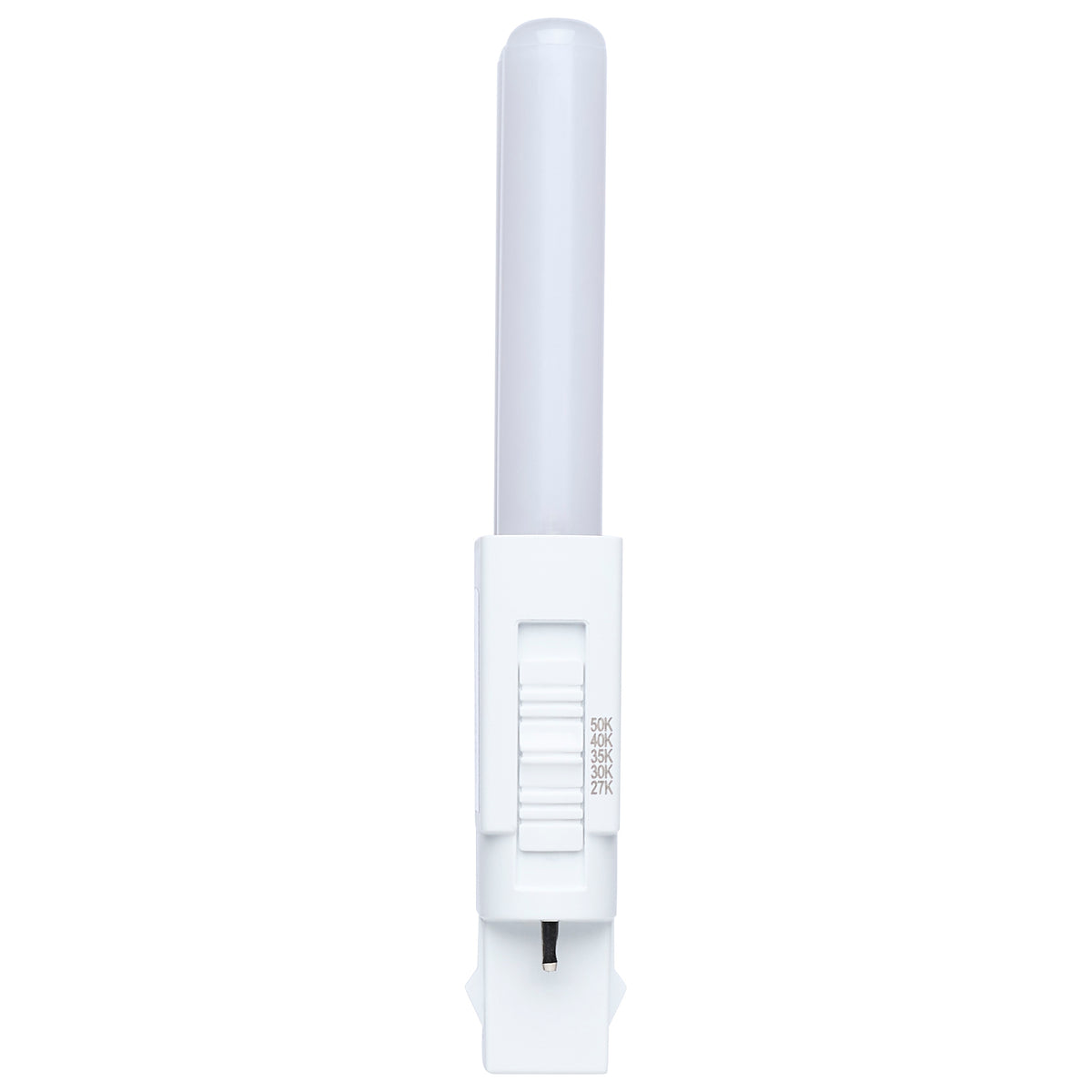

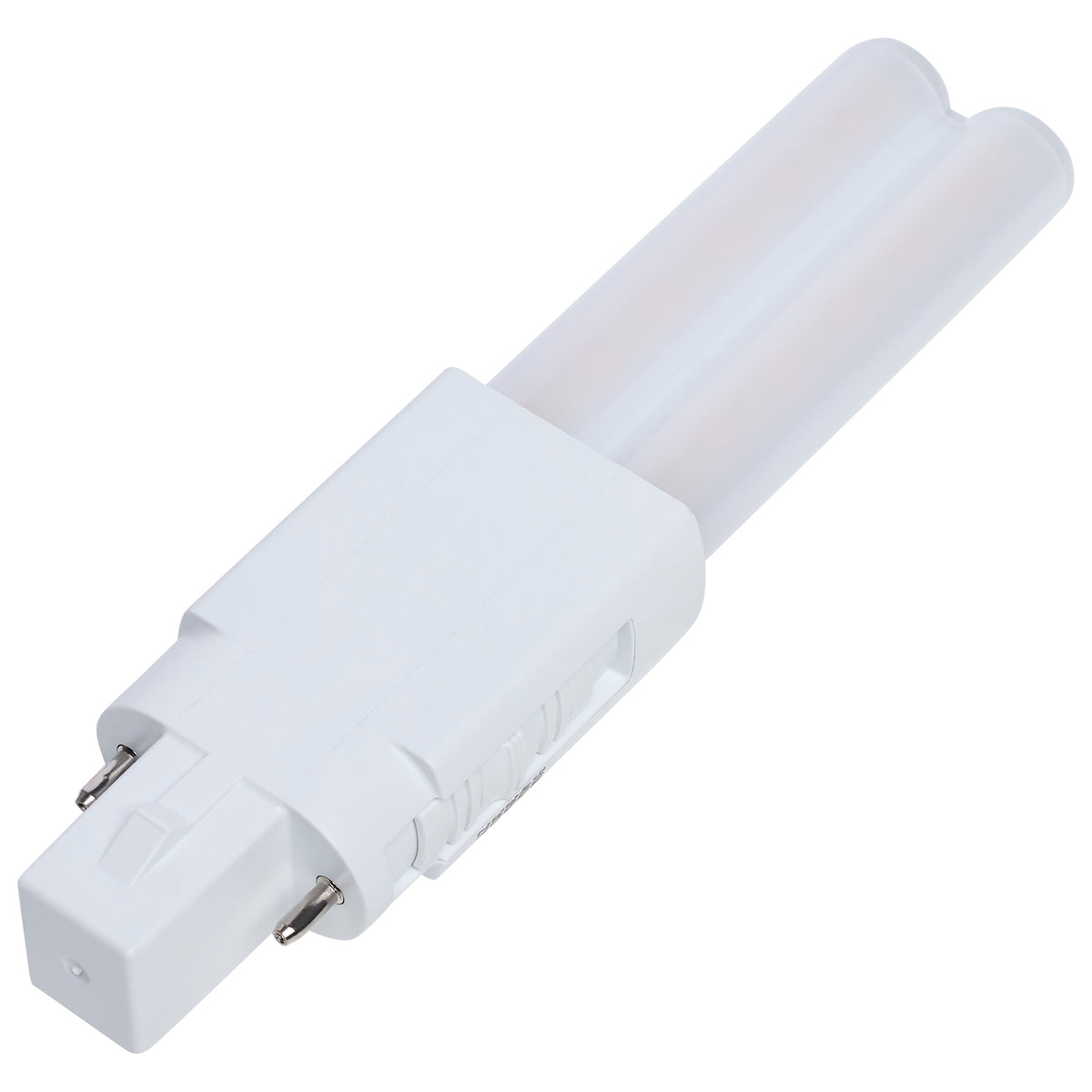

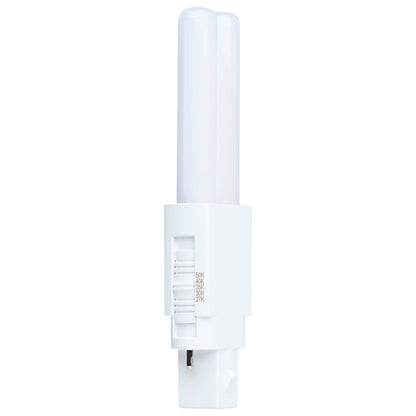

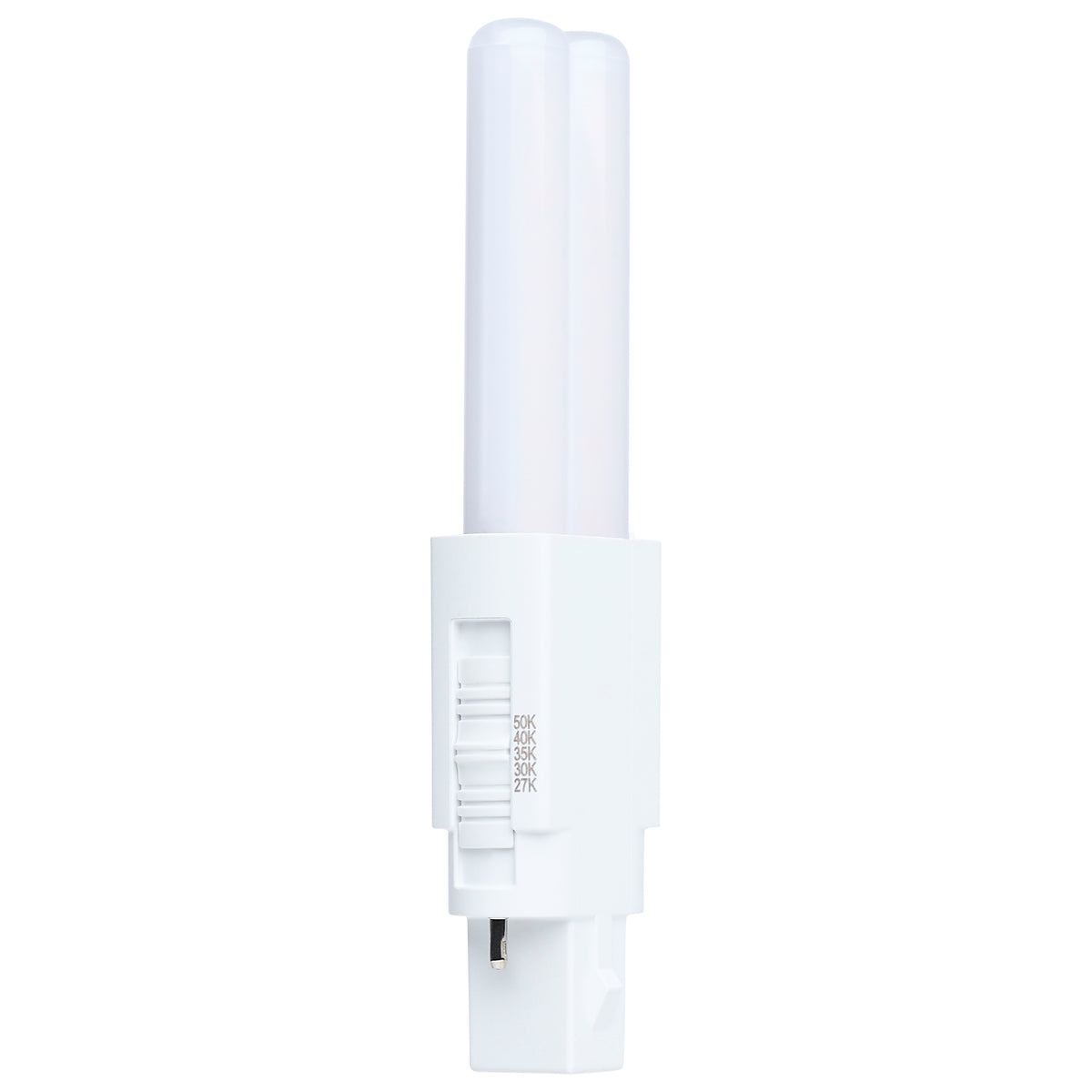

3 Watt PLS LED; 27K/3K/35K/4K/5K CCT; G23 Base; Omni; Type A/B; 120-277 Volt
3WPLSL/8CCT5/G23/OAB/U (Satco S29880) — Lamps › LED Lamps › Pin-Based CFL Replacements.
Specifications
| Watts | 3W |
| Lumens | 410L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.030/0.013A |
| Hours Rated | 50000 |
| Dimmable | Non-Dimmable |
| Beam Angle (degree) | 360 |
| Lamp Base | G23 (2-Pin) |
| ANSI Base | G23 |
| Lamp Type | PLS |
| Product Technology | LED |
| Fluor Equiv | 9W |
| Lamp Ballast Type AB | Type A/B |
| Fixture Type | PL |
| Finish | WHITE |
| Finish Family | White |
| Material | Plastic / Aluminum |
| Housing Color | White |
| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Certified |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <25% |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Warranty | 5-Years |
| MOL | 5.3 |
| MOD Lamps | 1.3 |
| Web Length | 5.3 |
| Web Width | 1.3 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923298806 |
| Case Quantity | 24 |
| Pack Type | Color Box |
S29880 Ballast Compatibility Chart (PDF) · S29880 Instructions (PDF) · Satco product page
Product Information
Part Number
S29880
Brand
SATCO
Product Code
S29880
UPC
045923298806
Specifications
Technology
LED
Wattage
3
Input Voltage
120V-277V
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
G23 (2-Pin)
Lumens
410.0
Hours
50000
CRI
80
Beam Spread
360
