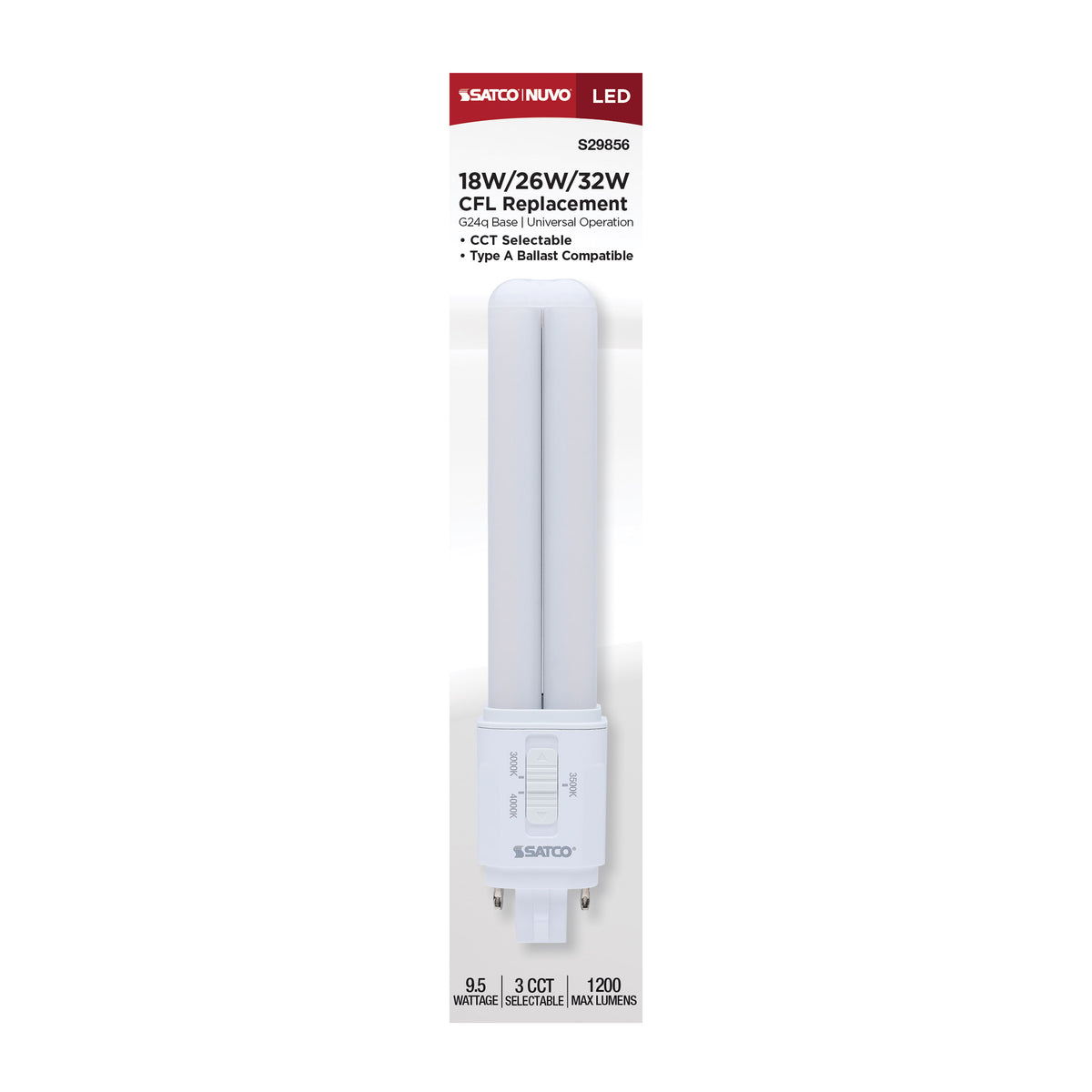

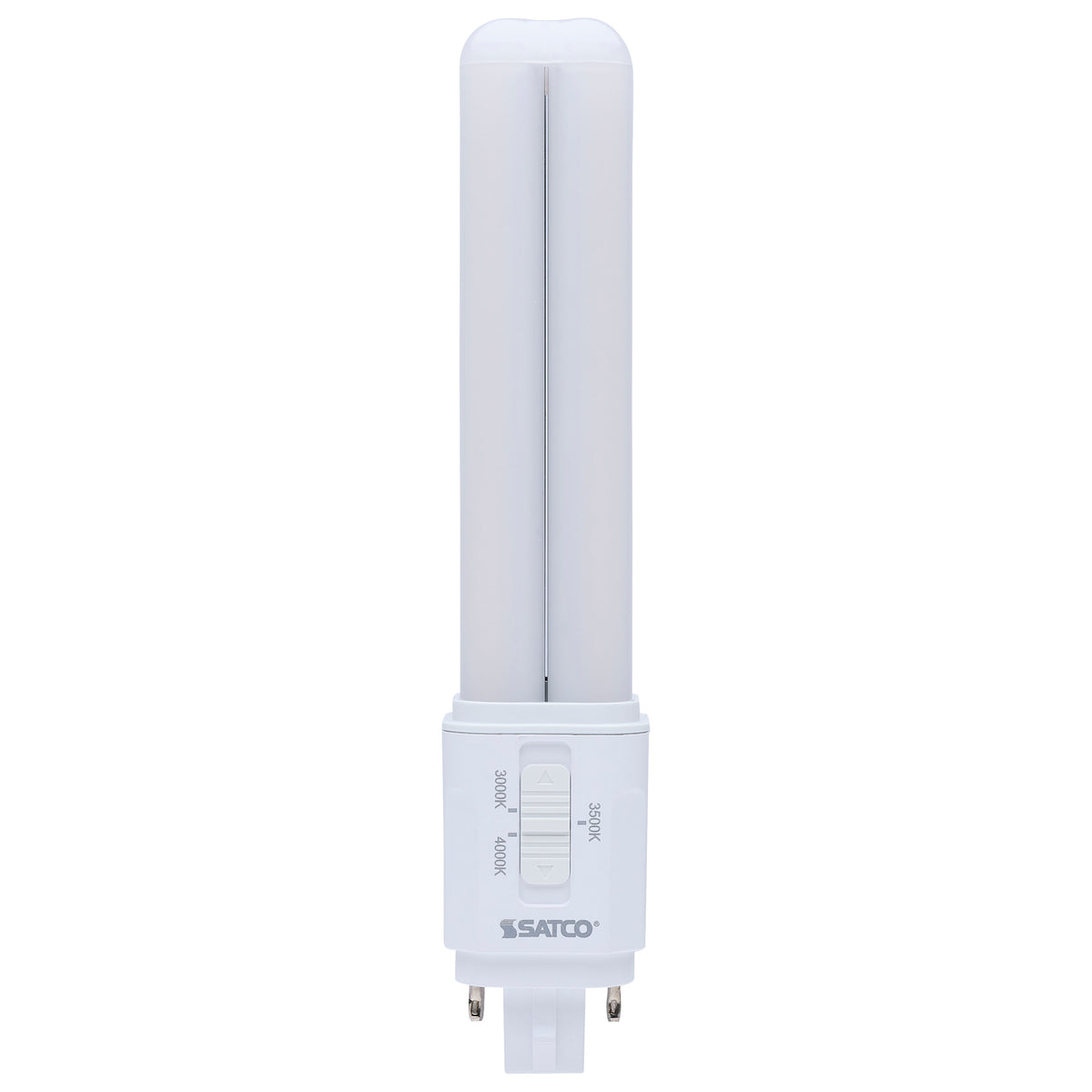

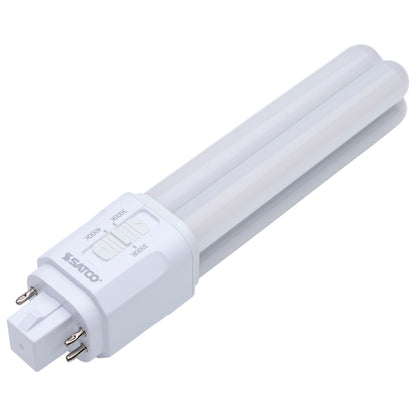

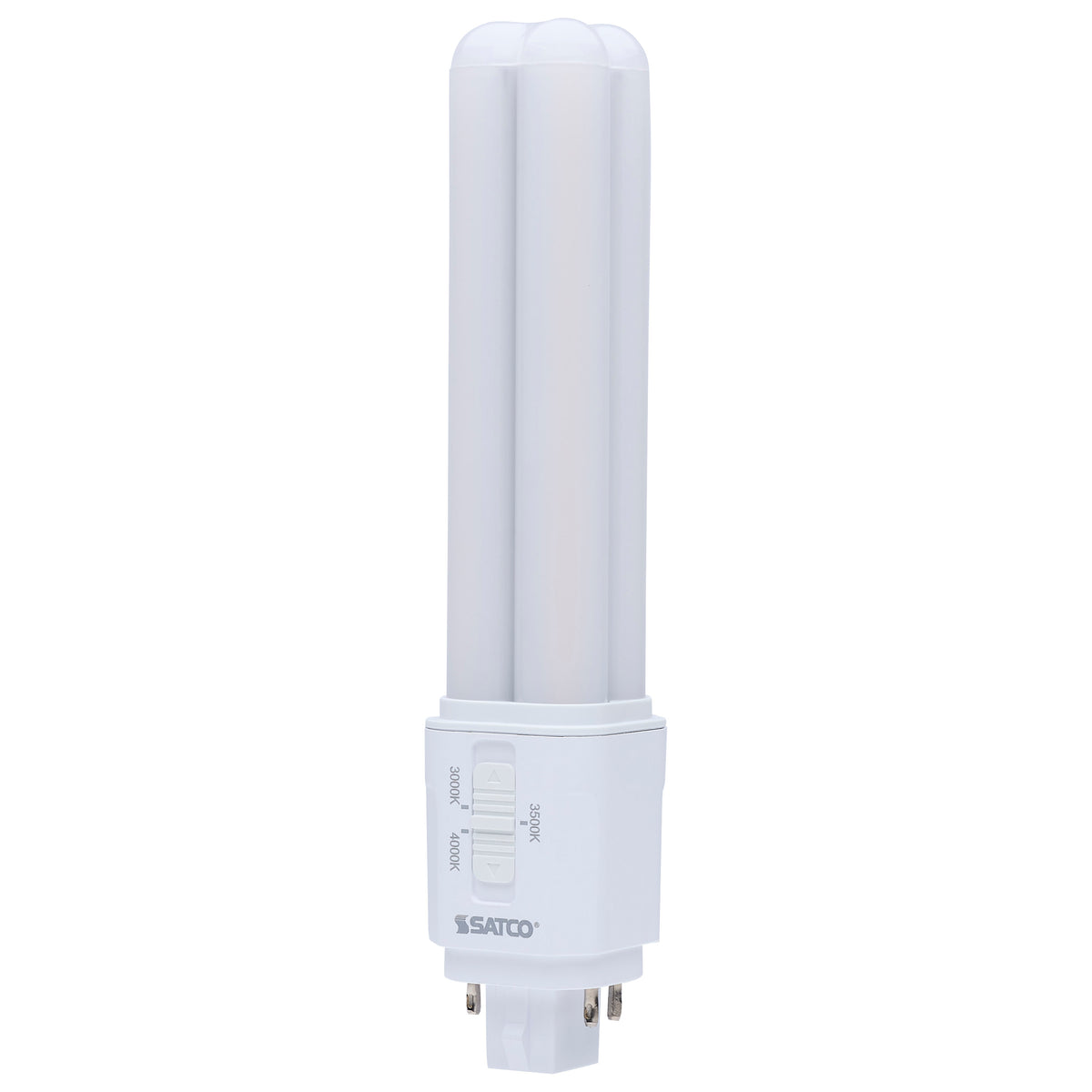

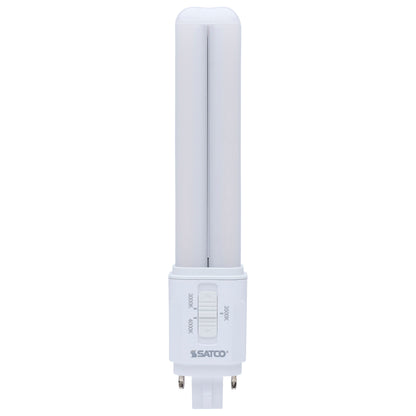

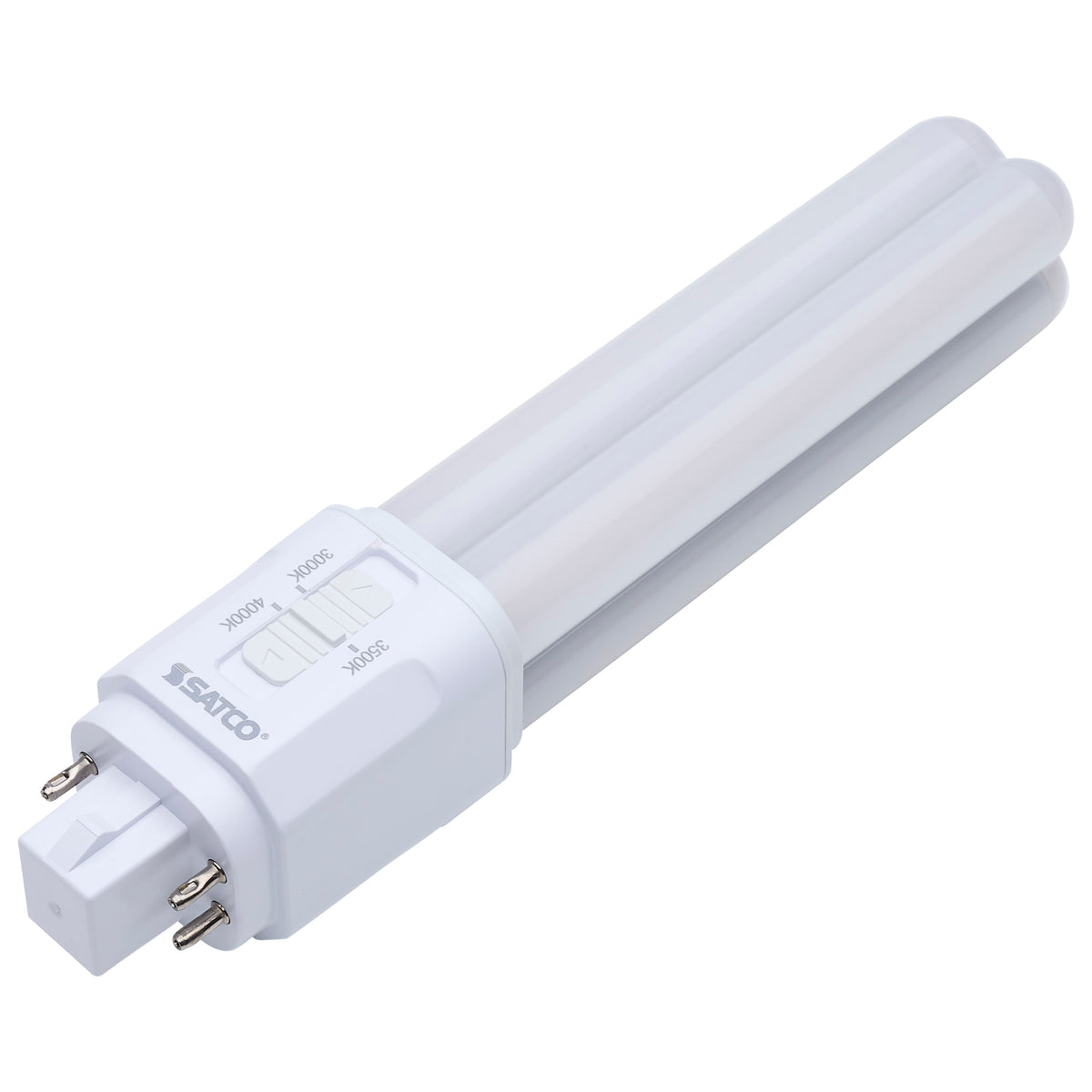

9.5 Watt LED PL; 30K/35K/40K CCT Selectable; G24q Base; Type A
9.5W/LED/CFL/3CCT/DR/4P (Satco S29856) — Lamps › LED Lamps › Pin-Based CFL Replacements.
Specifications
| Watts | 9.5W |
| Lumens | 1100L/1150L/1200L |
| CCT (Kelvin Temp) | 3000K/3500K/4000K |
| Color Temp | Warm to Cool White |

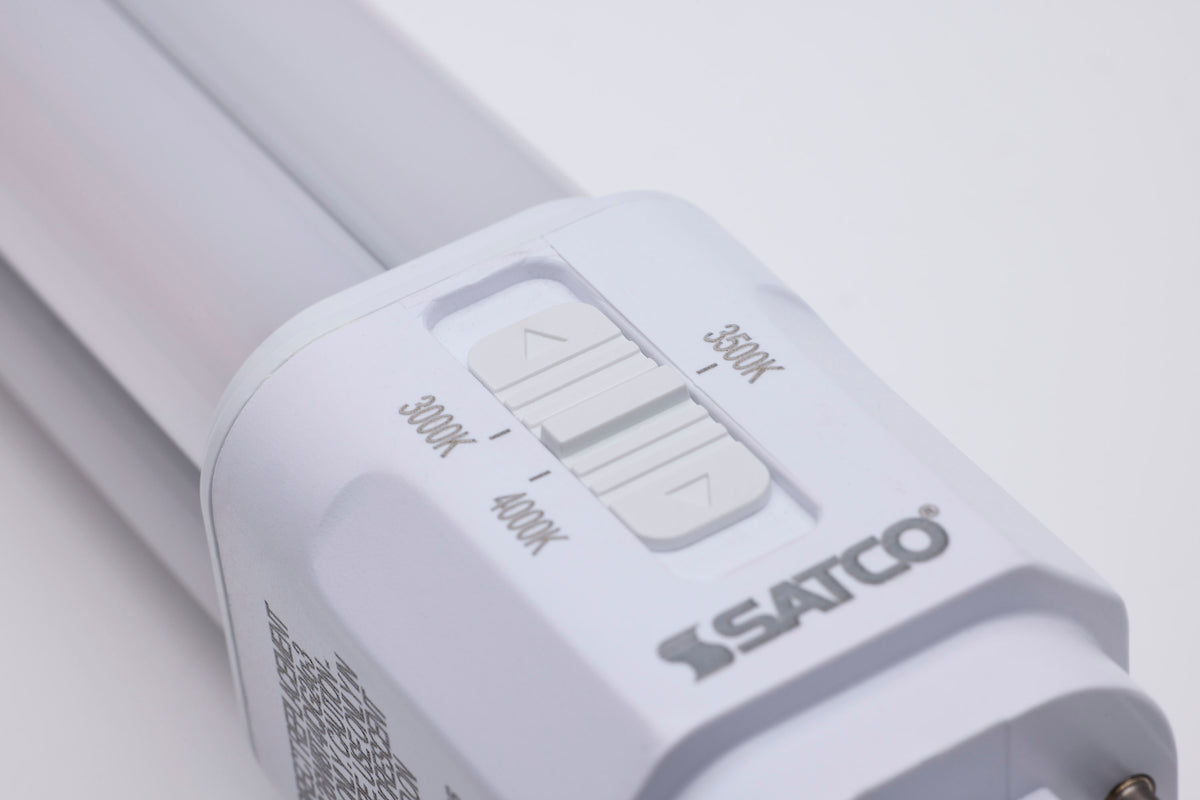

| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | Ballast Dependent |
| Amps | 0.079-0.034A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Check Ballast MFG for Dimmer Compatibility |
| Beam Angle (degree) | 360 |
| Lamp Base | G24q (4-Pin) |
| ANSI Base | G24q |
| Lamp Type | PL |
| Product Technology | LED |
| Fluor Equiv | 18W/26W/32W |
| Lamp Ballast Type AB | Type A |
| Fixture Type | PL |
| Style | Transitional |
| Finish | Frost |
| Finish Family | White |
| Material | Aluminum / Plastic |
| Housing Color | White |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | 0.9 |
| Total Harmonic Distortion | <20% |
| Warranty | 5-Years |
| MOL | 6.9 |
| MOD Lamps | 1.4 |
| Web Length | 6.9 |
| Web Width | 1.4 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923298561 |
| Case Quantity | 24 |
| Pack Type | Box |
S29856 Ballast Compatibility Chart (PDF) · S29856 Instructions (PDF) · Satco product page
Product Information
Part Number
S29856
Brand
SATCO
Product Code
S29856
UPC
045923298561
Specifications
Technology
LED
Wattage
9.5
Input Voltage
Ballast Dependent
Color Temperature
3000K/3500K/4000K
Lamp Base
G24q (4-Pin)
Lumens
1100.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
360
