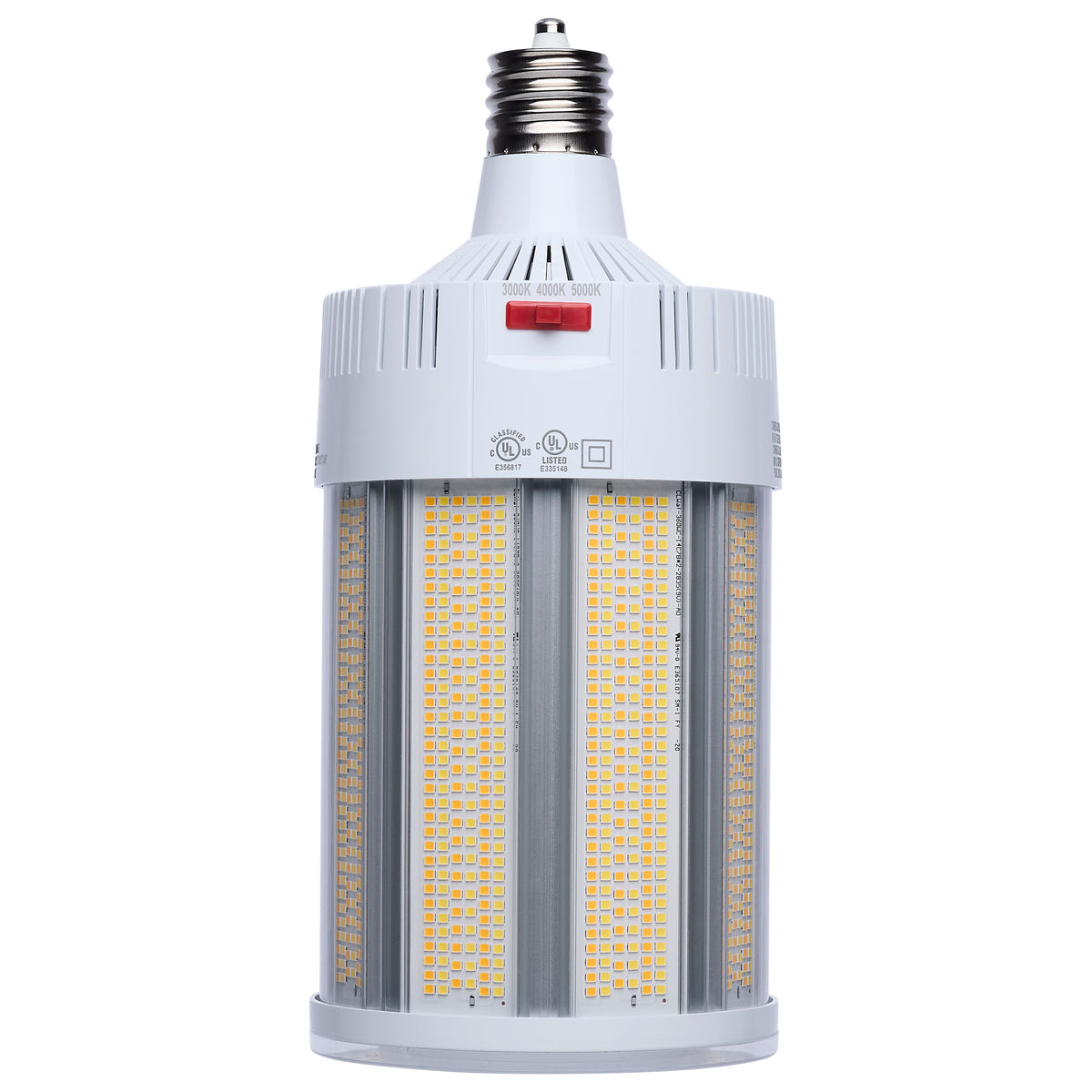

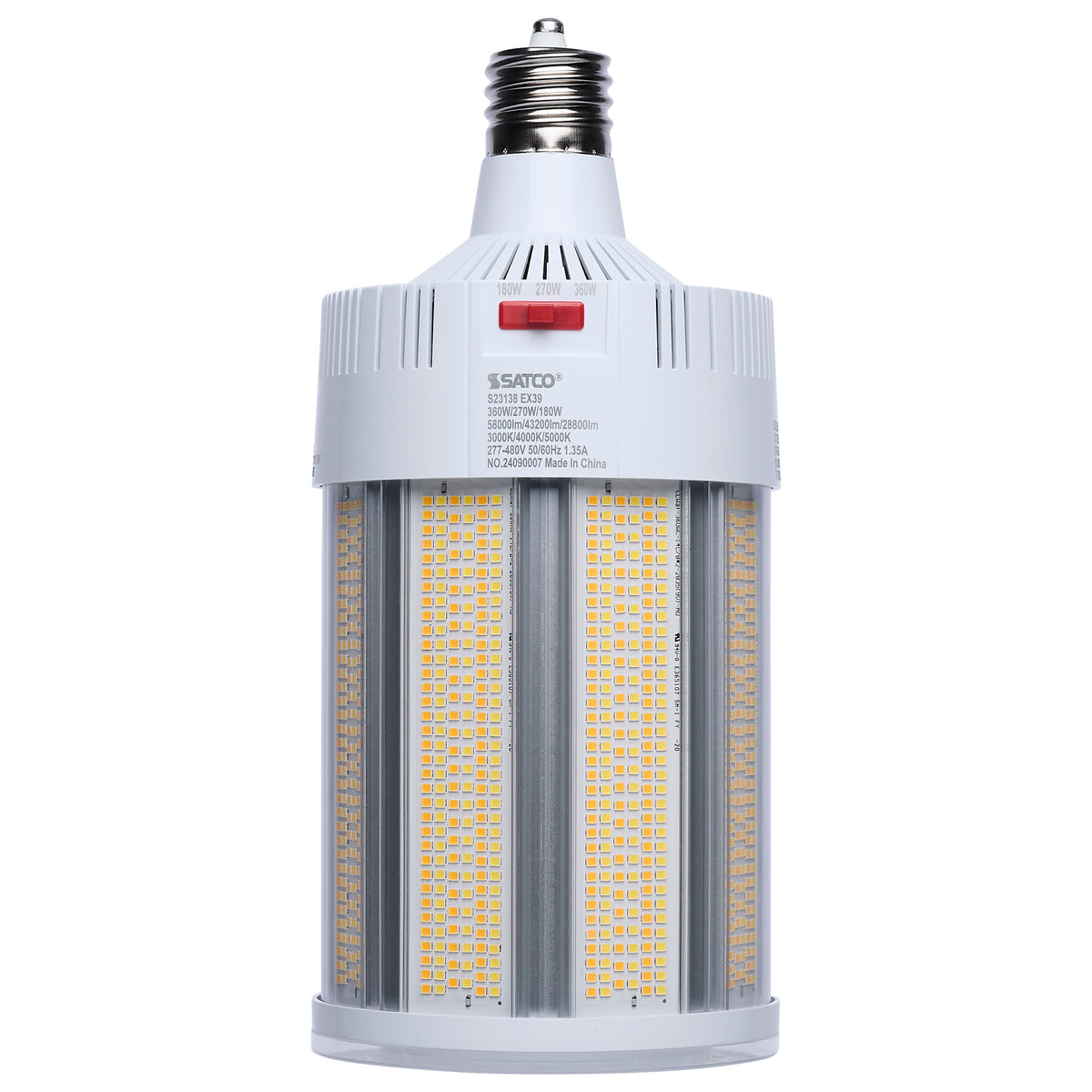

Satco S23138 360W/270W/180W Corncob CCT Selectable LED Light Bulb Mogul Extended Base
Satco S23138 360W/270W/180W Corncob CCT Selectable LED Light Bulb Mogul Extended Base
SATCO
Regular price
$269.95 USD
Regular price
Sale price
$269.95 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279945
Couldn't load pickup availability
360/270/180 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 277-480 Ranged Voltage; 750 Watt HID Replacement360W/LED/CCT/277-480V/EX39 (Satco S23138) — Lamps › LED Lamps ...
Show More
360/270/180 Watt; 30K/40K/50K CCT; Field Selectable LED; Corncob; Mogul Extended Base; 277-480 Ranged Voltage; 750 Watt HID Replacement
360W/LED/CCT/277-480V/EX39 (Satco S23138) — Lamps › LED Lamps › HID Replacement.
Specifications
| Watts | 360W/270W/180W |
| Lumens | 59004L/46160L/31799L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 277V-480V |
| Amps | 1.300-0.750/0.975-0.563/0.650-0.375A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls., Step Dimming |
| Beam Angle (degree) | 280 |
| Lamp Base | Mogul Extended |
| ANSI Base | EX39 |
| Lamp Type | Corncob |
| Product Technology | LED |
| Lamp Ballast Type AB | Type B |
| Fixture Type | LED HID |
| Style | Contemporary |
| Finish | WHITE |
| Finish Family | White |
| Material | Aluminum / Polycarbonate (PC) |
| Housing Color | White |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Indoor Outdoor | Indoor and Outdoor |
| Location Rating | Damp |
| IP Rating | IP54 |
| Safety Listing | cULus - Classified, cULus - Listed |
| Operating Temp | -40F to +122F (-40C to +50C) |
| Power Factor | 0.97 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 4KV |
| Warranty | 5-Years |
| MOL | 12.3 |
| MOD Lamps | 5.6 |
| Web Length | 12.3 |
| Web Width | 5.6 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923231384 |
| Case Quantity | 6 |
| Pack Type | Box |
S23138 Instructions (PDF) · S23138 Spec Chart (PDF) · Satco product page
Product Information
Part Number
S23138
Brand
SATCO
Product Code
S23138
UPC
045923231384
Specifications
Technology
LED
Wattage
360
Input Voltage
277V-480V
Color Temperature
3000K/4000K/5000K
Lamp Base
Mogul Extended
Lumens
59004.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
280
