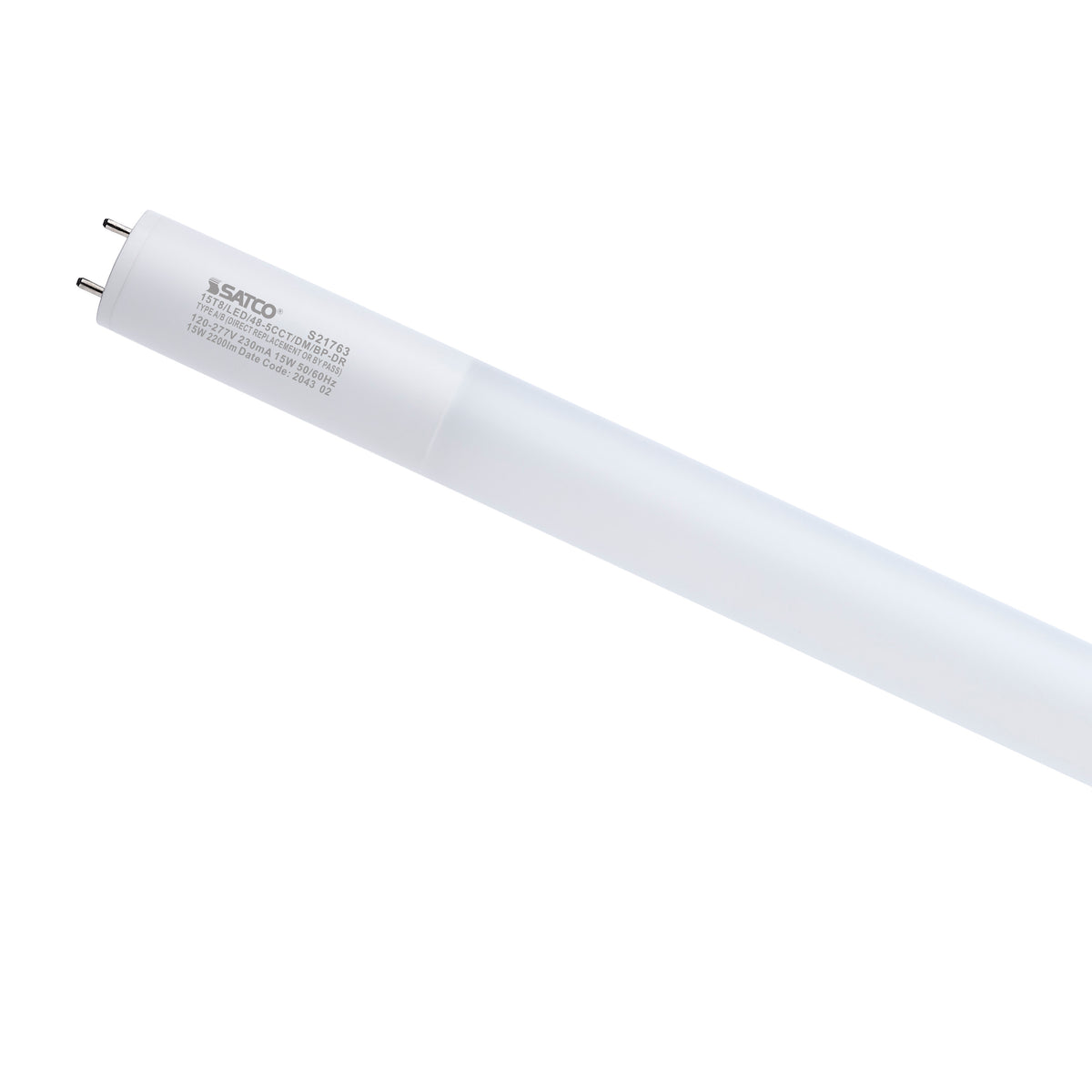

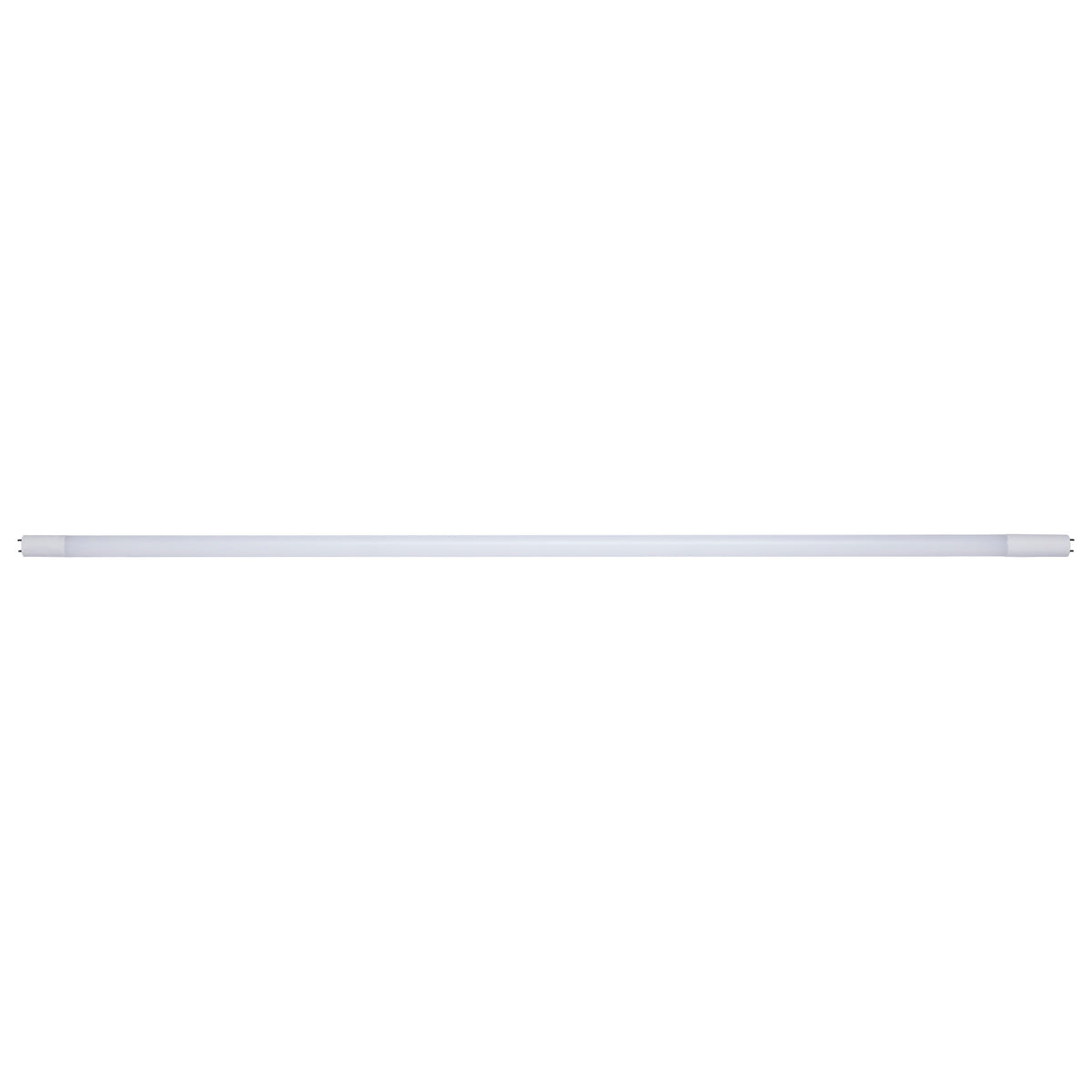

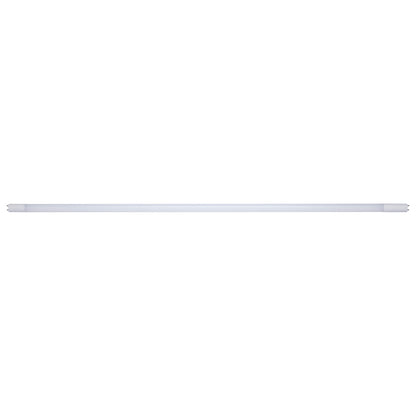

Satco S21763 15W T8 CCT Selectable LED Light Bulb Medium Bi Pin Base
Satco S21763 15W T8 CCT Selectable LED Light Bulb Medium Bi Pin Base
SATCO
Regular price
$13.12 USD
Regular price
Sale price
$13.12 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279931
Couldn't load pickup availability

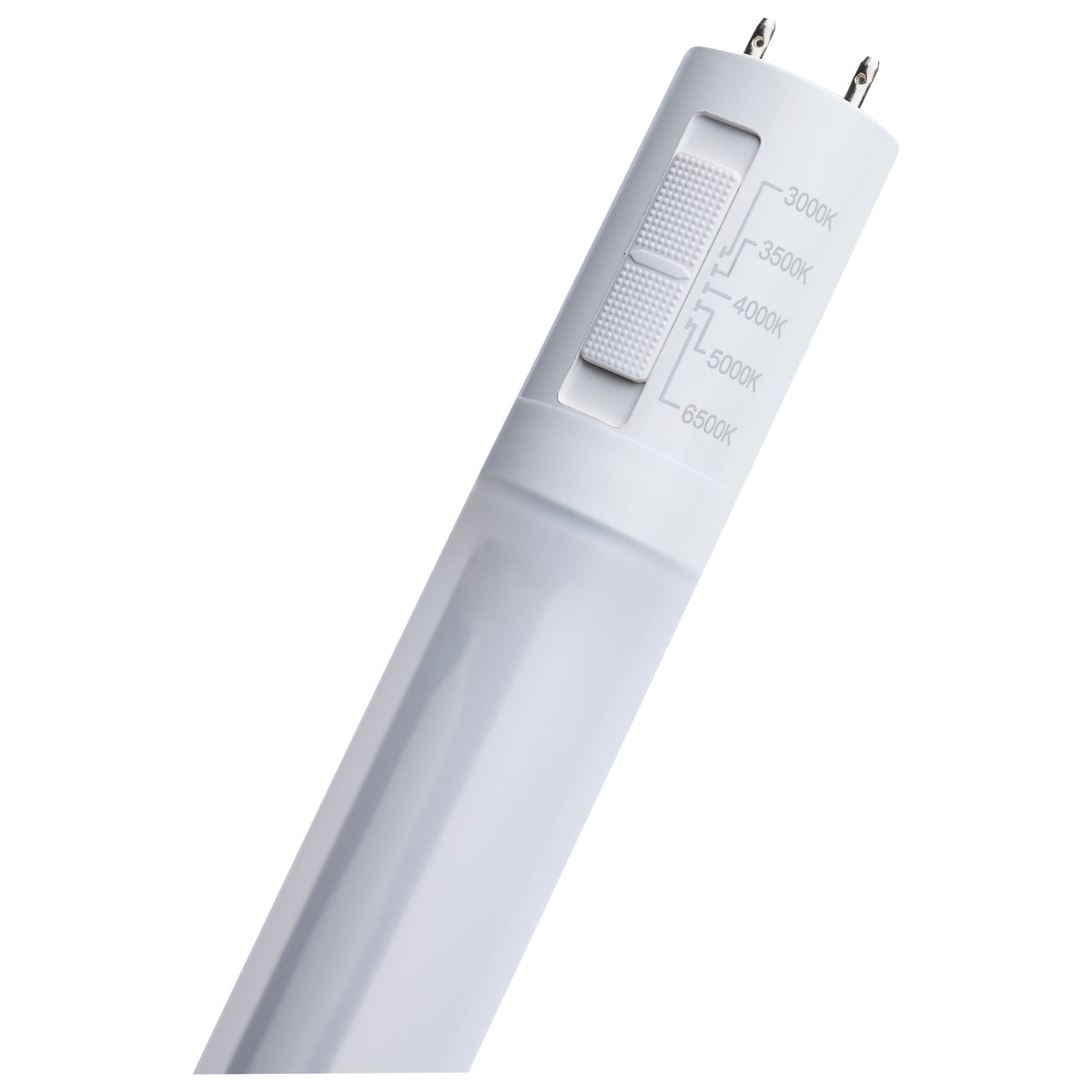

15 Watt T8 LED; 48-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost Finish; 120-277 Ranged Voltage; Glass with PET Coating15T8/LED/48-5CCT/DM/BP-DR (Satco S21763) — Lamps...
Show More
15 Watt T8 LED; 48-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost Finish; 120-277 Ranged Voltage; Glass with PET Coating
15T8/LED/48-5CCT/DM/BP-DR (Satco S21763) — Lamps › LED Lamps › TLED.
Specifications
| Watts | 15W |
| Lumens | 2200L |
| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
| Color Temp | Soft White to Daylight |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.125-0.054A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Check Ballast MFG for Dimmer Compatibility, Only in Type A mode |
| Beam Angle (degree) | 170 |
| Lamp Base | Medium Bi Pin |
| ANSI Base | G13 |
| Lamp Type | T8 |
| Product Technology | LED |
| Fluor Equiv | 25W/28W/30W/32W |
| Lamp Ballast Type AB | Type A/B |
| Fixture Type | Linear |
| Style | Utility |
| Finish | Frost |
| Finish Family | White |
| Material | Glass |
| Housing Color | White |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | 0.9 |
| Total Harmonic Distortion | 20% |
| Warranty | 5-Years |
| MOL | 48.67 |
| MOD Lamps | 1.0 |
| Web Length | 48.67 |
| Web Width | 1.0 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923217630 |
| Case Quantity | 25 |
| Pack Type | Sleeve |
S21763 Ballast Compatibility Chart (PDF) · S21763 Instructions (PDF) · Satco product page
Product Information
Part Number
S21763
Brand
SATCO
Product Code
S21763
UPC
045923217630
Specifications
Technology
LED
Wattage
15
Input Voltage
120V-277V
Color Temperature
3000K/3500K/4000K/5000K/6500K
Lamp Base
Medium Bi Pin
Lumens
2200.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
170
