Satco S21615 38W/31W/26W Integrated LED CCT Selectable LED Light Bulb Integrated Base
Satco S21615 38W/31W/26W Integrated LED CCT Selectable LED Light Bulb Integrated Base
SATCO
Regular price
$279.95 USD
Regular price
Sale price
$279.95 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279881
Couldn't load pickup availability

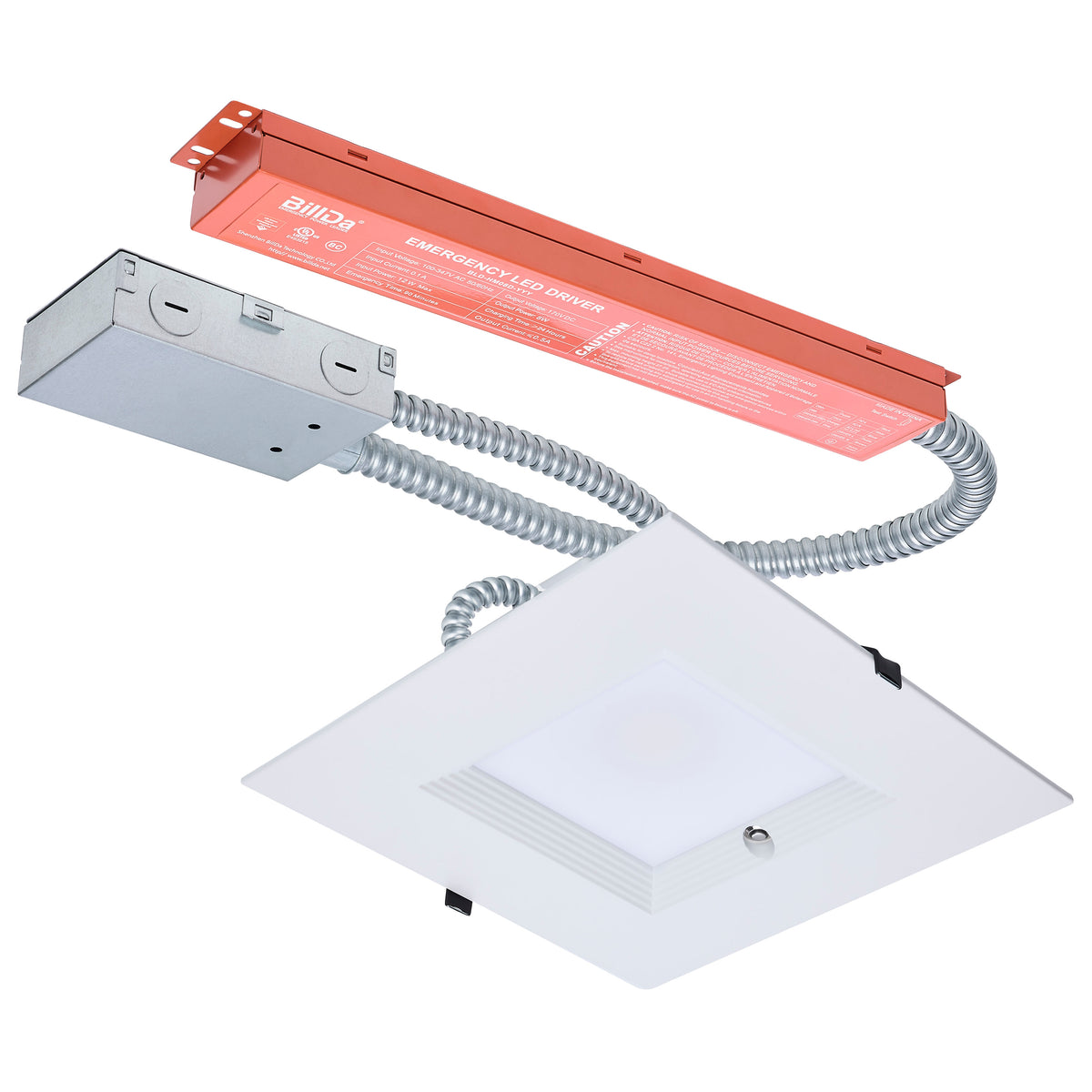

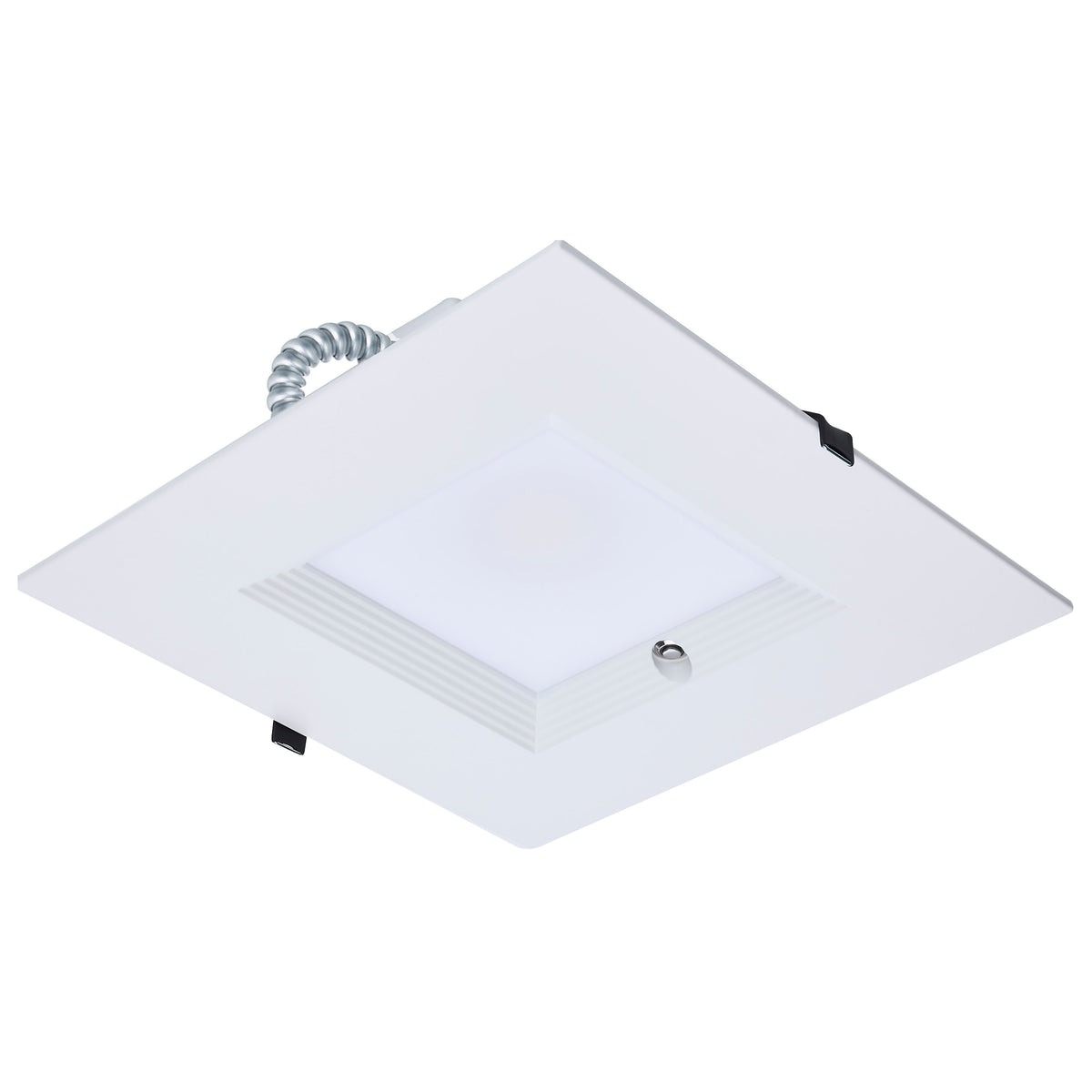

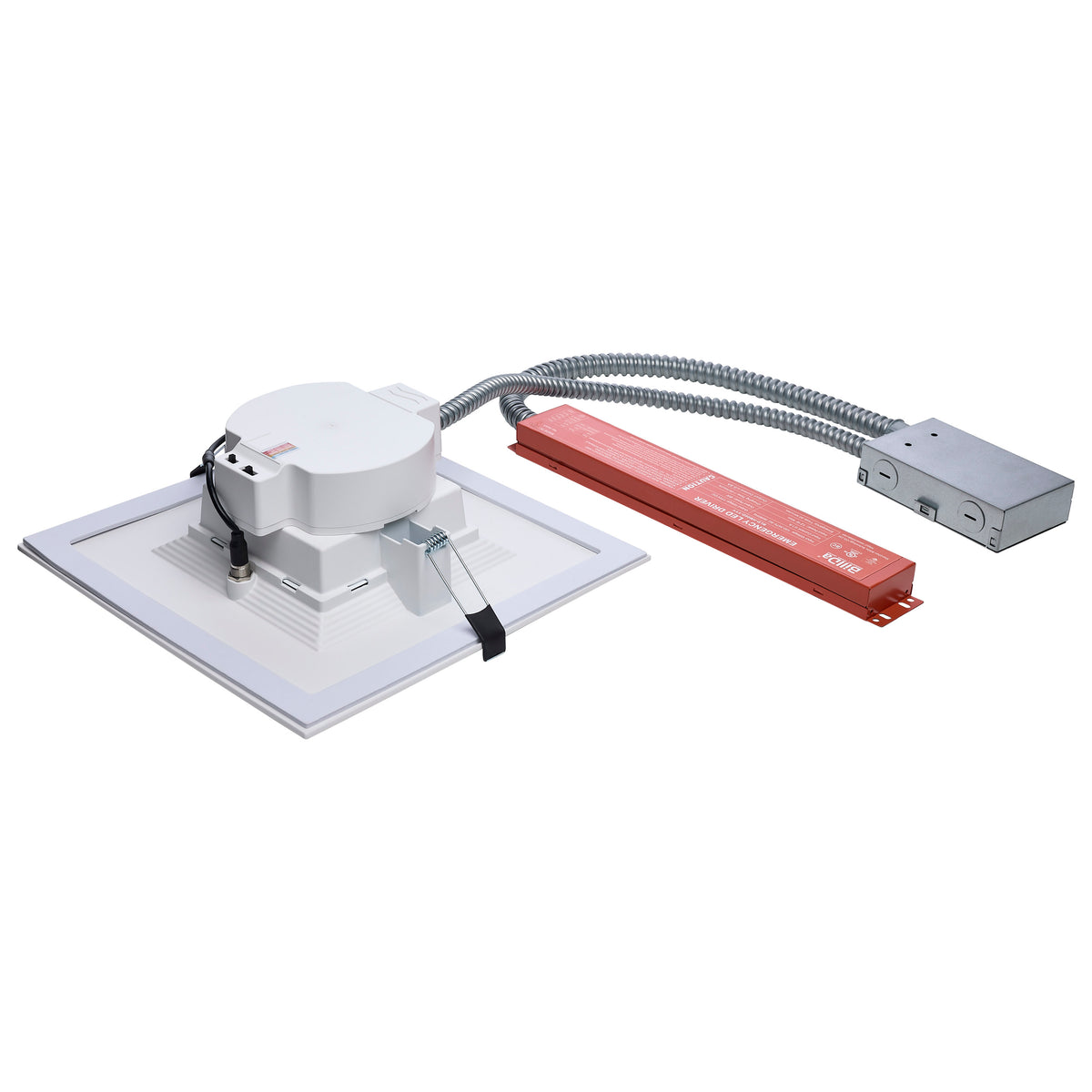

Plus Series Commercial LED Downlight; 10 Inch Square; 38W/31W/26W Wattage Selectable; 2700K/3000K/3500K/4000K/5000K CCT Selectable; Integrated Emergency Driver; 120-277 Volt; Dual Dimming; Color tr...
Show More
Plus Series Commercial LED Downlight; 10 Inch Square; 38W/31W/26W Wattage Selectable; 2700K/3000K/3500K/4000K/5000K CCT Selectable; Integrated Emergency Driver; 120-277 Volt; Dual Dimming; Color trim accessories available
38W/CDL/10/120-277/FS/SQ/DD/E (Satco S21615) — Commercial Fixtures › Downlights › Commercial Downlights.
Specifications
| Watts | 38W/31W/26W |
| Lumens | 4200L/3700L/3200L |

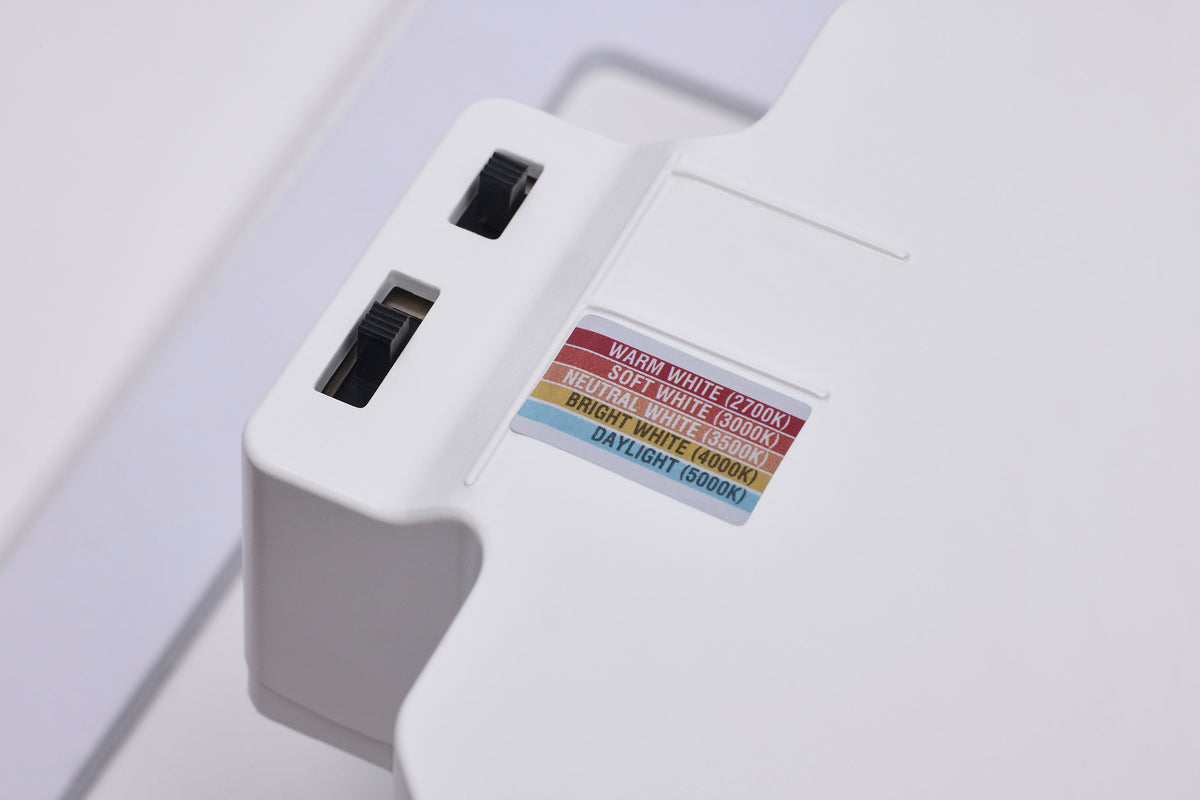

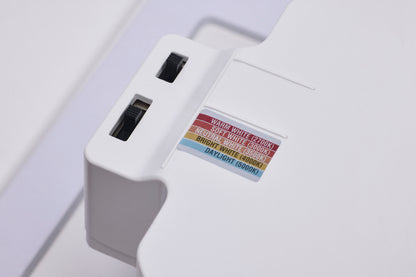

| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 90+ |
| Volts | 120V-277V |
| Amps | 0.267-0.116/0.242-0.105/0.200-0.087A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Dual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-347V |
| Beam Angle (degree) | 100 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 200W |
| Fluor Equiv | 2 x 32W CFL |
| Fixture Type | Commercial Downlight Retrofit |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Aluminum |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling |
| Indoor Outdoor | Indoor and Outdoor |
| Location Rating | Wet |
| IP Rating | IP20 |
| Safety Listing | cETLus - Listed |
| Operating Temp | +41F to +104F (+5C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <30% |
| Surge Protection | Built-in surge protection - 2.5KV |
| Warranty | 5-Years |
| Web Length | 11.26 |
| Web Width | 11.26 |
| Web Height | 3.61 |
| Title 20 | Yes |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923411304 |
| Case Quantity | 3 |
| Pack Type | Color Box |
S21615 Instructions (PDF) · S21615 PI Photometrics (PDF) · Satco product page
Product Information
Part Number
S21615
Brand
SATCO
Product Code
S21615
UPC
045923411304
Specifications
Technology
LED
Wattage
38
Input Voltage
120V-277V
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lumens
4200.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
100
