Satco S21614 28W/25W/20W Integrated LED CCT Selectable LED Light Bulb Integrated Base
Satco S21614 28W/25W/20W Integrated LED CCT Selectable LED Light Bulb Integrated Base
SATCO
Regular price
$262.95 USD
Regular price
Sale price
$262.95 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279880
Couldn't load pickup availability

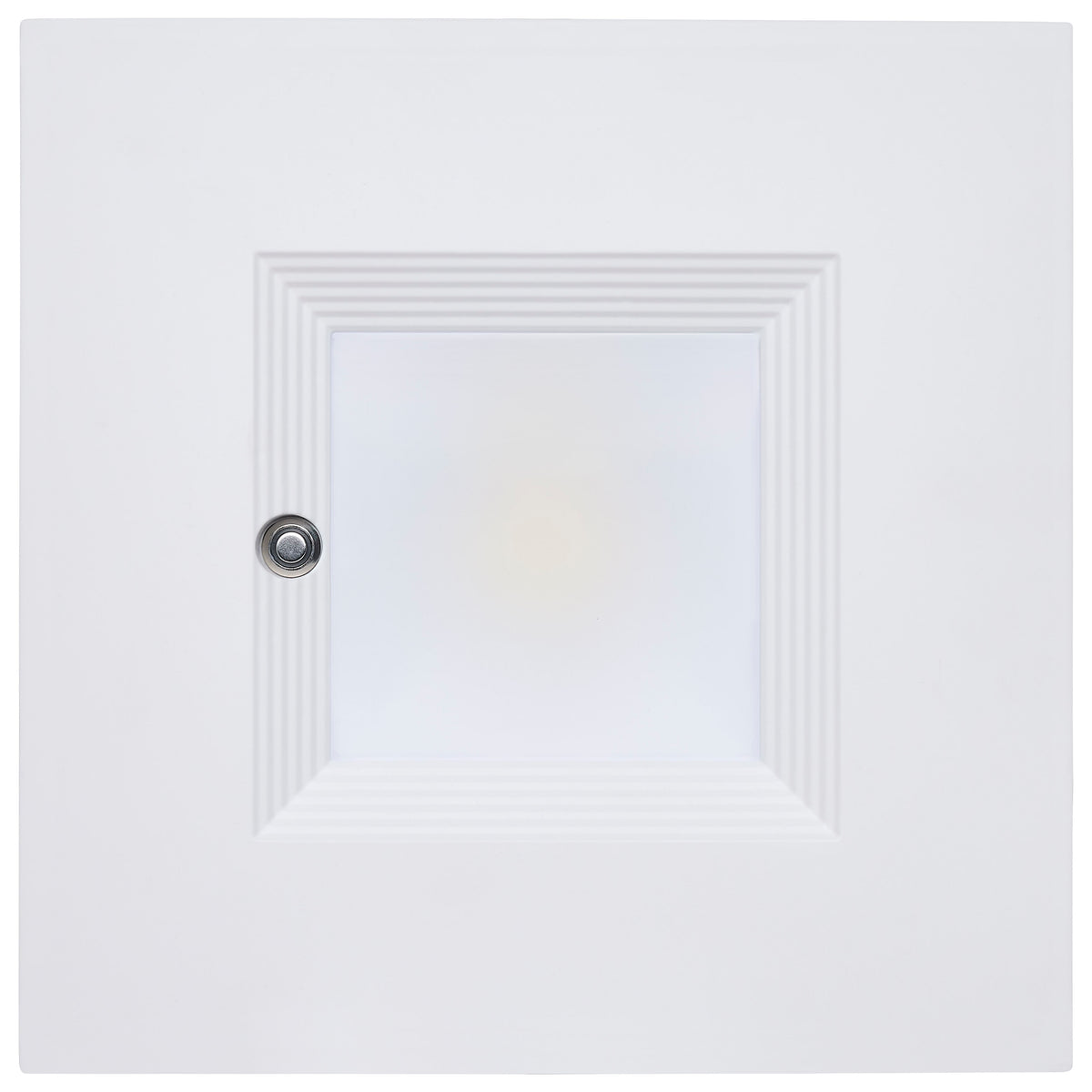

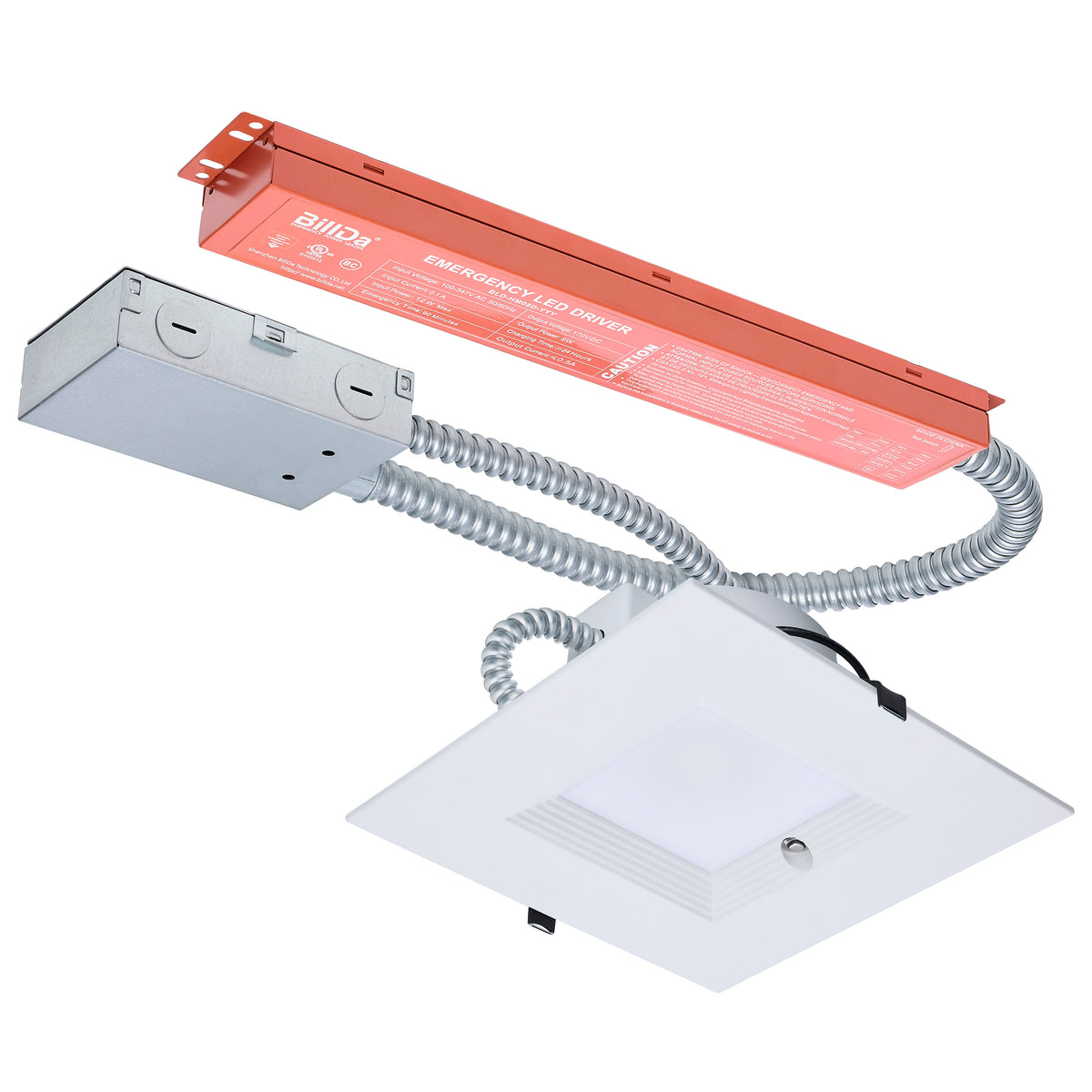

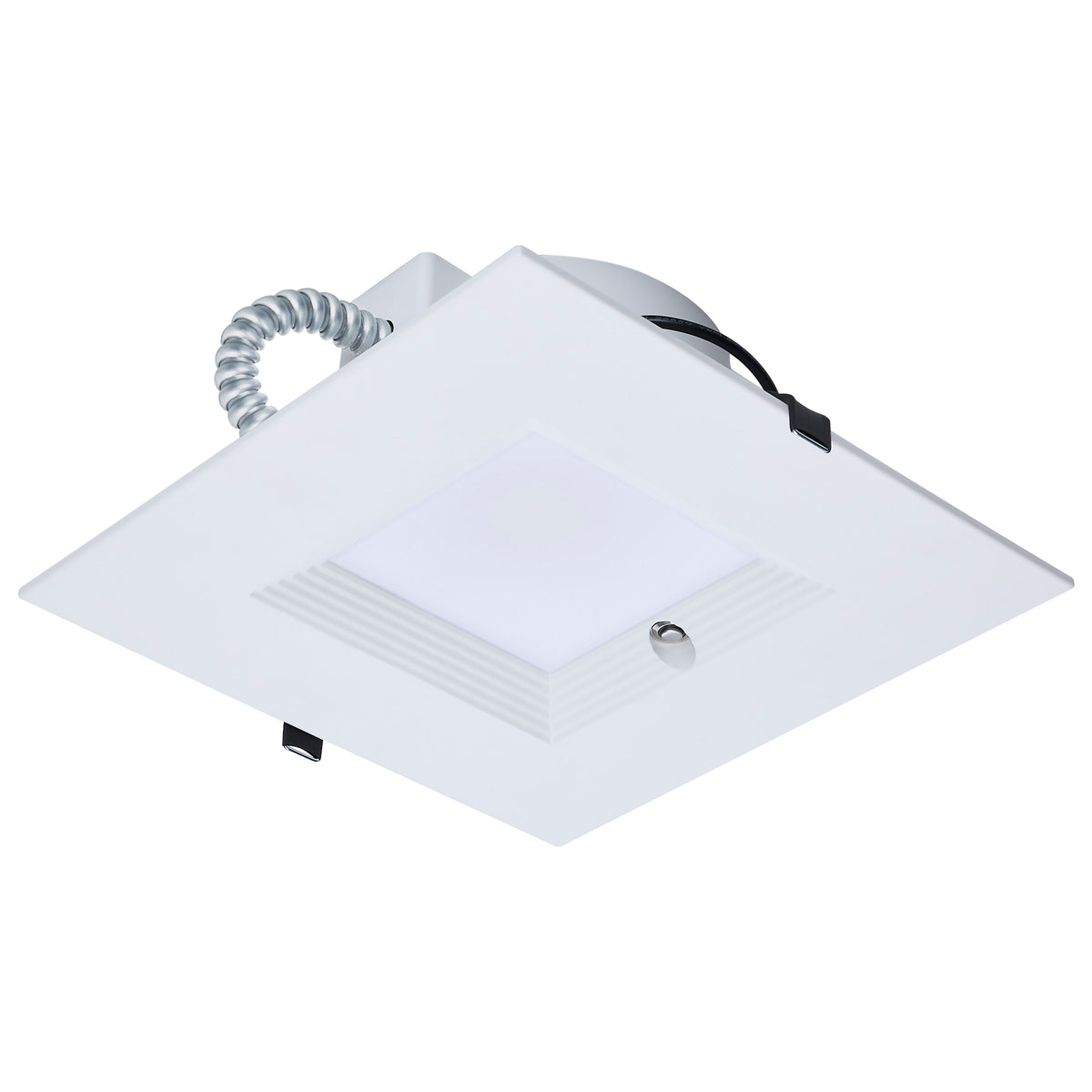

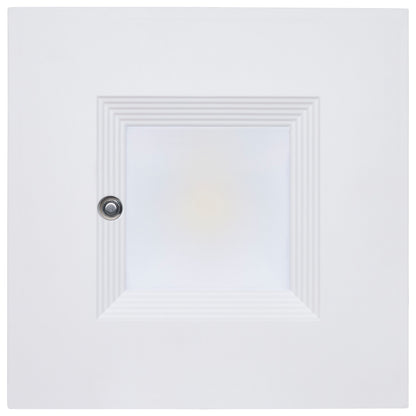

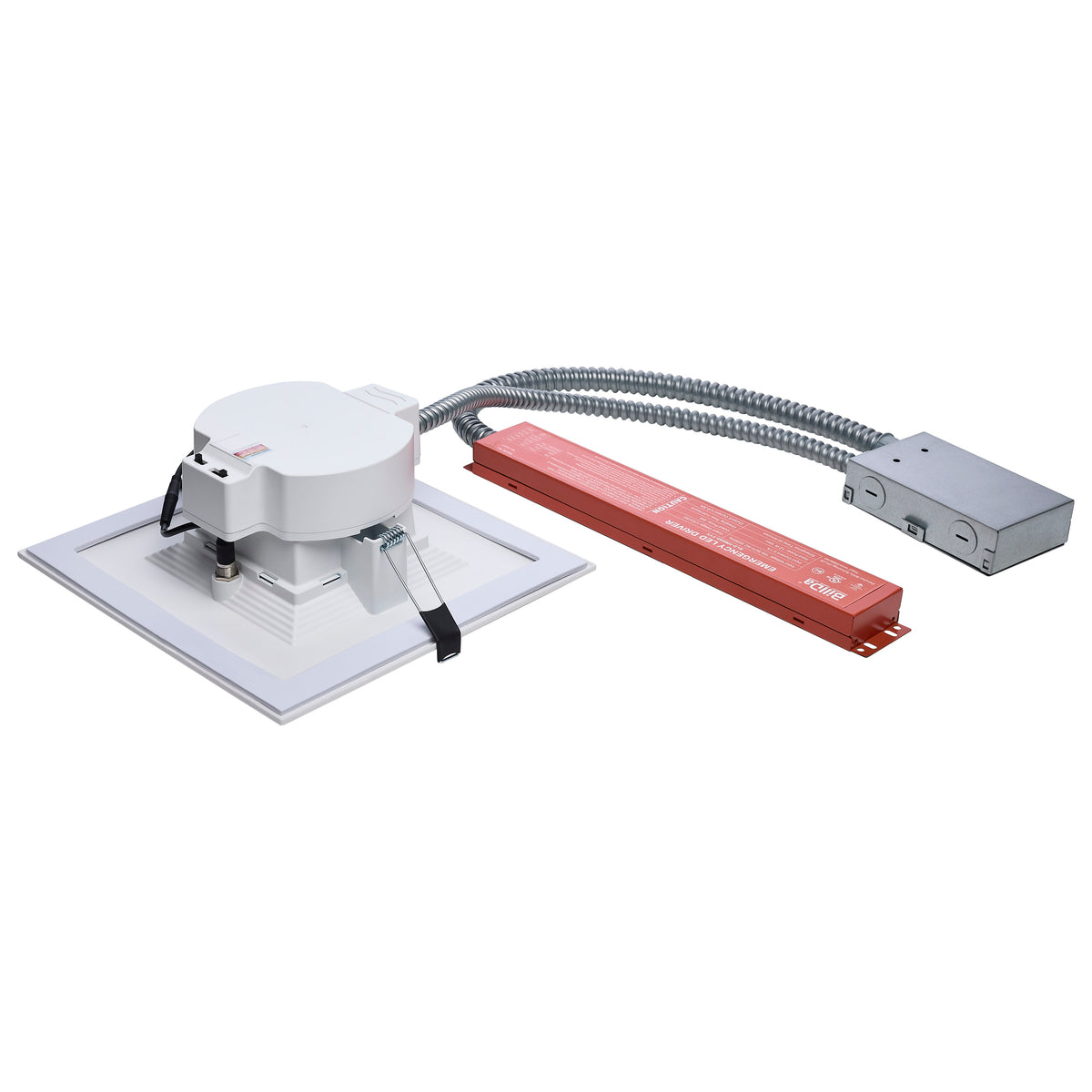

Plus Series Commercial LED Downlight; 8 Inch Square; 28W/25W/20W Wattage Selectable; 2700K/3000K/3500K/4000K/5000K CCT Selectable; Integrated Emergency Driver; 120-347 Volt; Dual Dimming; Color tri...
Show More
Plus Series Commercial LED Downlight; 8 Inch Square; 28W/25W/20W Wattage Selectable; 2700K/3000K/3500K/4000K/5000K CCT Selectable; Integrated Emergency Driver; 120-347 Volt; Dual Dimming; Color trim accessories available
28W/CDL/8/120-347/FS/SQ/DD/E (Satco S21614) — Commercial Fixtures › Downlights › Commercial Downlights.
Specifications
| Watts | 28W/25W/20W |
| Lumens | 3200L/2900L/2200L |

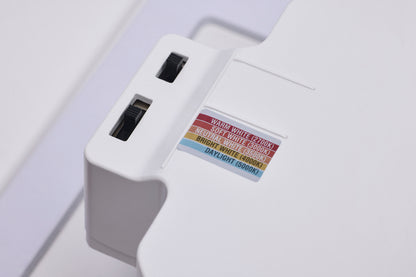

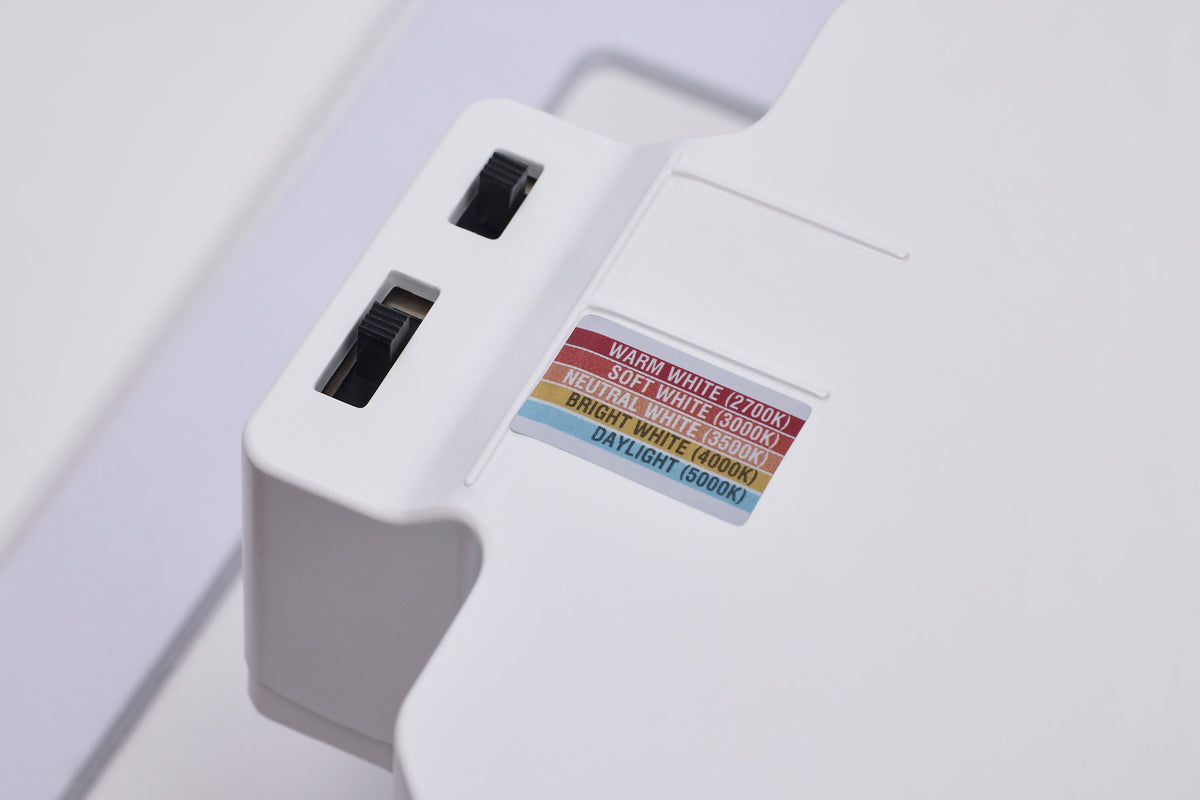

| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 90+ |
| Volts | 120V-347V |
| Amps | 0.213-0.073/0.188-0.065/0.143-0.050A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Dual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-347V |
| Beam Angle (degree) | 95 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 125W |
| Fluor Equiv | 2 x 26W CFL |
| Fixture Type | Commercial Downlight Retrofit |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Aluminum |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling |
| Indoor Outdoor | Indoor and Outdoor |
| Location Rating | Wet |
| IP Rating | IP20 |
| Safety Listing | cETLus - Listed |
| Operating Temp | +41F to +104F (+5C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <30% |
| Surge Protection | Built-in surge protection - 2.5KV |
| Warranty | 5-Years |
| Web Length | 9.76 |
| Web Width | 9.76 |
| Web Height | 3.61 |
| Title 20 | Yes |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923411298 |
| Case Quantity | 3 |
| Pack Type | Color Box |
S21614 Instructions (PDF) · S21614 PI Photometrics (PDF) · Satco product page
Product Information
Part Number
S21614
Brand
SATCO
Product Code
S21614
UPC
045923411298
Specifications
Technology
LED
Wattage
28
Input Voltage
120V-347V
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lumens
3200.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
95
