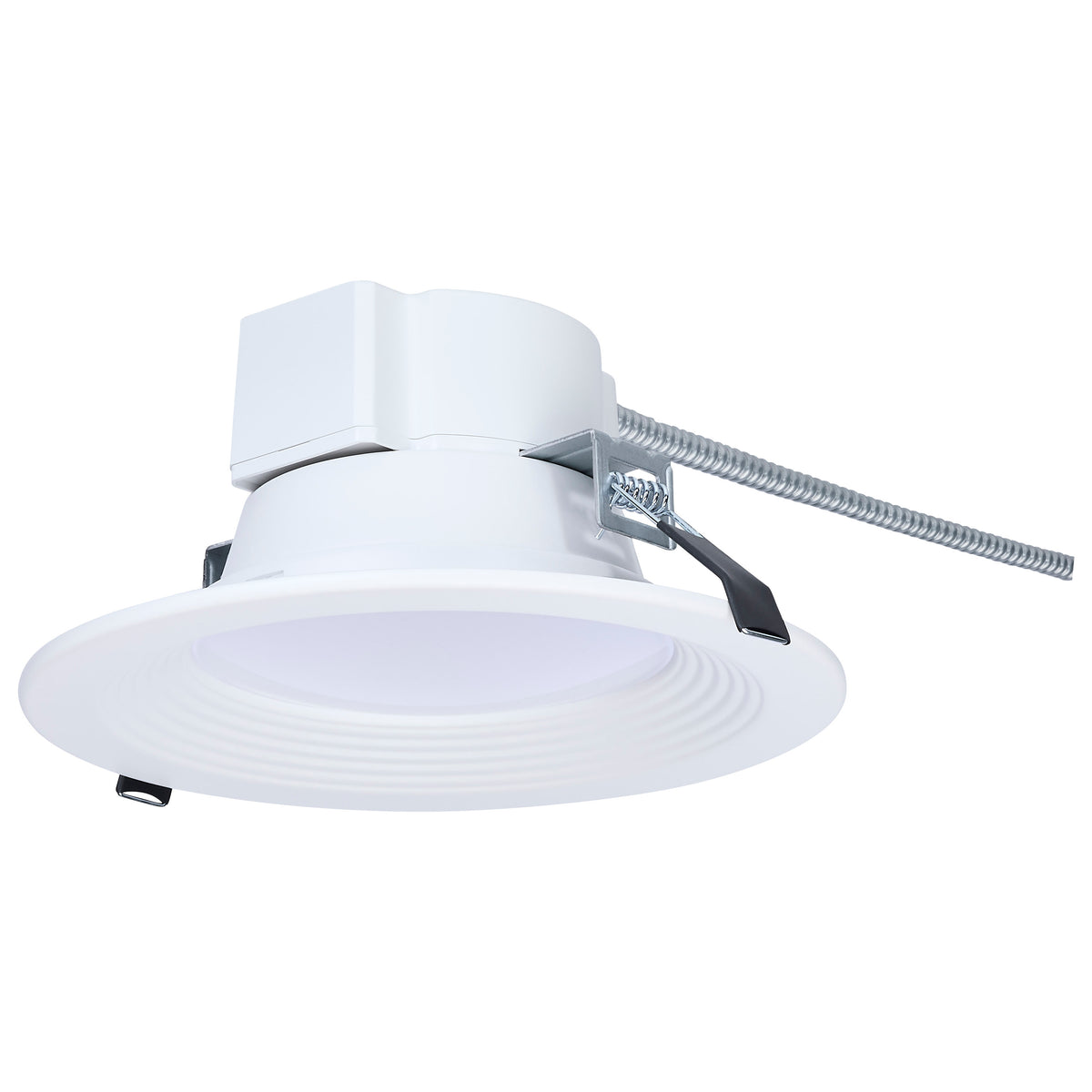

Satco S21601 18.5W/15.7W/13.2W Integrated LED CCT Selectable LED Light Bulb Integrated Base

Satco S21601 18.5W/15.7W/13.2W Integrated LED CCT Selectable LED Light Bulb Integrated Base

SATCO
$59.95 USD
$59.95 USD
Sale Sold out
Shipping calculated at checkout.

CB-0279867
Plus Series Commercial LED Downlight; 6 Inch Round; 18.5W/15.7W/13.2W Wattage Selectable; 2700K/3000K/3500K/4000K/5000K CCT Selectable; 120-347 Volt; Dual Dimming; Color trim accessories available1... Show More
View full details

Plus Series Commercial LED Downlight; 6 Inch Round; 18.5W/15.7W/13.2W Wattage Selectable; 2700K/3000K/3500K/4000K/5000K CCT Selectable; 120-347 Volt; Dual Dimming; Color trim accessories available

18.5W/CDL/6/120-347/FS/RND/DD (Satco S21601) — Commercial Fixtures › Downlights › Commercial Downlights.

Specifications

Watts 18.5W/15.7W/13.2W
Lumens 2200L/1800L/1400L
CCT (Kelvin Temp) 2700K/3000K/3500K/4000K/5000K
Color Temp Warm White to Natural Light
CCT Selectable Yes
Wattage Selectable Yes
CRI 90+
Volts 120V-347V
Amps 0.154-0.053/0.131-0.045/0.110-0.038A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type Dual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-347V
Beam Angle (degree) 105
Lamp Base Integrated
ANSI Base Integrated
Lamp Type Integrated LED
Product Technology LED
Incandescent Equivalent 100W
Fluor Equiv 32W
Fixture Type Commercial Downlight Retrofit
Style Utility
Finish WHITE
Finish Family White
Material Aluminum
Lens Material Polycarbonate (PC)
Bulb Included Integrated
Mounting Procedure Ceiling
Indoor Outdoor Indoor, Outdoor
Location Rating Wet
IP Rating IP20
Safety Listing cETLus - Listed
Operating Temp -4F to +104F (-20C to +40C)
Power Factor >0.9
Total Harmonic Distortion <30%
Surge Protection Built-in surge protection - 2.5KV
Warranty 5-Years
Web Width 7.4
Web Height 3.43
Title 20 Exempt
T24/JA8 Compliant Yes
California Ban Lawful for sale
UPC 045923411168
Case Quantity 8
Pack Type Color Box

S21601 Instructions (PDF) · S21601 PI Photometrics (PDF) · Satco product page

Product Information

Part Number S21601
Brand SATCO
Product Code S21601
UPC 045923411168

Specifications

Technology LED
Wattage 18.5
Input Voltage 120V-347V
Color Temperature 2700K/3000K/3500K/4000K/5000K
Lamp Base Integrated
Lumens 2200.0
Hours 50000
CRI 90
Dimmable true
Beam Spread 105
