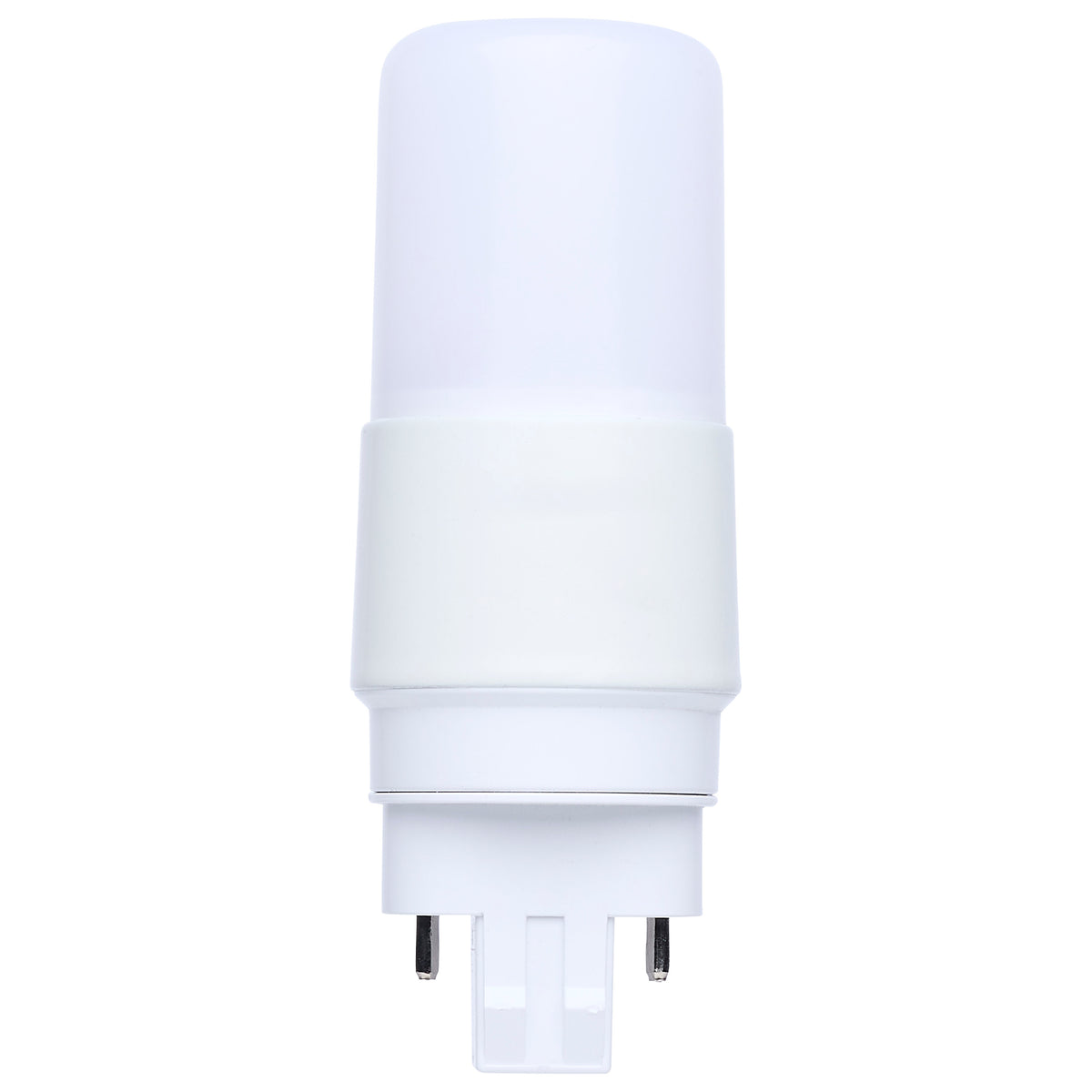

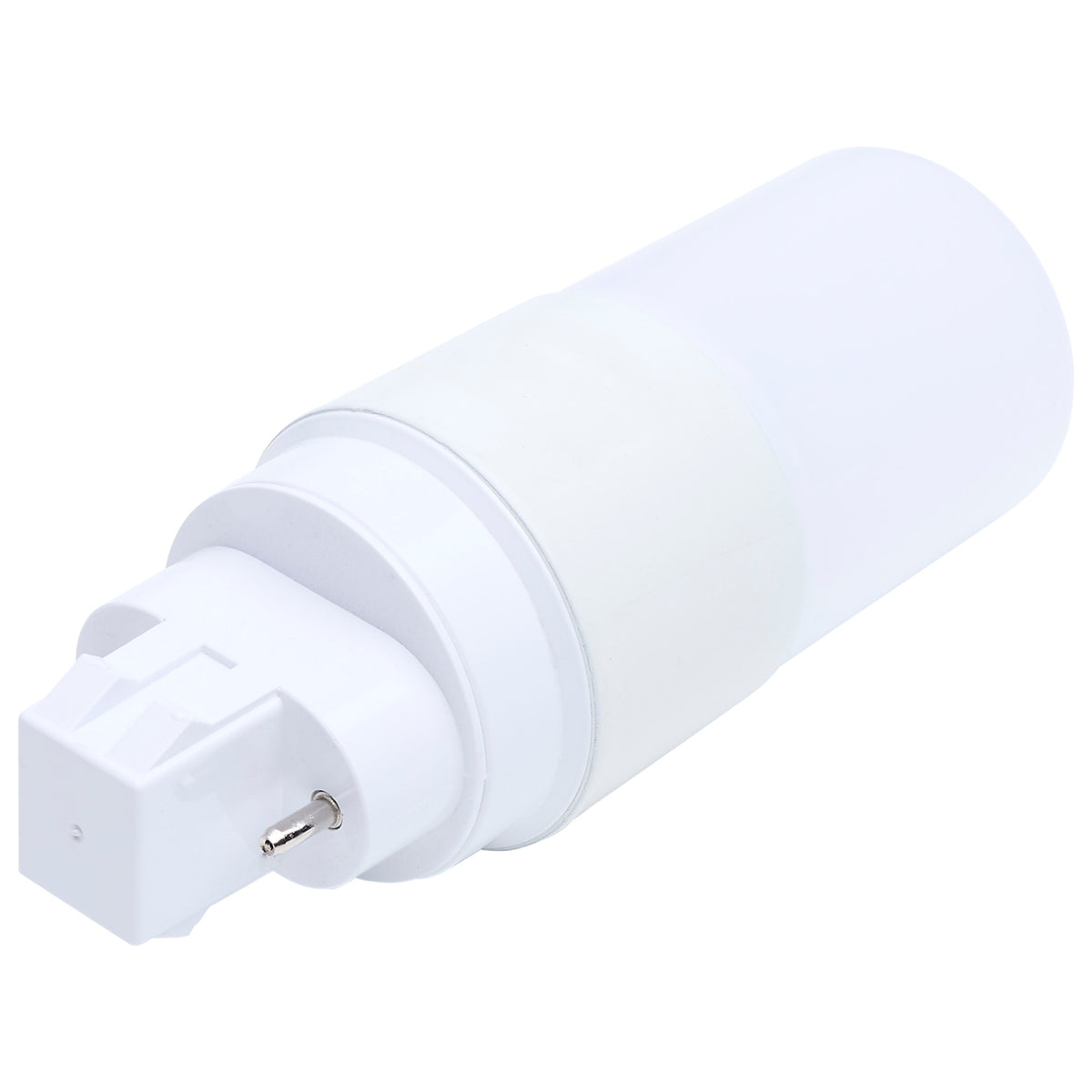

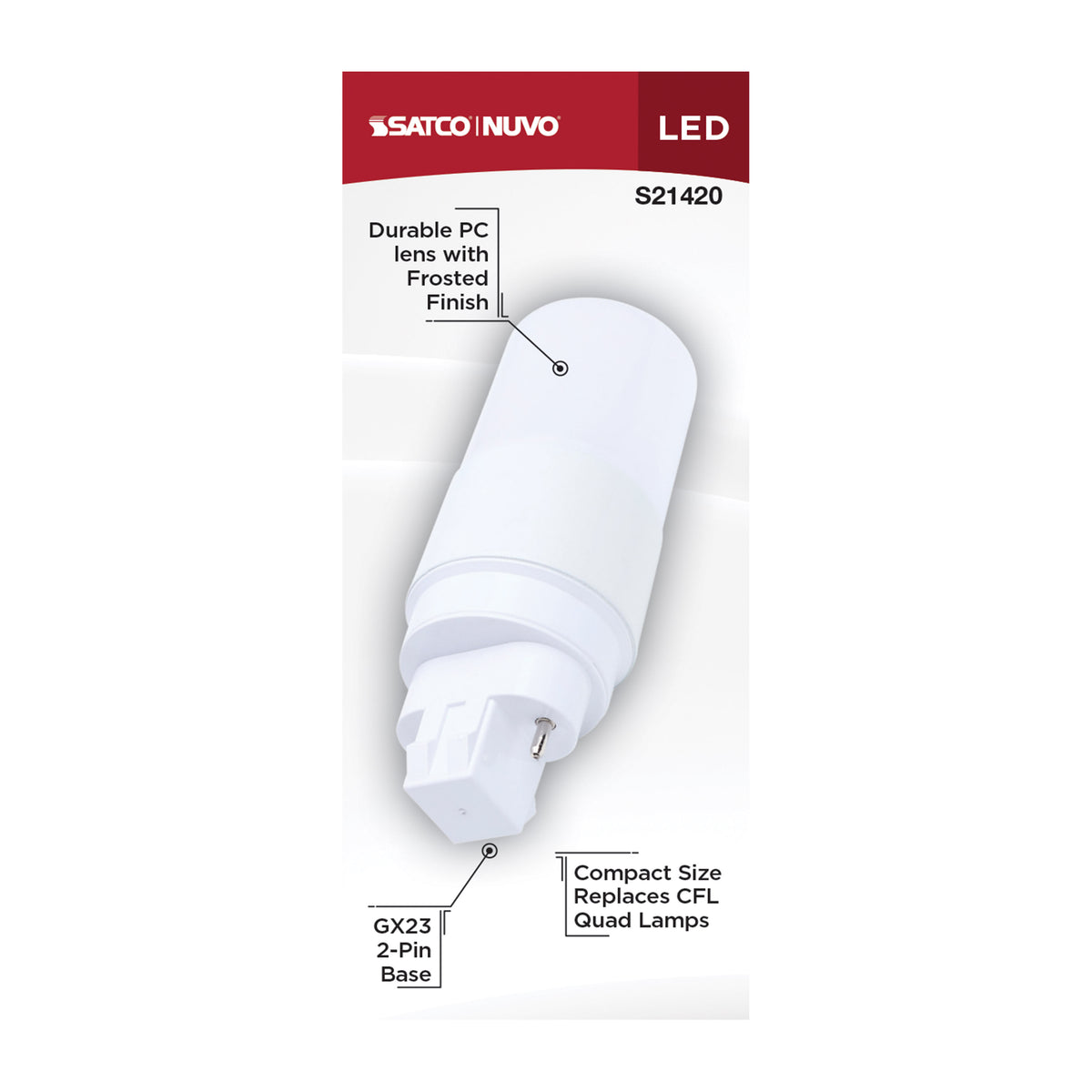

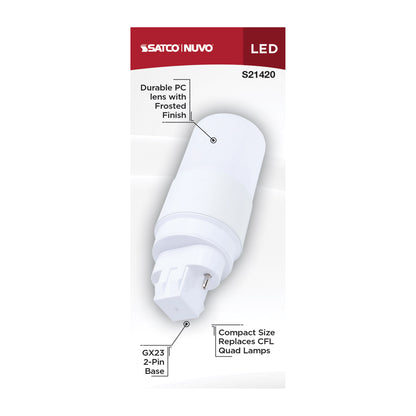

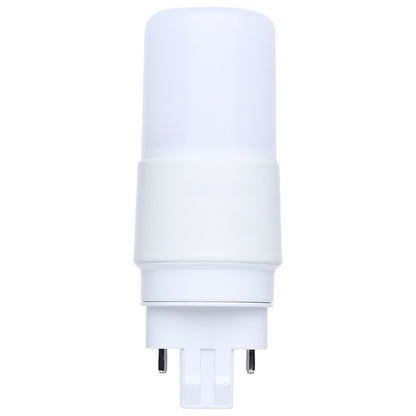

5 Watt; PL LED; GX23 Base; Frost Finish; Type A/B Dual Ballast; 2700K; 120-277 Range Voltage
5CFL/L/827/GX23/AB/FR/U (Satco S21420) — Lamps › LED Lamps › Pin-Based CFL Replacements.
Specifications
| Watts | 5W |
| Lumens | 580L |
| CCT (Kelvin Temp) | 2700K |
| Color Temp | Warm White |
| CCT Selectable | No |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.042-0.018A |
| Hours Rated | 50000 |
| Dimmable | Non-Dimmable |
| Beam Angle (degree) | 300 |
| Lamp Base | GX23 (2-Pin) |
| ANSI Base | GX23 |
| Lamp Type | PL |
| Product Technology | LED |
| Fluor Equiv | 13W |
| Lamp Ballast Type AB | Type A/B |
| Fixture Type | PL |
| Finish | Frost |
| Finish Family | White |
| Material | Aluminum |
| Housing Color | White |
| Lens Finish | Frosted |
| Lens Material | Polycarbonate (PC) |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cULus - Classified, cULus - Listed |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | 0.9 |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Warranty | 5-Years |
| MOL | 4.09 |
| MOD Lamps | 1.52 |
| Web Length | 4.09 |
| Web Width | 1.52 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923409356 |
| Case Quantity | 24 |
| Pack Type | Box |
S21420 Ballast Compatibility Chart (PDF) · S21420 Instructions (PDF) · Satco product page
Product Information
Part Number
S21420
Brand
SATCO
Product Code
S21420
UPC
045923409356
Specifications
Technology
LED
Wattage
5
Input Voltage
120V-277V
Color Temperature
2700K
Lamp Base
GX23 (2-Pin)
Lumens
580.0
Hours
50000
CRI
80
Beam Spread
300
