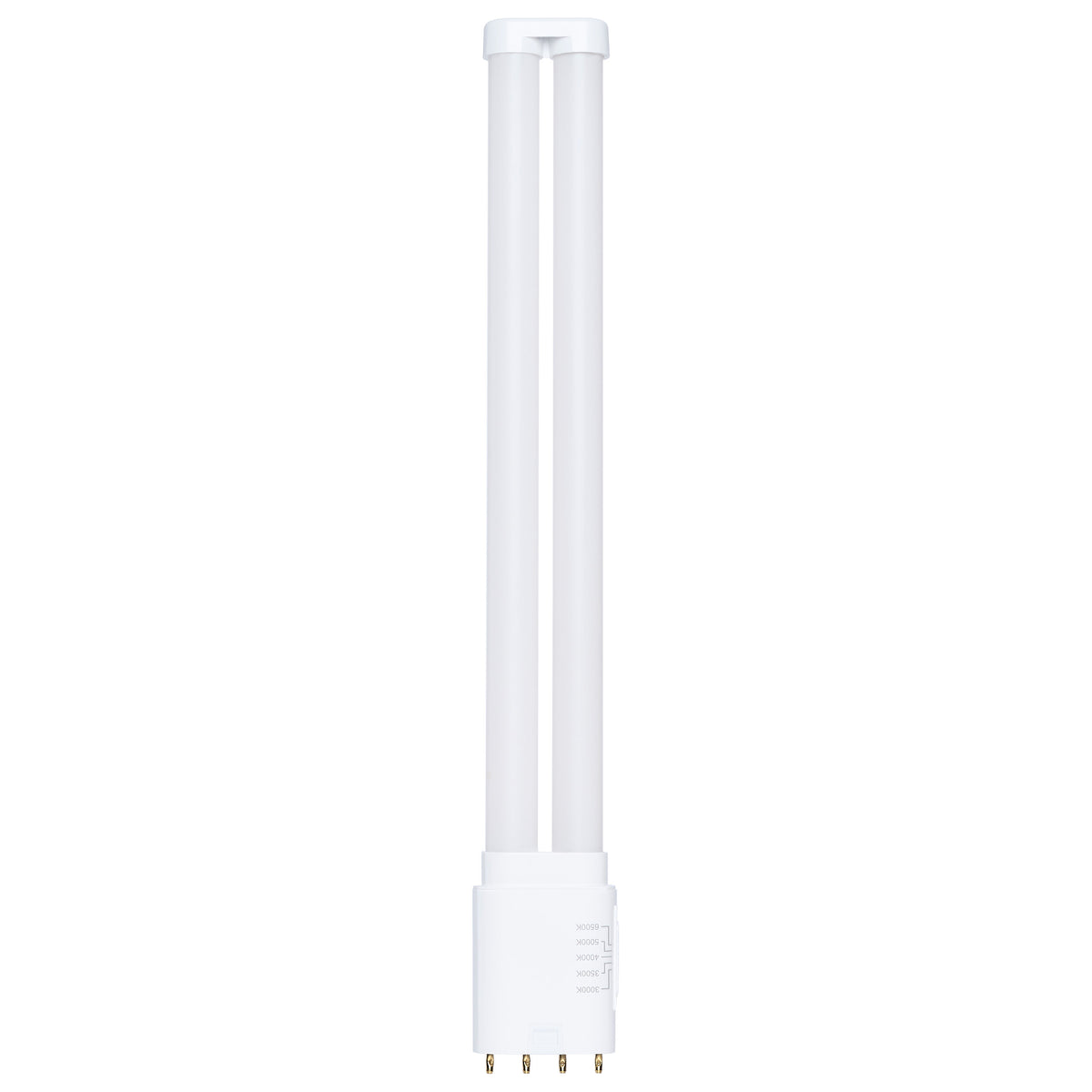

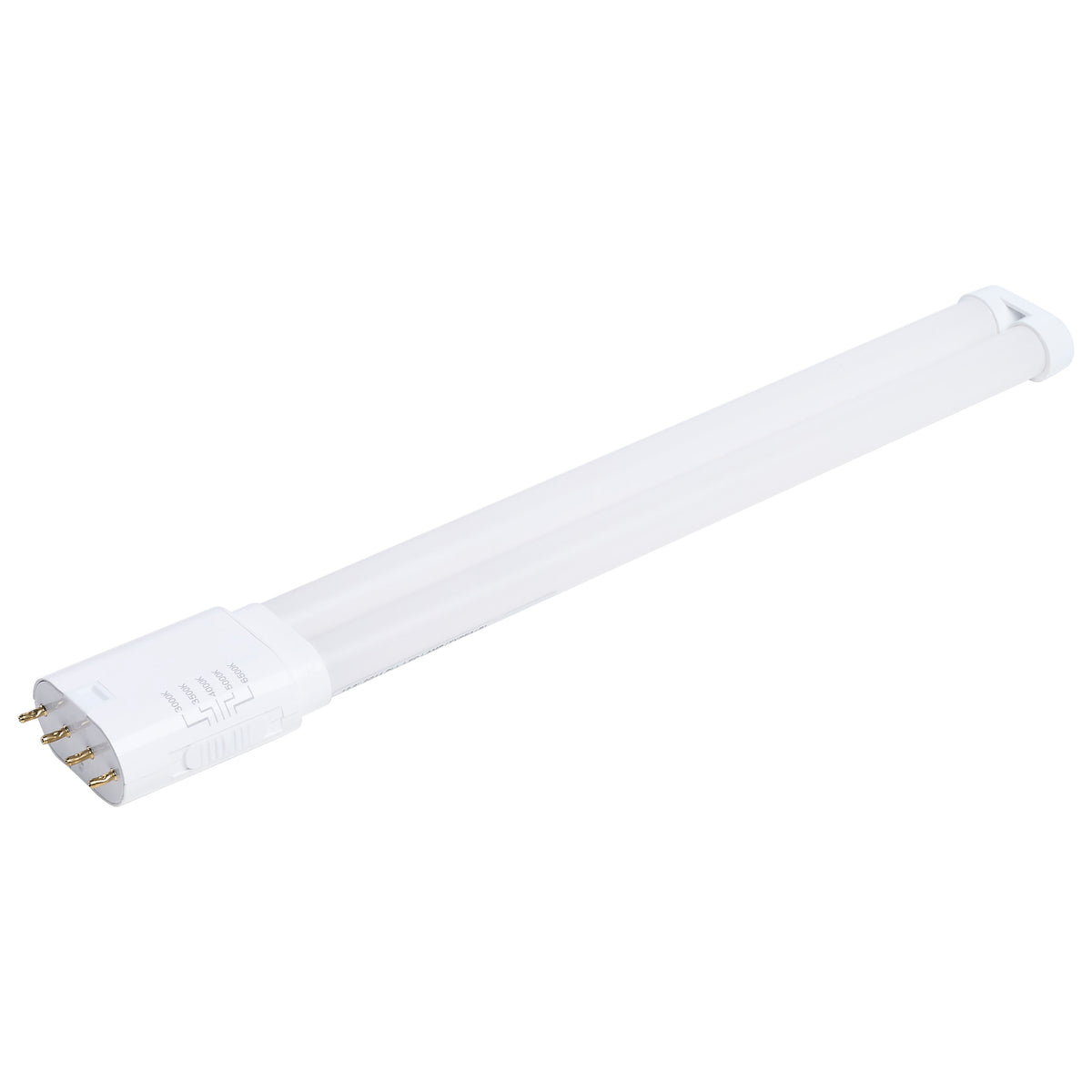

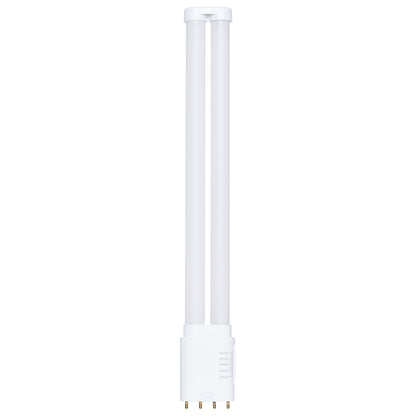

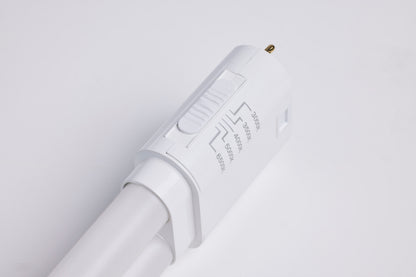

16 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A/B; 120-277 Volt
16PLL/LED/5CCT/AB (Satco S18418) — Lamps › LED Lamps › Pin-Based CFL Replacements.
Specifications
| Watts | 16W |
| Lumens | 2000L |

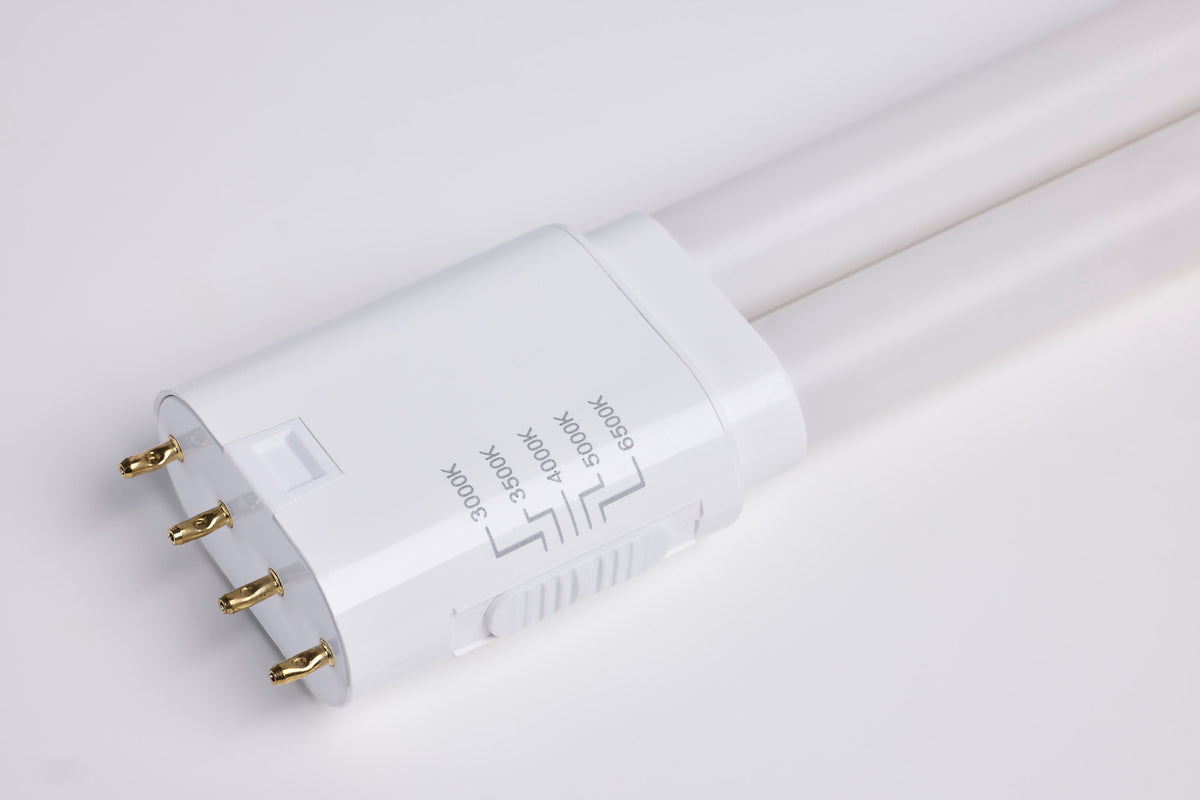

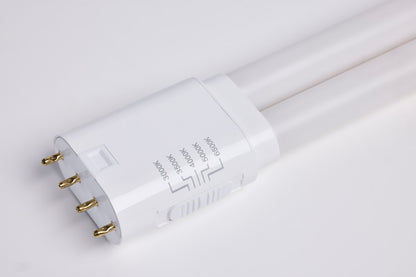

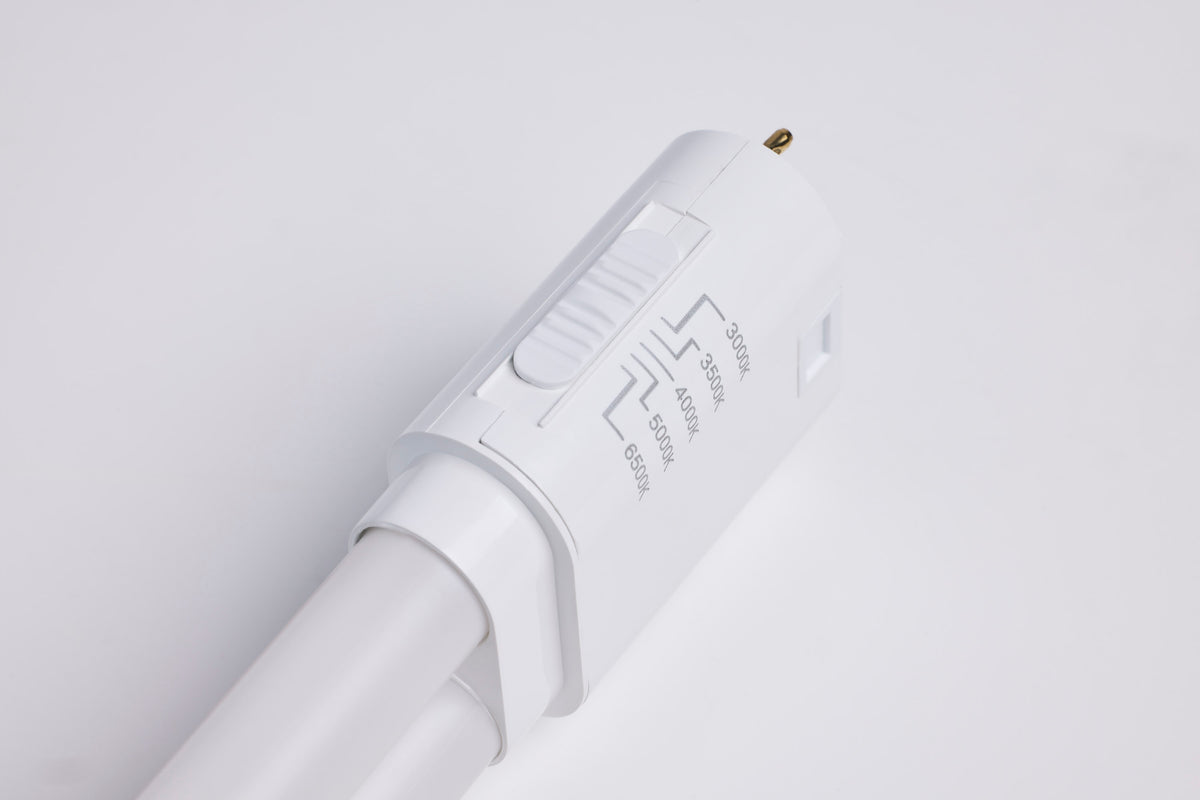

| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
| Color Temp | Soft White to Daylight |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.136A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 120V only, Phase cut |
| Beam Angle (degree) | 160 |
| Lamp Base | 2G11 (4-Pin) |
| ANSI Base | 2G11 |
| Lamp Type | T5 |
| Product Technology | LED |
| Fluor Equiv | 36W |
| Lamp Ballast Type AB | Type A/B |
| Fixture Type | PL |
| Finish | Frost |
| Finish Family | White |
| Material | Glass / Plastic |
| Housing Color | White |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Certified, cULus - Classified |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Warranty | 5-Years |
| MOL | 16.6 |
| MOD Lamps | 1.72 |
| Web Length | 16.6 |
| Web Width | 1.72 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923184185 |
| Case Quantity | 25 |
| Pack Type | Color Box |
S18418 Dimmer Compatibility Chart (PDF) · S18418 Ballast Compatibility Chart (PDF) · S18418 Instructions (PDF) · Satco product page
Product Information
Part Number
S18418
Brand
SATCO
Product Code
S18418
UPC
045923184185
Specifications
Technology
LED
Wattage
16
Input Voltage
120V-277V
Color Temperature
3000K/3500K/4000K/5000K/6500K
Lamp Base
2G11 (4-Pin)
Lumens
2000.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
160
