Satco S16513 6W T5 CCT Selectable LED Light Bulb Miniature Bi Pin Base
Satco S16513 6W T5 CCT Selectable LED Light Bulb Miniature Bi Pin Base
SATCO
Regular price
$11.93 USD
Regular price
Sale price
$11.93 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279820
Couldn't load pickup availability
6 Watt T5 LED; 12 Inch; 35K/4K/5K/65K; G5 Base; Type A; Omni6T5L12/8CCT4/G5/A/O/CF/U/D (Satco S16513) — Lamps › LED Lamps › TLED.Specifications
Watts
6W
Lumens
700L
CCT (Kelvin Temp)
3500K/400...
Show More
6 Watt T5 LED; 12 Inch; 35K/4K/5K/65K; G5 Base; Type A; Omni
6T5L12/8CCT4/G5/A/O/CF/U/D (Satco S16513) — Lamps › LED Lamps › TLED.
Specifications
| Watts | 6W |
| Lumens | 700L |

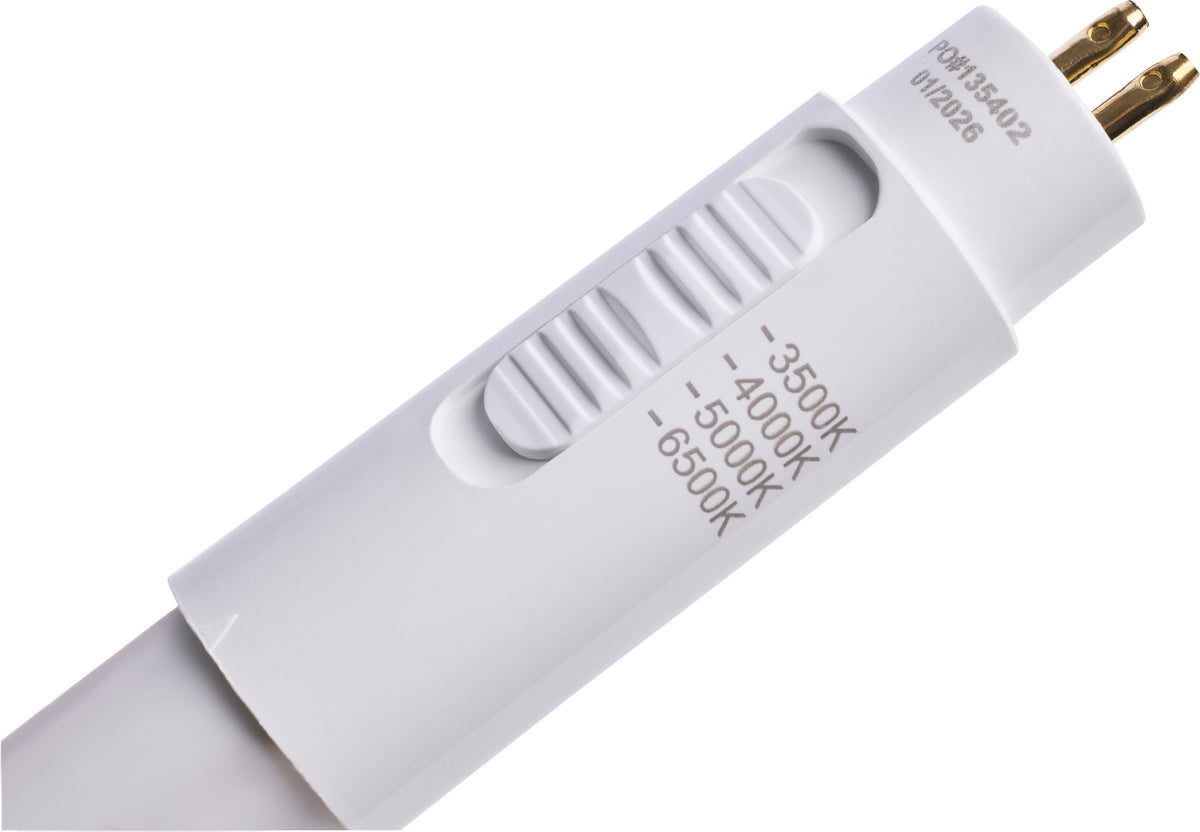

| CCT (Kelvin Temp) | 3500K/4000K/5000K/6500K |
| Color Temp | Neutral White to Daylight |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | Ballast Dependent |
| Amps | Ballast Dependent |
| Hours Rated | 36000 |
| Dimmable | Non-Dimmable |
| Beam Angle (degree) | 180 |
| Lamp Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Lamp Type | T5 |
| Product Technology | LED |
| Fluor Equiv | 8W |
| Lamp Ballast Type AB | Type A |
| Fixture Type | Miniature |
| Finish | Frost |
| Finish Family | White |
| Material | Polycarbonate (PC) |
| Lens Finish | Frost |
| Lens Material | Glass |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cETLus - Listed |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | Ballast Dependent |
| Total Harmonic Distortion | Ballast Dependent |
| Warranty | 3-Years |
| MOL | 11.91 |
| MOD Lamps | 0.62 |

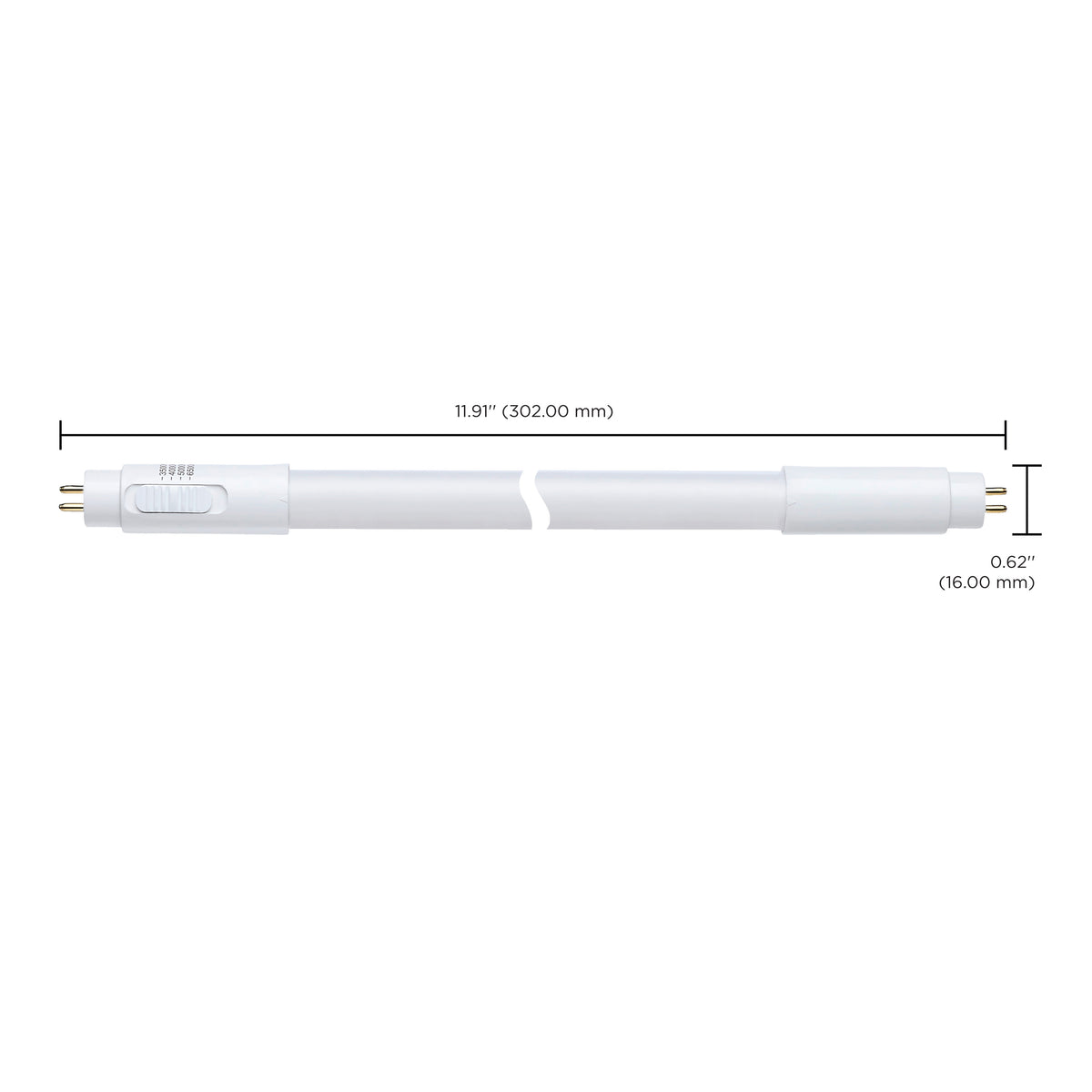

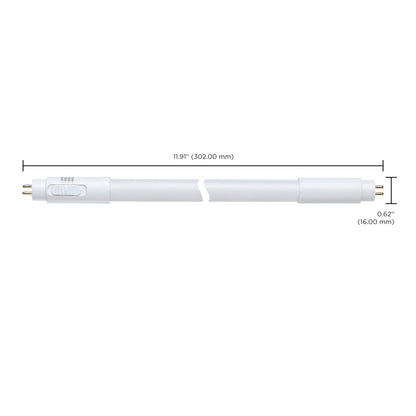

| Web Length | 11.91 |
| Web Width | 0.62 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923165139 |
| Case Quantity | 25 |
| Pack Type | Sleeve |
S16513 Ballast Compatibility Chart (PDF) · S16513 Instructions (PDF) · Satco product page
Product Information
Part Number
S16513
Brand
SATCO
Product Code
S16513
UPC
045923165139
Specifications
Technology
LED
Wattage
6
Input Voltage
Ballast Dependent
Color Temperature
3500K/4000K/5000K/6500K
Lamp Base
Miniature Bi Pin
Lumens
700.0
Hours
36000
CRI
80
Beam Spread
180
