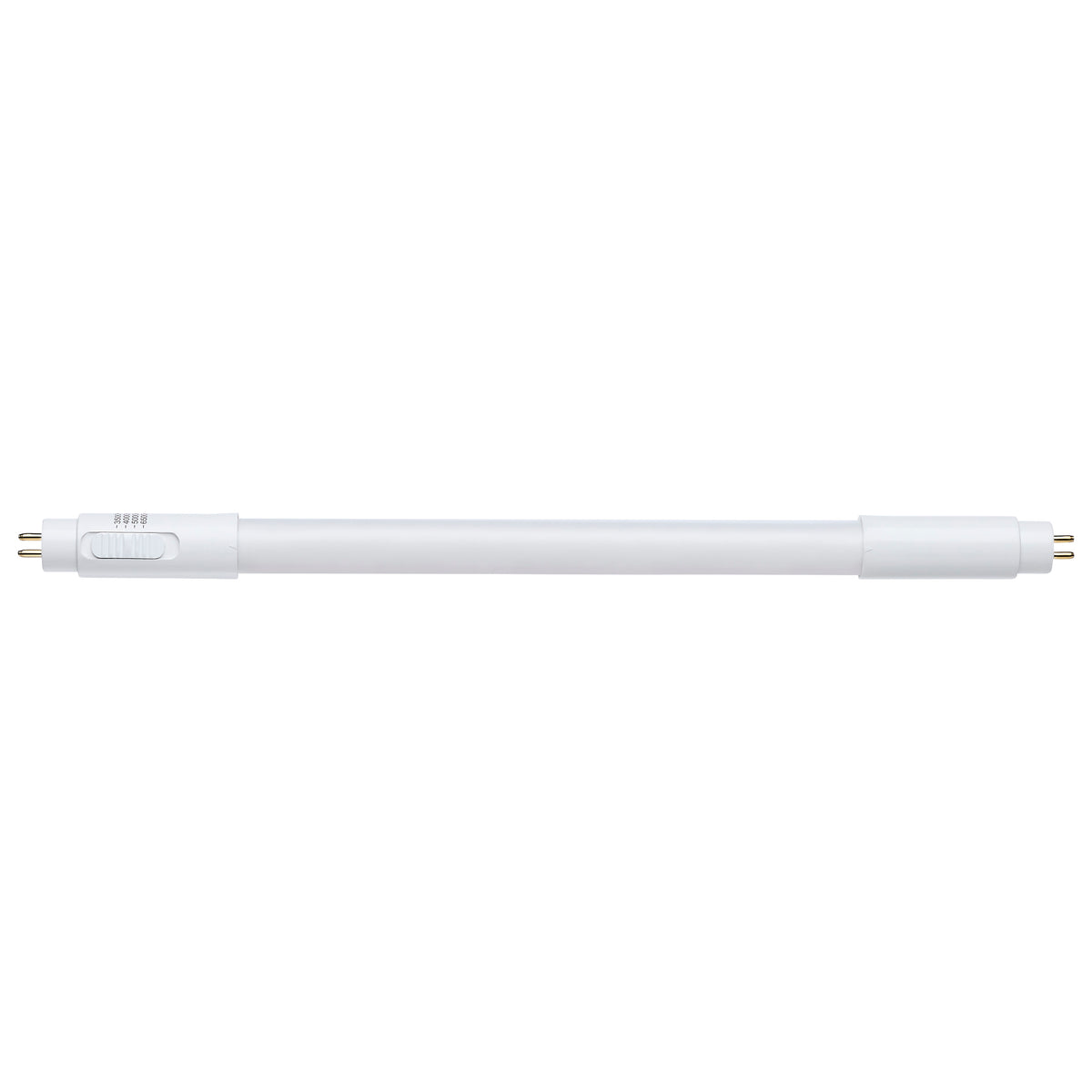

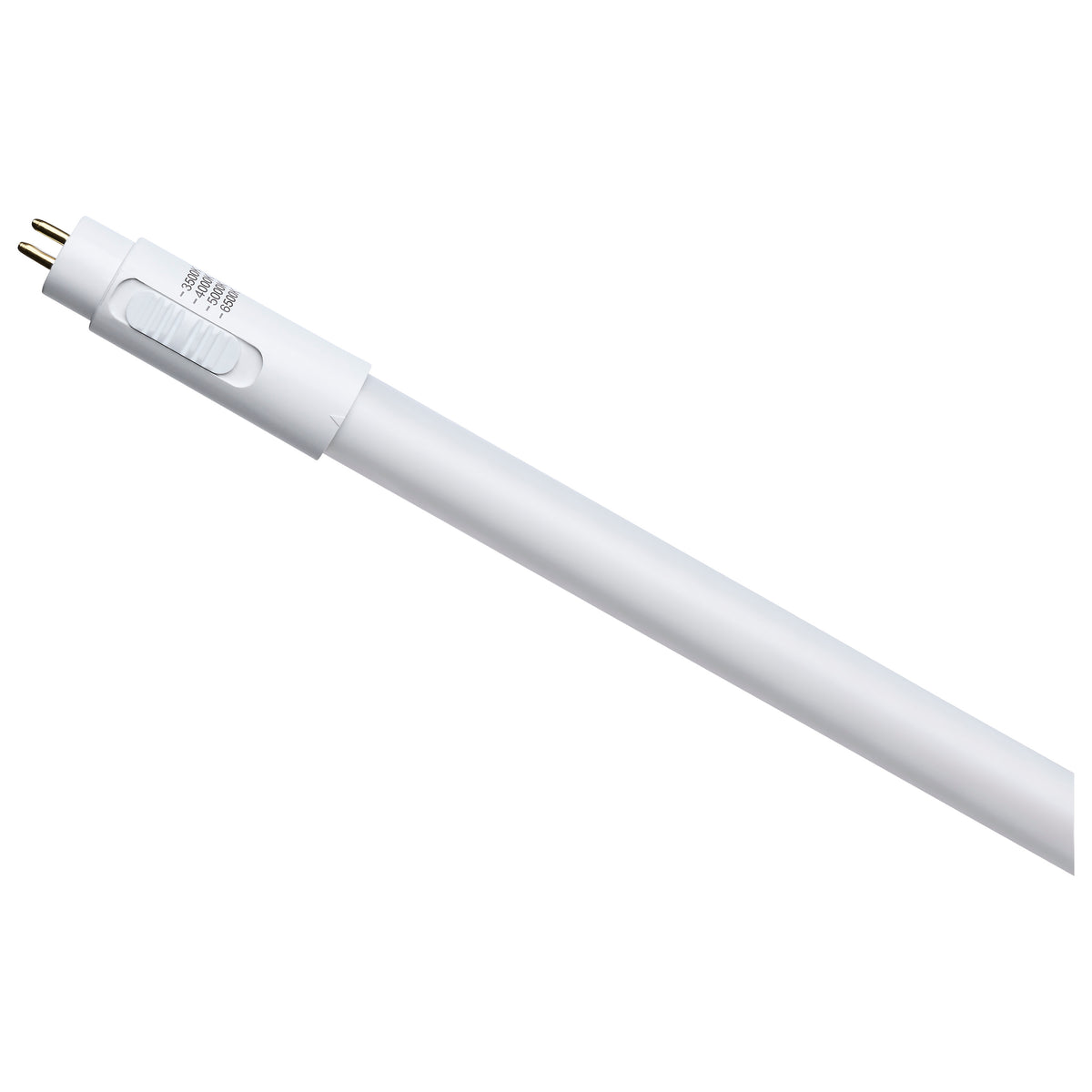

Satco S16512 5W T5 CCT Selectable LED Light Bulb Miniature Bi Pin Base
Satco S16512 5W T5 CCT Selectable LED Light Bulb Miniature Bi Pin Base
SATCO
Regular price
$10.43 USD
Regular price
Sale price
$10.43 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279819
Couldn't load pickup availability
5 Watt T5 LED; 9 Inch; 35K/4K/5K/65K; G5 Base; Type A; Omni5T5L9/8CCT4/G5/A/O/CF/U/D (Satco S16512) — Lamps › LED Lamps › TLED.Specifications
Watts
5W
Lumens
450L
CCT (Kelvin Temp)
3500K/4000K...
Show More
5 Watt T5 LED; 9 Inch; 35K/4K/5K/65K; G5 Base; Type A; Omni
5T5L9/8CCT4/G5/A/O/CF/U/D (Satco S16512) — Lamps › LED Lamps › TLED.
Specifications
| Watts | 5W |
| Lumens | 450L |

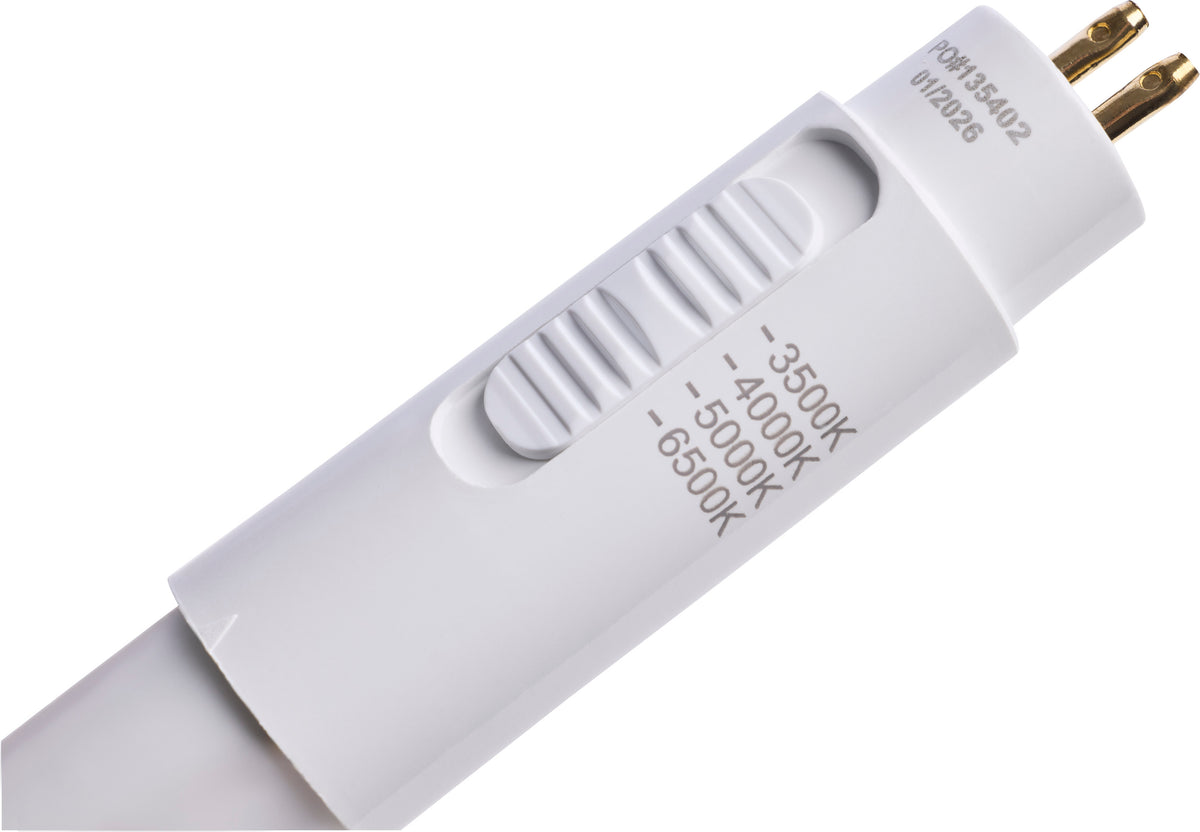

| CCT (Kelvin Temp) | 3500K/4000K/5000K/6500K |
| Color Temp | Neutral White to Daylight |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | Ballast Dependent |
| Amps | Ballast Dependent |
| Hours Rated | 36000 |
| Dimmable | Non-Dimmable |
| Beam Angle (degree) | 180 |
| Lamp Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Lamp Type | T5 |
| Product Technology | LED |
| Fluor Equiv | 6W |
| Lamp Ballast Type AB | Type A |
| Fixture Type | Miniature |
| Finish | Frost |
| Finish Family | White |
| Material | Polycarbonate (PC) |
| Lens Finish | Frost |
| Lens Material | Glass |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cETLus - Listed |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | Ballast Dependent |
| Total Harmonic Distortion | Ballast Dependent |
| Warranty | 3-Years |

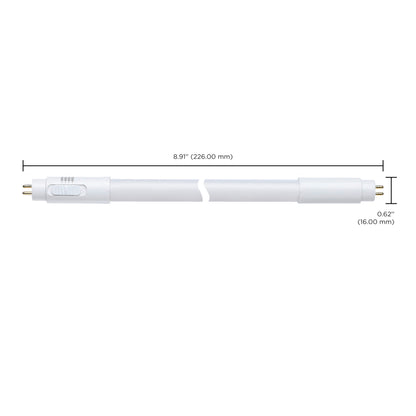

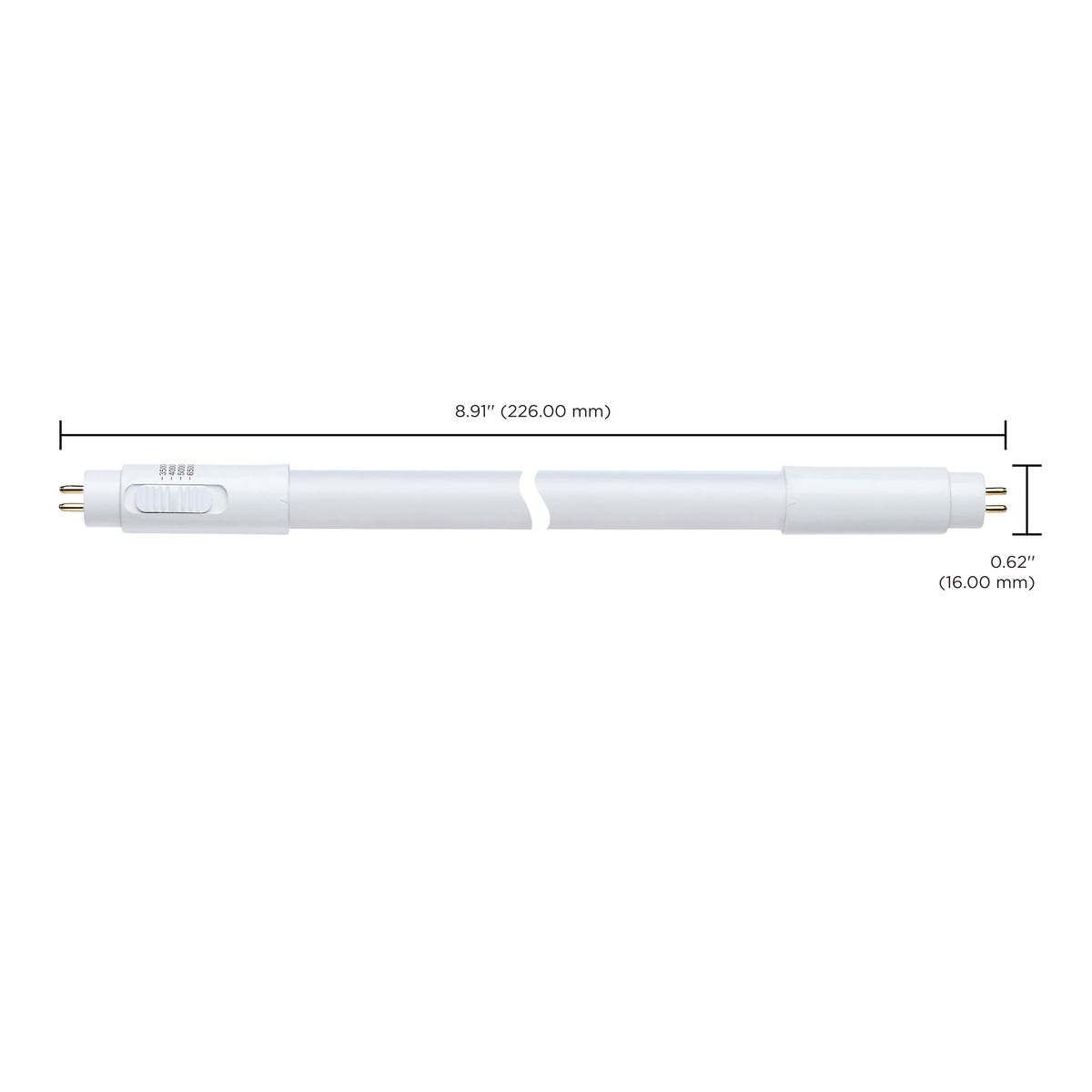

| MOL | 8.91 |
| MOD Lamps | 0.62 |
| Web Length | 8.91 |
| Web Width | 0.62 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923165122 |
| Case Quantity | 25 |
| Pack Type | Sleeve |
S16512 Ballast Compatibility Chart (PDF) · S16512 Instructions (PDF) · Satco product page
Product Information
Part Number
S16512
Brand
SATCO
Product Code
S16512
UPC
045923165122
Specifications
Technology
LED
Wattage
5
Input Voltage
Ballast Dependent
Color Temperature
3500K/4000K/5000K/6500K
Lamp Base
Miniature Bi Pin
Lumens
450.0
Hours
36000
CRI
80
Beam Spread
180
