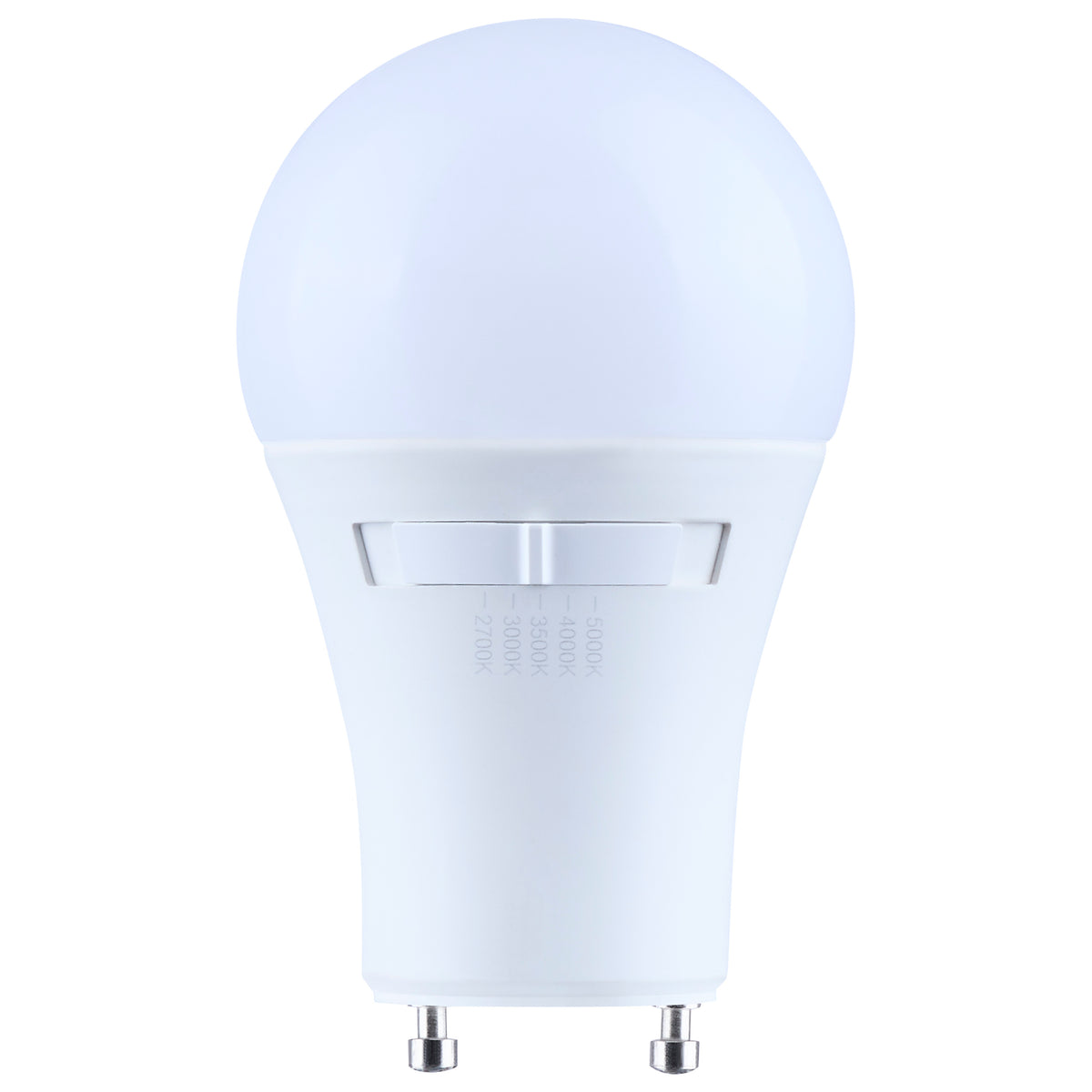

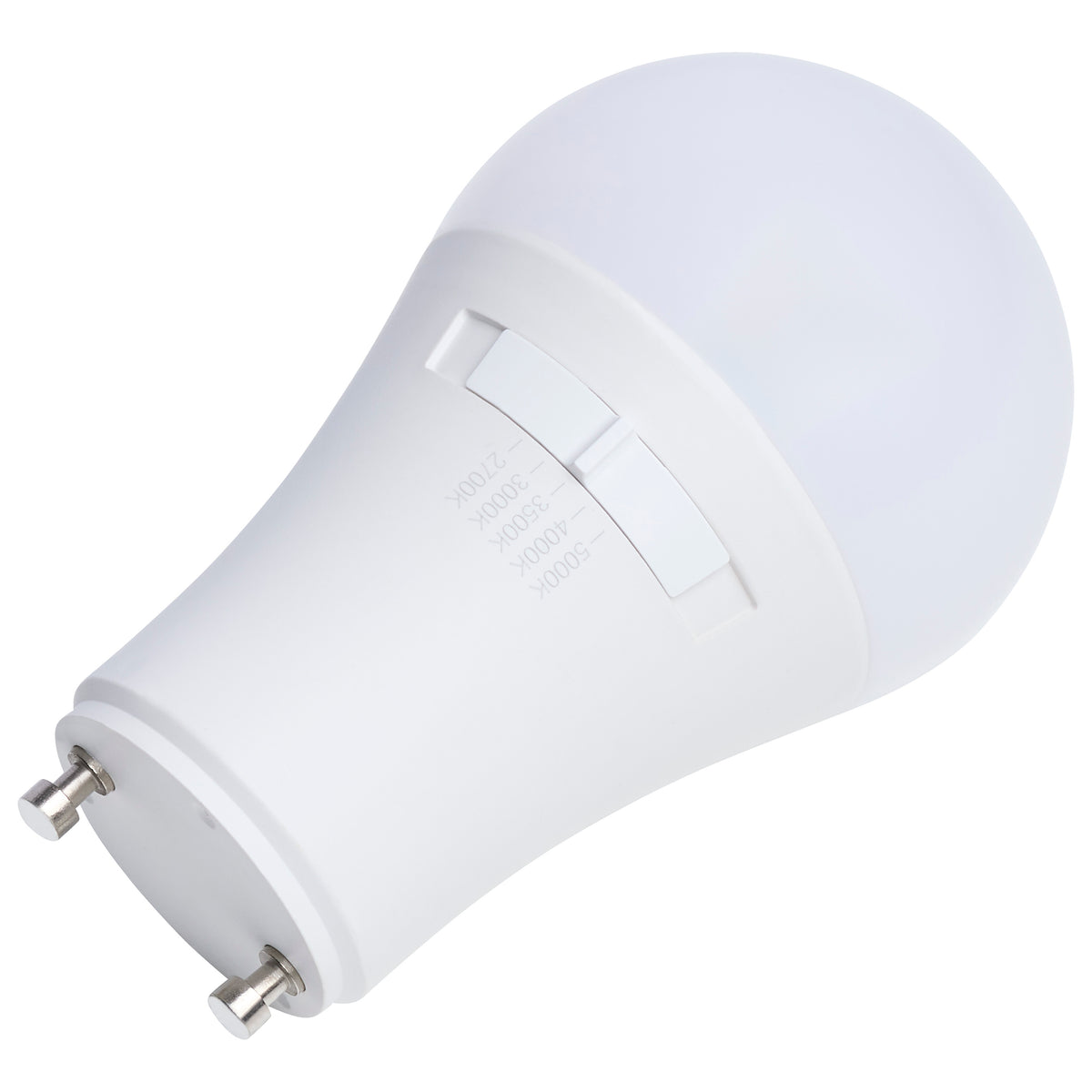

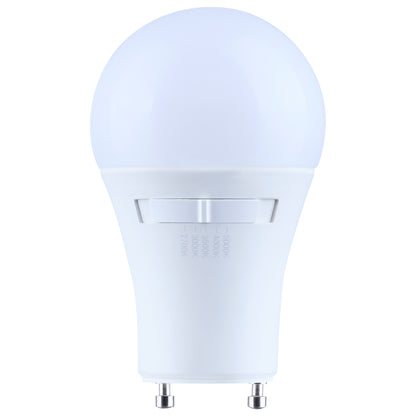

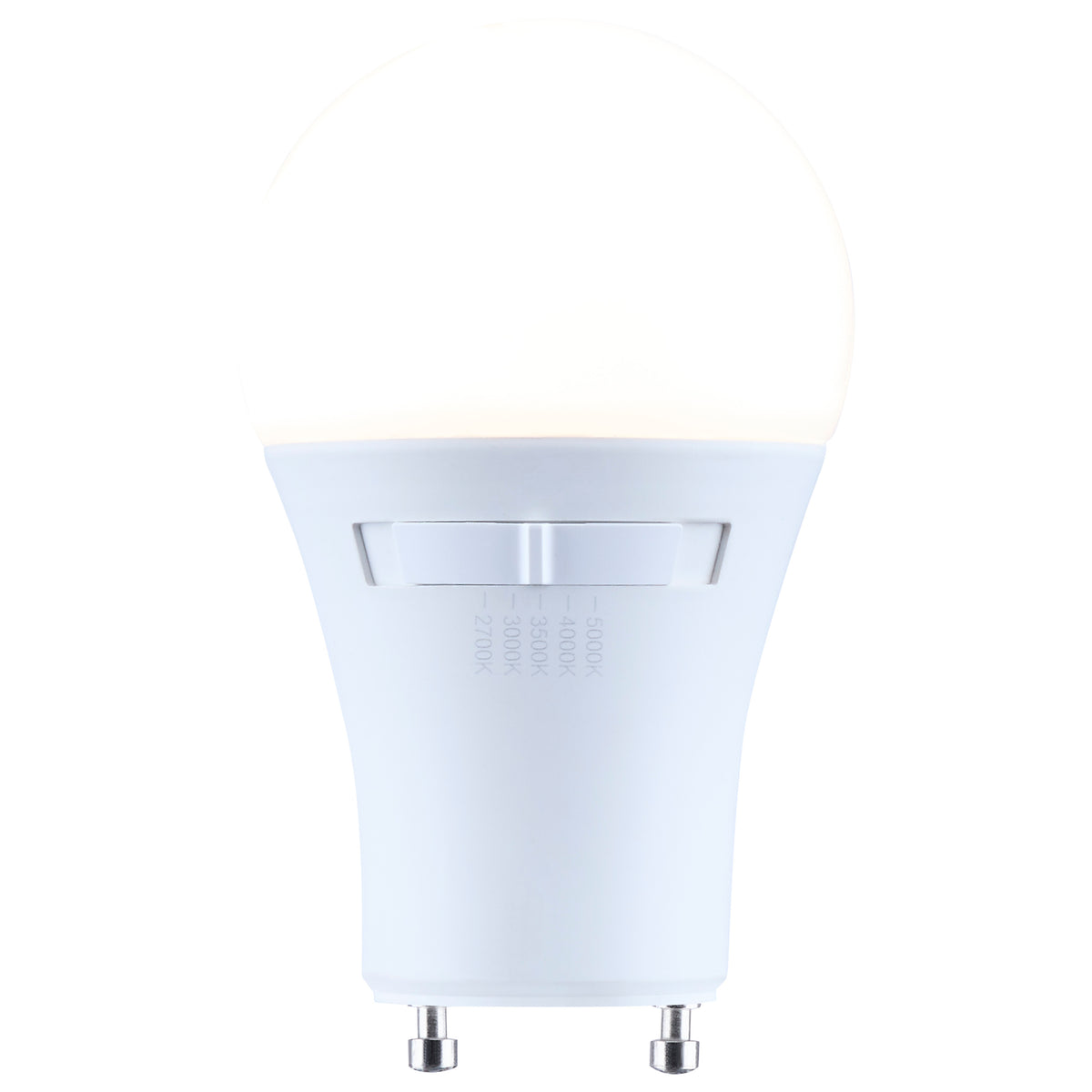

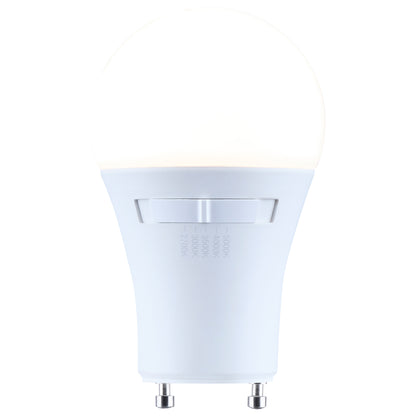

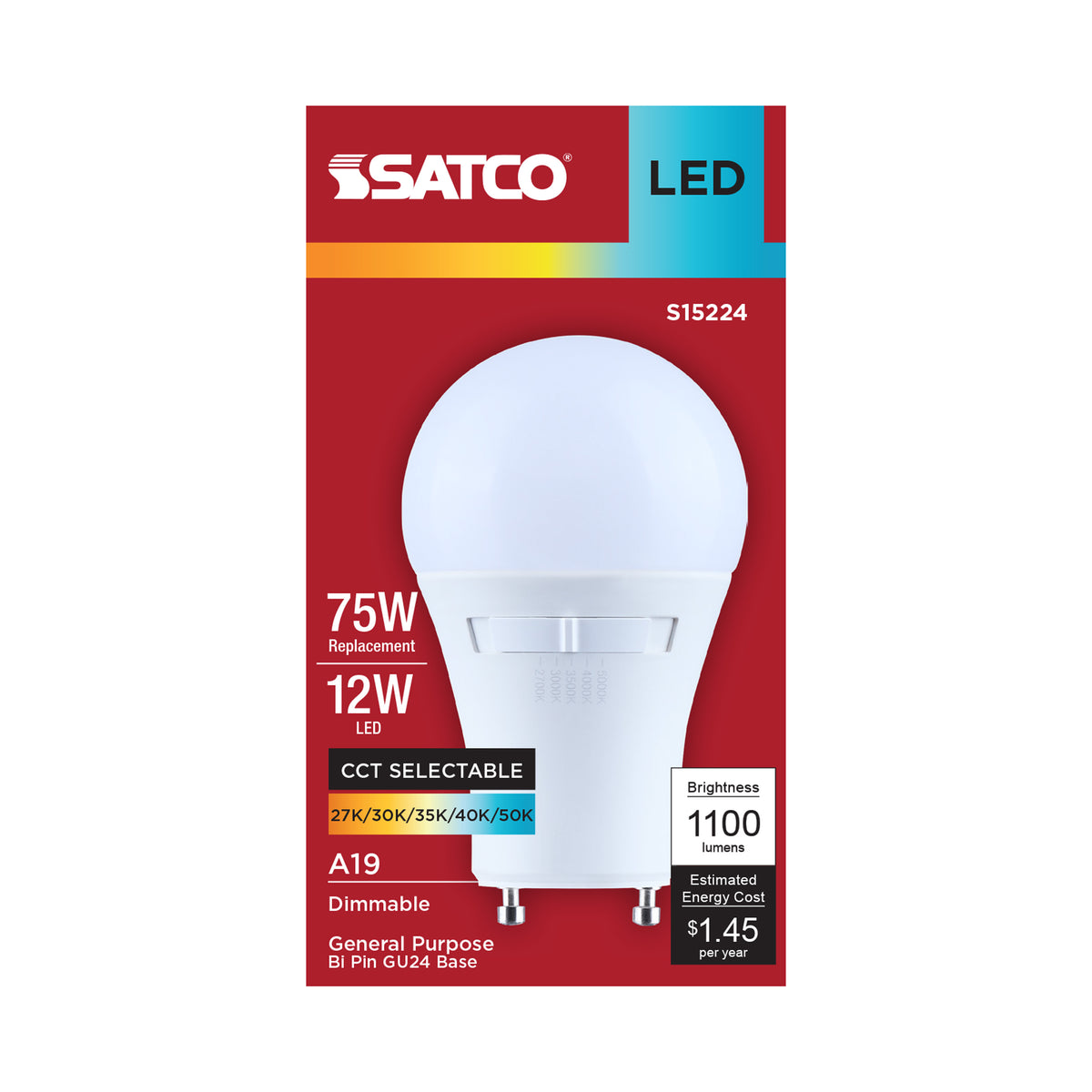

12 Watt A19 LED; 27K/30K/35K/40K/50K; 90 CRI; Bi Pin GU24 Base; Dimmable; 120 Volt
12A19L/9CCT5/GU24/P/D/1PK (Satco S15224) — Lamps › LED Lamps › A-Shape.
Specifications
| Watts | 12W |
| Lumens | 1100L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 90+ |
| Volts | 120v |
| Amps | 0.125A |
| Hours Rated | 25000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Linear Dimming, Phase cut |
| Beam Angle (degree) | 220 |
| Lamp Base | Bi Pin GU24 |
| ANSI Base | GU24 |
| Lamp Type | A19 |
| Product Technology | LED |
| Incandescent Equivalent | 75W |
| Fixture Type | Type A |
| Finish | Frost |
| Finish Family | White |
| Material | Plastic |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cULus - Certified, cULus - Listed |
| Operating Temp | -13F to +113F (-25C to +45C) |
| Power Factor | >0.7 |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Warranty | 3-Years |
| MOL | 4.07 |
| MOD Lamps | 2.36 |
| Web Length | 4.07 |
| Web Width | 2.36 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Yes |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923152245 |
| Case Quantity | 24 |
| Pack Type | Color Box |
Product Information
Part Number
S15224
Brand
SATCO
Product Code
S15224
UPC
045923152245
Specifications
Technology
LED
Wattage
12
Input Voltage
120v
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Bi Pin GU24
Lumens
1100.0
Hours
25000
CRI
90
Dimmable
true
Beam Spread
220
