13.5 Watt LED HID Replacement; ED17; 2200K; Medium Base; Clear; 120-277 Range Voltage
13.5W/LED/HID/ED17/822/E26/CL (Satco S13180) — Lamps › LED Lamps › HID Replacement.

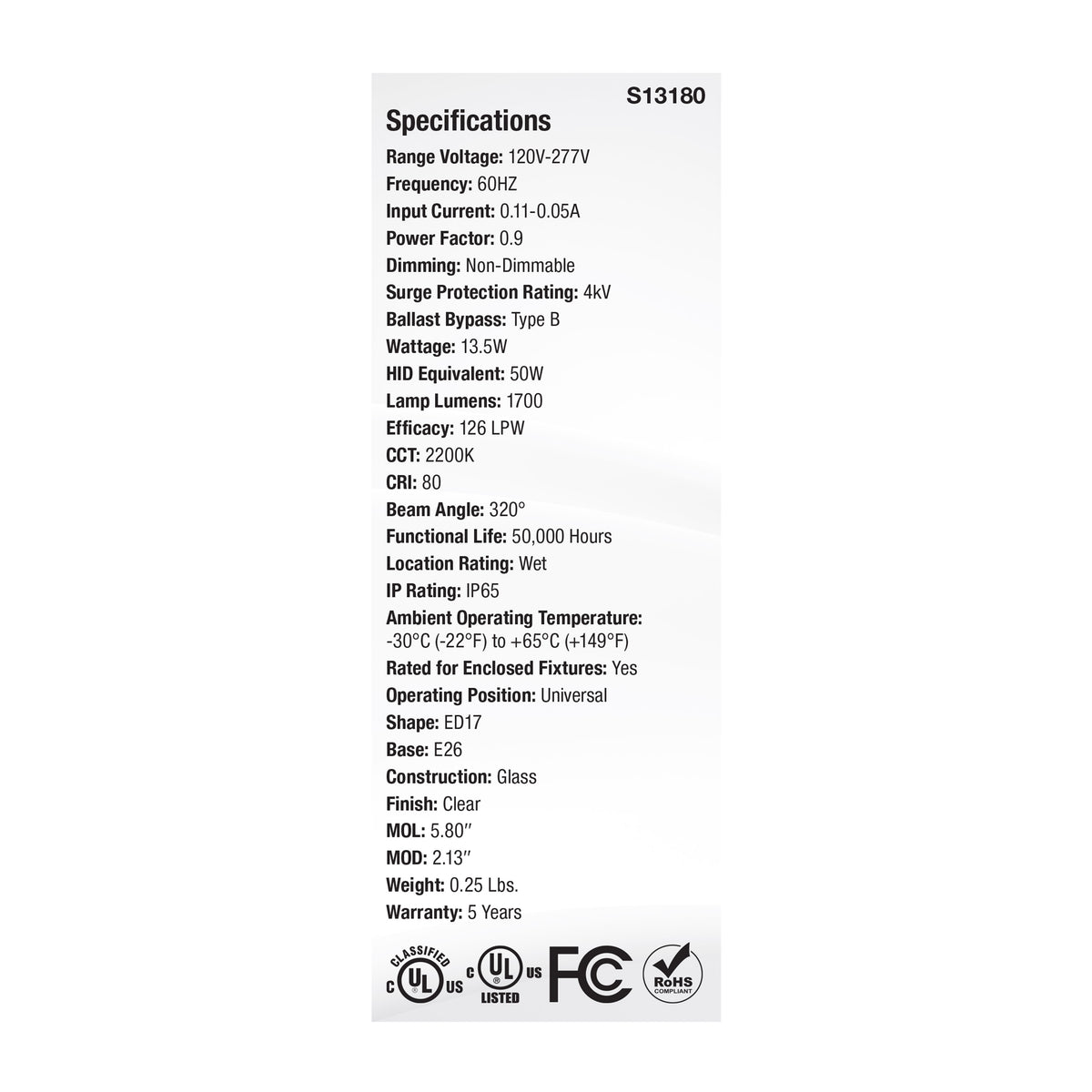

Specifications
| Watts | 13.5W |
| Lumens | 1700L |
| CCT (Kelvin Temp) | 2200K |
| Color Temp | Warm White |
| CCT Selectable | No |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.110-0.050A |
| Hours Rated | 50000 |
| Dimmable | Non-Dimmable |
| Beam Angle (degree) | 320 |
| Lamp Base | Medium |
| ANSI Base | E26 |
| Lamp Type | ED17 |
| Product Technology | LED |
| Lamp Ballast Type AB | Type B |
| Fixture Type | LED HID |
| Style | Utility |
| Finish | Clear |
| Finish Family | Clear |
| Material | Glass |
| Housing Color | Frost |
| Indoor Outdoor | Indoor, Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| Operating Temp | -22F to +149F (-30C to +65C) |
| Power Factor | 0.9 |
| Surge Protection | Built-in surge protection - 4KV |
| Warranty | 5-Years |
| MOL | 5.8 |
| MOD Lamps | 2.13 |
| Web Length | 5.8 |
| Web Width | 2.13 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | No |
| T24/JA8 Compliant | No |
| California Ban | Non-Compliant |
| UPC | 045923131806 |
| Case Quantity | 20 |
| Pack Type | Box |
Product Information
Part Number
S13180
Brand
SATCO
Product Code
S13180
UPC
045923131806
Specifications
Technology
LED
Wattage
13.5
Input Voltage
120V-277V
Color Temperature
2200K
Lamp Base
Medium
Lumens
1700.0
Hours
50000
CRI
80
Beam Spread
320
