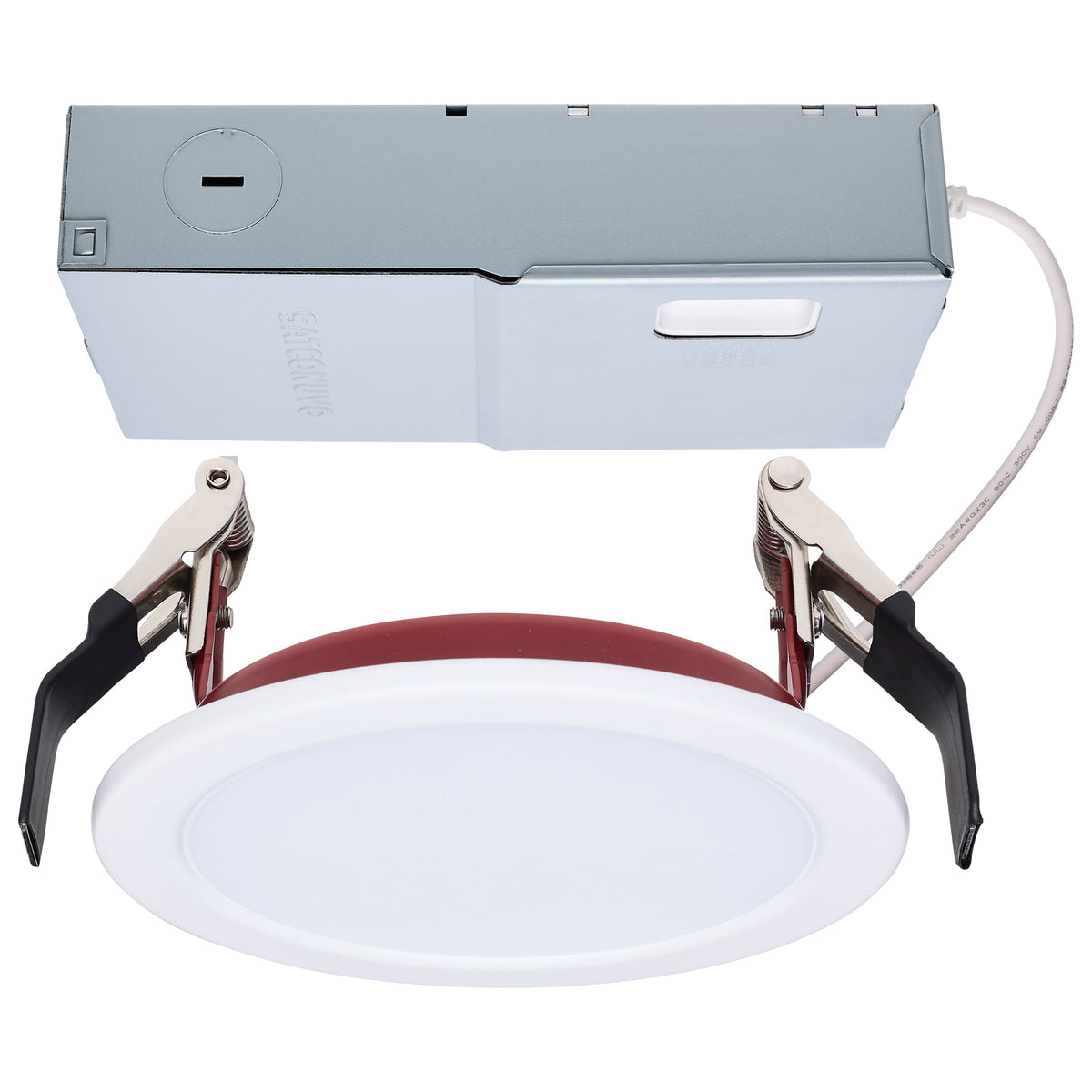

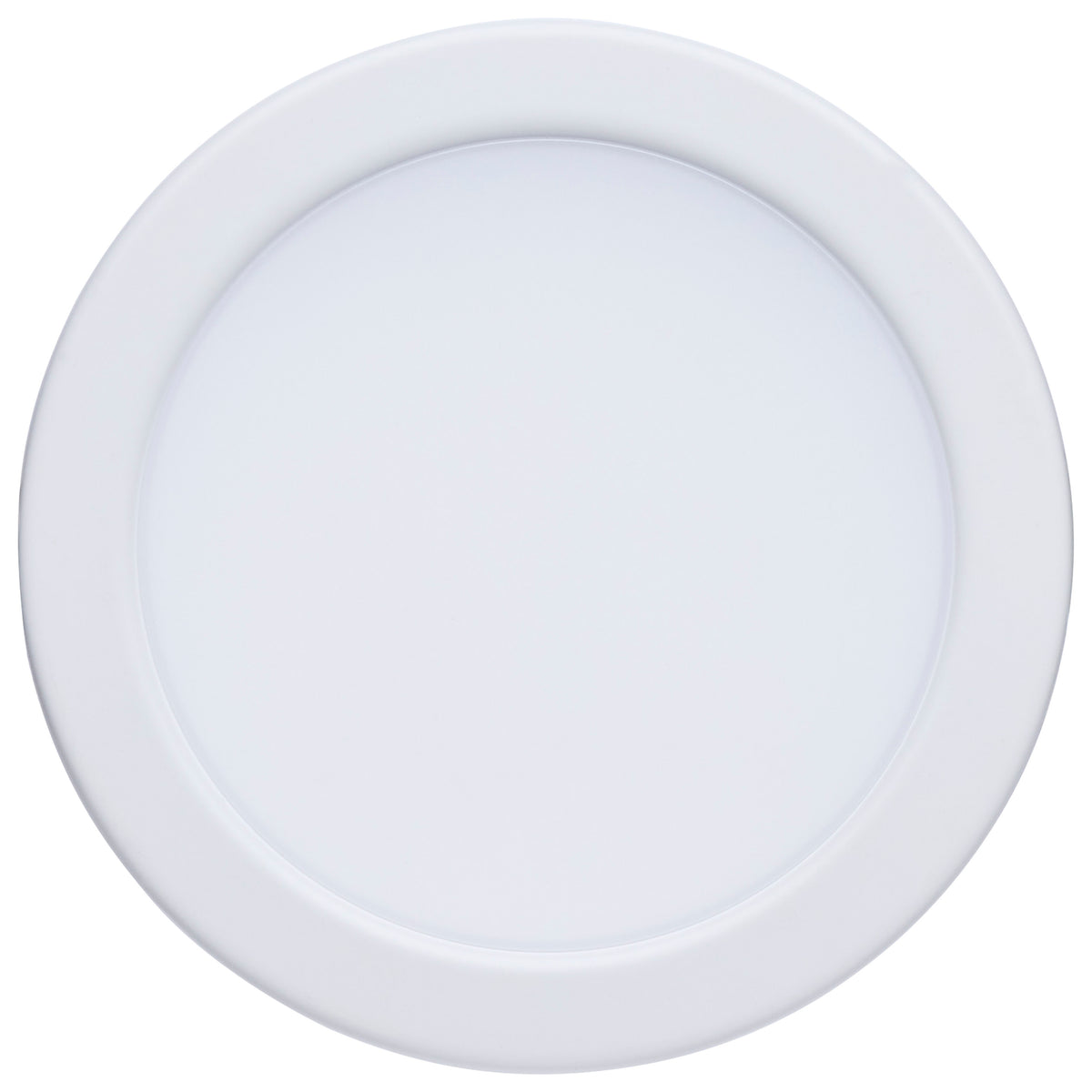

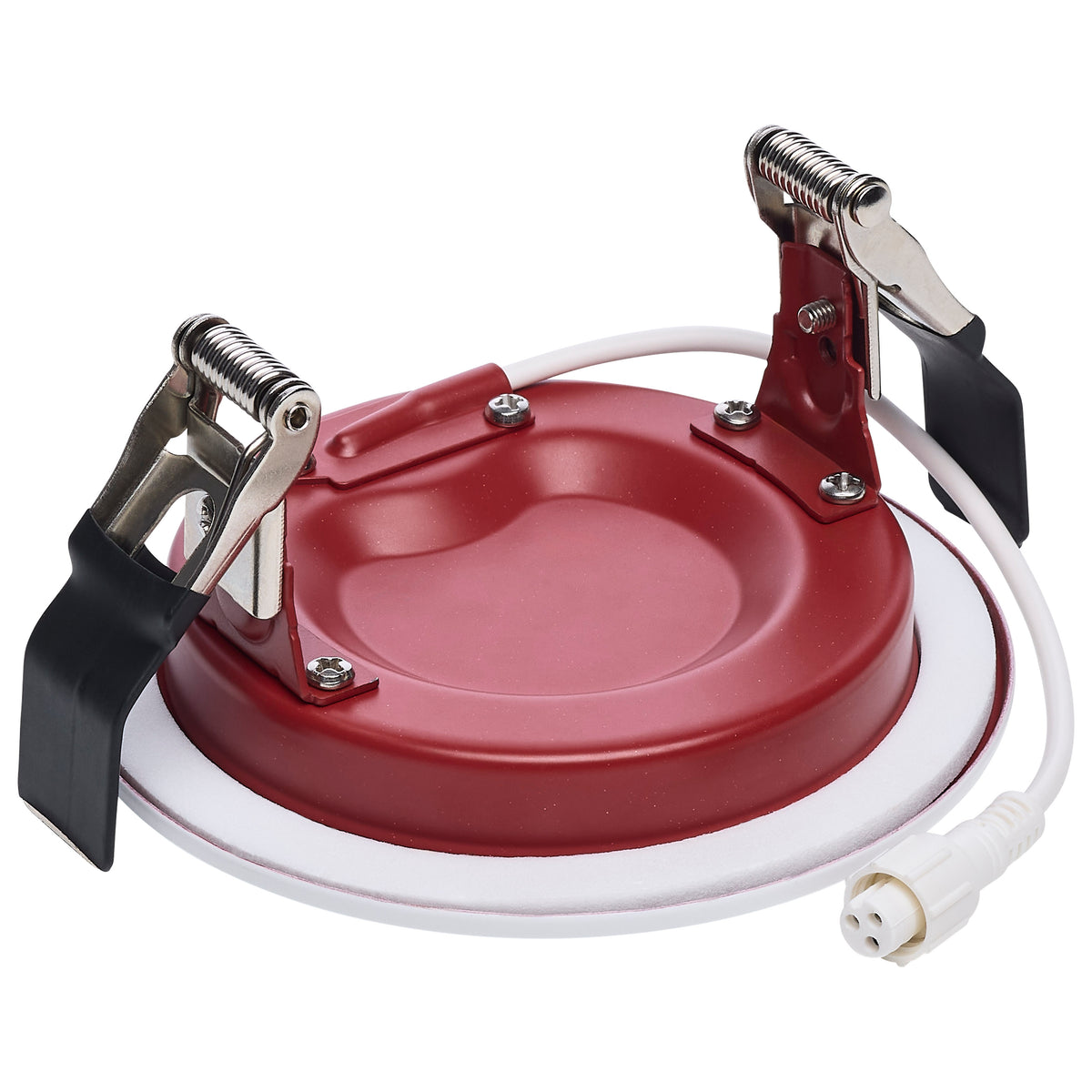

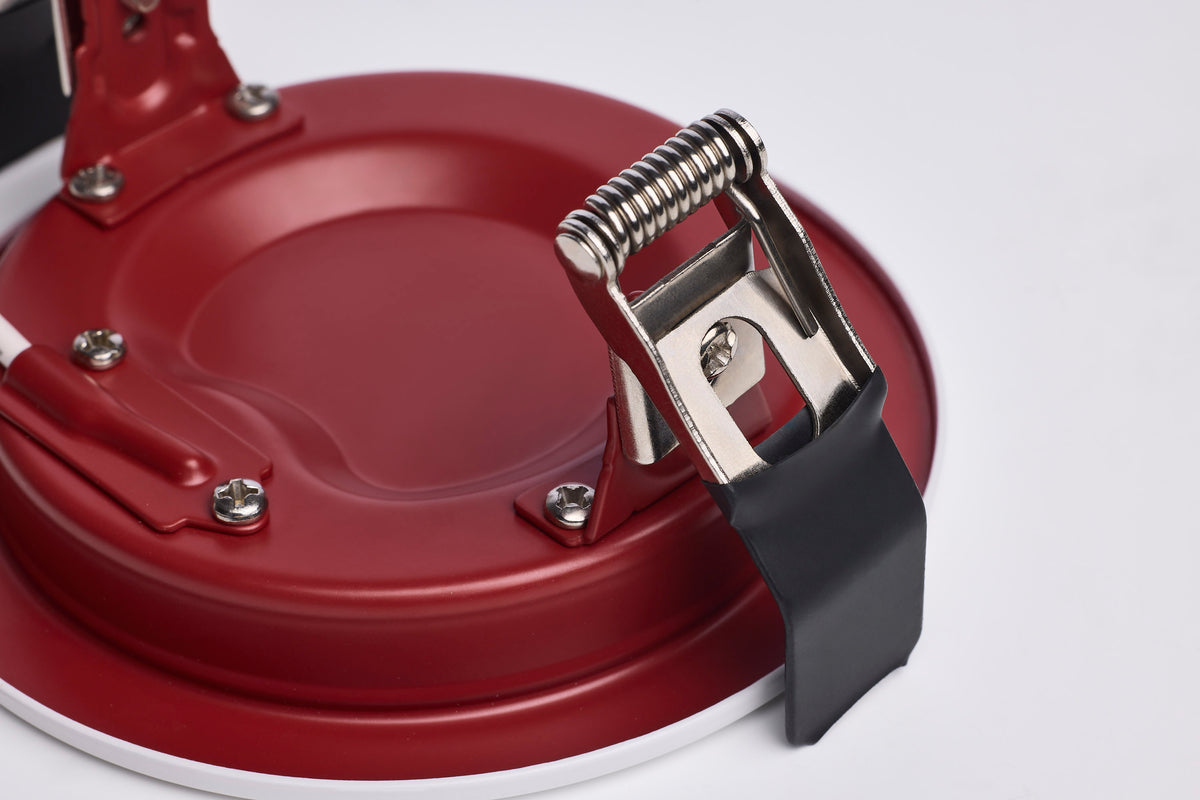

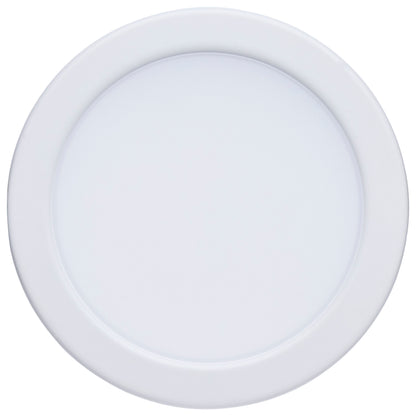

10 Watt LED; Fire Rated 4 Inch; Direct Wire Slim Fit Flat Face Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; 0-10V Dimmable
10WLED/4/CFR/CCT/SLF/RD/FL/RND (Satco S11868R1) — Commercial Fixtures › Downlights › Direct Wire Downlights.
Specifications
| Watts | 10W |
| Lumens | 820L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 90+ |
| Volts | 120V-277V |
| Amps | 0.083-0.036A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 110 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 60W |

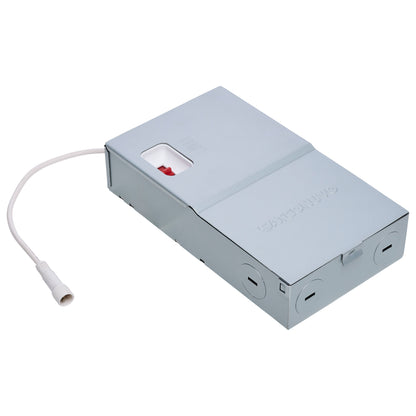

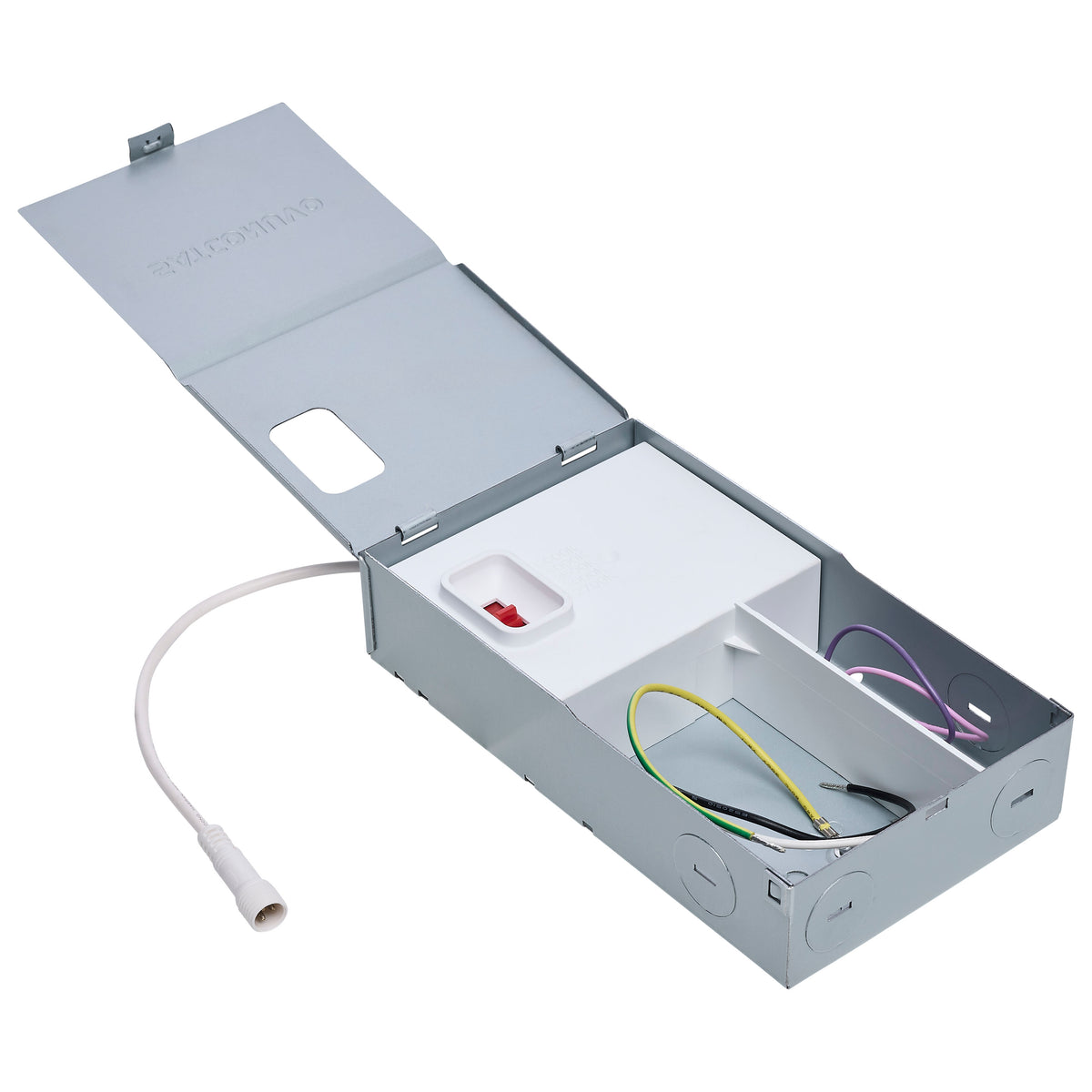

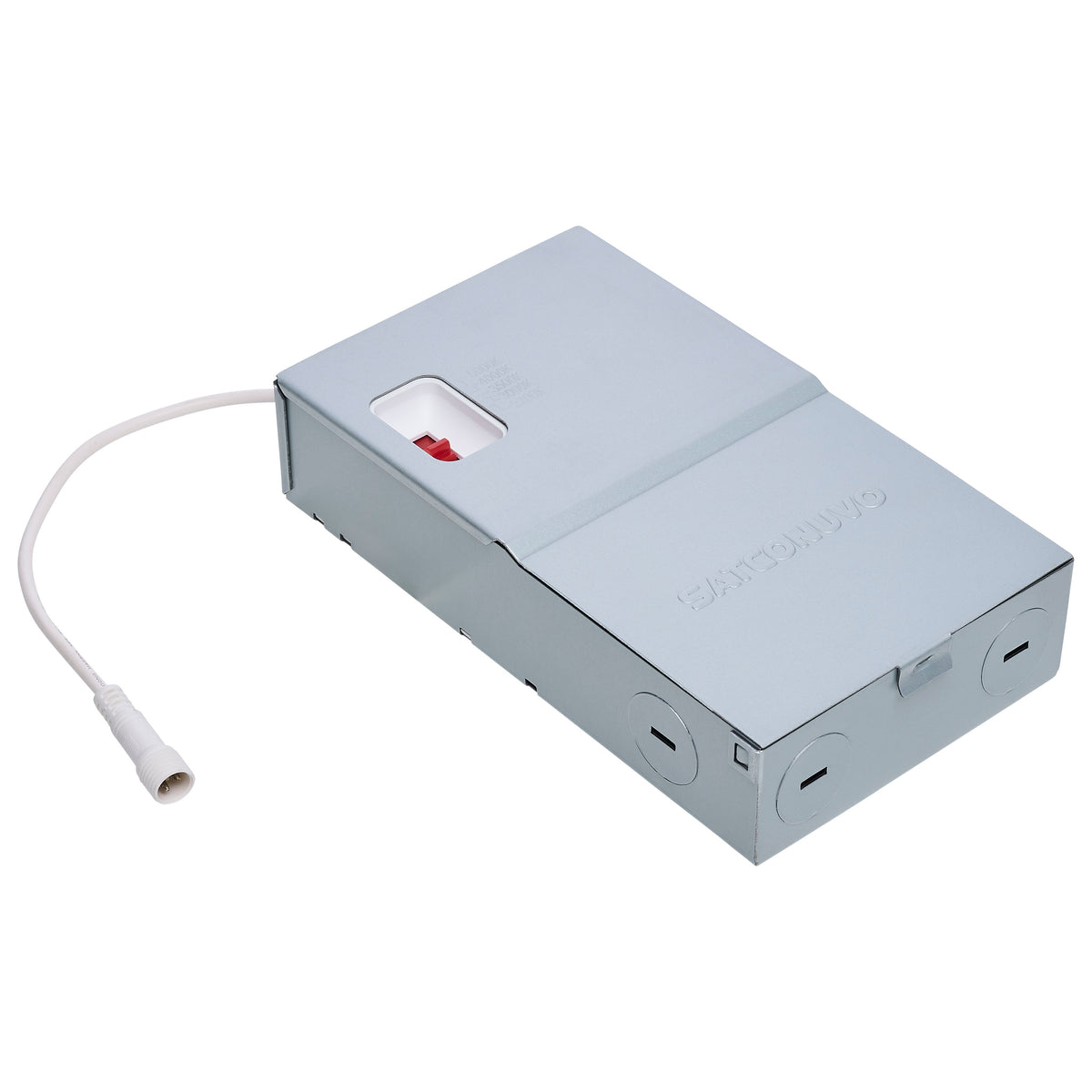

| Fixture Type | Remote Driver LED Downlight |
| Style | Specialty |
| Finish | White / Red |
| Finish Family | White |
| Material | Steel |
| Lens Finish | Frosted |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling |
| Indoor Outdoor | Indoor |
| Location Rating | Wet |
| Safety Listing | cULus - Certified |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 1KV |
| Warranty | 5-Years |
| Web Width | 4.74 |
| Web Height | 0.88 |
| Title 20 | Exempt |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923410208 |
| Case Quantity | 6 |
| Pack Type | Color Box |
Product Information
Part Number
S11868R1
Brand
SATCO
Product Code
S11868R1
UPC
045923410208
Specifications
Technology
LED
Wattage
10
Input Voltage
120V-277V
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lumens
820.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
110
