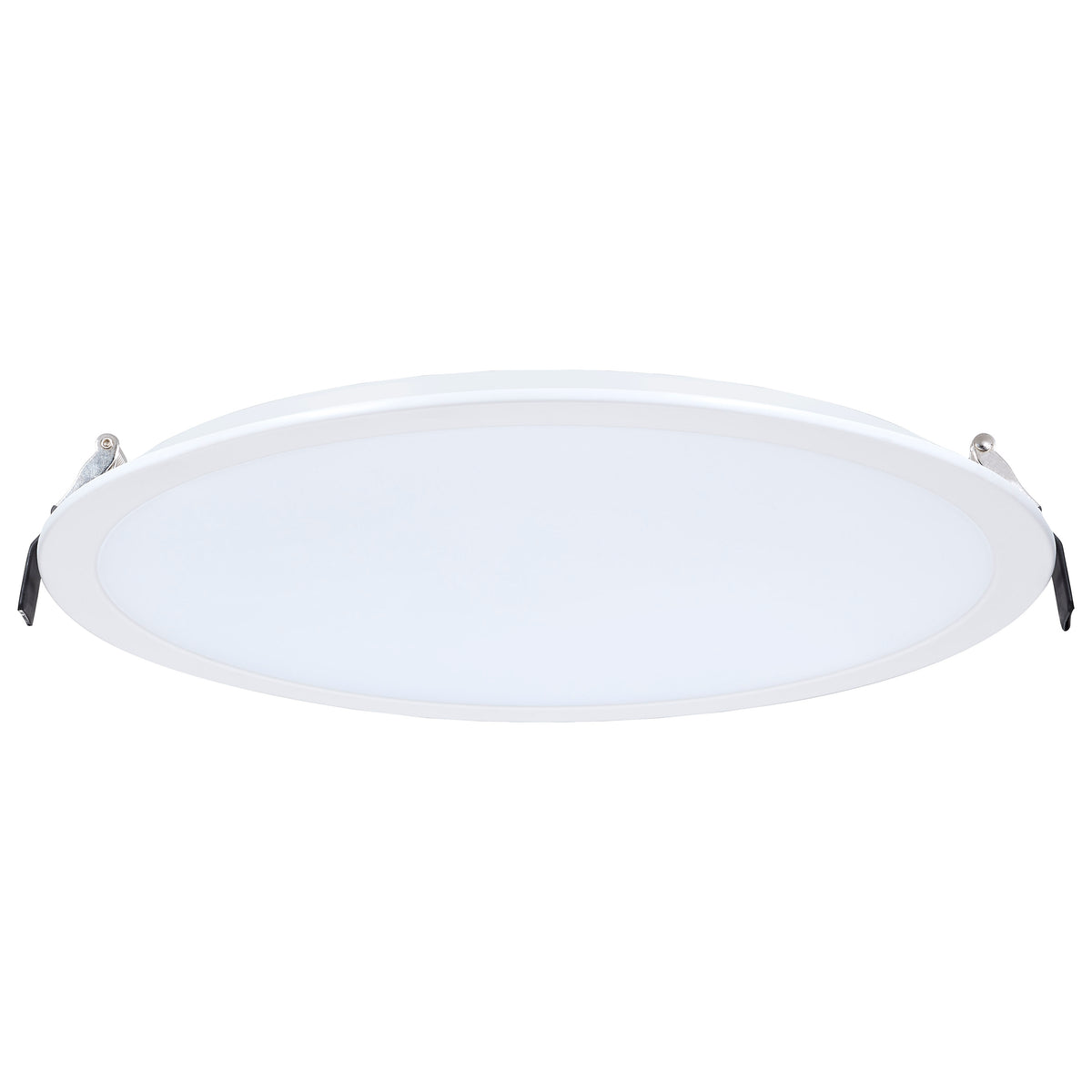

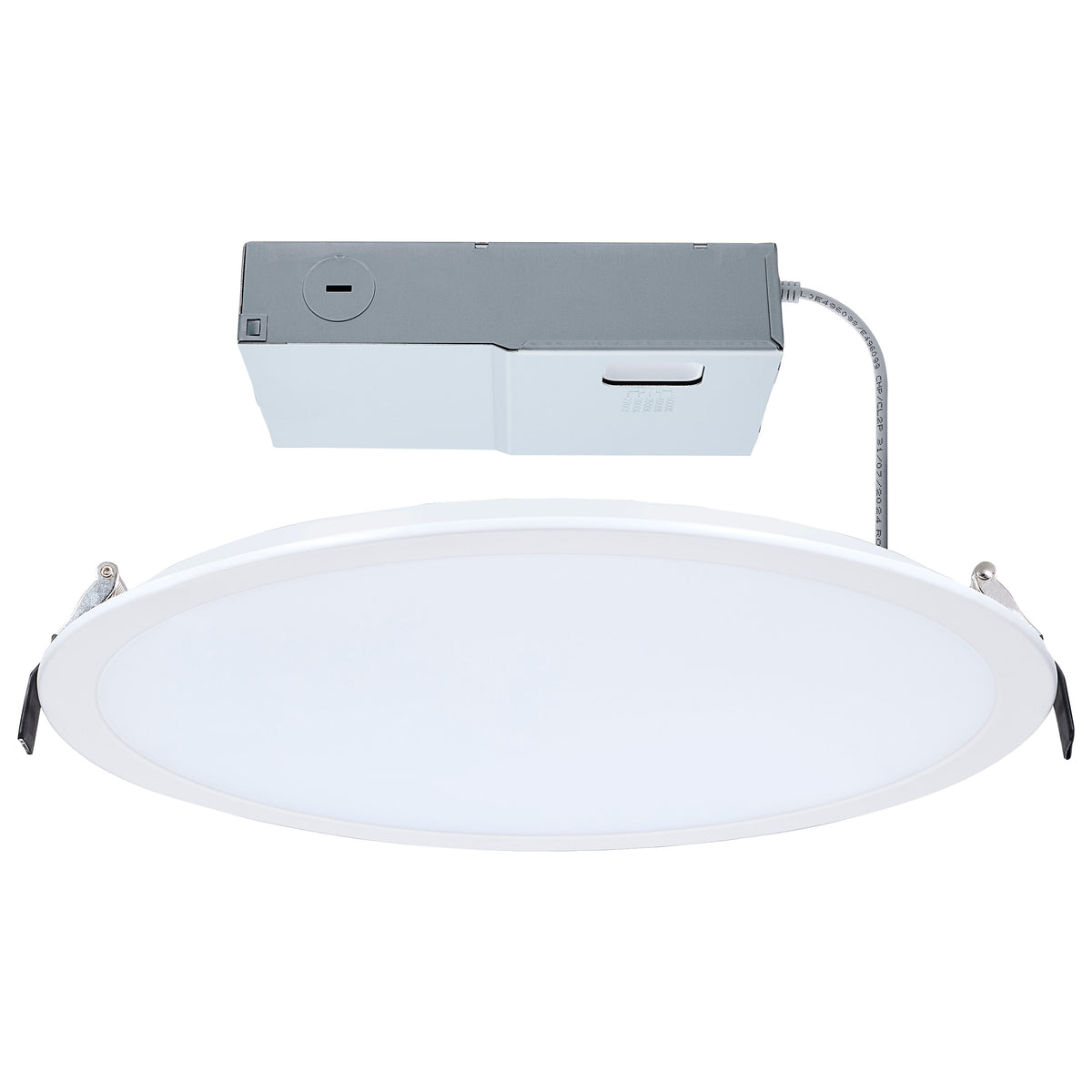

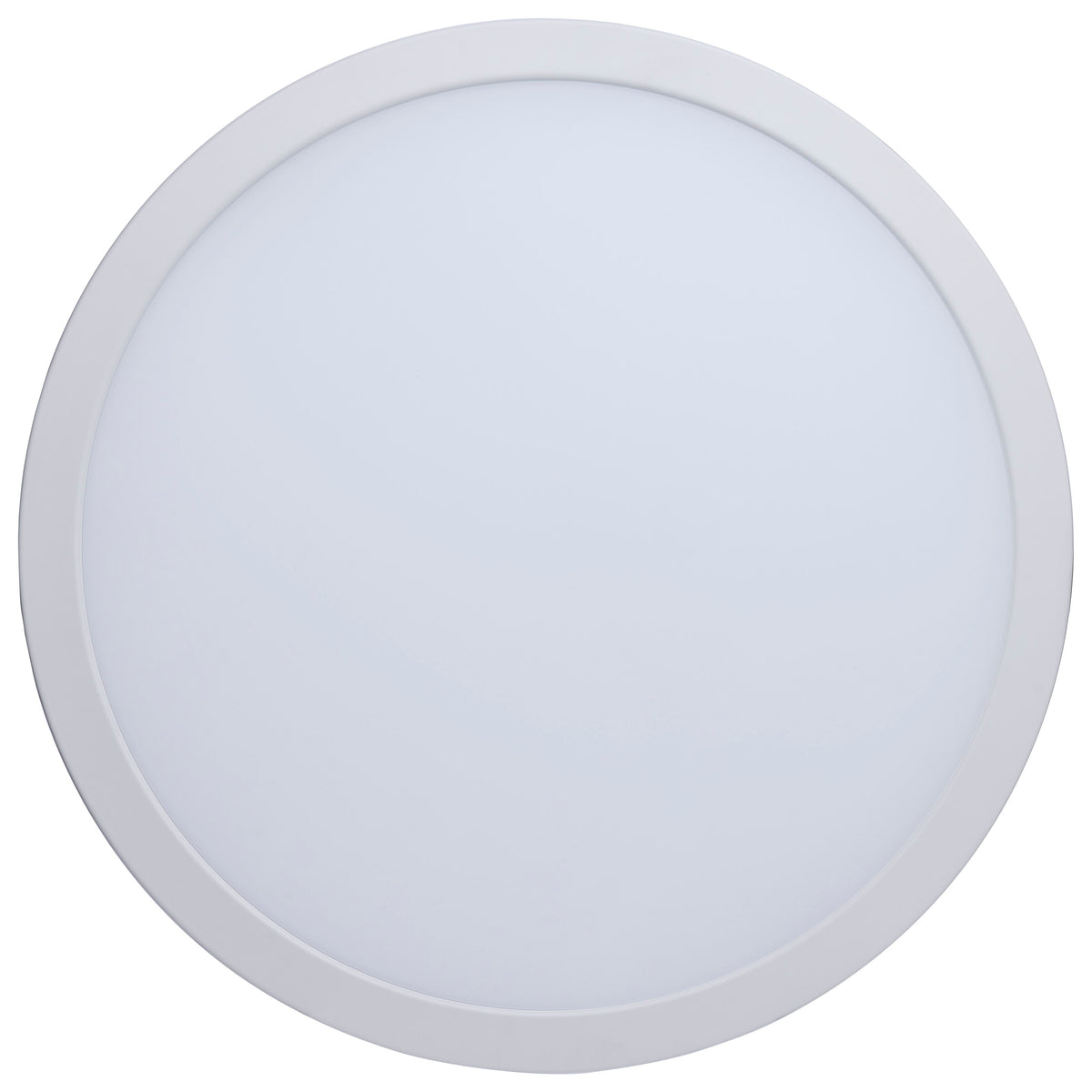

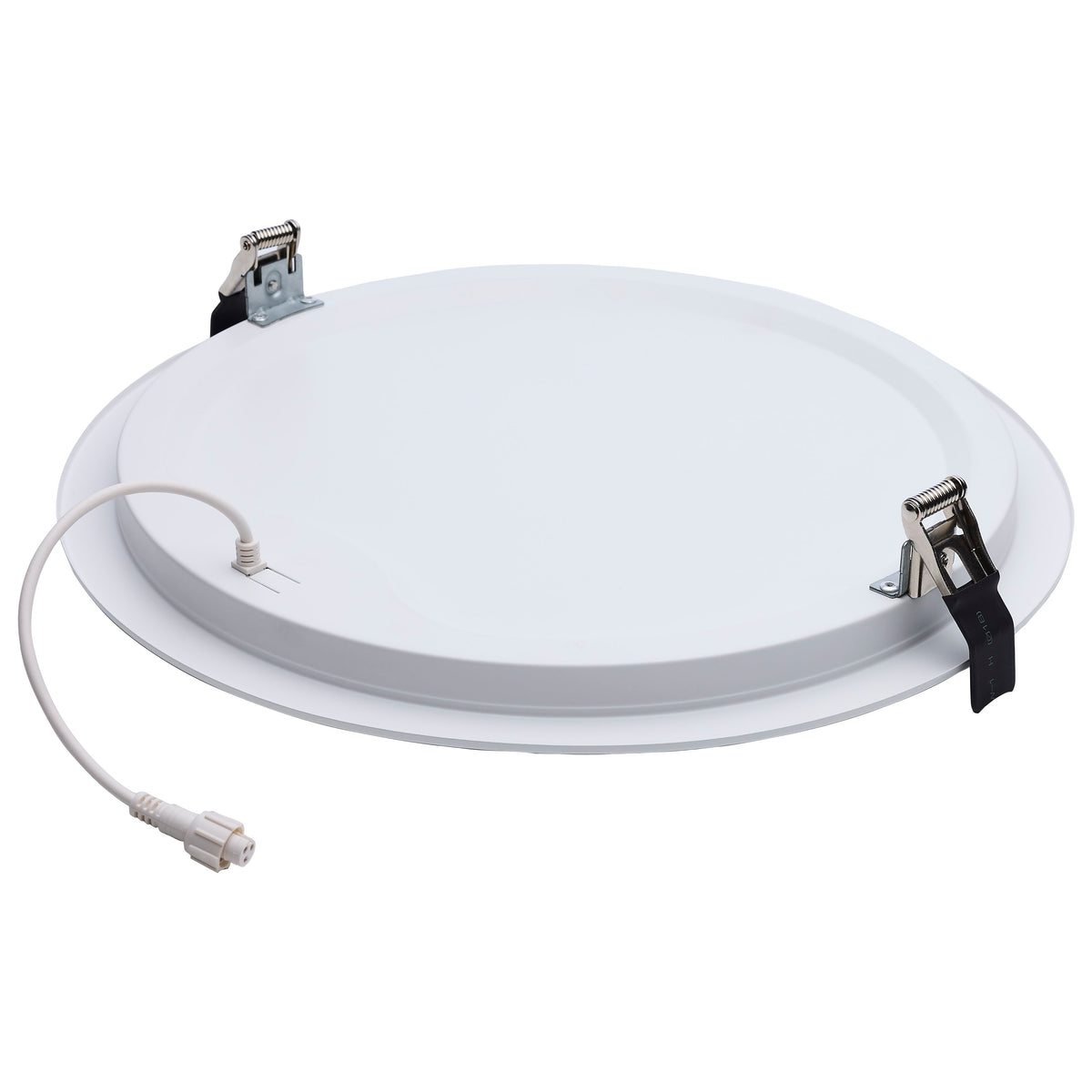

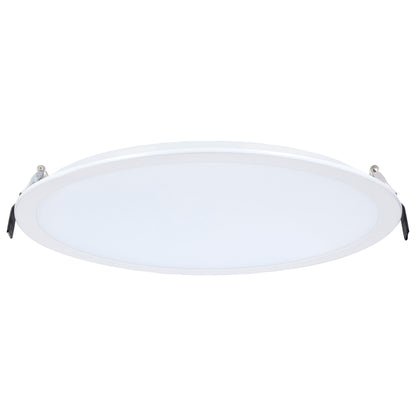

38 Watt; 12 Inch LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dual Dimming; Flat Face; Round; White Finish
38WLED/DW/12/CCT/RND/FL/DD (Satco S11849) — Commercial Fixtures › Downlights › Direct Wire Downlights.
Specifications
| Watts | 38W |
| Lumens | 4000L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 90+ |
| Volts | 120V-277V |
| Amps | 0.360A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Dual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-277V |
| Beam Angle (degree) | 110 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 200W |
| Fixture Type | Direct Wire LED Downlight |
| Finish | WHITE |
| Finish Family | White |
| Material | Steel |
| Lens Finish | Matte Frosted |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Indoor Outdoor | Indoor |
| Location Rating | Wet |
| Safety Listing | cETLus - Listed |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 1.6KV |
| Warranty | 5-Years |
| Web Width | 13.03 |
| Web Height | 2.36 |
| Title 20 | Exempt |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923118494 |
| Case Quantity | 8 |
| Pack Type | Box |
Product Information
Part Number
S11849
Brand
SATCO
Product Code
S11849
UPC
045923118494
Specifications
Technology
LED
Wattage
38
Input Voltage
120V-277V
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lumens
4000.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
110
