Satco S11830R1 12W Integrated LED CCT Selectable LED Light Bulb Integrated Base

Satco S11830R1 12W Integrated LED CCT Selectable LED Light Bulb Integrated Base

SATCO
$34.95 USD
$34.95 USD
Sale Sold out
Shipping calculated at checkout.

CB-0279372
12 Watt LED Direct Wire Downlight; Edge-lit; 6-Inch; CCT Selectable; Square; Remote Driver12WLED/DW/EL/6/CCT-SEL/SQ/RD (Satco S11830R1) — Commercial Fixtures › Downlights › Direct Wire Downlights.S... Show More
View full details

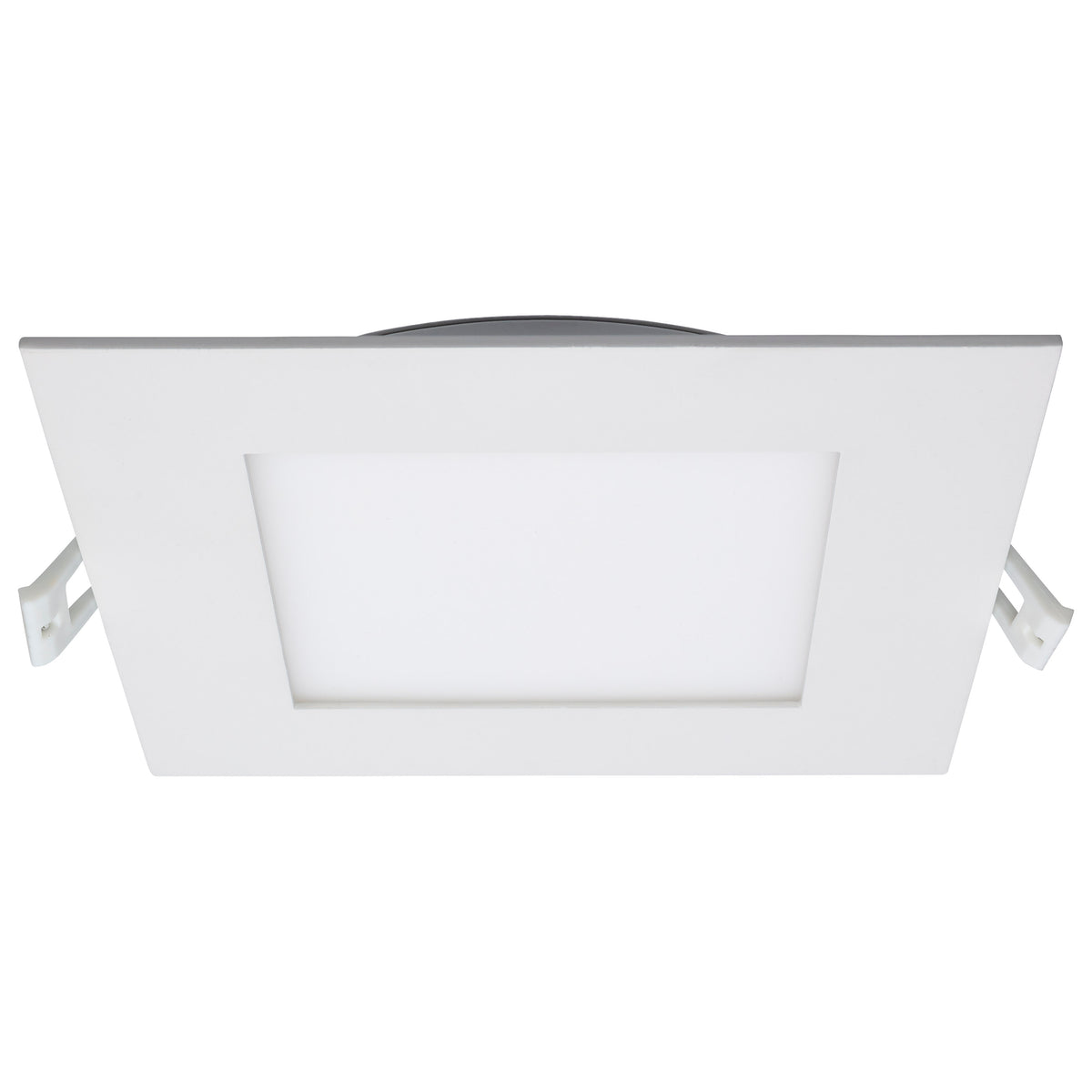

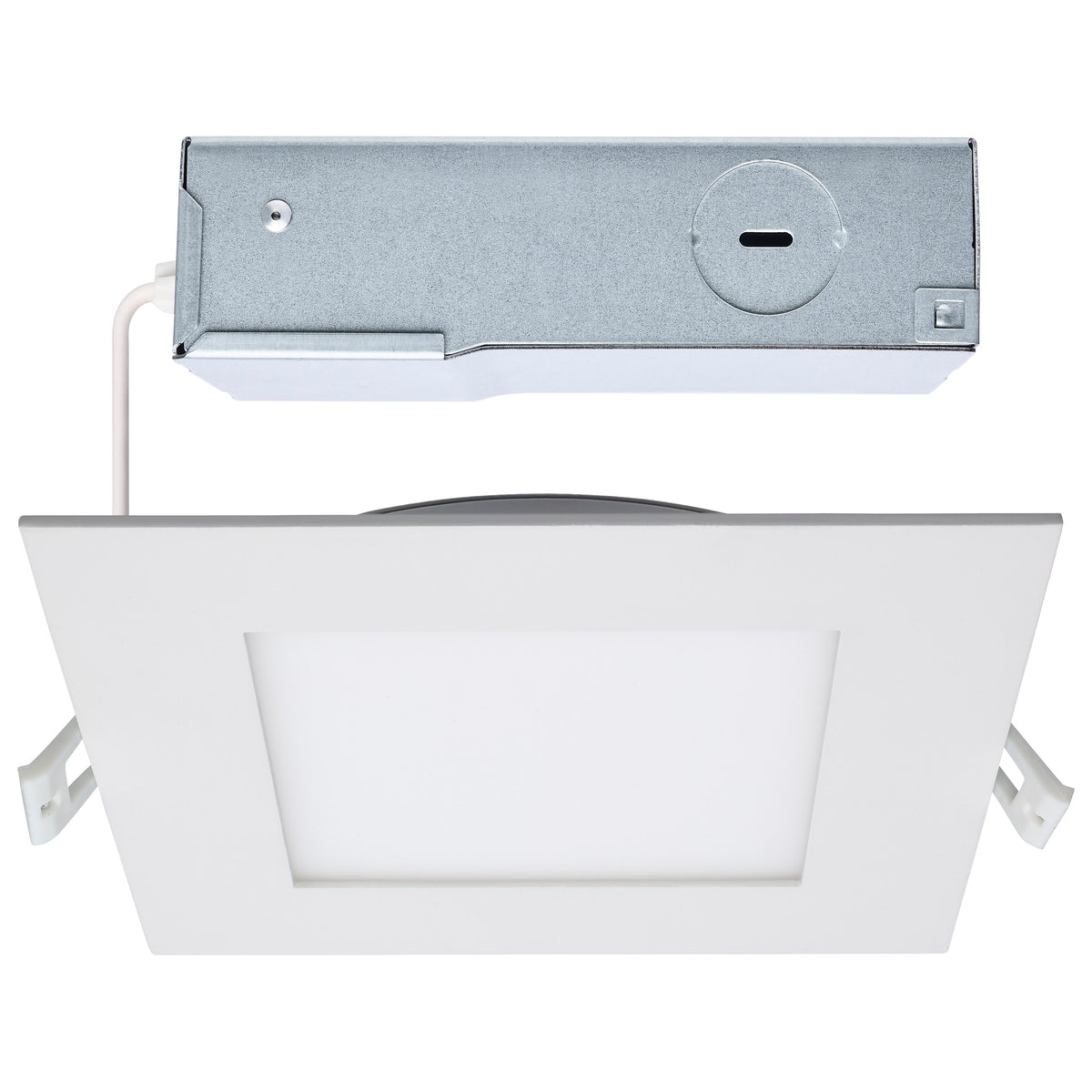

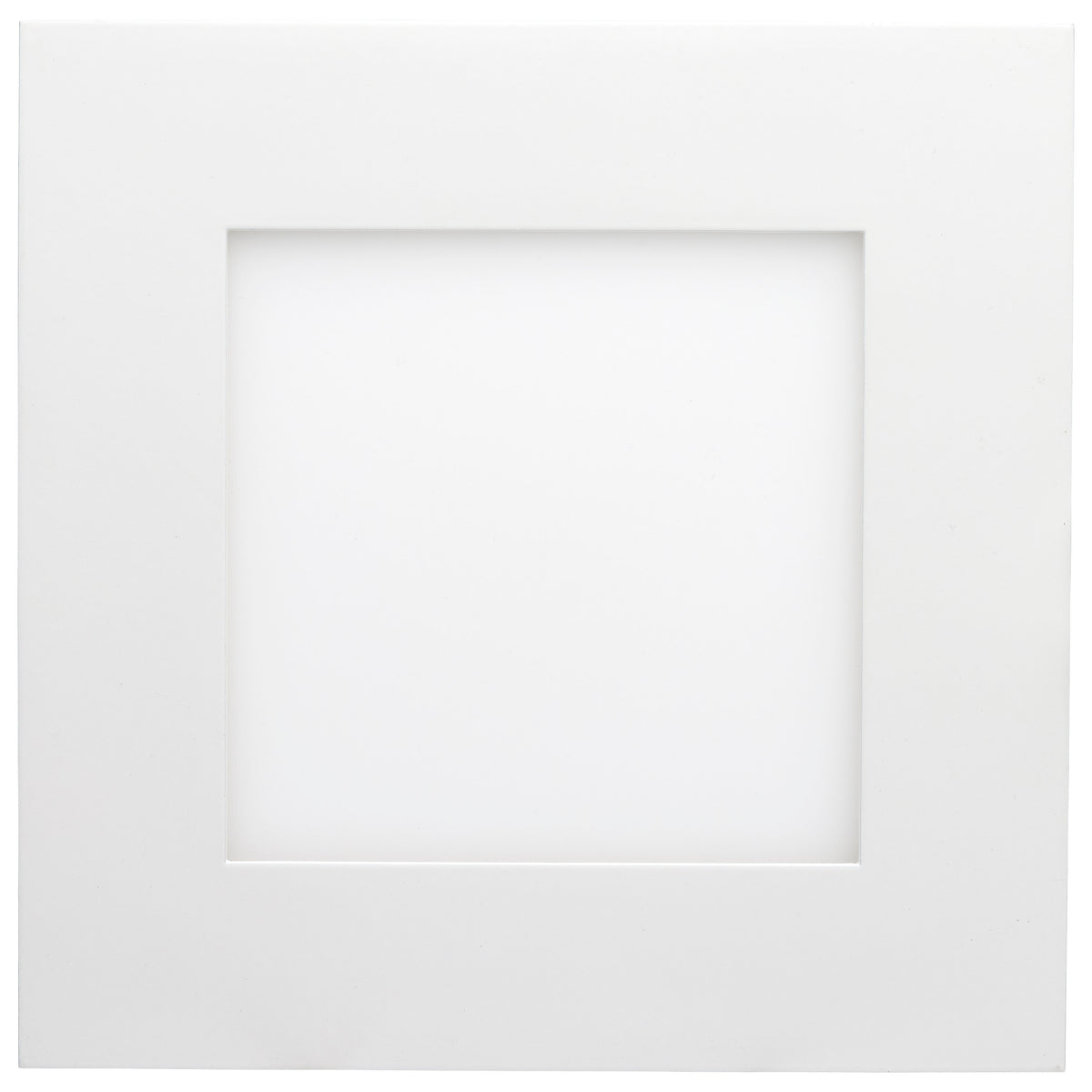

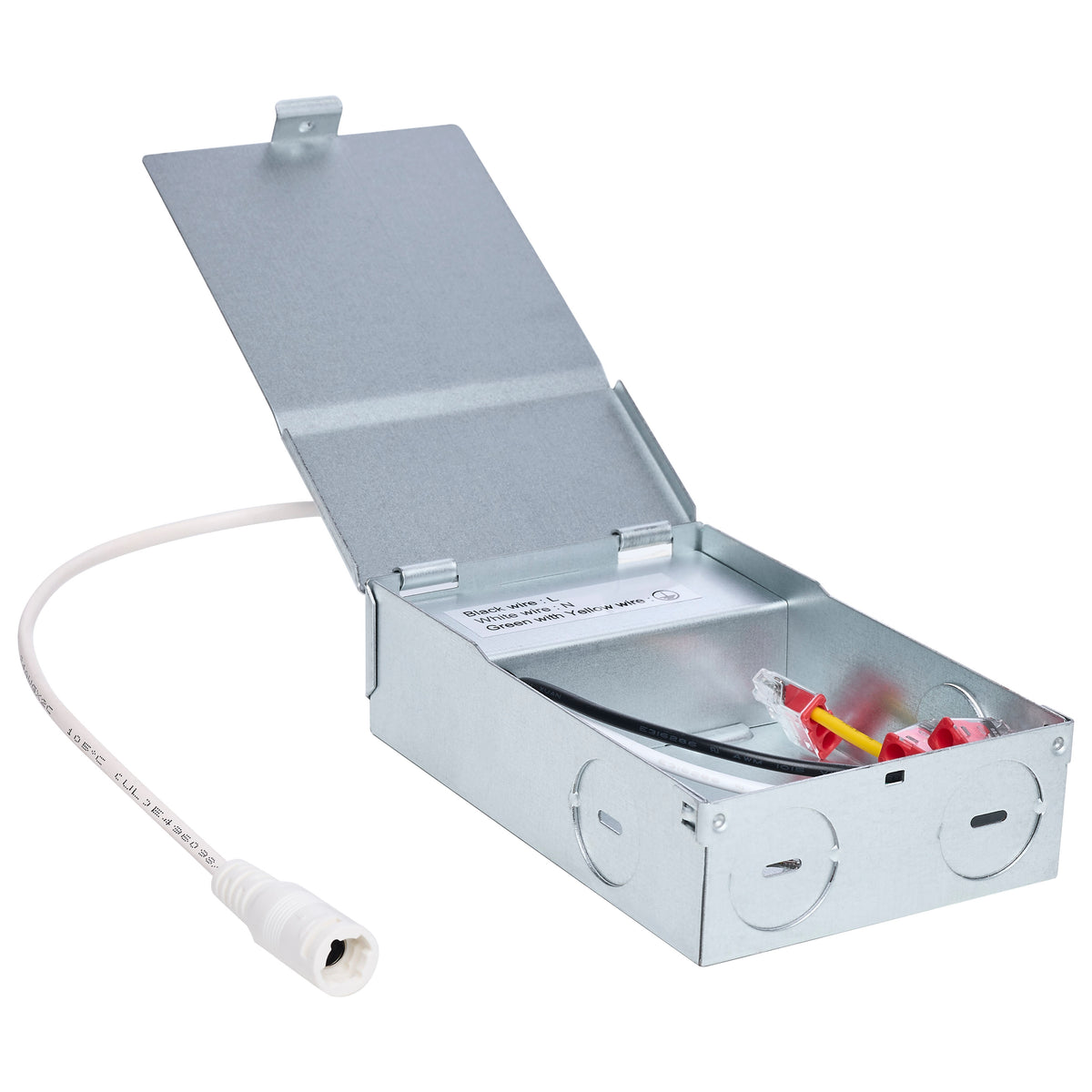

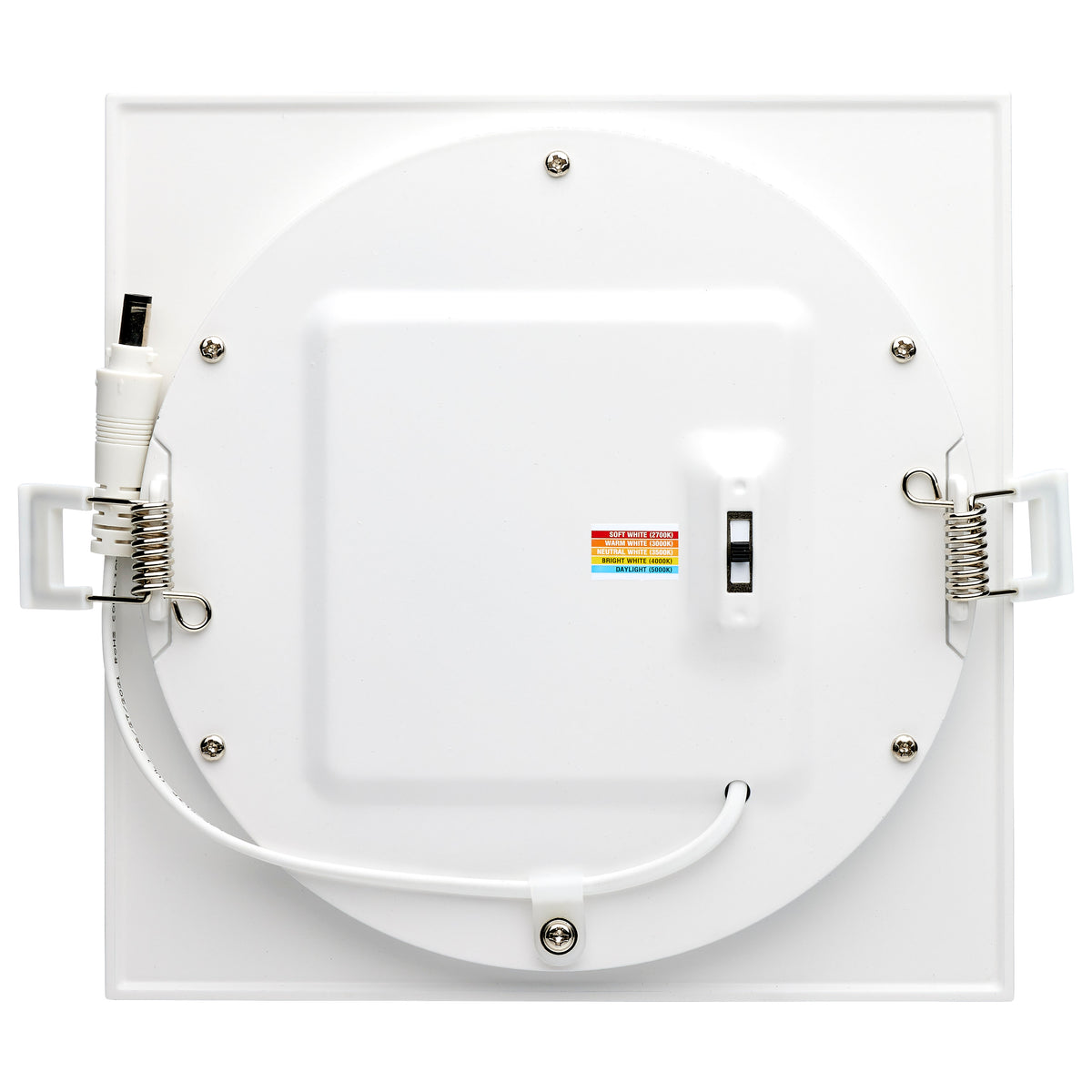

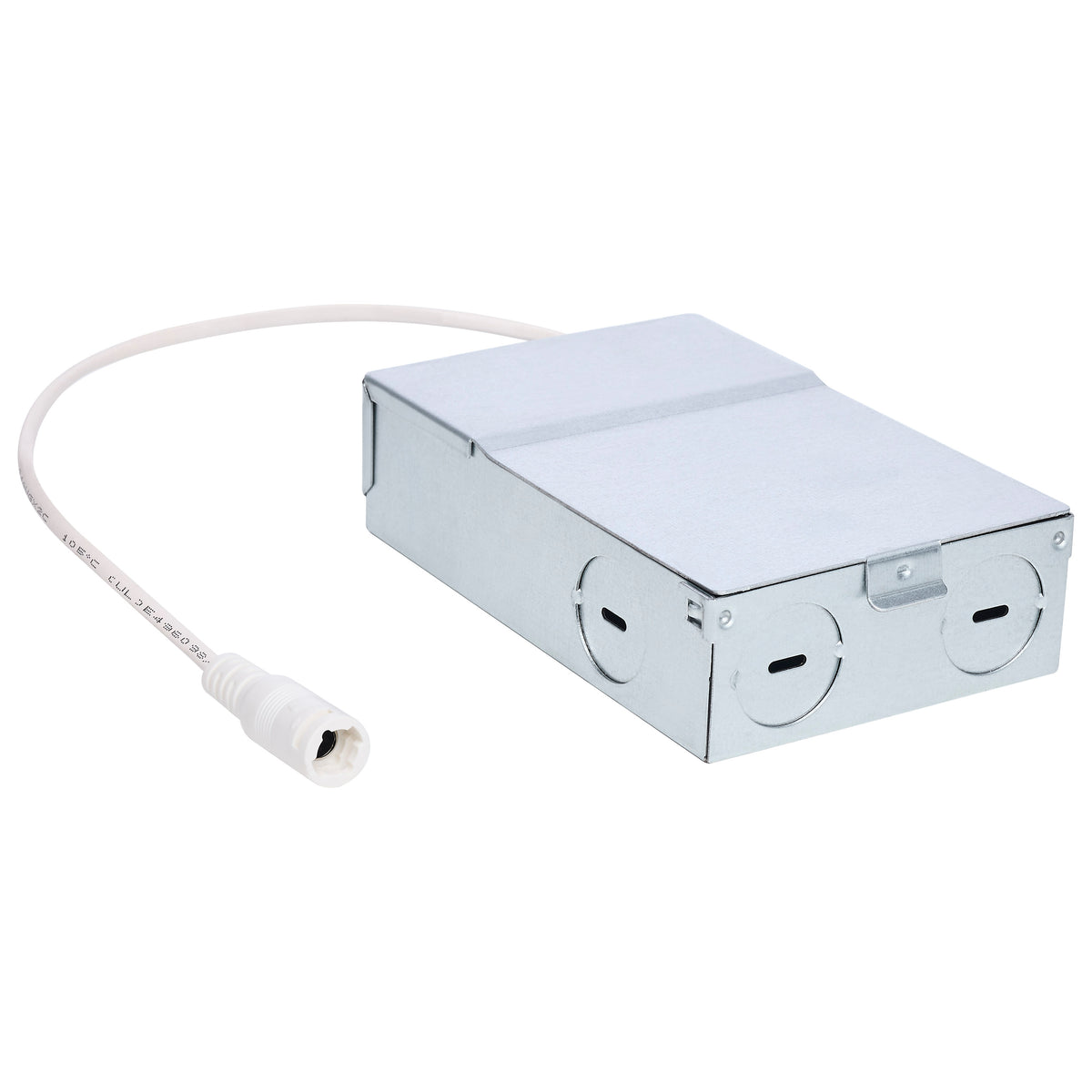

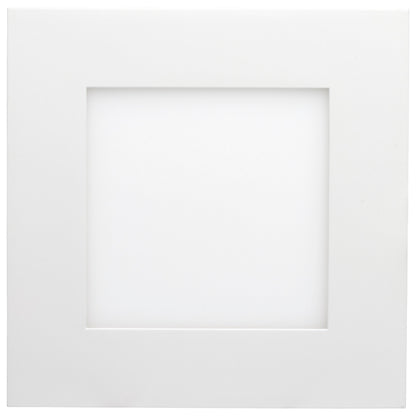

12 Watt LED Direct Wire Downlight; Edge-lit; 6-Inch; CCT Selectable; Square; Remote Driver

12WLED/DW/EL/6/CCT-SEL/SQ/RD (Satco S11830R1) — Commercial Fixtures › Downlights › Direct Wire Downlights.

Specifications

Watts 12W
Lumens 1050L
CCT (Kelvin Temp) 2700K/3000K/3500K/4000K/5000K
Color Temp Warm White to Natural Light
CCT Selectable Yes
Wattage Selectable No
CRI 90+
Volts 120v
Amps 0.120A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type Linear Dimming, Phase cut
Beam Angle (degree) 110
Lamp Base Integrated
ANSI Base Integrated
Lamp Type Integrated LED
Product Technology LED
Incandescent Equivalent 75W
Fixture Type Direct Wire LED Downlight
Style Utility
Finish WHITE
Finish Family White
Material Aluminum
Lens Finish Frost
Lens Material Poly methyl methacrylate (PMMA)
Bulb Included Integrated
Indoor Outdoor Indoor and Outdoor
Location Rating Wet
Safety Listing cETLus - Listed
Operating Temp -4F to +113F (-20C to +45C)
Power Factor >0.9
Total Harmonic Distortion <20%
Surge Protection Built-in surge protection - 2.5KV
Warranty 5-Years
Web Length 6.75
Web Width 6.75
Web Height 0.99
Title 20 Exempt
T24/JA8 Compliant Yes
California Ban Lawful for sale
UPC 045923411076
Case Quantity 12
Pack Type Color Box

S11830R1 Instructions (PDF) · Satco product page

Product Information

Part Number S11830R1
Brand SATCO
Product Code S11830R1
UPC 045923411076

Specifications

Technology LED
Wattage 12
Input Voltage 120v
Color Temperature 2700K/3000K/3500K/4000K/5000K
Lamp Base Integrated
Lumens 1050.0
Hours 50000
CRI 90
Dimmable true
Beam Spread 110
