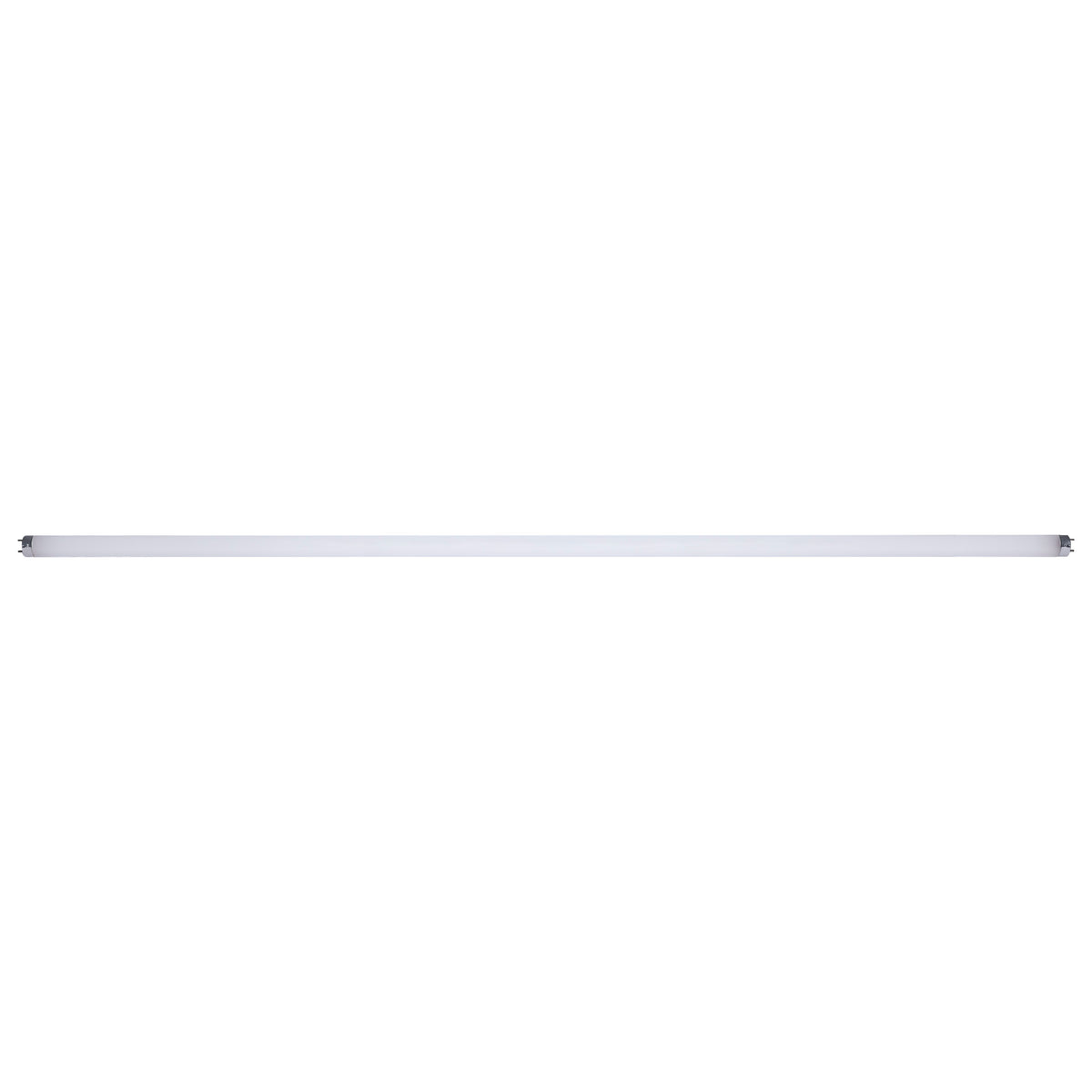

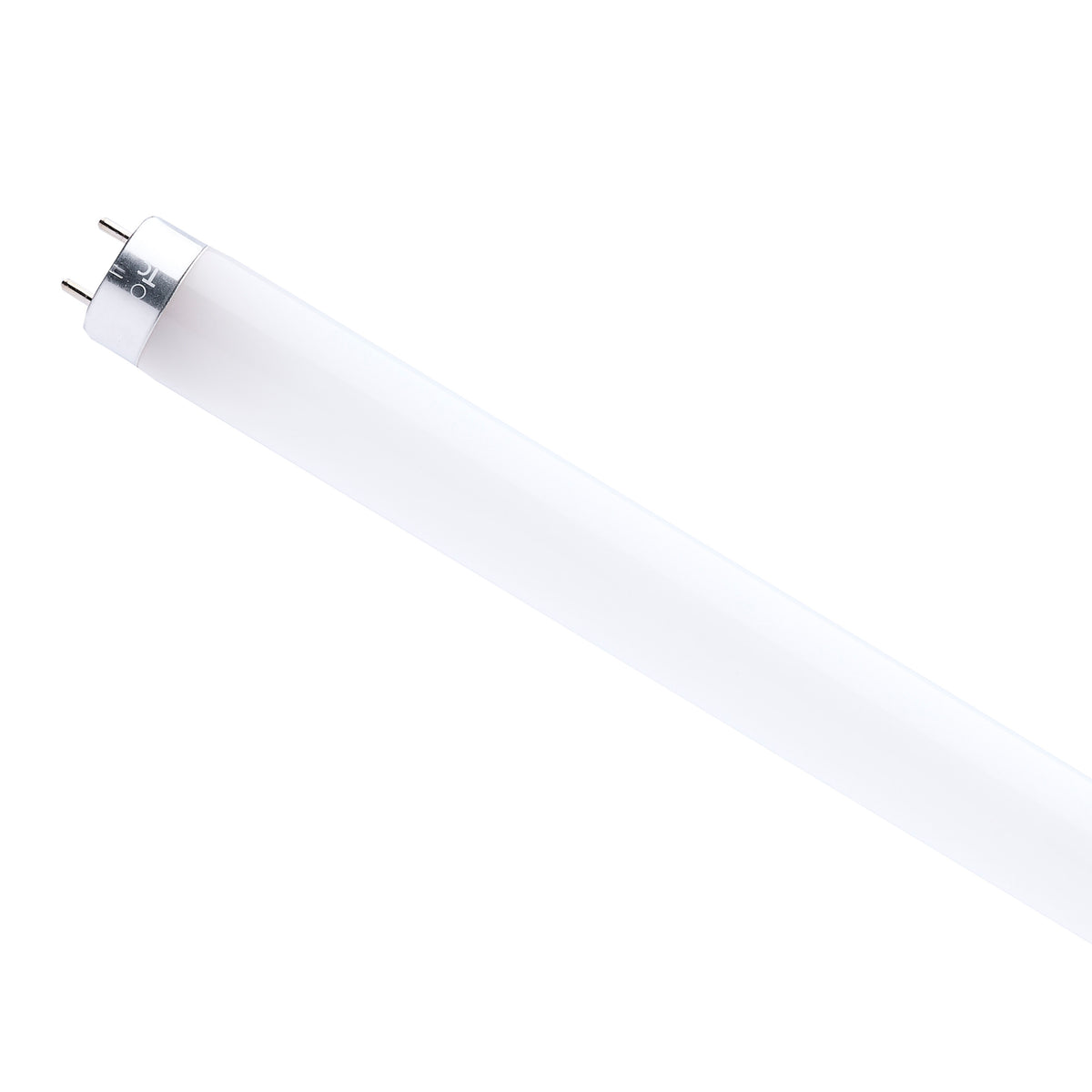

Satco S11740R1 9.5W T8 Warm White LED Light Bulb Medium Bi Pin Base

Satco S11740R1 9.5W T8 Warm White LED Light Bulb Medium Bi Pin Base

SATCO
$7.12 USD
$7.12 USD
Sale Sold out
Shipping calculated at checkout.

CB-0279357
9.5 Watt; 4 Foot T8 LED; G13 Base; 3000K; Type A9.5/T8/LED/48-830/DR (Satco S11740R1) — Lamps › LED Lamps › TLED.Specifications Watts 9.5W Lumens 1740L CCT (Kelvin Temp) 3000K Color Temp War... Show More
View full details

9.5 Watt; 4 Foot T8 LED; G13 Base; 3000K; Type A

9.5/T8/LED/48-830/DR (Satco S11740R1) — Lamps › LED Lamps › TLED.

Specifications

Watts 9.5W
Lumens 1740L
CCT (Kelvin Temp) 3000K
Color Temp Warm White
CCT Selectable No
Wattage Selectable No
CRI 80+
Volts Ballast Dependent
Amps 0.079-0.034A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type Check Ballast MFG for Dimmer Compatibility, Only in Type A mode
Beam Angle (degree) 210
Lamp Base Medium Bi Pin
ANSI Base G13
Lamp Type T8
Product Technology LED
Incandescent Equivalent 75W
Fluor Equiv 32W/30W/28W/25W
Lamp Ballast Type AB Type A
Fixture Type Linear
Style Utility
Finish Gloss White
Finish Family White
Material Glass / Steel
Housing Color White
Indoor Outdoor Indoor
Location Rating Damp
Safety Listing cULus - Listed
Operating Temp -4F to +113F (-20C to +45C)
Power Factor 0.9
Total Harmonic Distortion 20%
Warranty 5-Years
MOL 47.78
MOD Lamps 1.1
Web Length 47.78
Web Width 1.1
Rated For Enclosed Fixture Yes
Title 20 Exempt
T24/JA8 Compliant No
California Ban Lawful for sale
UPC 045923402913
Case Quantity 25
Pack Type Sleeve

S11740R1 Ballast Compatibility Chart AD (PDF) · S11740R1 Emergency Ballast Compatibility Chart AD (PDF) · S11740R1 Instructions (PDF) · Satco product page

Product Information

Part Number S11740R1
Brand SATCO
Product Code S11740R1
UPC 045923402913

Specifications

Technology LED
Wattage 9.5
Input Voltage Ballast Dependent
Color Temperature 3000K
Lamp Base Medium Bi Pin
Lumens 1740.0
Hours 50000
CRI 80
Dimmable true
Beam Spread 210
