Satco S11690 8W/12W Integrated LED CCT Selectable LED Light Bulb Integrated Base
Satco S11690 8W/12W Integrated LED CCT Selectable LED Light Bulb Integrated Base
SATCO
Regular price
$22.95 USD
Regular price
Sale price
$22.95 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279352
Couldn't load pickup availability

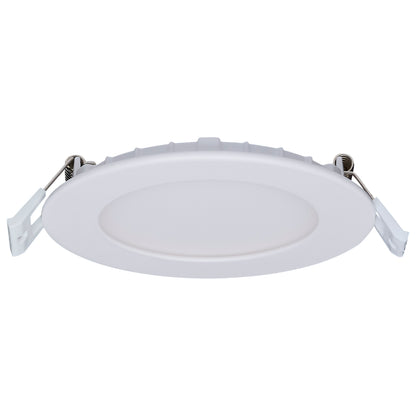

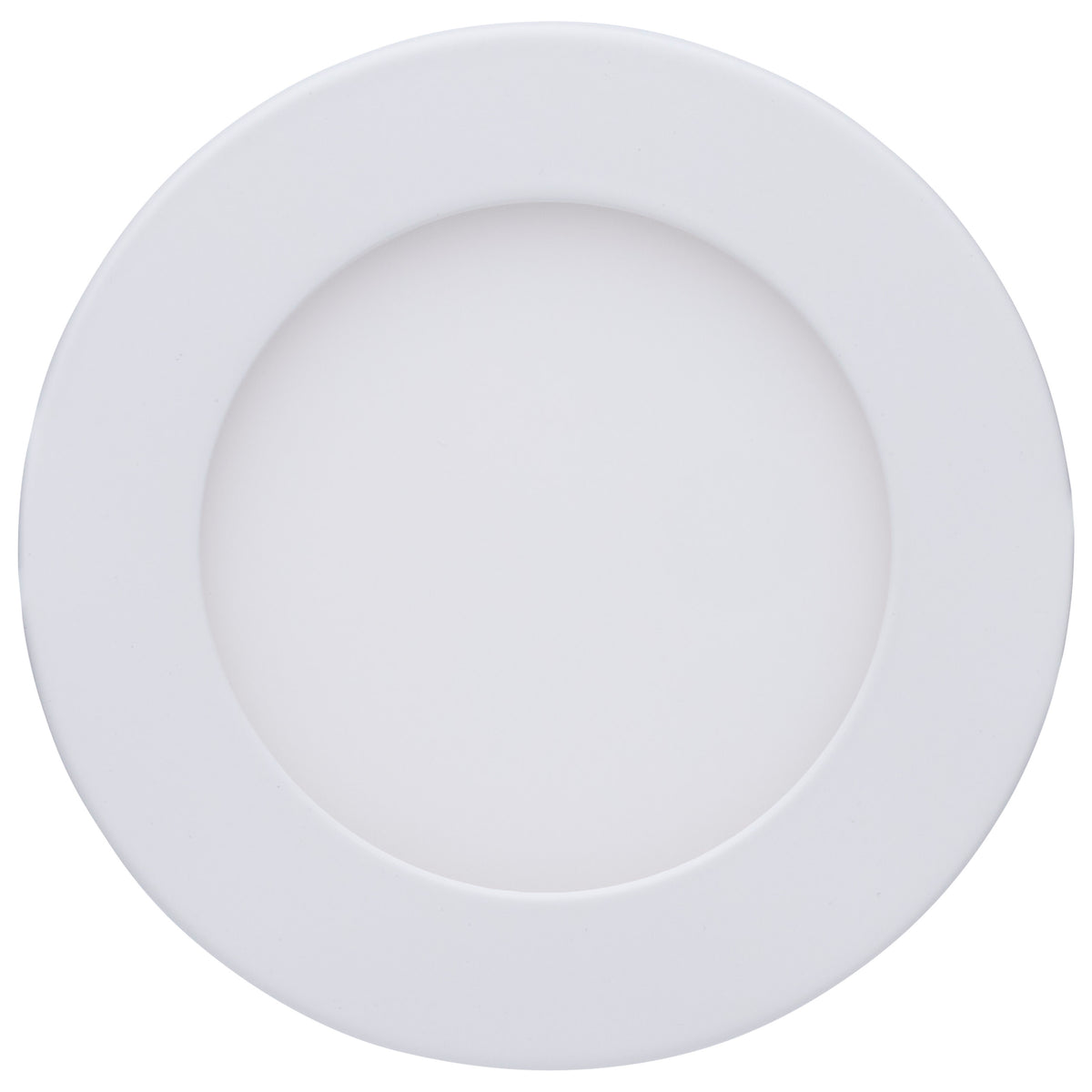

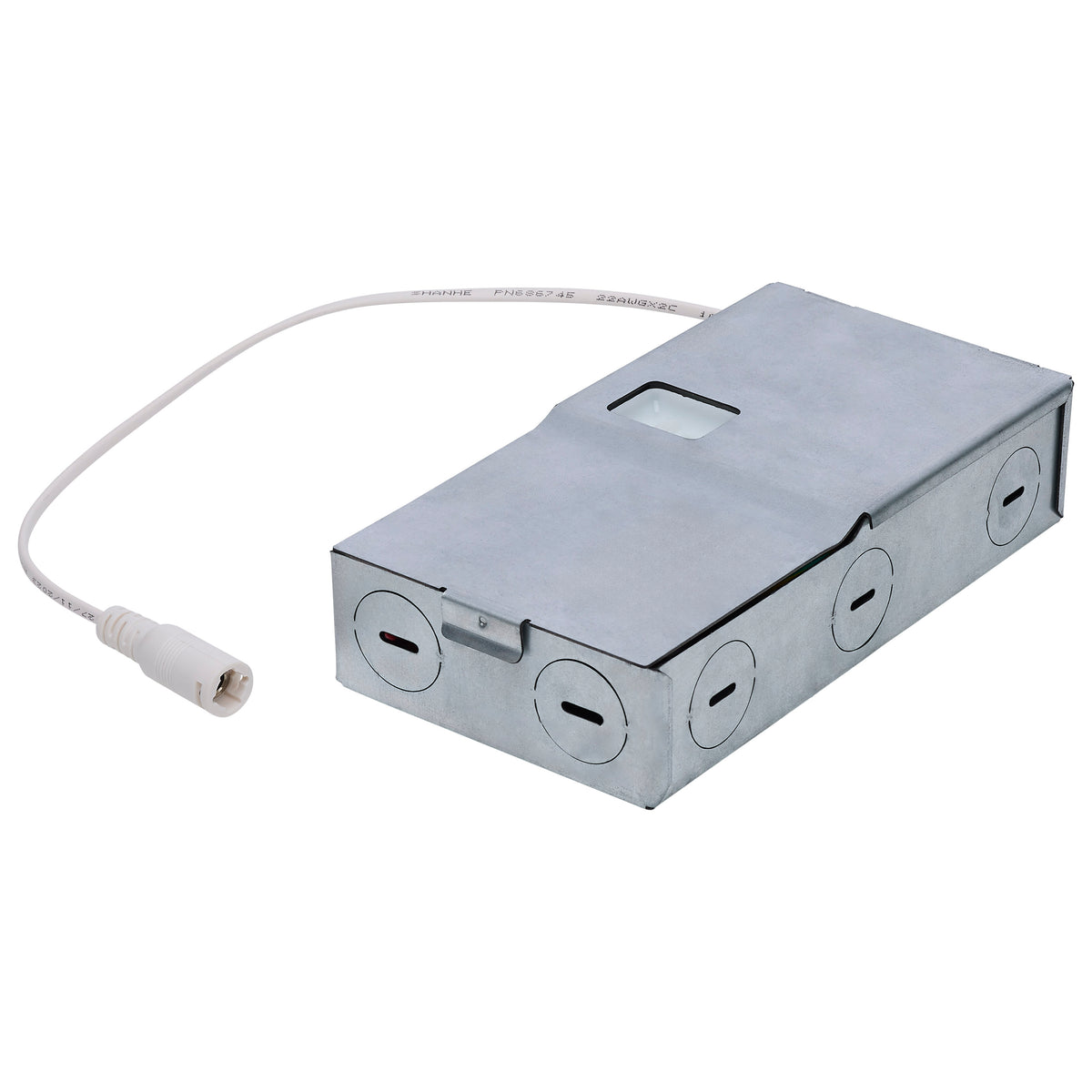

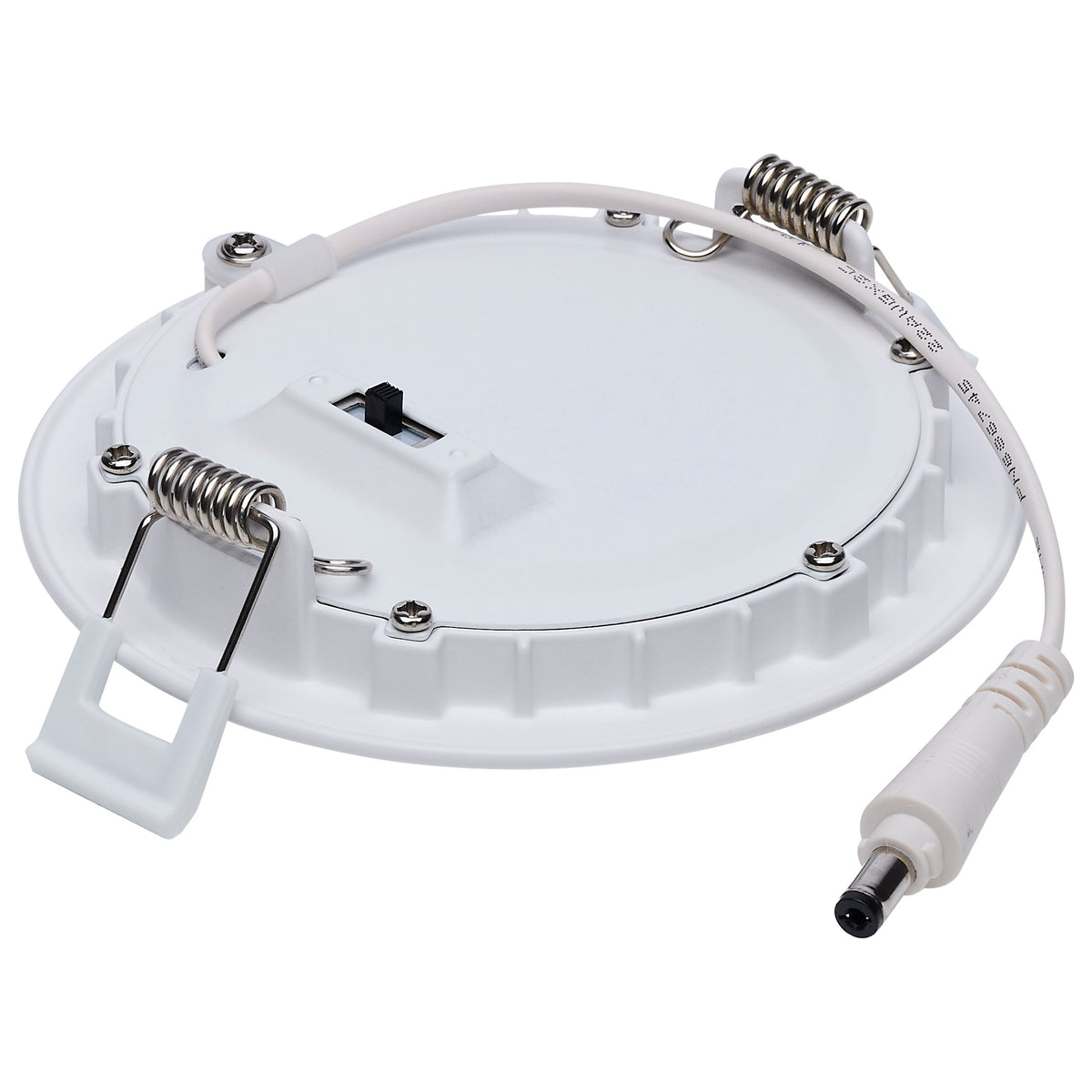

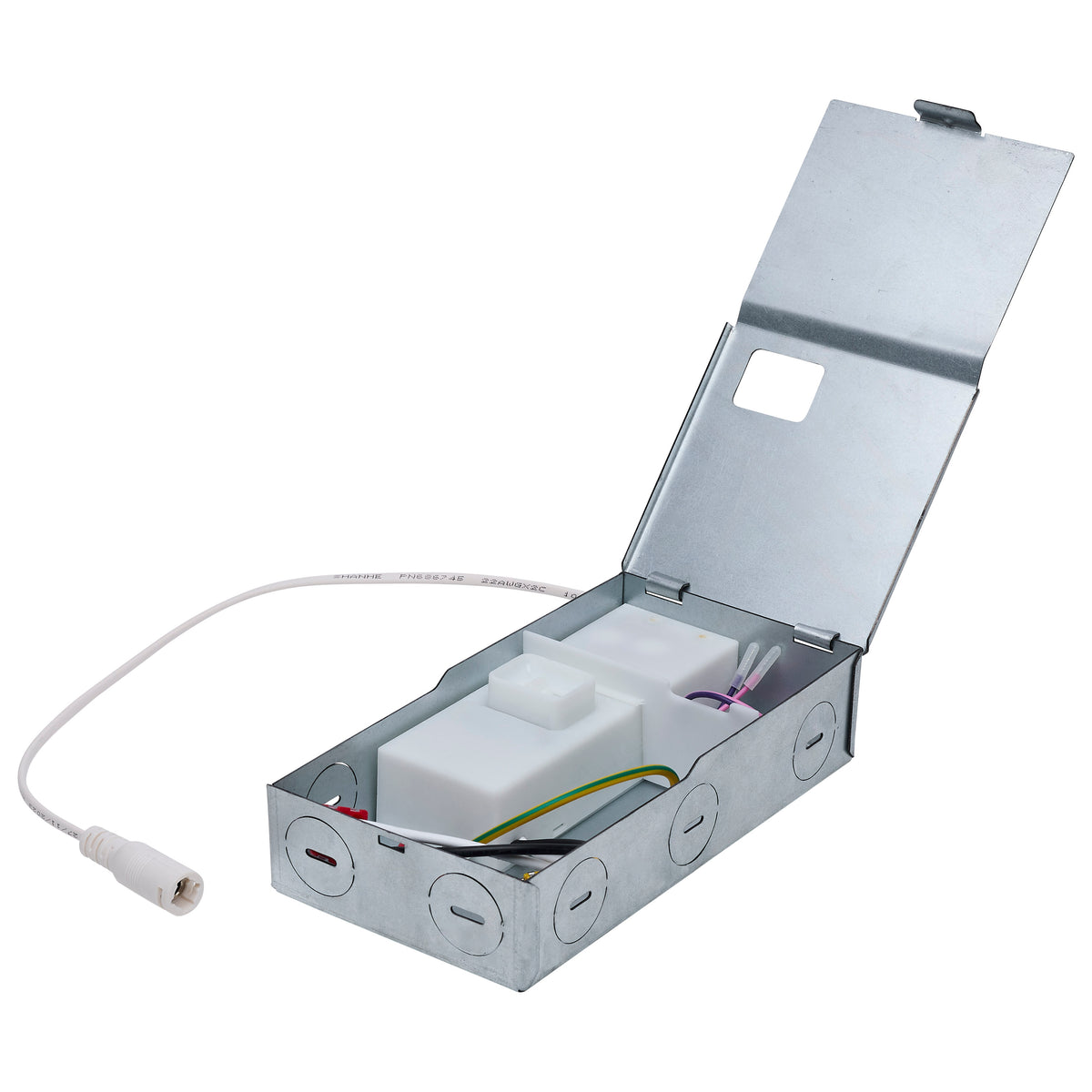

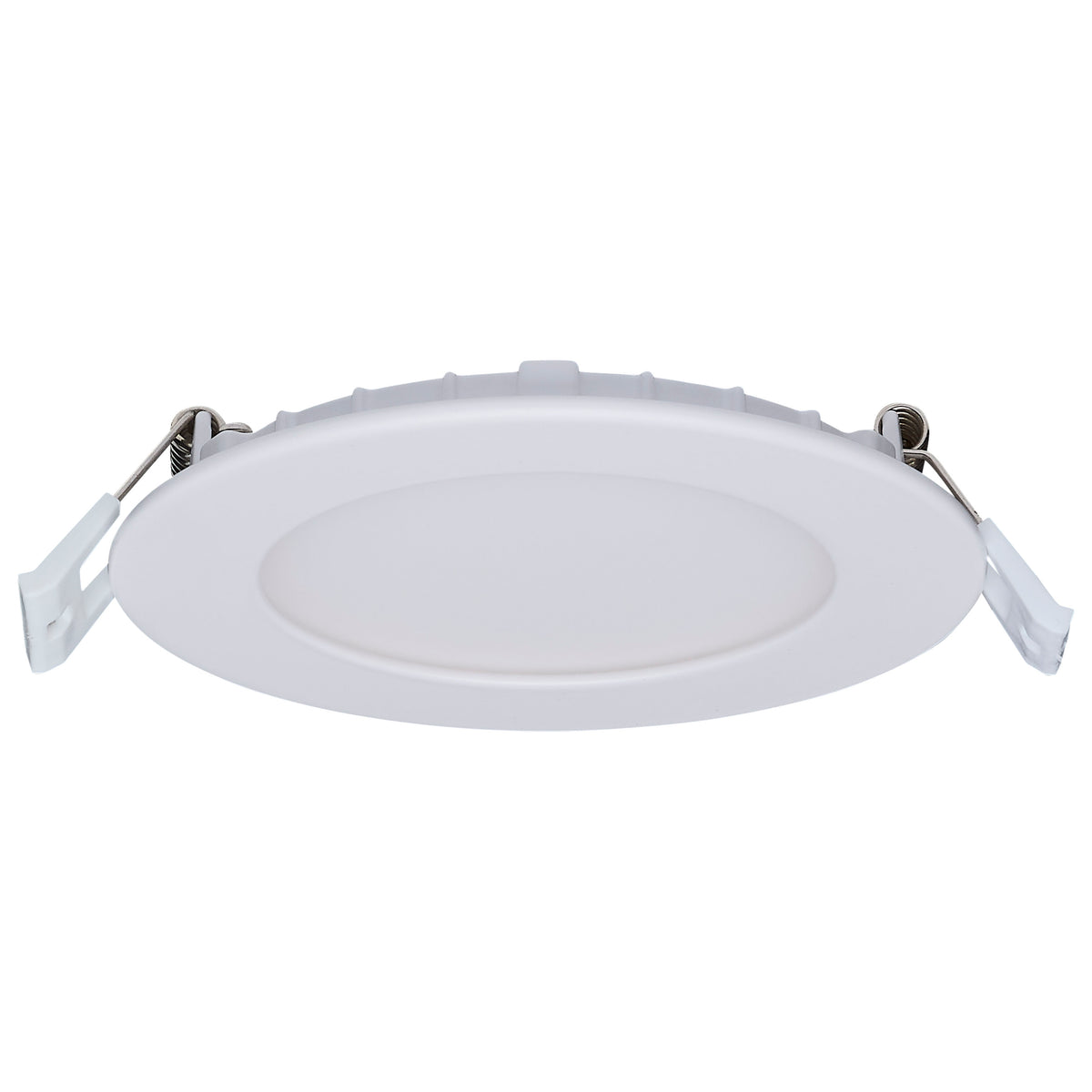

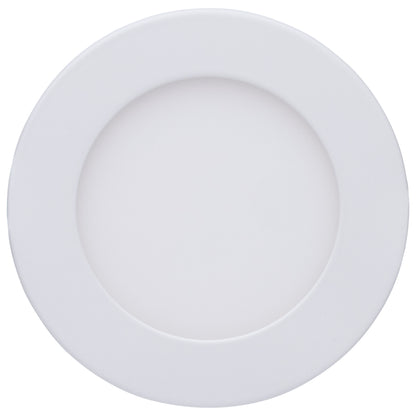

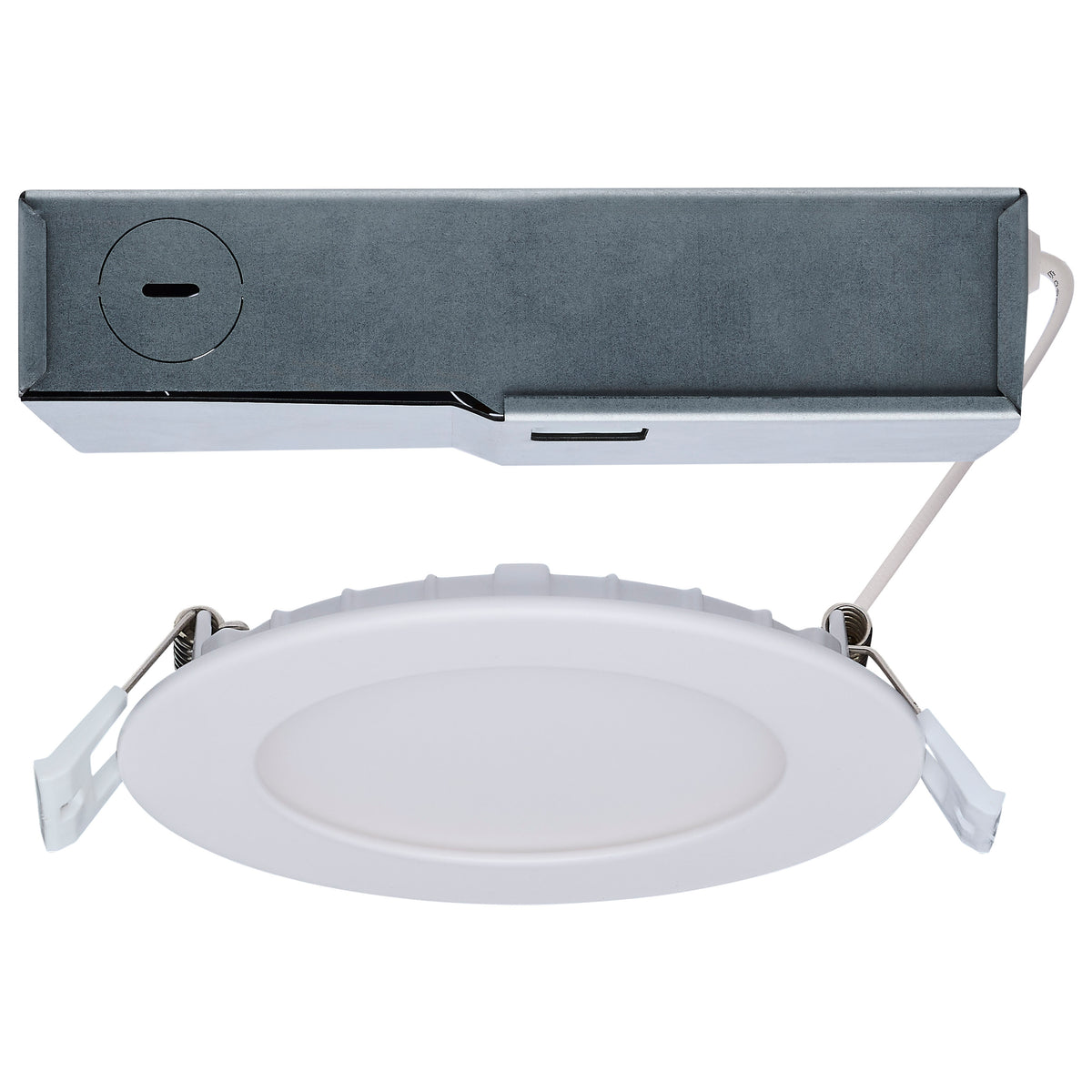

8/12 Watt LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 4 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming12WLED/DW/4/FS/RND/FL/DD (Satco S11690) — Commercial Fixt...
Show More
8/12 Watt LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 4 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming
12WLED/DW/4/FS/RND/FL/DD (Satco S11690) — Commercial Fixtures › Downlights › Direct Wire Downlights.
Specifications
| Watts | 8W/12W |
| Lumens | 720L/1000L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 90+ |
| Volts | 120V-277V |
| Amps | 0.067-0.029/0.100-0.043A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | Dual Dimming, Forward (TRIAC) or Reverse Phase at 120V/0-10V at 120-277V |
| Beam Angle (degree) | 108 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 75W |
| Fixture Type | Remote Driver LED Downlight |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Aluminum |
| Lens Finish | Matte Frosted |
| Lens Material | Acrylic |
| Bulb Included | Integrated |
| Indoor Outdoor | Indoor and Outdoor |
| Location Rating | Wet |
| Safety Listing | cETLus - Listed |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 2.5KV |
| Warranty | 5-Years |
| Web Width | 4.72 |
| Web Height | 1.34 |
| Title 20 | Exempt |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923116902 |
| Case Quantity | 12 |
| Pack Type | Box |
Product Information
Part Number
S11690
Brand
SATCO
Product Code
S11690
UPC
045923116902
Specifications
Technology
LED
Wattage
8
Input Voltage
120V-277V
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lumens
720.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
108
