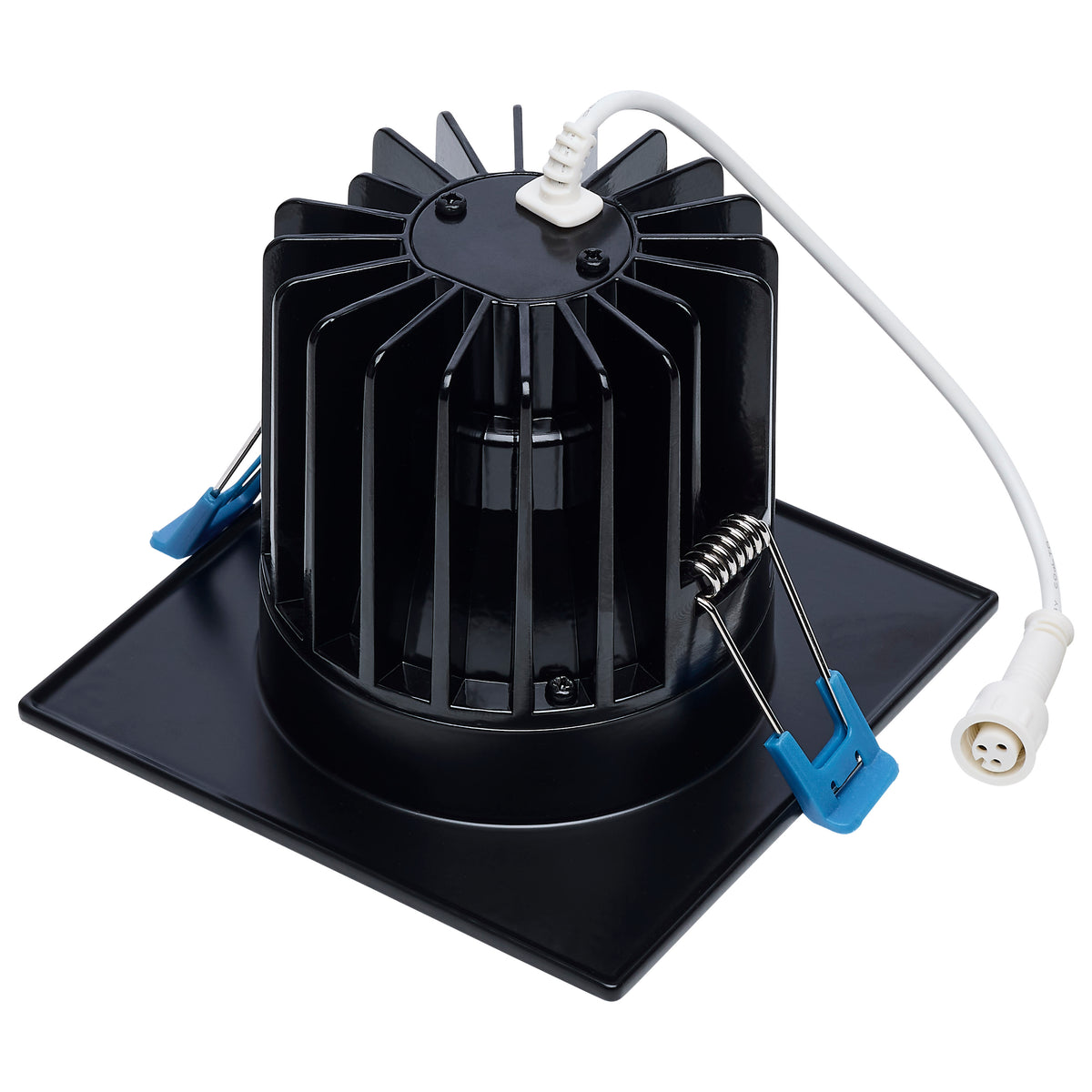

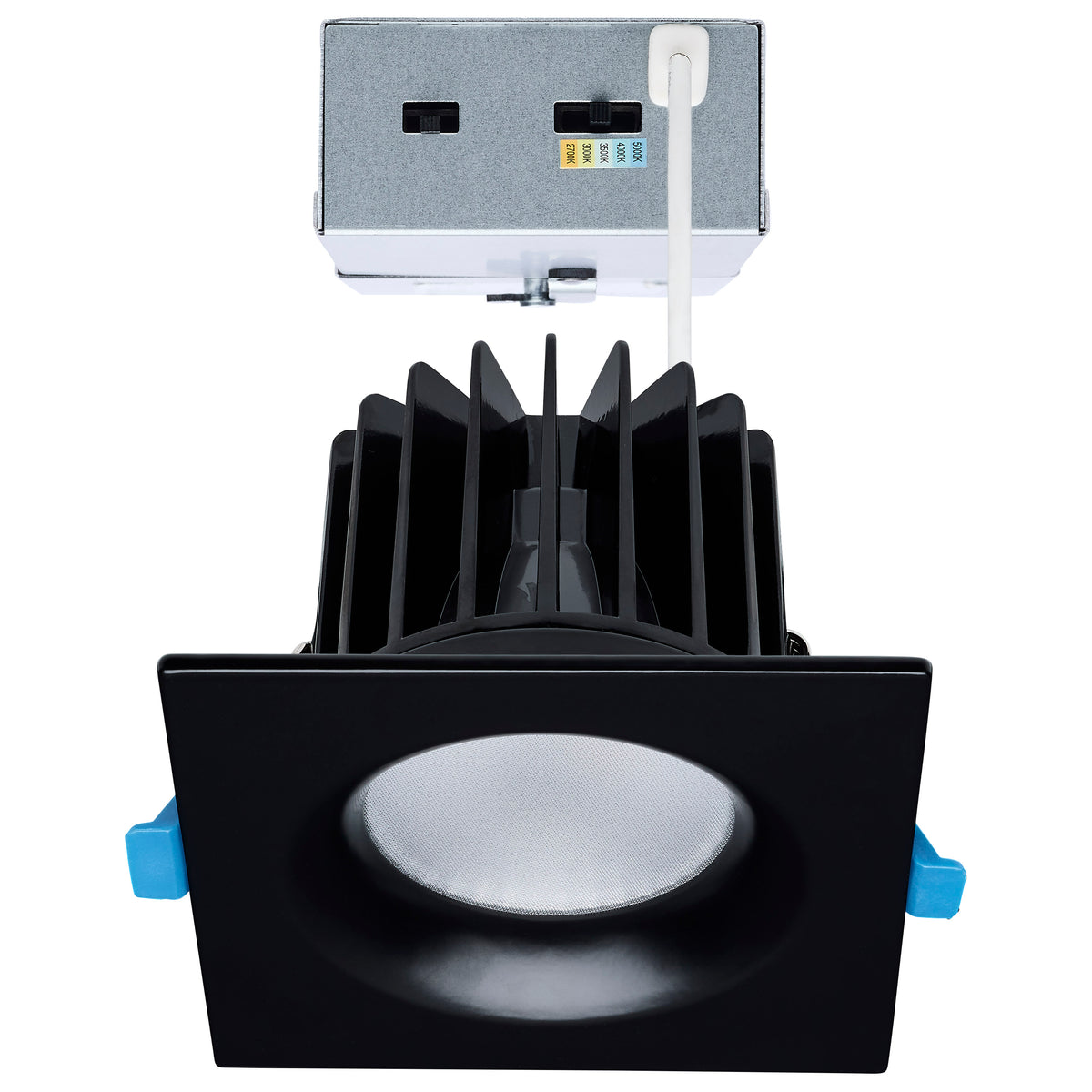

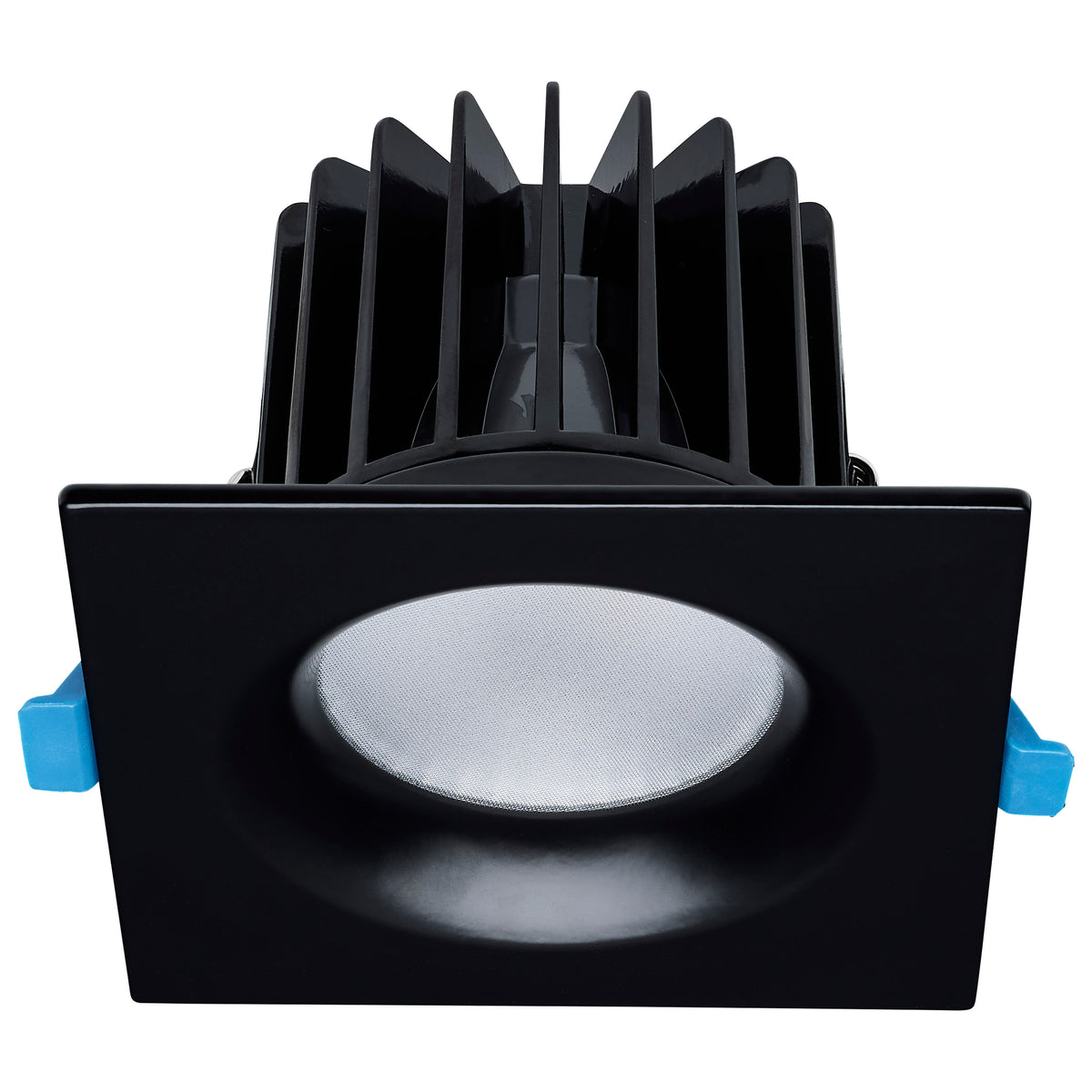

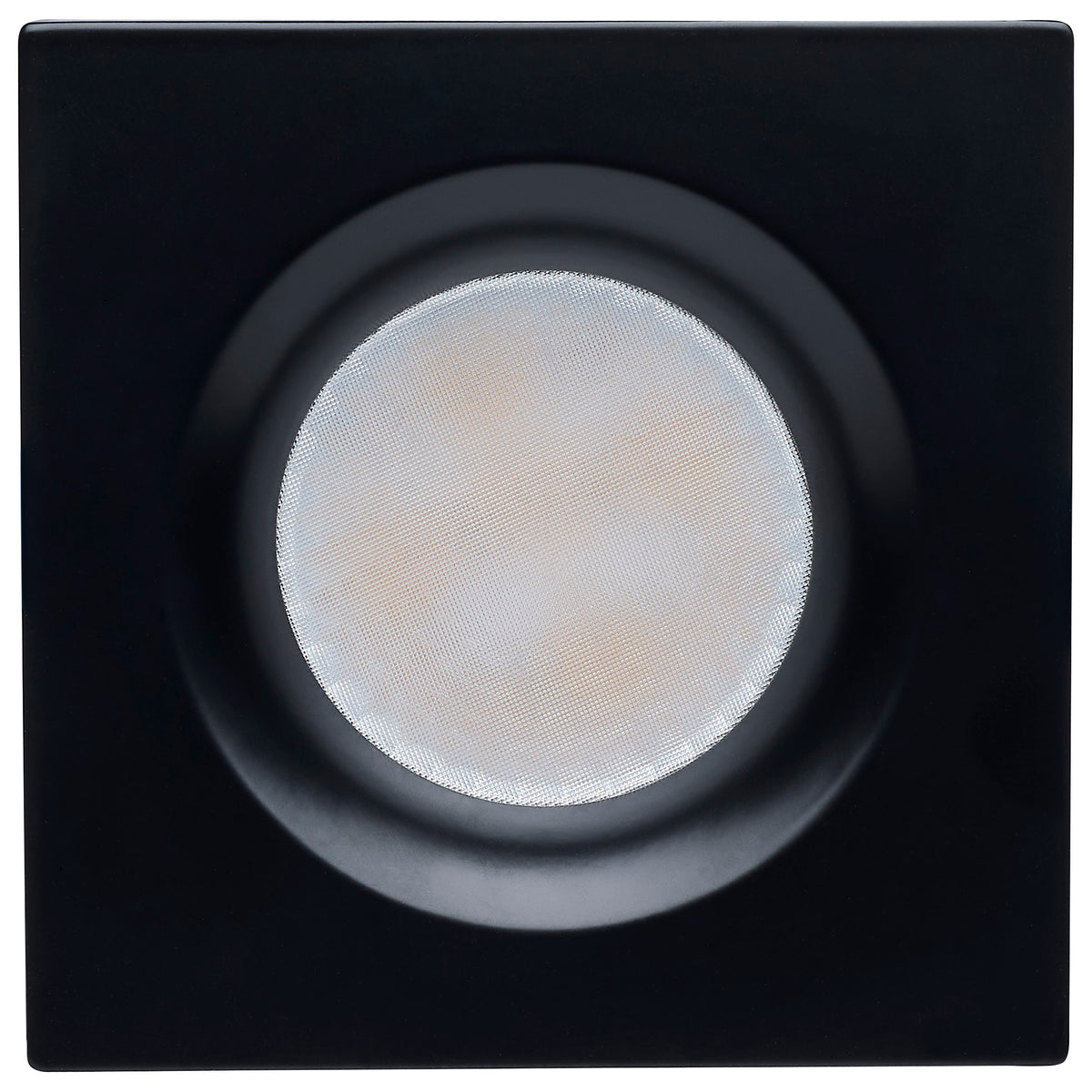

Satco S11674 16W/20W/24W Integrated LED CCT Selectable LED Light Bulb Integrated Base
Satco S11674 16W/20W/24W Integrated LED CCT Selectable LED Light Bulb Integrated Base
SATCO
Regular price
$61.95 USD
Regular price
Sale price
$61.95 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279344
Couldn't load pickup availability

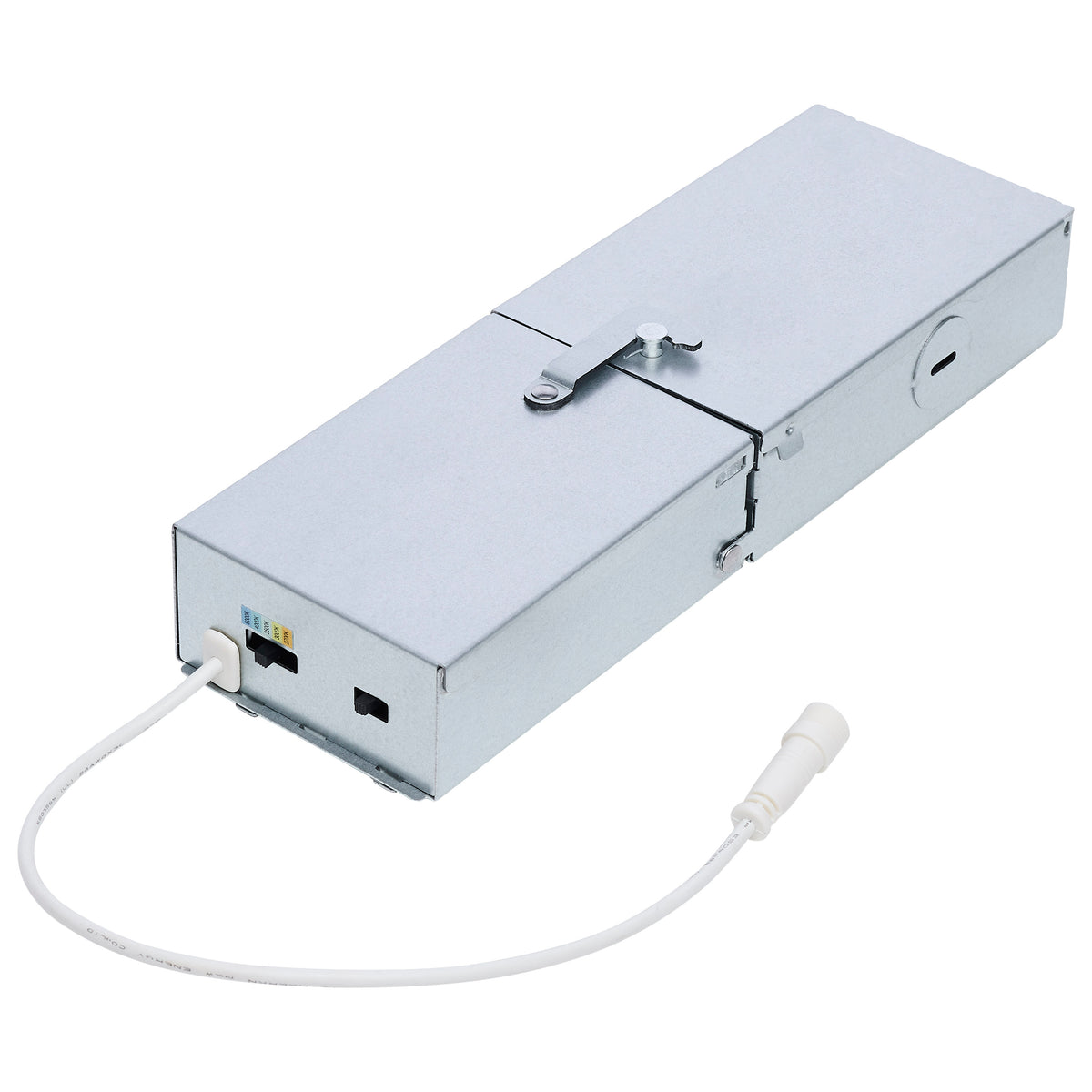

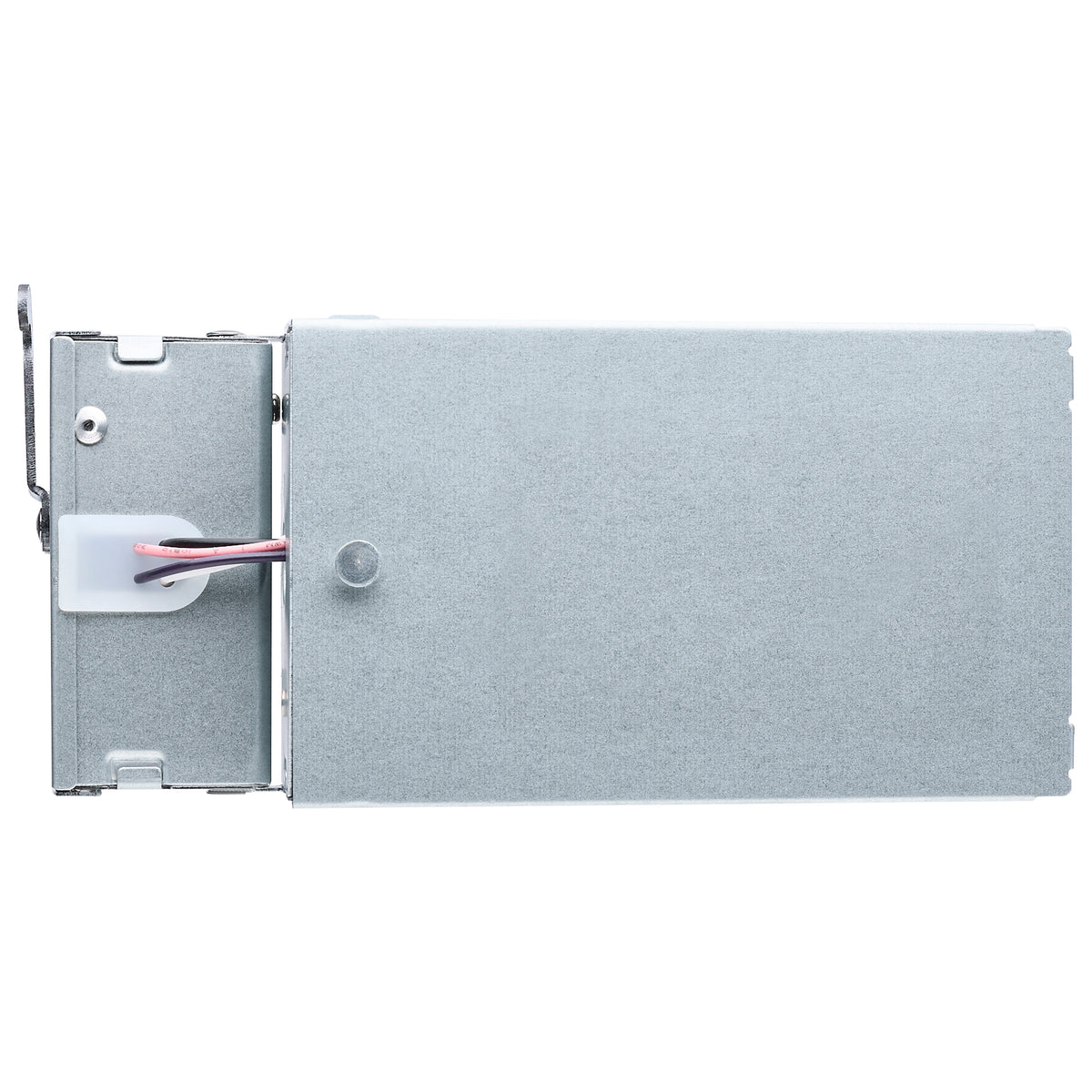

16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Square; Black Finish; Dual Dimming; 120-277 Volt24WLED/DW/DNL3/FS/SQ/DD/BK (Satco S11674) — Commercial Fixtures...
Show More
16/20/24 Watt LED Remote Driver Downlight; 27K/30K/35K/40K/50K CCT; Field Selectable; Square; Black Finish; Dual Dimming; 120-277 Volt
24WLED/DW/DNL3/FS/SQ/DD/BK (Satco S11674) — Commercial Fixtures › Downlights › Direct Wire Downlights.
Specifications
| Watts | 16W/20W/24W |
| Lumens | 1300L/1600L/2000L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 90+ |
| Volts | 120V-277V |
| Amps | 0.133-0.058/0.167-0.072/0.200-0.087A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming, Phase Cut (TRIAC) |
| Beam Angle (degree) | 40 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 125W |
| Fixture Type | Remote Driver LED Downlight |
| Finish | BLACK |
| Finish Family | Black |
| Material | Aluminum |
| Lens Finish | Clear Prismatic |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Recessed Direct Wire |
| Indoor Outdoor | Indoor |
| Location Rating | Wet |
| Safety Listing | cETLus - Listed |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 2KV |
| Warranty | 5-Years |
| Web Length | 4.8 |
| Web Width | 4.8 |
| Web Height | 3.62 |
| Title 20 | Exempt |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923116742 |
| Case Quantity | 12 |
| Pack Type | Box |
Product Information
Part Number
S11674
Brand
SATCO
Product Code
S11674
UPC
045923116742
Specifications
Technology
LED
Wattage
16
Input Voltage
120V-277V
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lumens
1300.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
40
