Satco S11655R1 24W T5 CCT Selectable LED Light Bulb Miniature Bi Pin Base
Satco S11655R1 24W T5 CCT Selectable LED Light Bulb Miniature Bi Pin Base
SATCO
Regular price
$16.42 USD
Regular price
Sale price
$16.42 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279336
Couldn't load pickup availability
24 Watt T5 LED; 35K/4K/5K/65K CCT Selectable; 48 Inch; G5 Base; Type B; PET Coated; Line Voltage; Dimmable; 120-277 Volt24T5L48/8CCT4/G5/O/B/CF/DU/D (Satco S11655R1) — Lamps › LED Lamps › TLED.Spec...
Show More

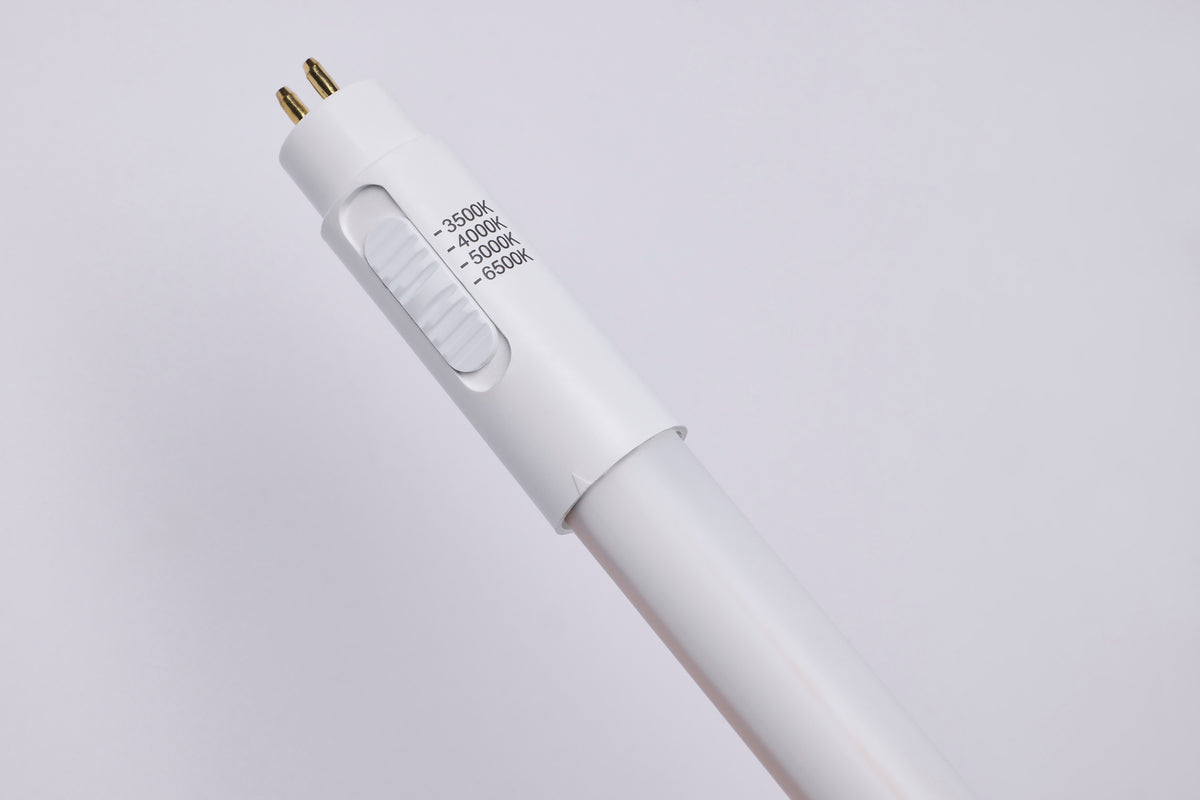

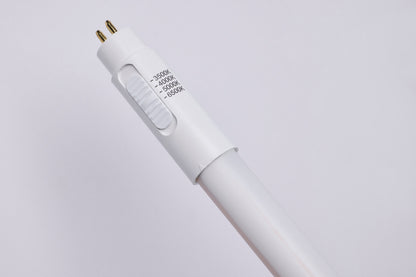

24 Watt T5 LED; 35K/4K/5K/65K CCT Selectable; 48 Inch; G5 Base; Type B; PET Coated; Line Voltage; Dimmable; 120-277 Volt
24T5L48/8CCT4/G5/O/B/CF/DU/D (Satco S11655R1) — Lamps › LED Lamps › TLED.
Specifications
| Watts | 24W |
| Lumens | 3200L |
| CCT (Kelvin Temp) | 3500K/4000K/5000K/6500K |
| Color Temp | Neutral White to Daylight |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.220-0.100A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 120V only, Phase cut |
| Beam Angle (degree) | 180 |
| Lamp Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Lamp Type | T5 |
| Product Technology | LED |
| Incandescent Equivalent | 100W |
| Fluor Equiv | 54W |
| Lamp Ballast Type AB | Type B |
| Fixture Type | Linear |
| Finish | Frost |
| Finish Family | White |
| Material | Plastic |
| Lens Finish | Frost |
| Lens Material | Glass |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cRUus - Recognized Component, cULus - Classified |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Warranty | 5-Years |

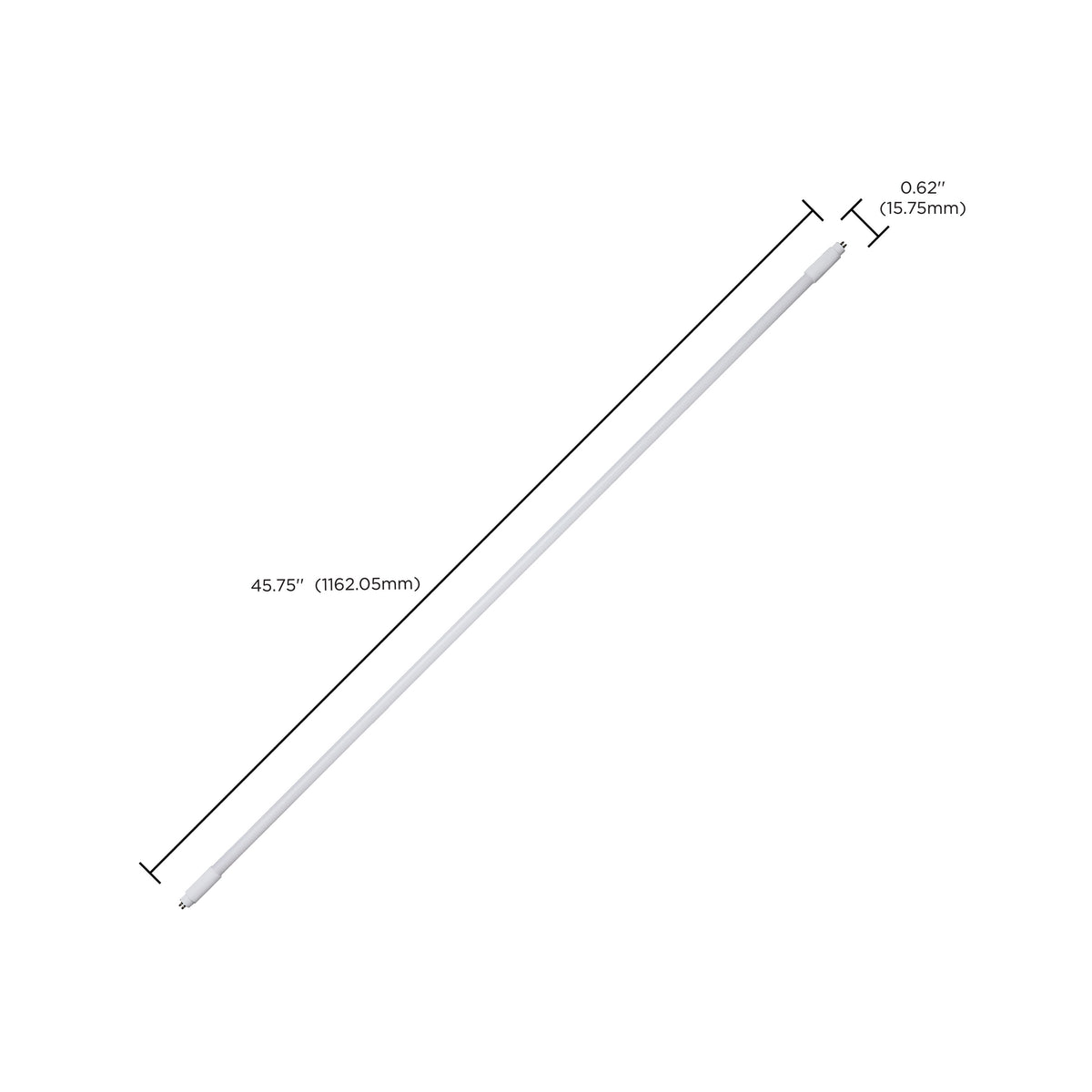

| MOL | 45.75 |
| MOD Lamps | 0.62 |
| Web Length | 45.75 |
| Web Width | 0.62 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923410000 |
| Case Quantity | 25 |
| Pack Type | Sleeve |
Product Information
Part Number
S11655R1
Brand
SATCO
Product Code
S11655R1
UPC
045923410000
Specifications
Technology
LED
Wattage
24
Input Voltage
120V-277V
Color Temperature
3500K/4000K/5000K/6500K
Lamp Base
Miniature Bi Pin
Lumens
3200.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
180
