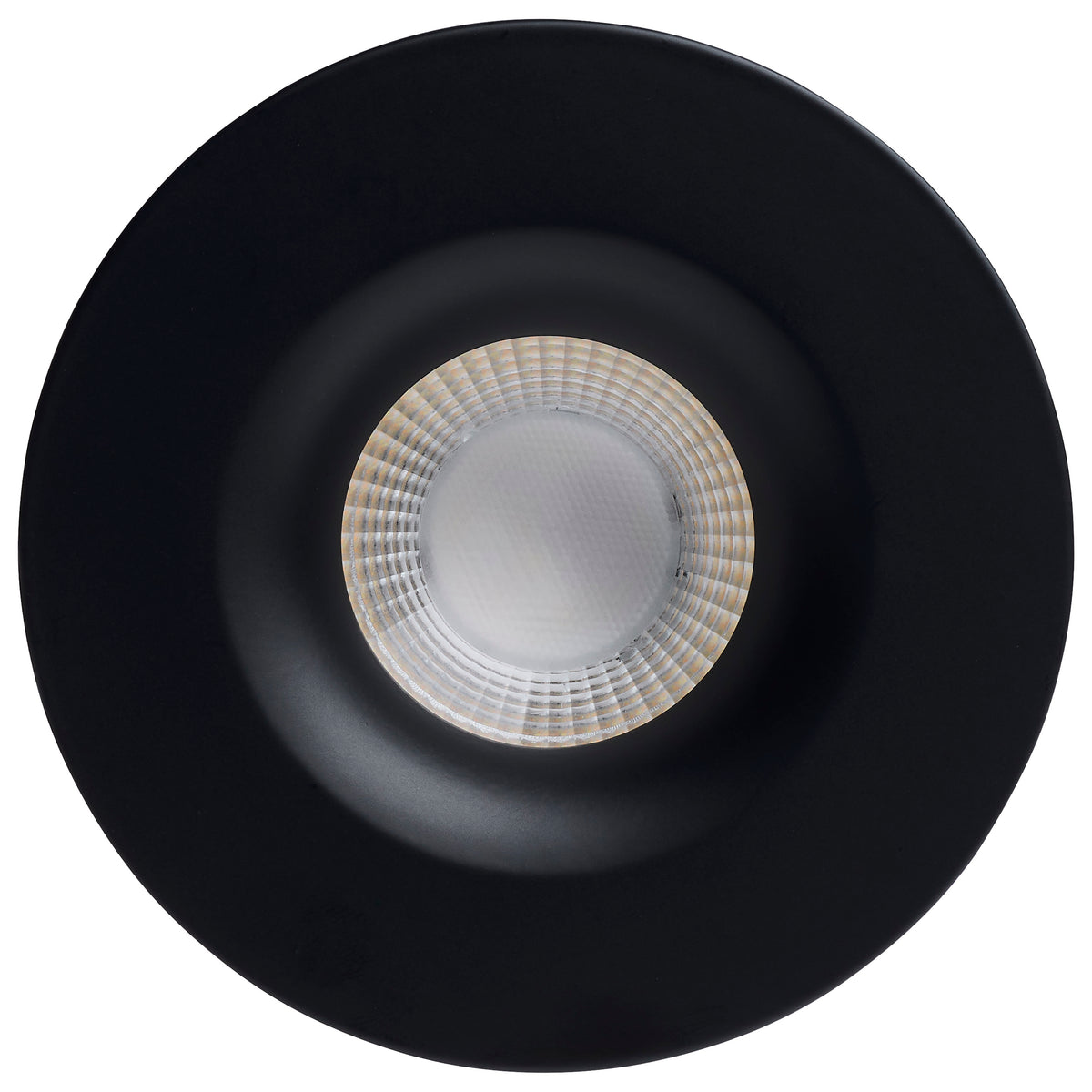

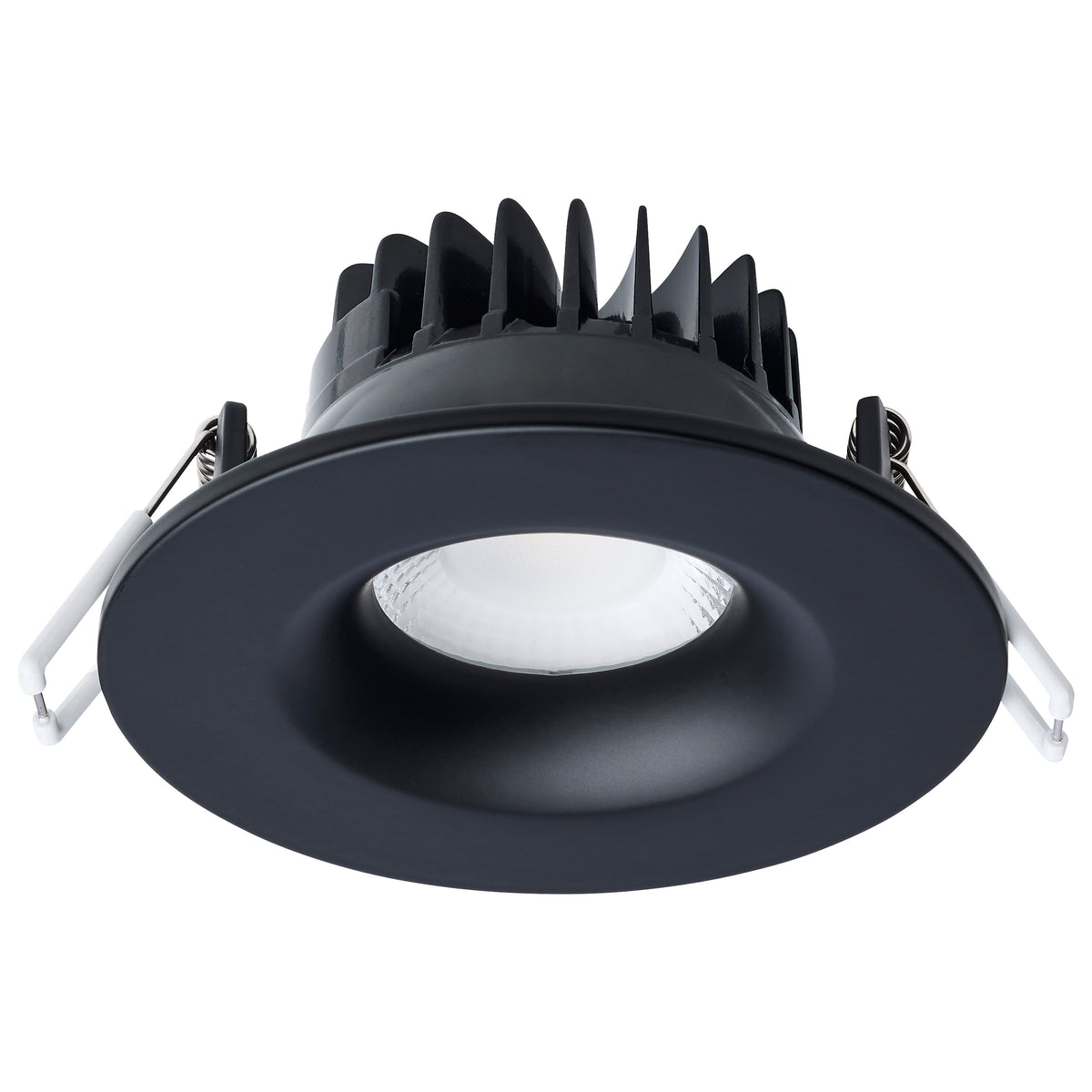

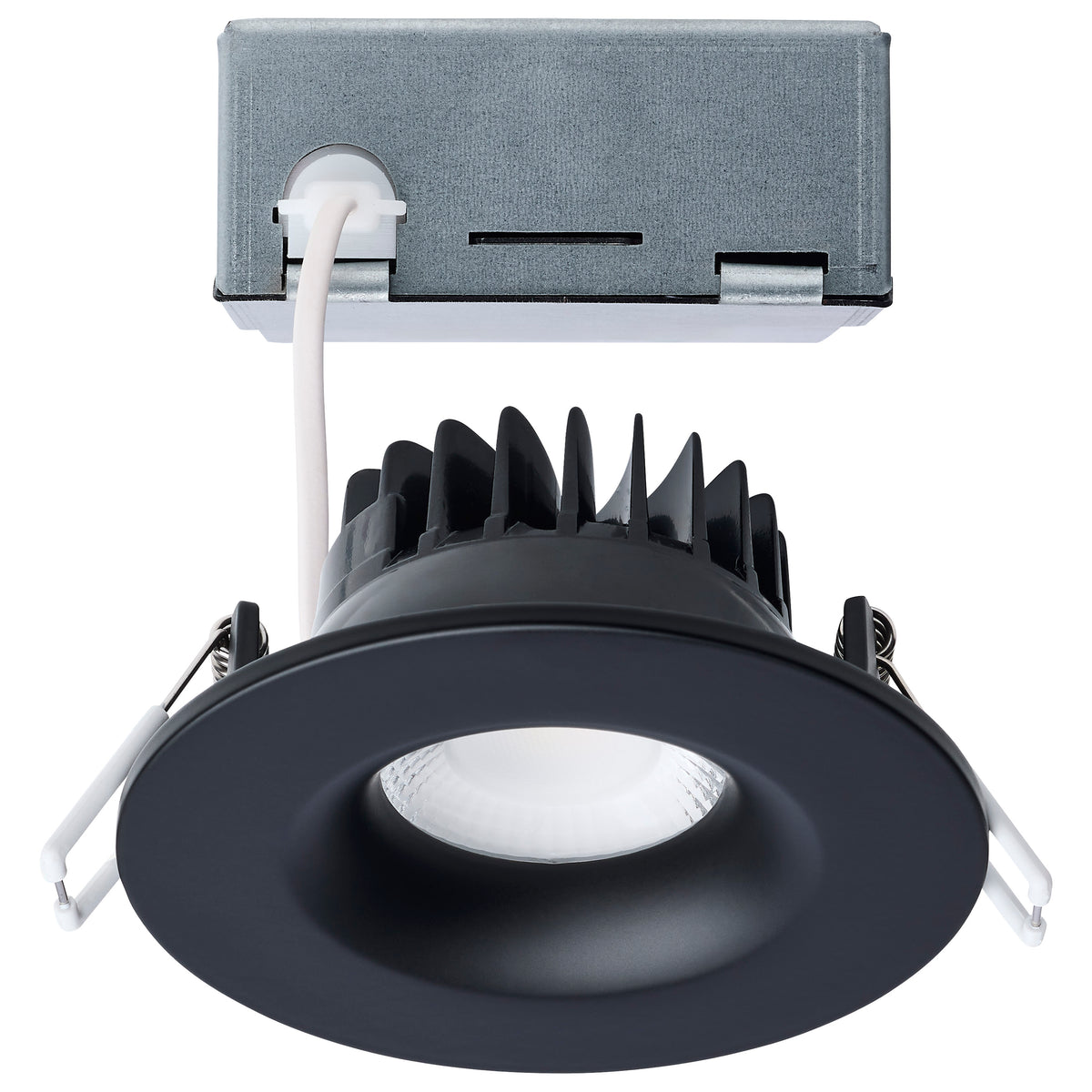

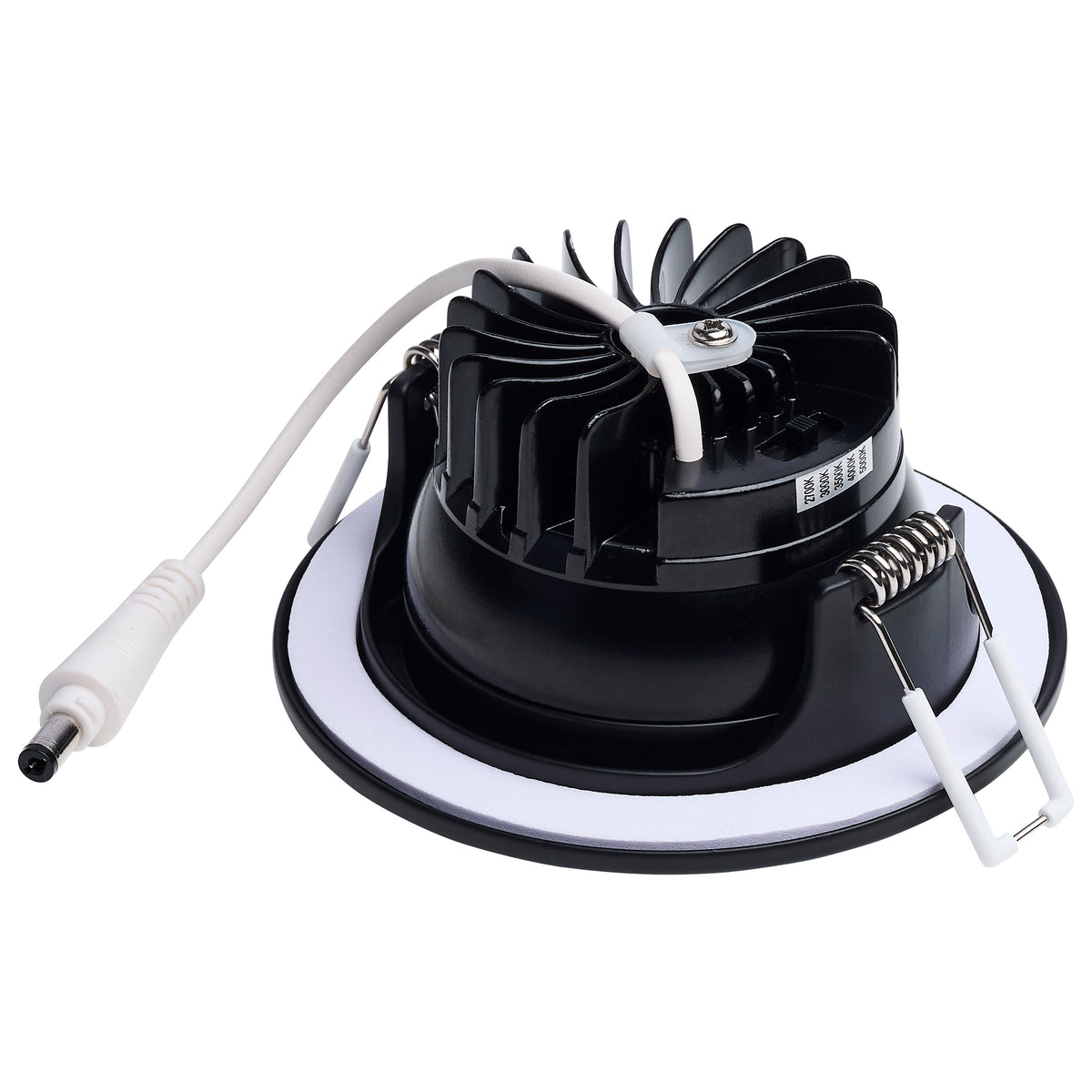

Satco S11631R1 10W Integrated LED CCT Selectable LED Light Bulb Integrated Base
Satco S11631R1 10W Integrated LED CCT Selectable LED Light Bulb Integrated Base
SATCO
Regular price
$36.95 USD
Regular price
Sale price
$36.95 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279322
Couldn't load pickup availability
10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Round; Black Finish10W/DW/DNL3/CCT/RND/RD/BK (Satco S11631R1) — Commercial Fixtures › Downlights › Direct Wire Downlights...
Show More

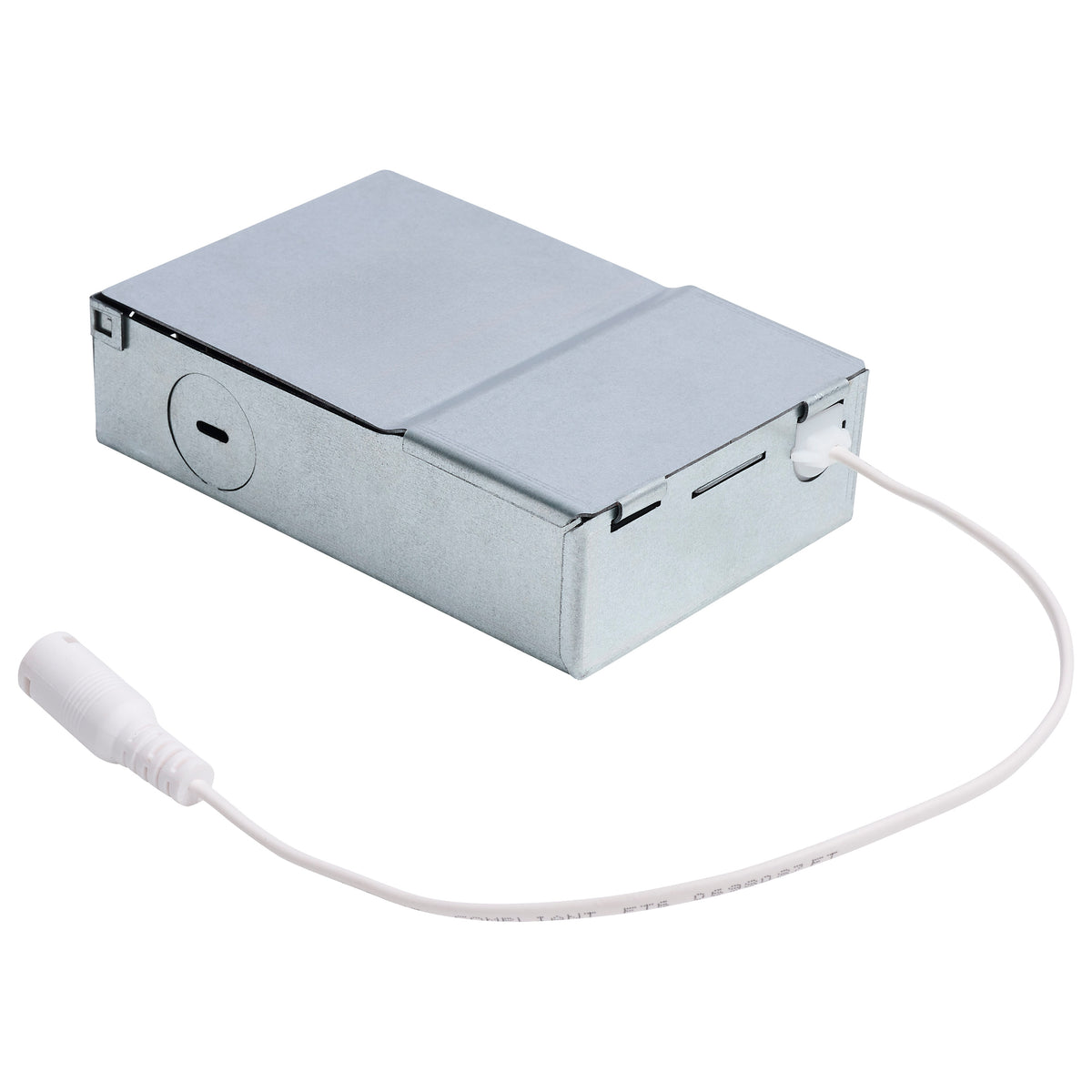

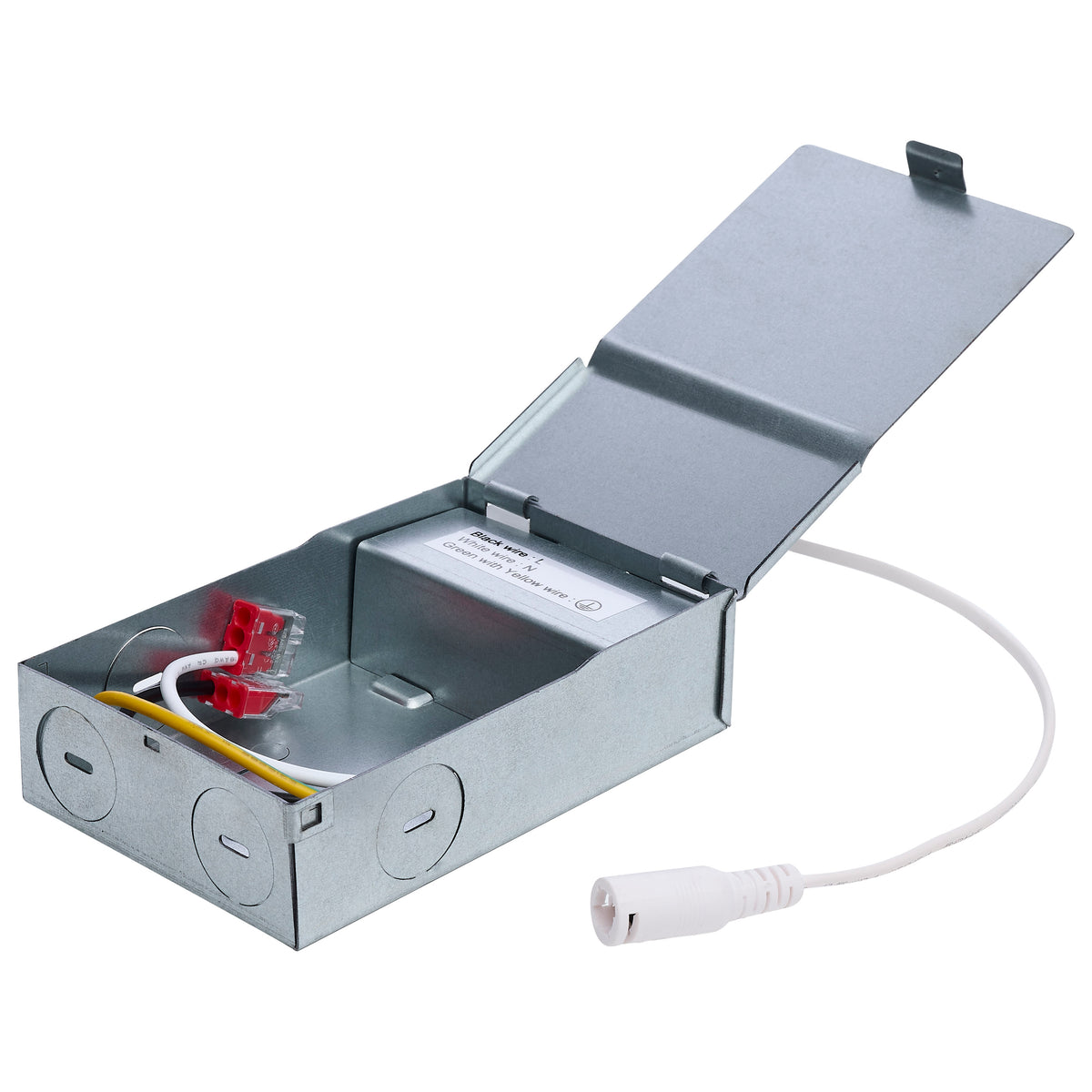

10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Round; Black Finish
10W/DW/DNL3/CCT/RND/RD/BK (Satco S11631R1) — Commercial Fixtures › Downlights › Direct Wire Downlights.
Specifications
| Watts | 10W |
| Lumens | 840L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
| Color Temp | Warm White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 90+ |
| Volts | 120v |
| Amps | 0.100A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 120V only, Phase Cut (TRIAC) |
| Beam Angle (degree) | 40 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 75W |
| Fixture Type | Remote Driver LED Downlight |
| Style | Utility |
| Finish | BLACK |
| Finish Family | Black |
| Material | Aluminum |
| Lens Finish | Clear |
| Lens Material | Acrylic |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling |
| Indoor Outdoor | Indoor |
| Location Rating | Wet |
| Safety Listing | cETLus - Listed |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <30% |
| Surge Protection | Built-in surge protection - 2KV |
| Warranty | 5-Years |
| Web Width | 4.38 |
| Web Height | 2.17 |
| Title 20 | Exempt |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923711923 |
| Case Quantity | 12 |
| Pack Type | Box |
S11631R1 Accessory Sheet (PDF) · S11631R1 Instructions (PDF) · Satco product page
Product Information
Part Number
S11631R1
Brand
SATCO
Product Code
S11631R1
UPC
045923711923
Specifications
Technology
LED
Wattage
10
Input Voltage
120v
Color Temperature
2700K/3000K/3500K/4000K/5000K
Lamp Base
Integrated
Lumens
840.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
40
