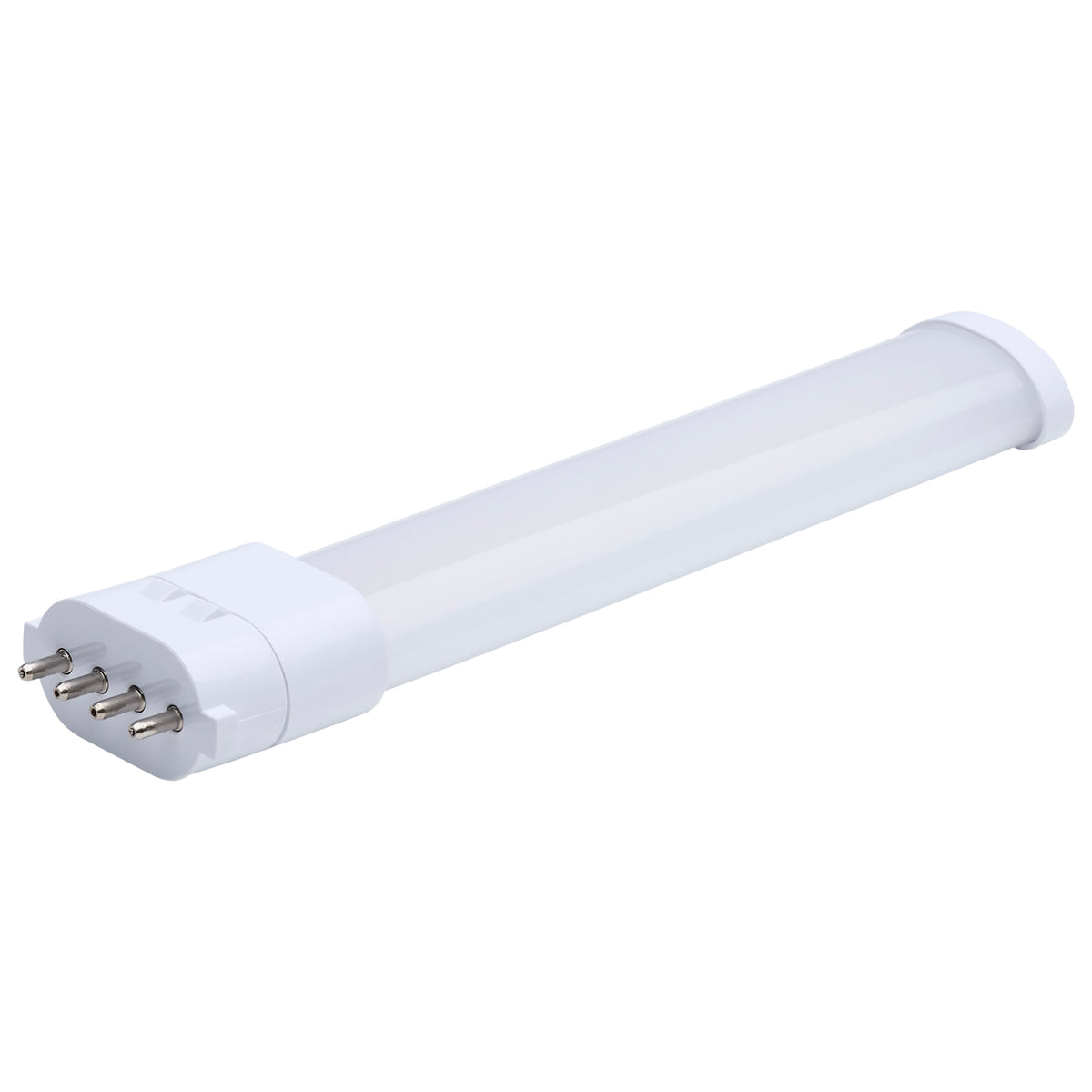

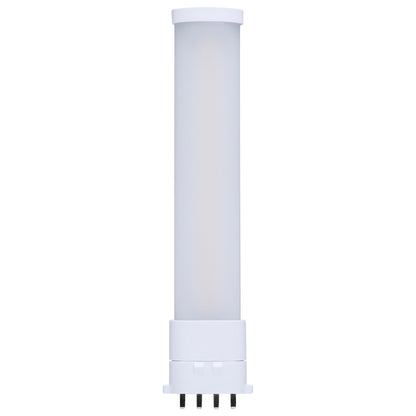

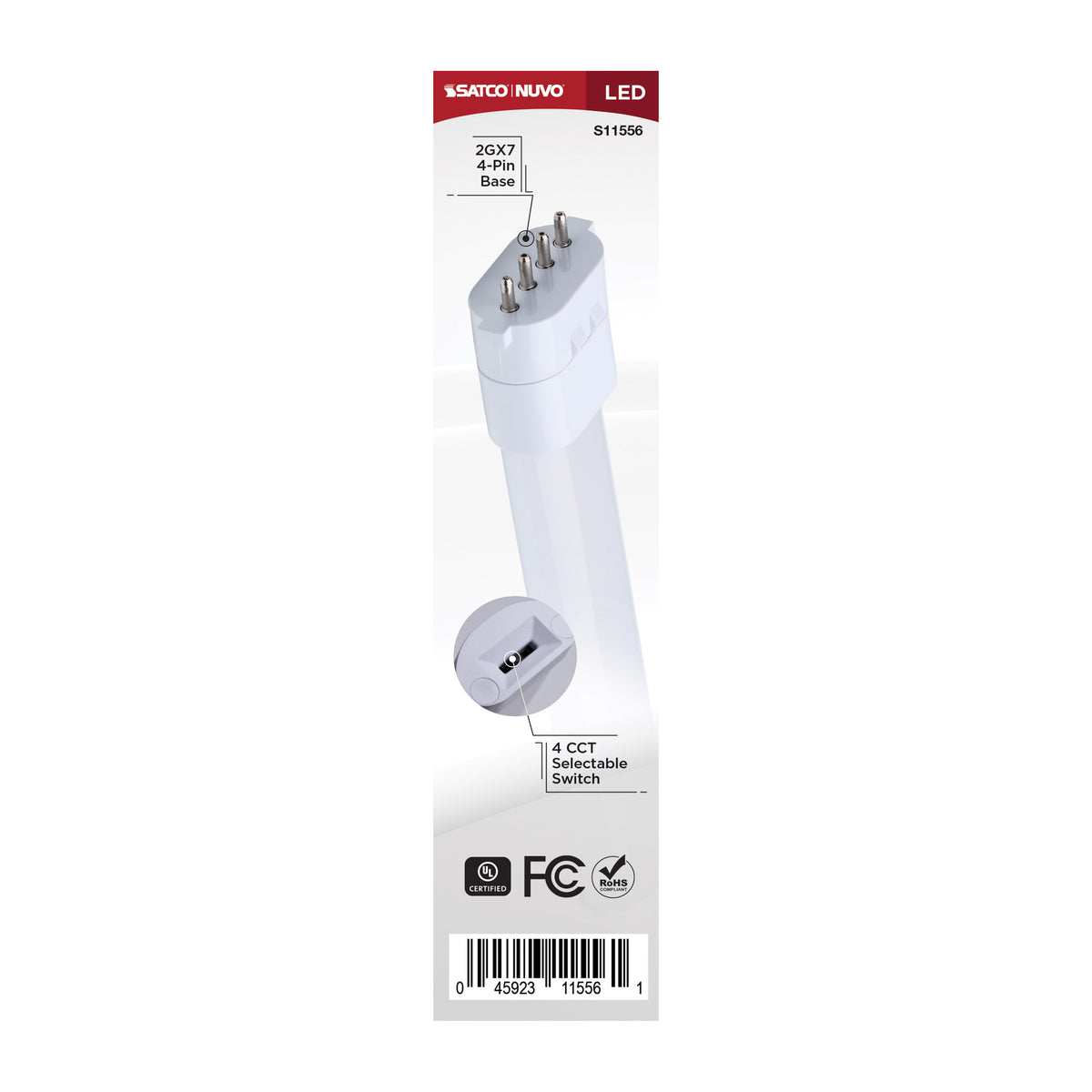

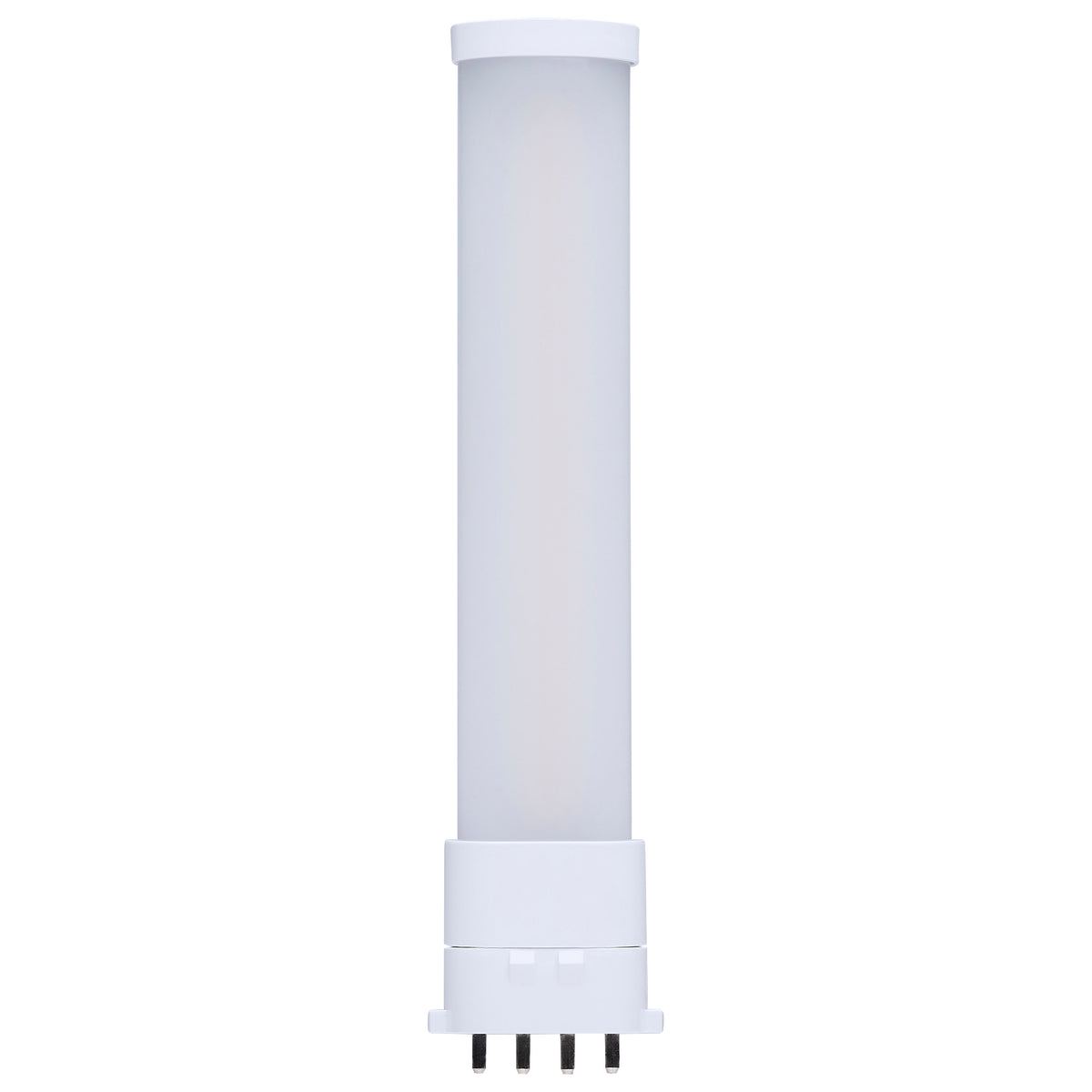

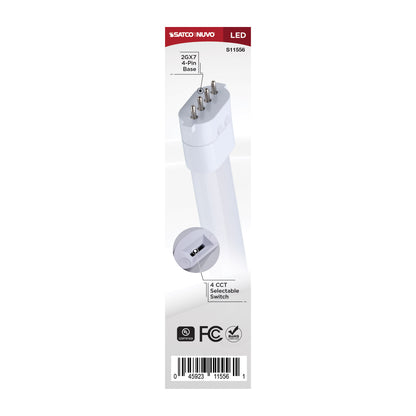

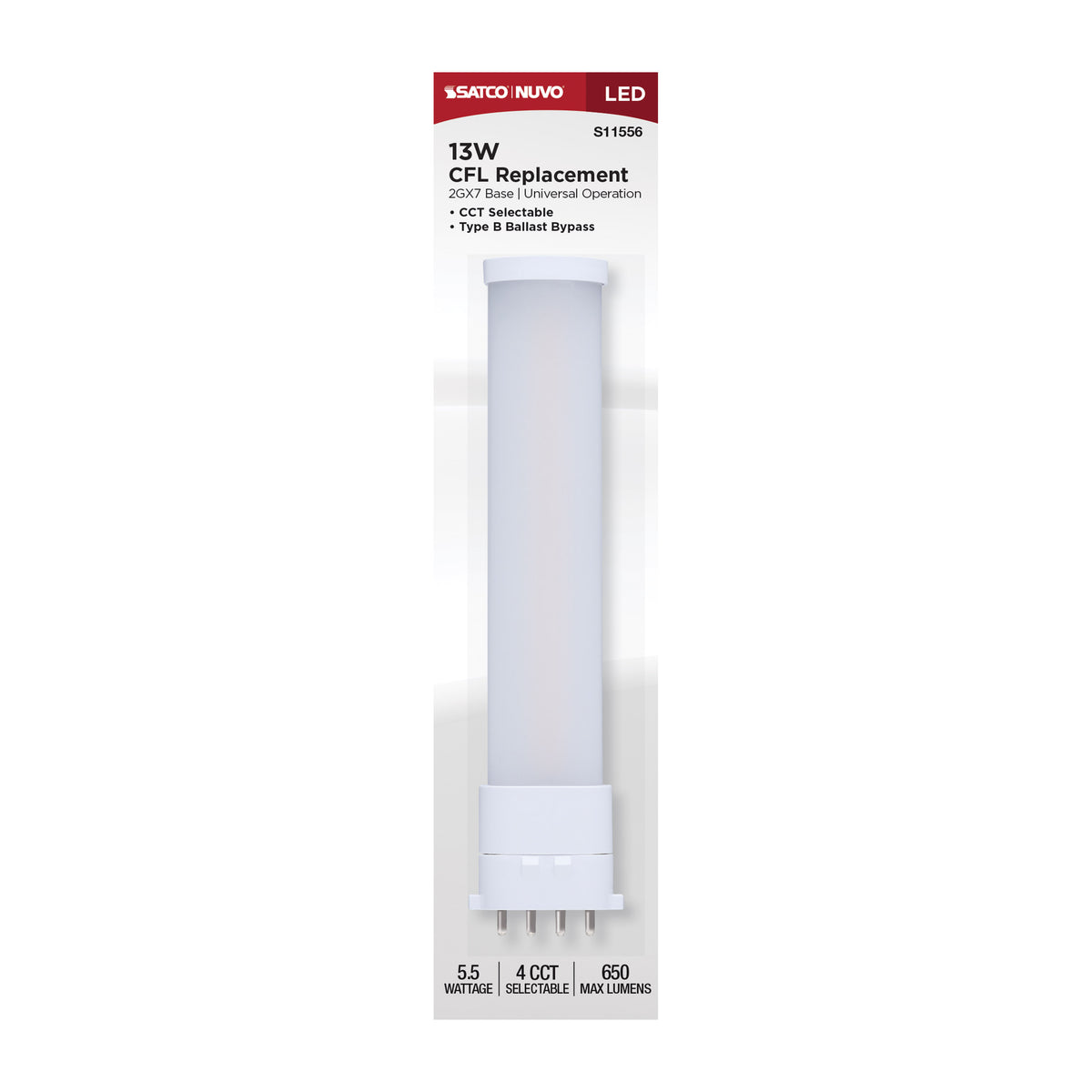

5.5 Watt; 2GX7 Base; 27K/30K/35K/40K CCT Selectable; Frost Finish; Ballast Bypass; 120-277 Volt
5.5W/LED/CFL/CCT/2GX7/BP (Satco S11556) — Lamps › LED Lamps › Pin-Based CFL Replacements.
Specifications
| Watts | 5.5W |
| Lumens | 600L/620L/630L/650L |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K |
| Color Temp | Warm to Cool White |

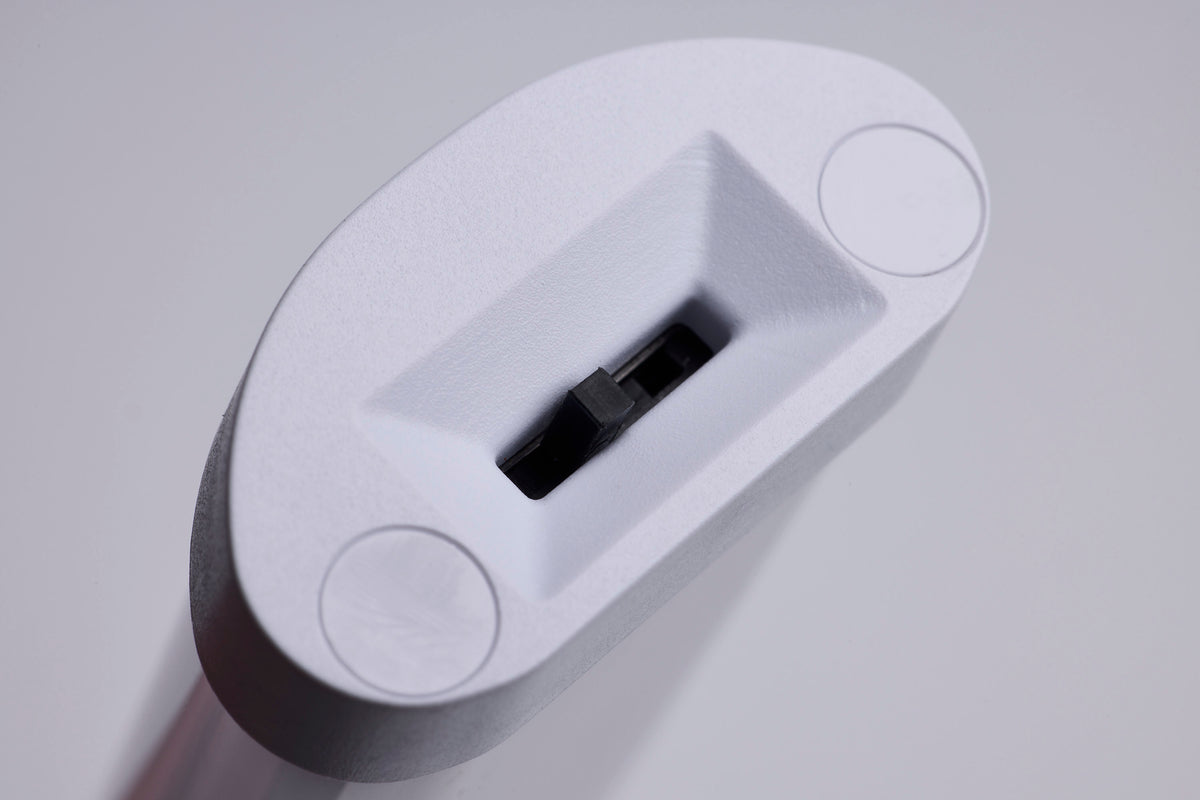

| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.046-0.020A |
| Hours Rated | 50000 |
| Dimmable | Non-Dimmable |
| Beam Angle (degree) | 120 |
| Lamp Base | 2GX7 (4-Pin) |
| ANSI Base | 2GX7 |
| Lamp Type | PL |
| Product Technology | LED |
| Fluor Equiv | 13W |
| Lamp Ballast Type AB | Type B |
| Fixture Type | PL |
| Style | Transitional |
| Finish | Frost |
| Finish Family | White |
| Material | Polycarbonate (PC) |
| Housing Color | White |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cULus - Classified |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | 0.9 |
| Total Harmonic Distortion | 20% |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Warranty | 5-Years |
| MOL | 6.51 |
| MOD Lamps | 1.26 |
| Web Length | 6.51 |
| Web Width | 1.26 |
| Rated For Enclosed Fixture | No |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923115561 |
| Case Quantity | 50 |
| Pack Type | Box |
Product Information
Part Number
S11556
Brand
SATCO
Product Code
S11556
UPC
045923115561
Specifications
Technology
LED
Wattage
5.5
Input Voltage
120V-277V
Color Temperature
2700K/3000K/3500K/4000K
Lamp Base
2GX7 (4-Pin)
Lumens
600.0
Hours
50000
CRI
80
Beam Spread
120
