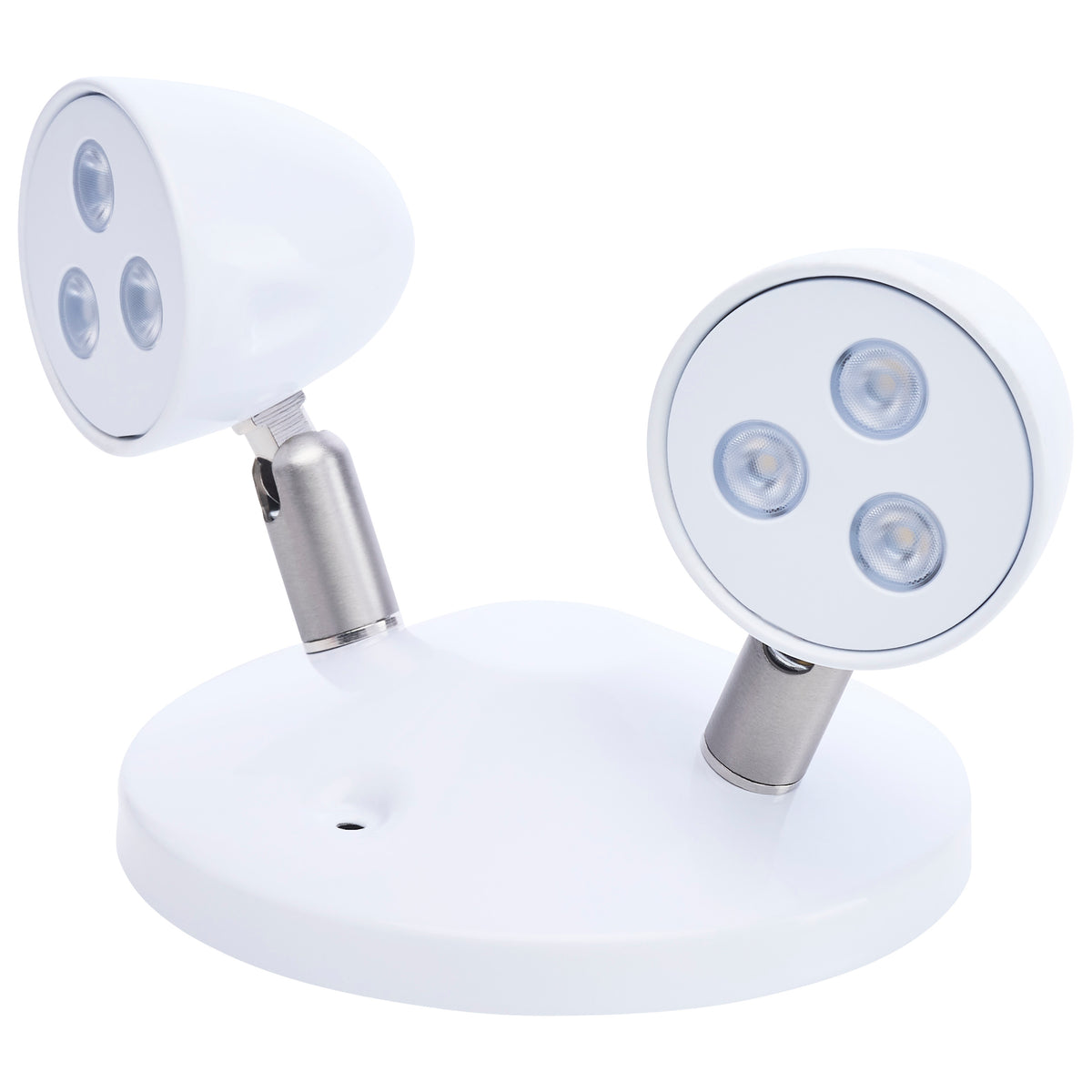

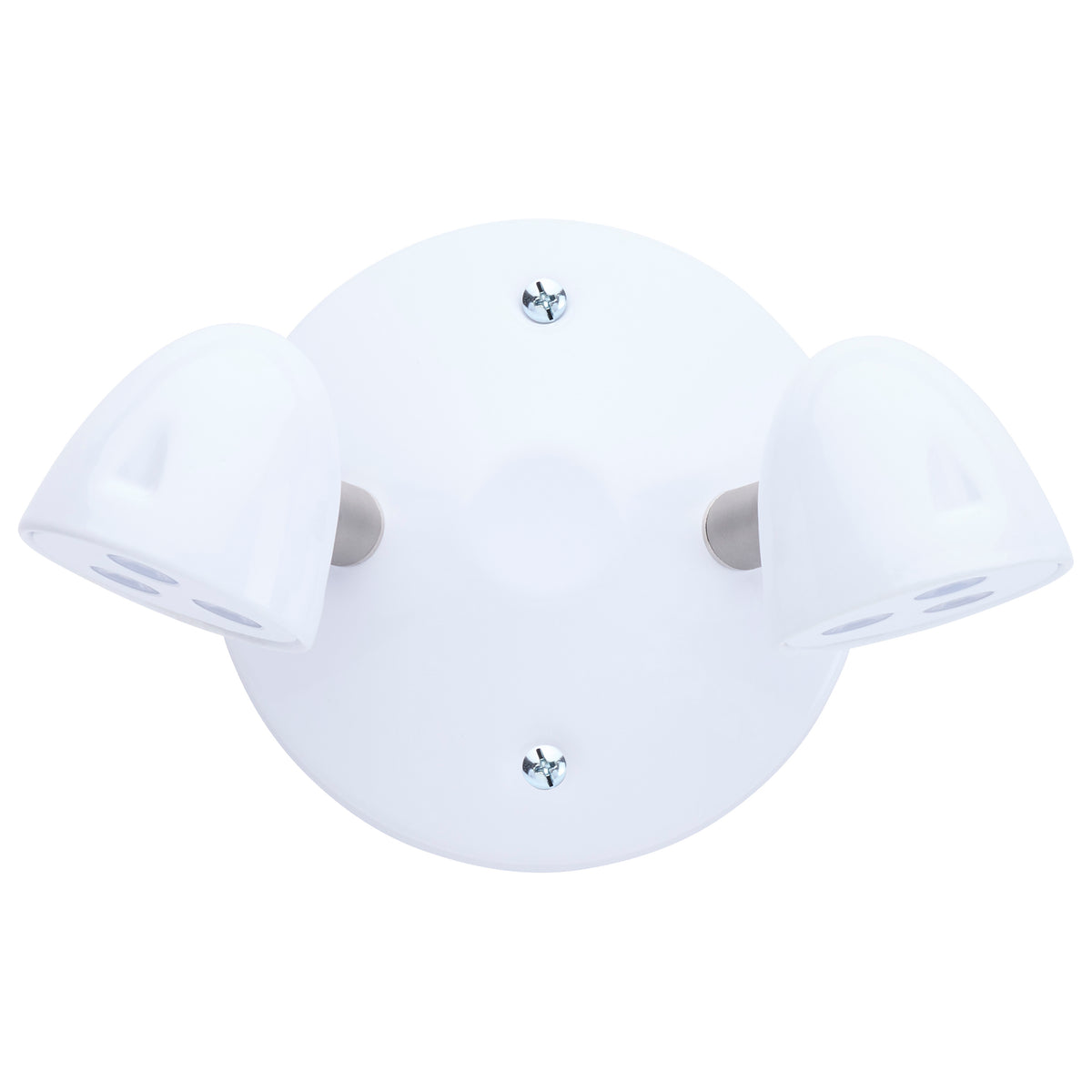

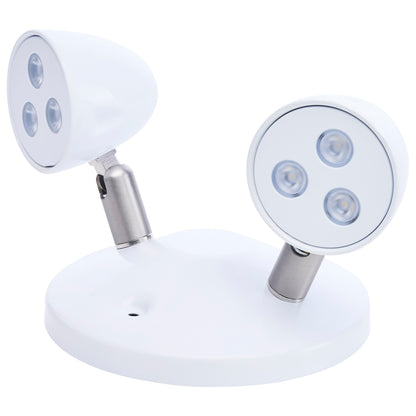

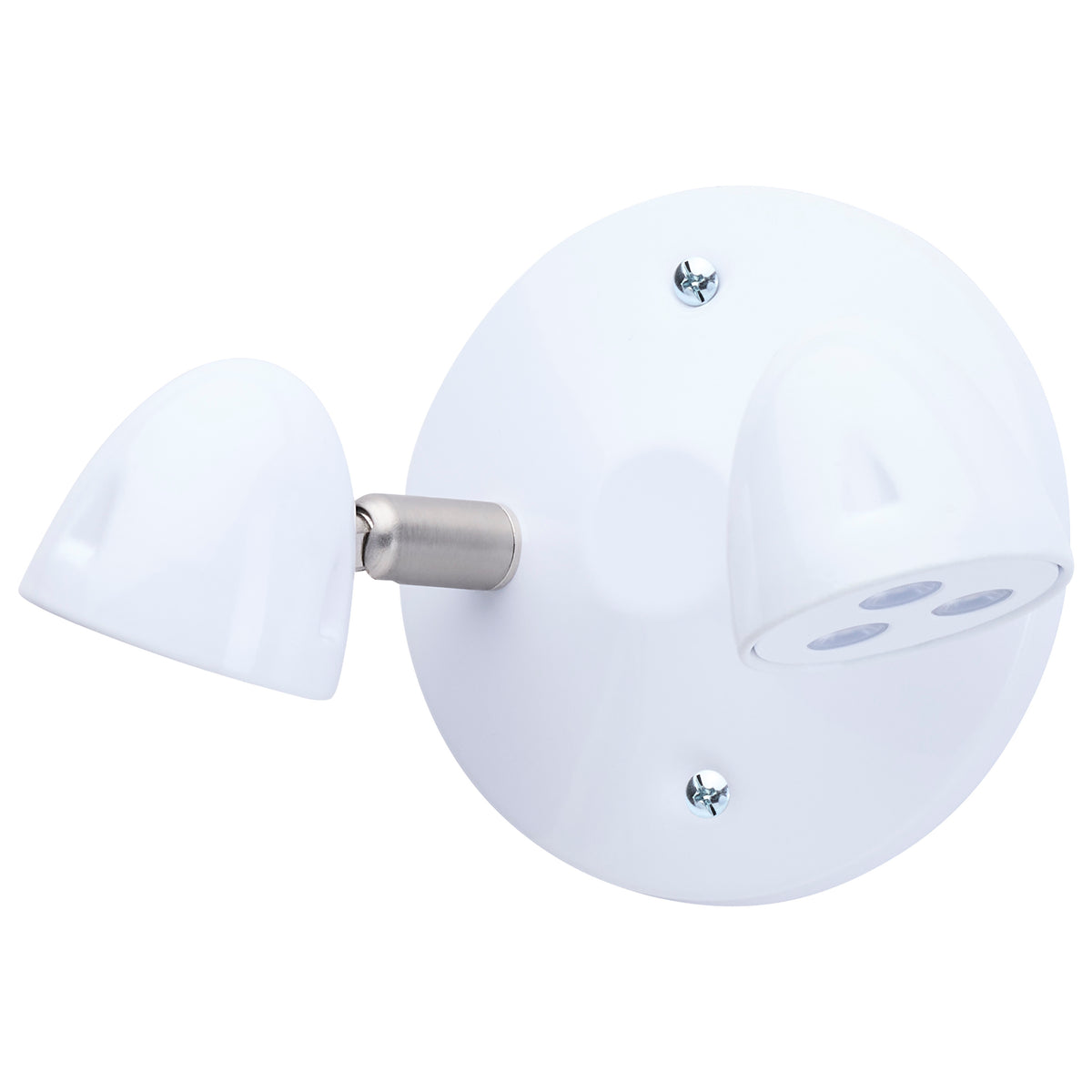

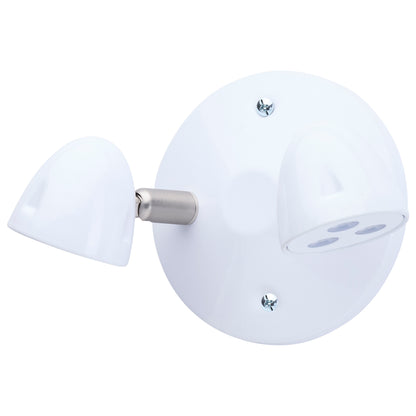

Remote Emergency Light; Chicago Approved; White Housing; Dual Head; 6 Vdc 3.0 W
ELR3W/WH/6V/2H/CH (Nuvo 67-396) — Commercial Fixtures › Exit & Emergency › Egress Lighting.
Specifications
| Watts | 3W |
| Lumens | 400L |
| CCT (Kelvin Temp) | 5700K |
| Color Temp | Daylight |
| CCT Selectable | No |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 6V |
| Amps | 0.500A |
| Hours Rated | 50000 |
| Beam Angle (degree) | 20 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fixture Type | Exit Sign |
| Style | Utility |
| Finish | Gloss White |
| Finish Family | White |
| Material | Steel |
| Lens Finish | Frosted |
| Lens Material | Acrylic |
| Mounting Procedure | Ceiling, Wall |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP40 |
| Safety Listing | cULus - Listed |
| Operating Temp | +41F to +113F (+5C to +45C) |
| Warranty | 2-Years |
| Web Length | 4.17 |
| Web Width | 6.9 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923415814 |
| Case Quantity | 12 |
| Pack Type | Kraft Box |
Product Information
Part Number
67-396
Brand
SATCO
Product Code
67-396
UPC
045923415814
Specifications
Technology
LED
Wattage
3
Input Voltage
6V
Color Temperature
5700K
Lamp Base
Integrated
Lumens
400.0
Hours
50000
CRI
80
Beam Spread
20
