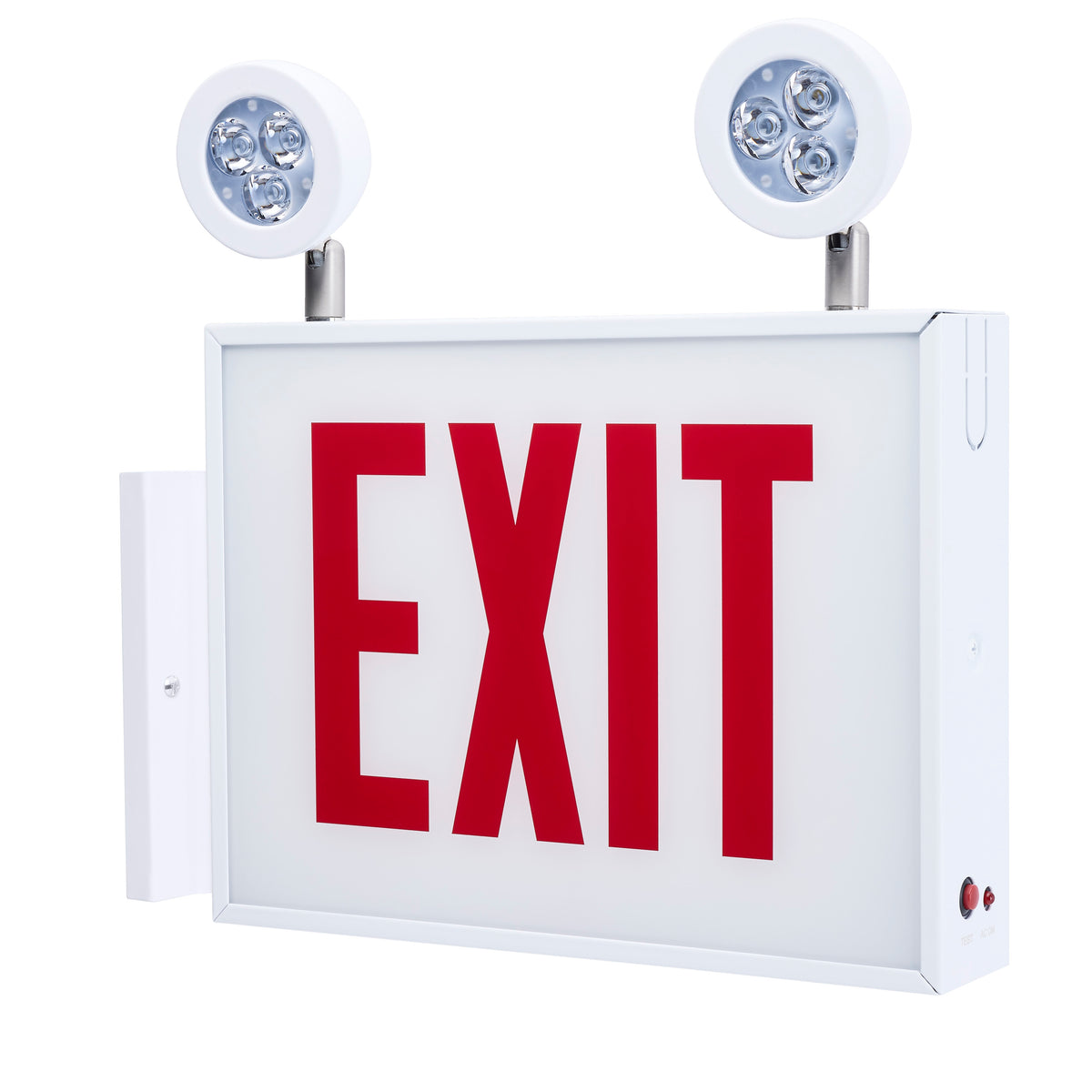

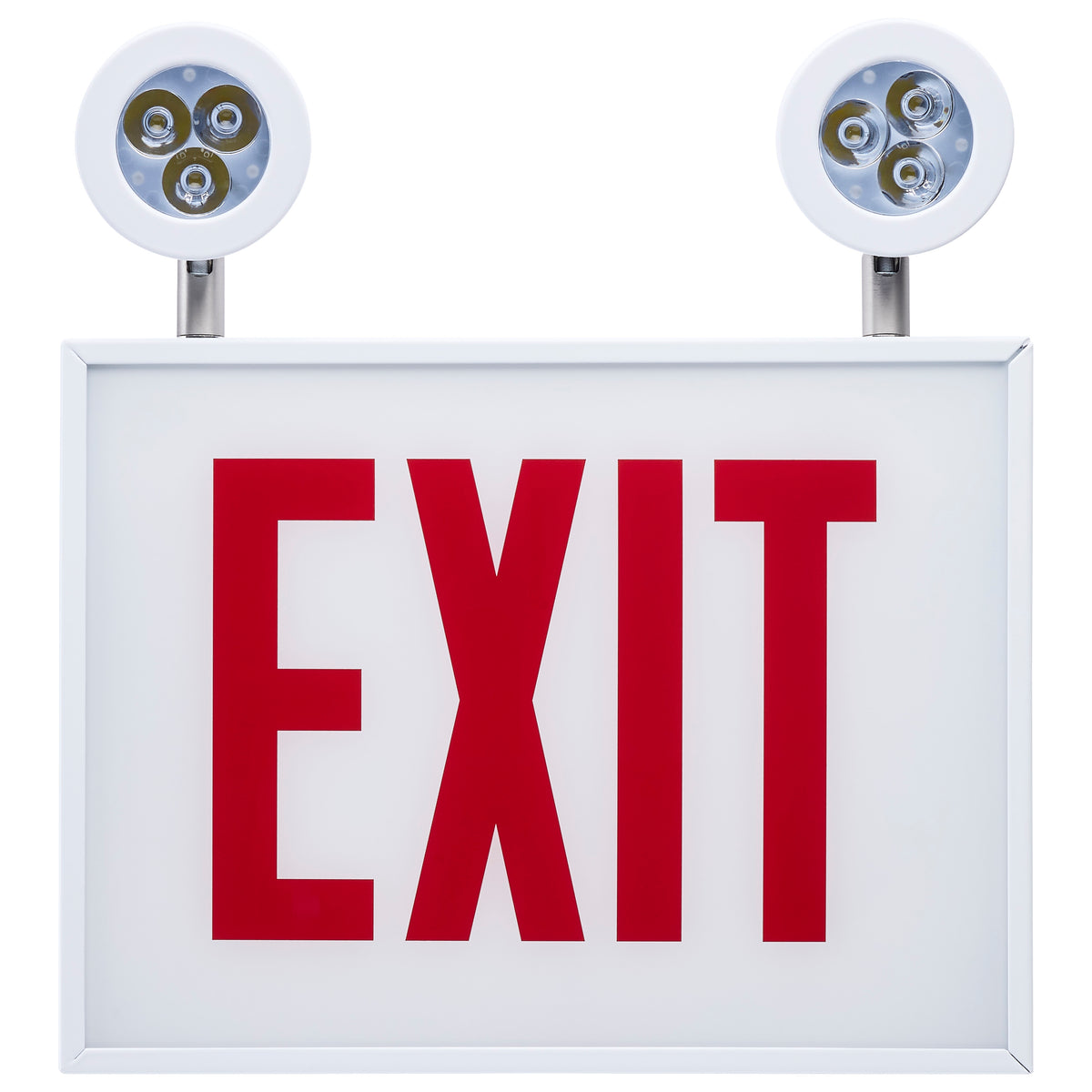

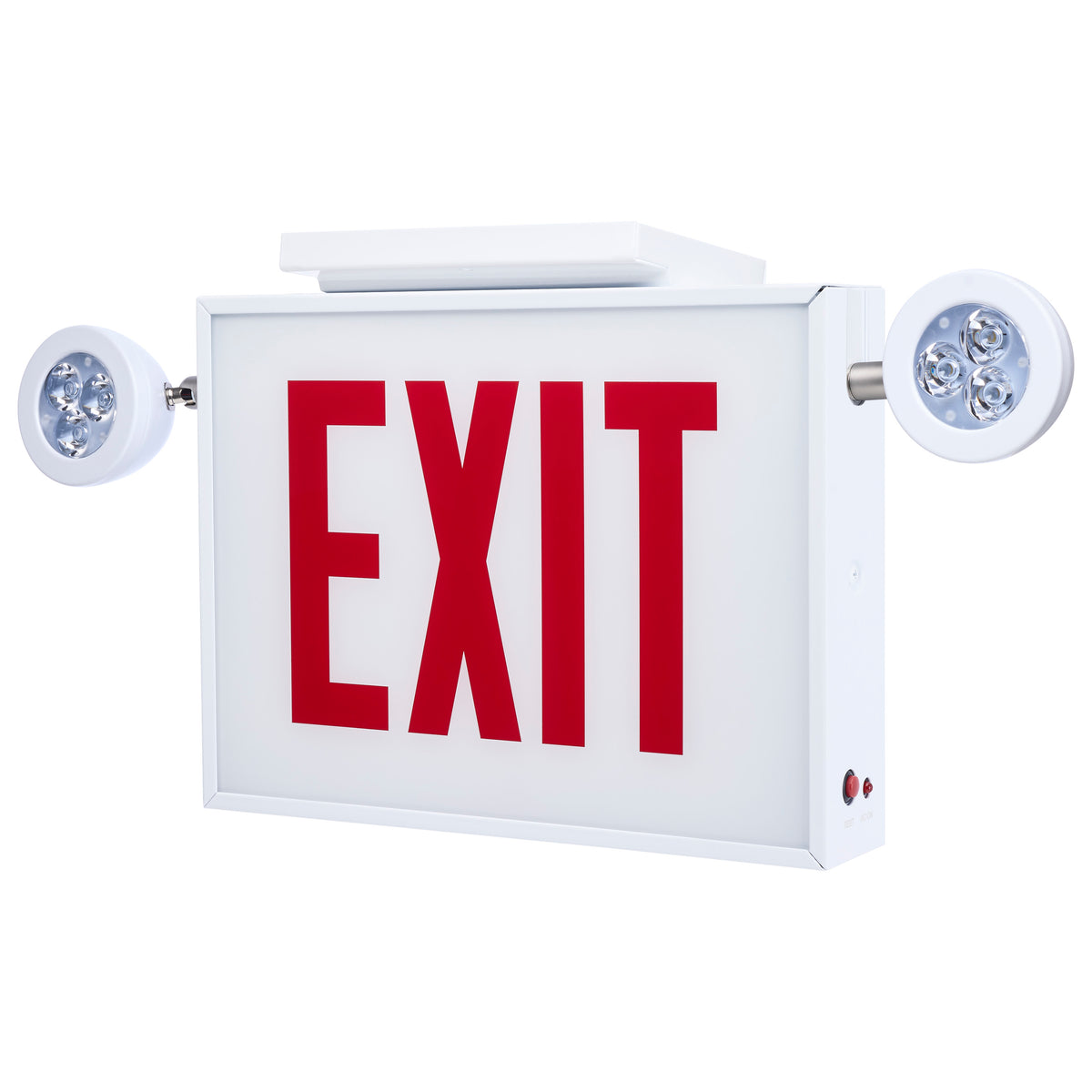

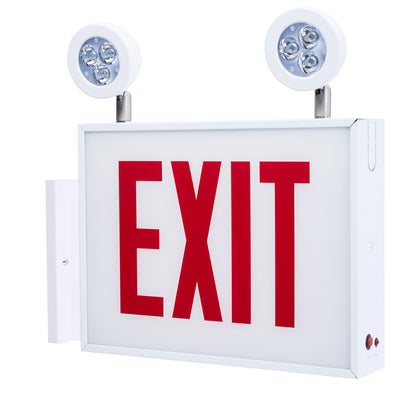

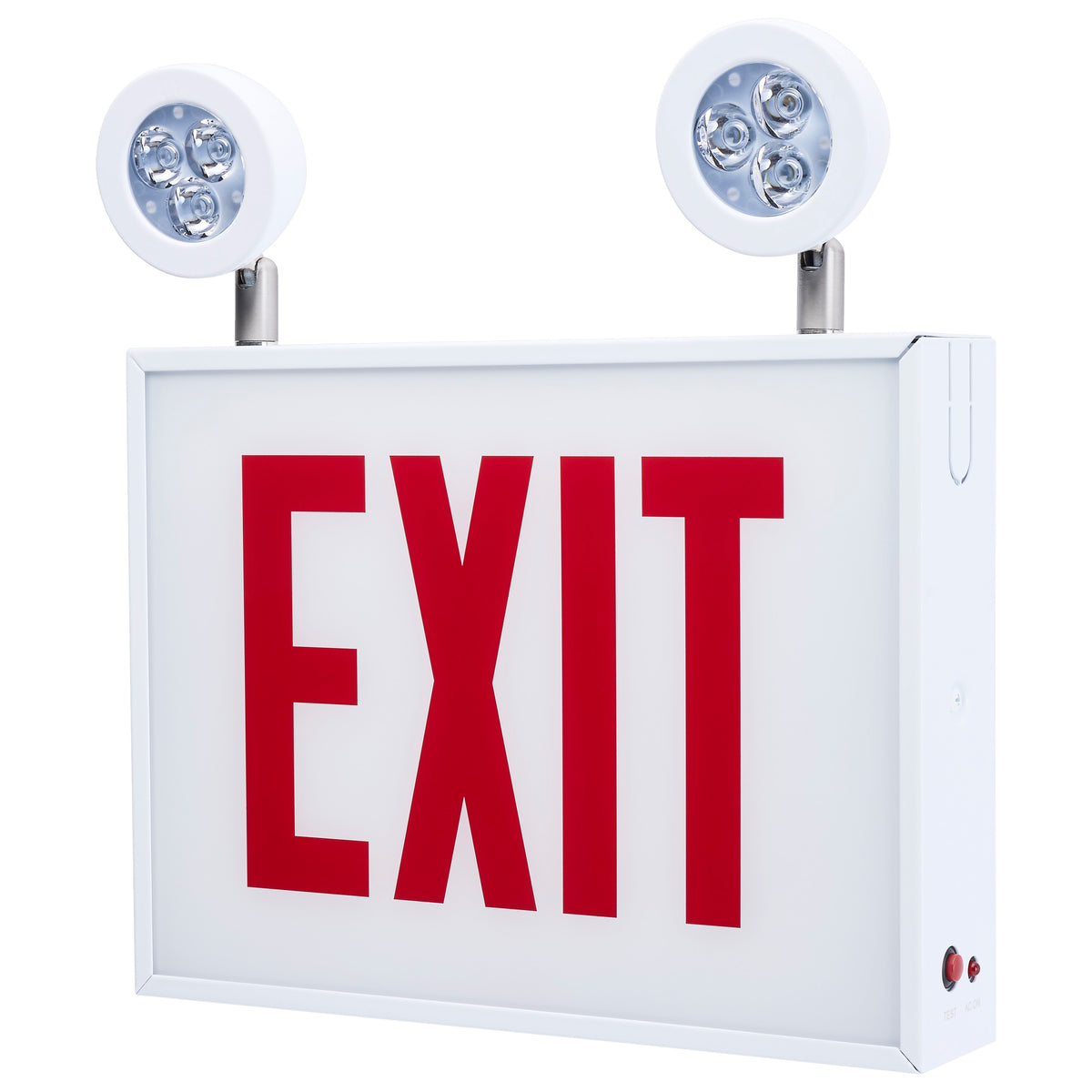

Combo Exit Sign/Emergency Light; Chicago Approved; White Housing; 120-277V; 90 min Backup; Single Face; Surface Mounting
EXC/WH/U/BB/CH (Nuvo 67-310) — Commercial Fixtures › Exit & Emergency › Exit Signs.
Specifications
| Watts | 6.5W |
| Lumens | 810L |
| CCT (Kelvin Temp) | 5700K |
| Color Temp | Daylight |
| CCT Selectable | No |
| Wattage Selectable | No |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.054-0.023A |
| Hours Rated | 50000 |
| Beam Angle (degree) | 12 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fixture Type | Exit Sign |
| Style | Utility |
| Finish | Gloss White |
| Finish Family | White |
| Material | Steel |
| Lens Finish | Frosted |
| Lens Material | Glass |
| Mounting Procedure | Universal |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP40 |
| Safety Listing | cULus - Listed |
| Operating Temp | +41F to +113F (+5C to +45C) |
| Power Factor | >0.4 |
| Total Harmonic Distortion | <130% |
| Surge Protection | Built-in surge protection - 1KV |
| Warranty | 2-Years |
| Web Length | 2.86 |
| Web Width | 12.09 |
| Web Height | 13.29 |
| Title 20 | No |
| T24/JA8 Compliant | No |
| California Ban | Non-Compliant |
| UPC | 045923415715 |
| Case Quantity | 4 |
| Pack Type | Kraft Box |
Product Information
Part Number
67-310
Brand
SATCO
Product Code
67-310
UPC
045923415715
Specifications
Technology
LED
Wattage
6.5
Input Voltage
120V-277V
Color Temperature
5700K
Lamp Base
Integrated
Lumens
810.0
Hours
50000
CRI
80
Beam Spread
12
