Nuvo 65-986 LED Entryway Wall Pack, 10/15/20 Wattage Selectable, 30K/40K/50K CCT Selectable

Nuvo 65-986 LED Entryway Wall Pack, 10/15/20 Wattage Selectable, 30K/40K/50K CCT Selectable

SATCO
$72.99 USD
$72.99 USD
Sale Sold out
Shipping calculated at checkout.

CB-0279161
LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; Bronze FinishLED ENTRYWAY WALL PACK (Nuvo 65-986) — Commercial Fixtures › Wall Mount › Wall Mount.Specifications Wa... Show More
View full details

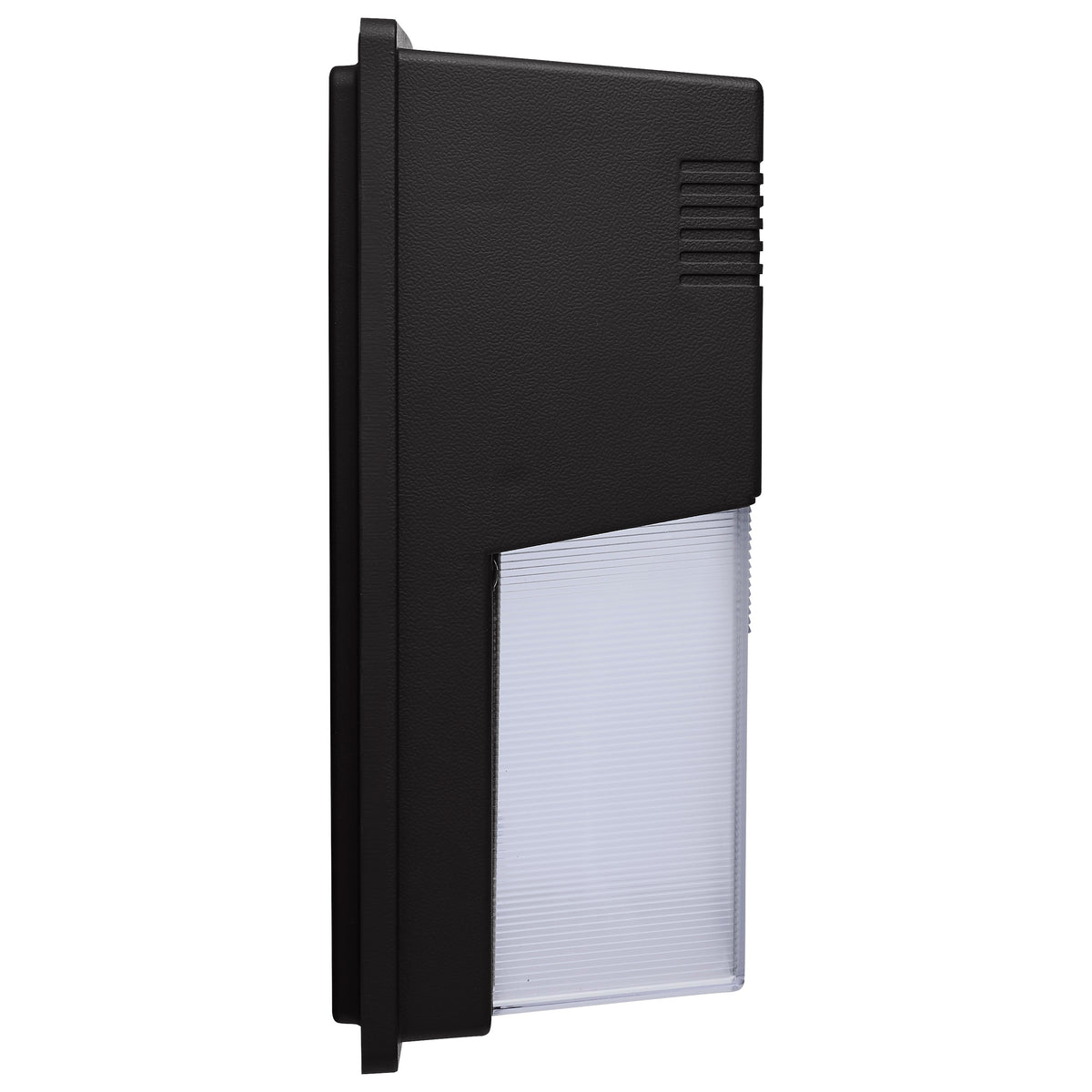

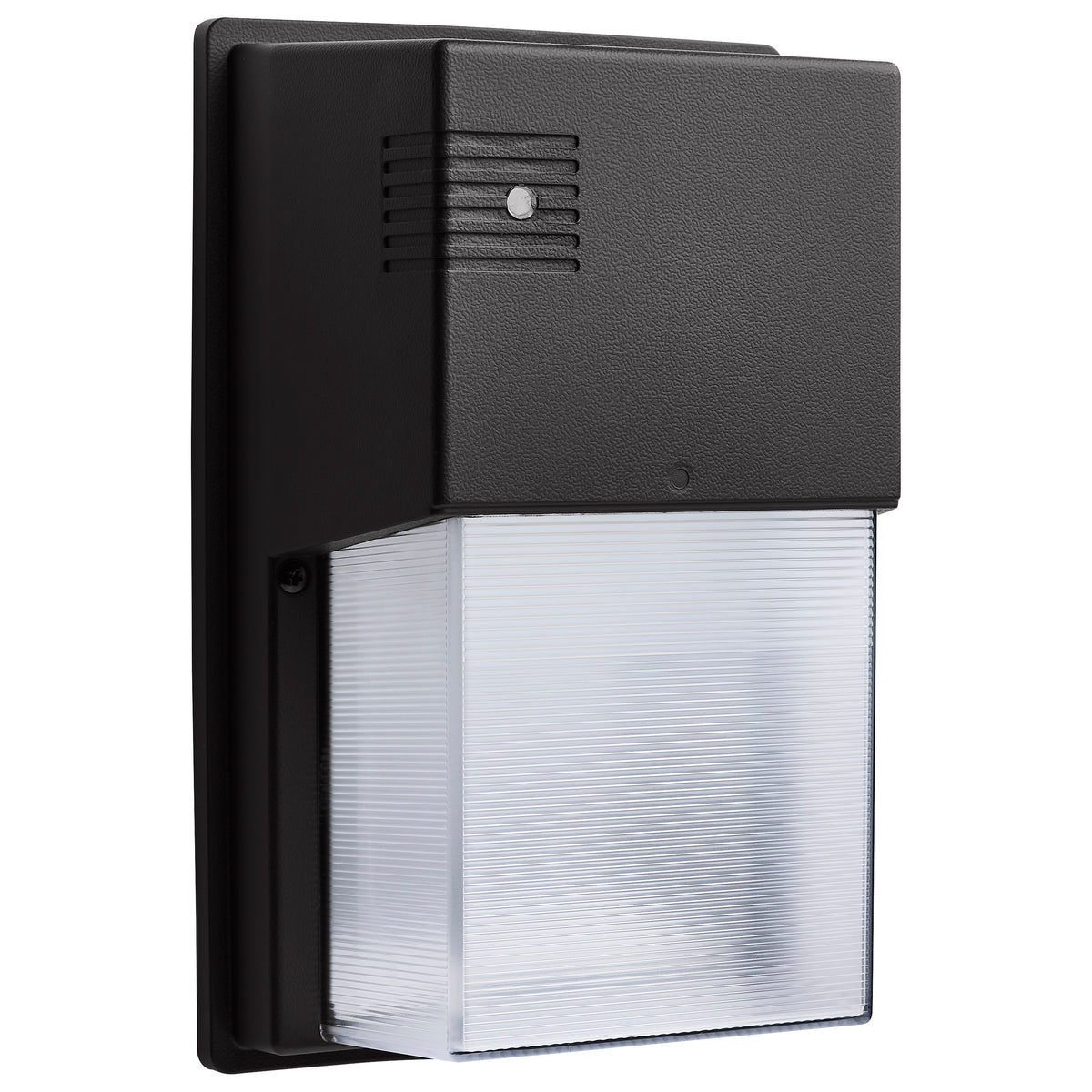

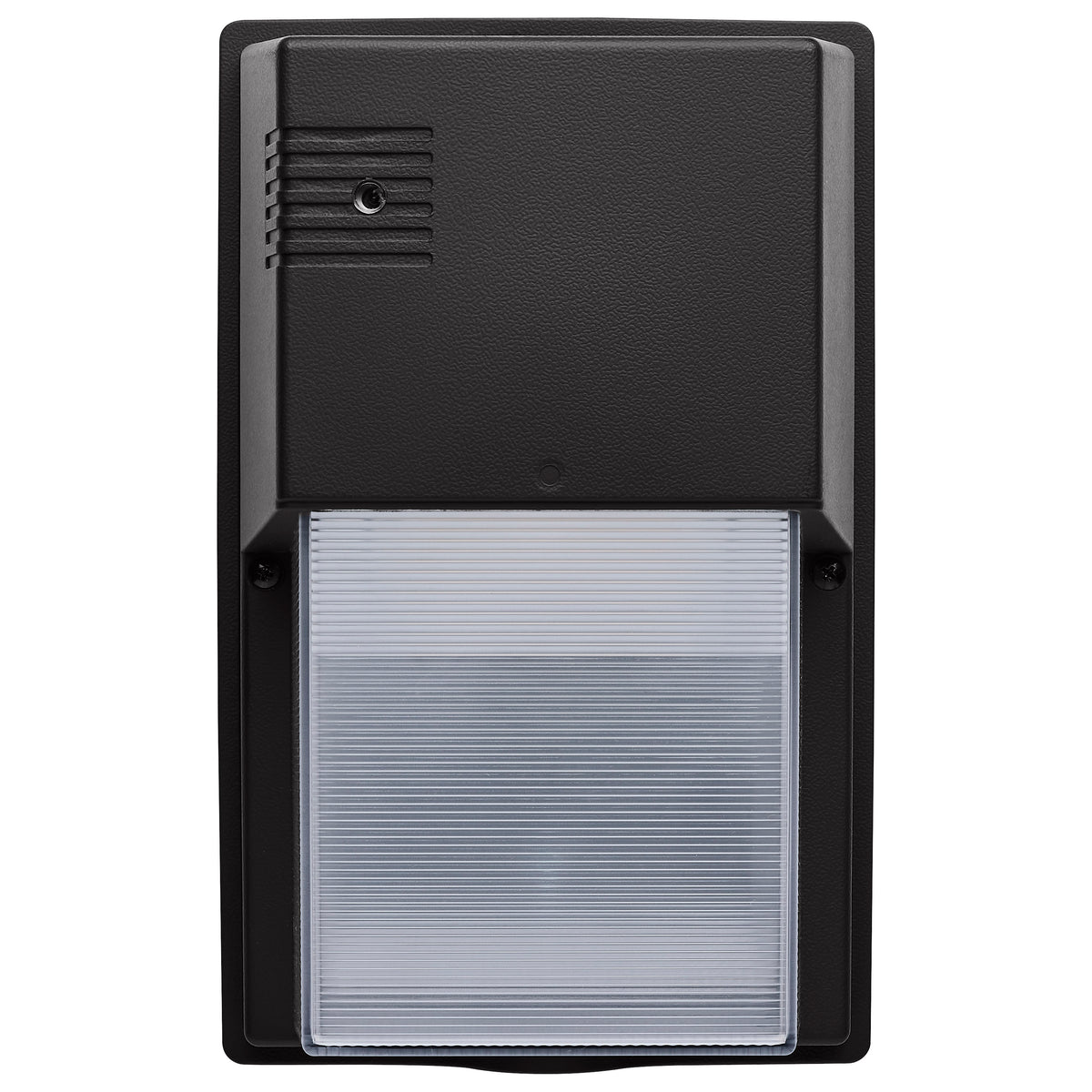

LED Entryway Wall Pack; 10/15/20 Wattage Selectable; 30K/40K/50K CCT Selectable; Bronze Finish

LED ENTRYWAY WALL PACK (Nuvo 65-986) — Commercial Fixtures › Wall Mount › Wall Mount.

Specifications

Watts 10W/15W/20W
Lumens 1410L-2839L
CCT (Kelvin Temp) 3000K/4000K/5000K
Color Temp Soft White to Natural Light
CCT Selectable Yes
Wattage Selectable Yes
CRI 80+
Volts 120V-347V
Amps 0.083-0.029/0.125-0.043/0.167-0.058A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type 0-10V Dimming
Beam Angle (degree) 100
Lamp Base Integrated
ANSI Base Integrated
Lamp Type Integrated LED
Product Technology LED
Incandescent Equivalent 150W
Fluor Equiv 42W
Fixture Type Wall Pack
Style Utility
Finish BRONZE
Finish Family Bronze
Material Die-cast Aluminum

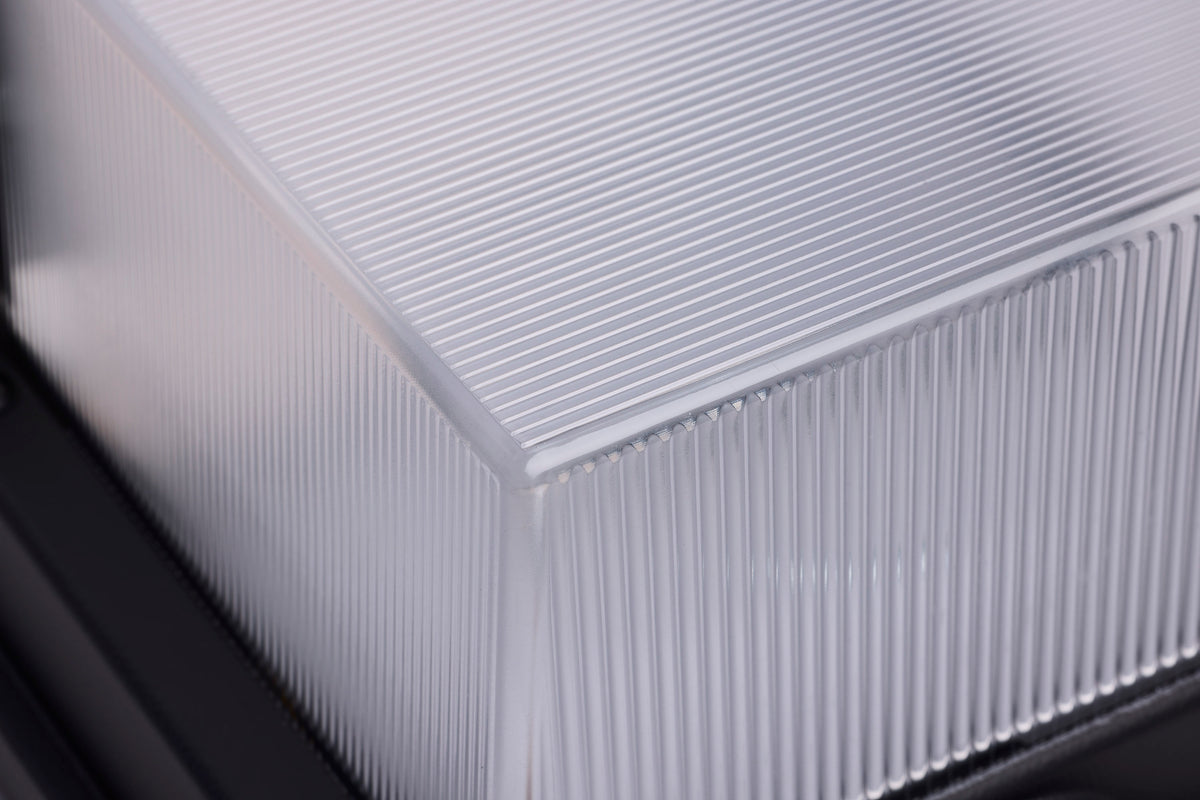

Lens Finish Prismatic
Lens Material Polycarbonate (PC)
Bulb Included Integrated
Mounting Procedure Wall
Indoor Outdoor Outdoor
Location Rating Wet
IP Rating IP65
Safety Listing cULus
Operating Temp -40F to +122F (-40C to +50C)
Power Factor >0.9
Total Harmonic Distortion <20%
Surge Protection Built-in surge protection - 2.5KV
Warranty 5-Years
Web Width 6.86
Web Height 10.96
Title 20 Exempt
T24/JA8 Compliant No
California Ban Lawful for sale
UPC 045923404092
Case Quantity 4
Pack Type Box

65-986 Instructions (PDF) · Satco product page

Product Information

Part Number 65-986
Brand SATCO
Product Code 65-986
UPC 045923404092

Specifications

Technology LED
Wattage 10
Input Voltage 120V-347V
Color Temperature 3000K/4000K/5000K
Lamp Base Integrated
Lumens 1410.0
Hours 50000
CRI 80
Dimmable true
Beam Spread 100
