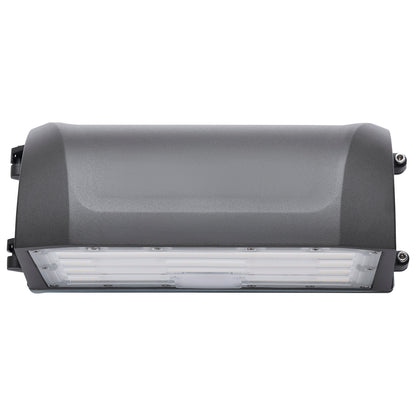

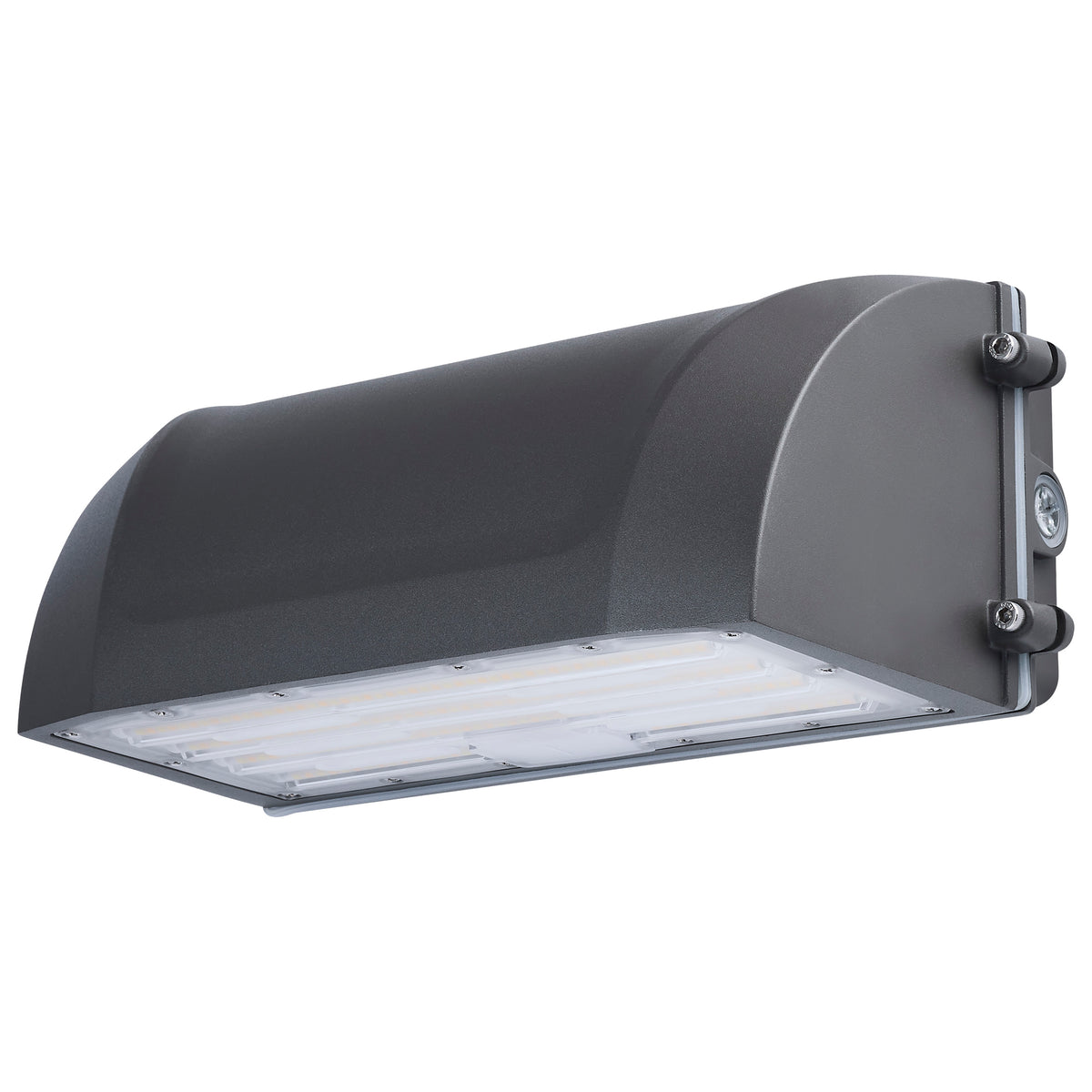

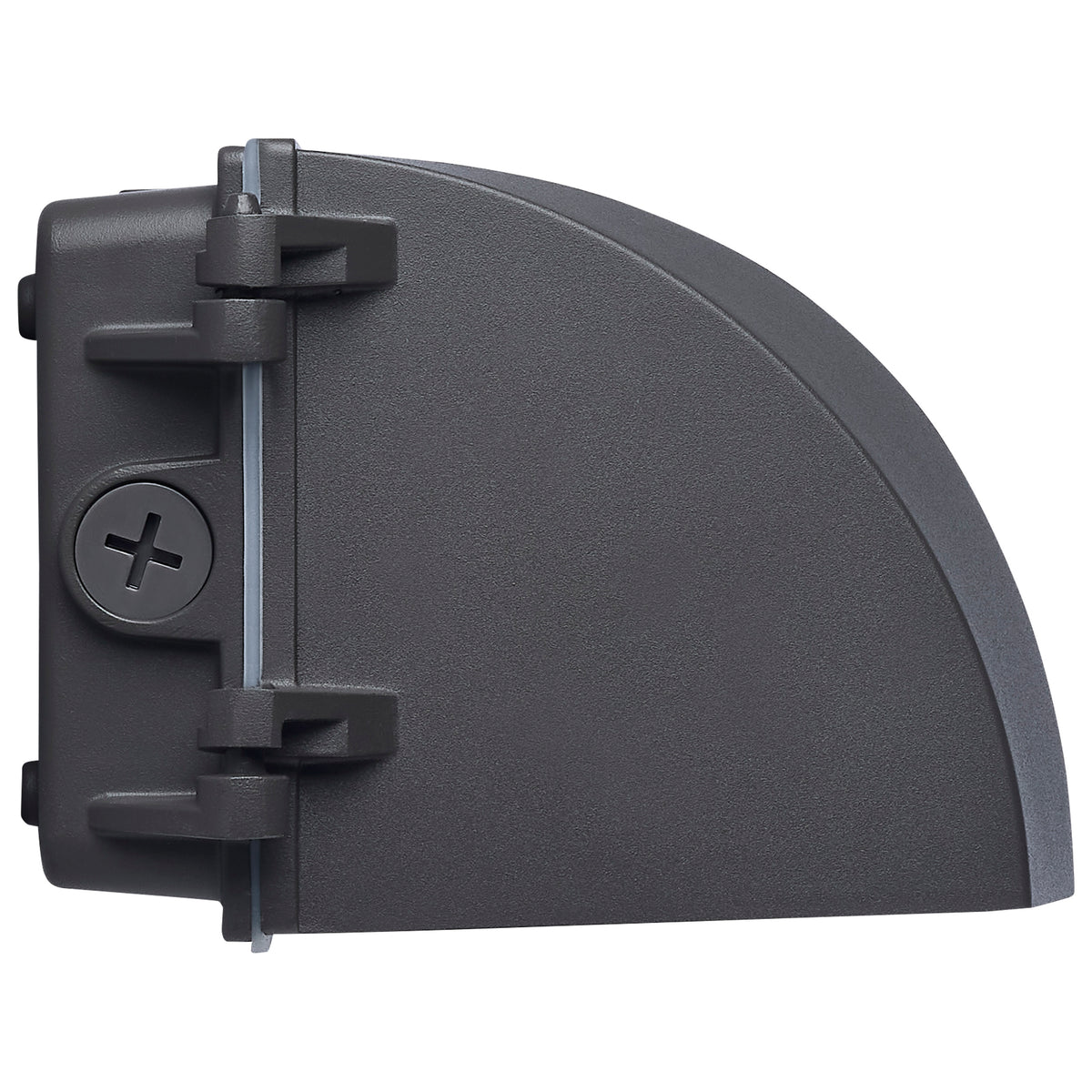

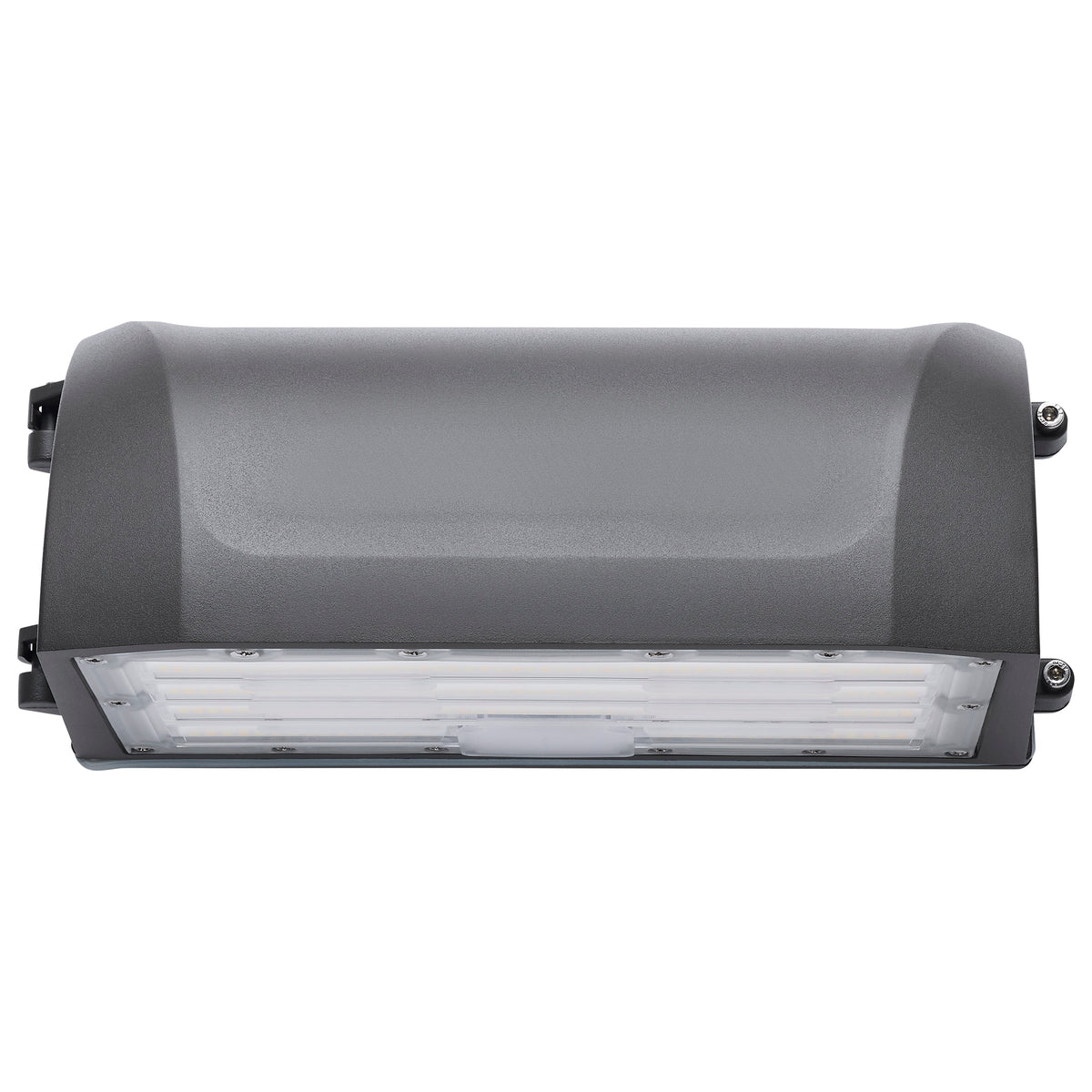

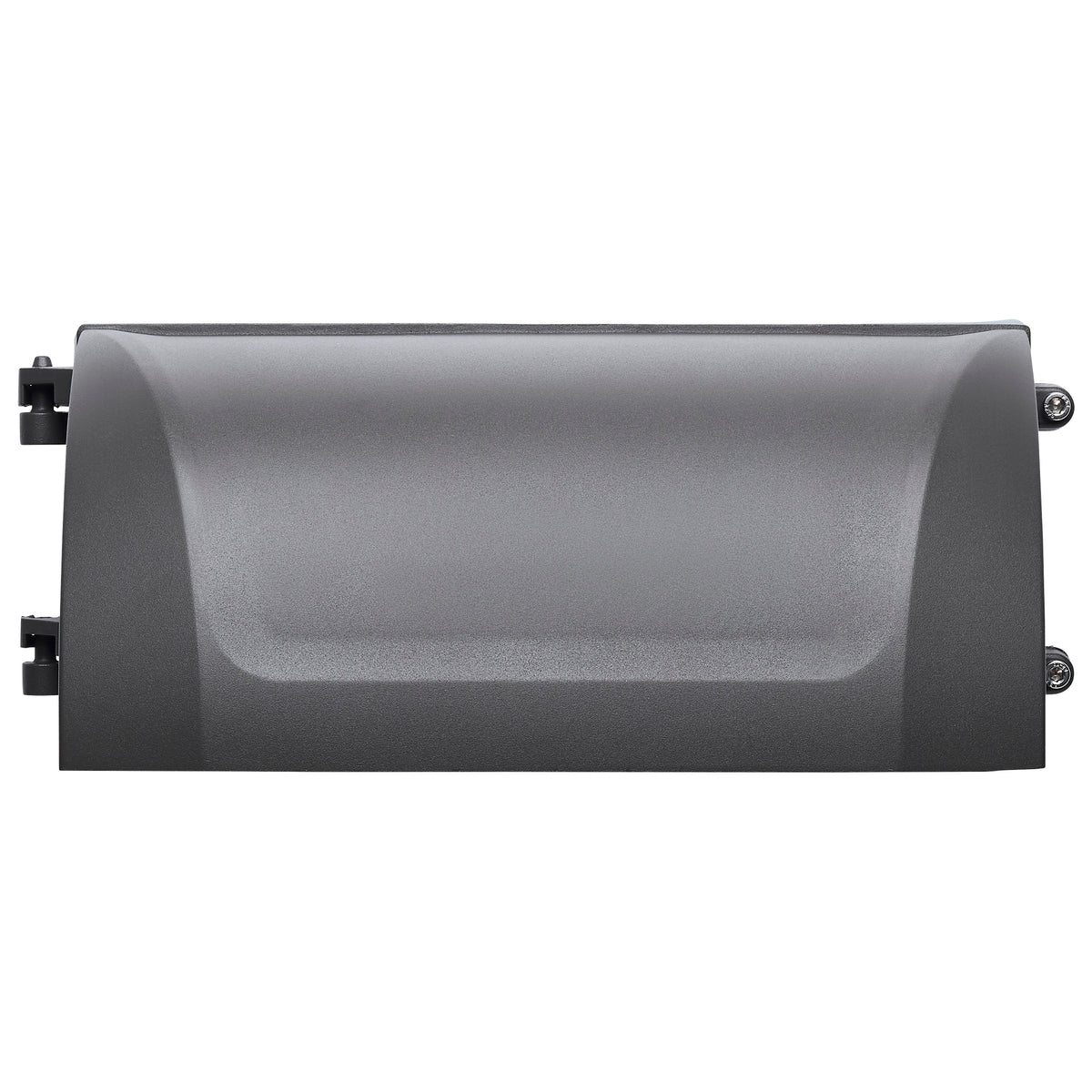

Nuvo 65-941 45/60/80 Watt, 3K/4K/5K CCT Selectable LED Full Cutoff Wall Pack, 120-277 Volt
Nuvo 65-941 45/60/80 Watt, 3K/4K/5K CCT Selectable LED Full Cutoff Wall Pack, 120-277 Volt
SATCO
Regular price
$144.99 USD
Regular price
Sale price
$144.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279149
Couldn't load pickup availability
45/60/80 Watt; 3K/4K/5K CCT Selectable LED Full Cutoff Wall Pack; 120-277 Volt; Bronze FinishLED FULL CUTOFF WALL PACK (Nuvo 65-941) — Commercial Fixtures › Wall Mount › Wall Mount.Specifications
...
Show More
45/60/80 Watt; 3K/4K/5K CCT Selectable LED Full Cutoff Wall Pack; 120-277 Volt; Bronze Finish
LED FULL CUTOFF WALL PACK (Nuvo 65-941) — Commercial Fixtures › Wall Mount › Wall Mount.
Specifications
| Watts | 45W/60W/80W |
| Lumens | 6972L-11904L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |

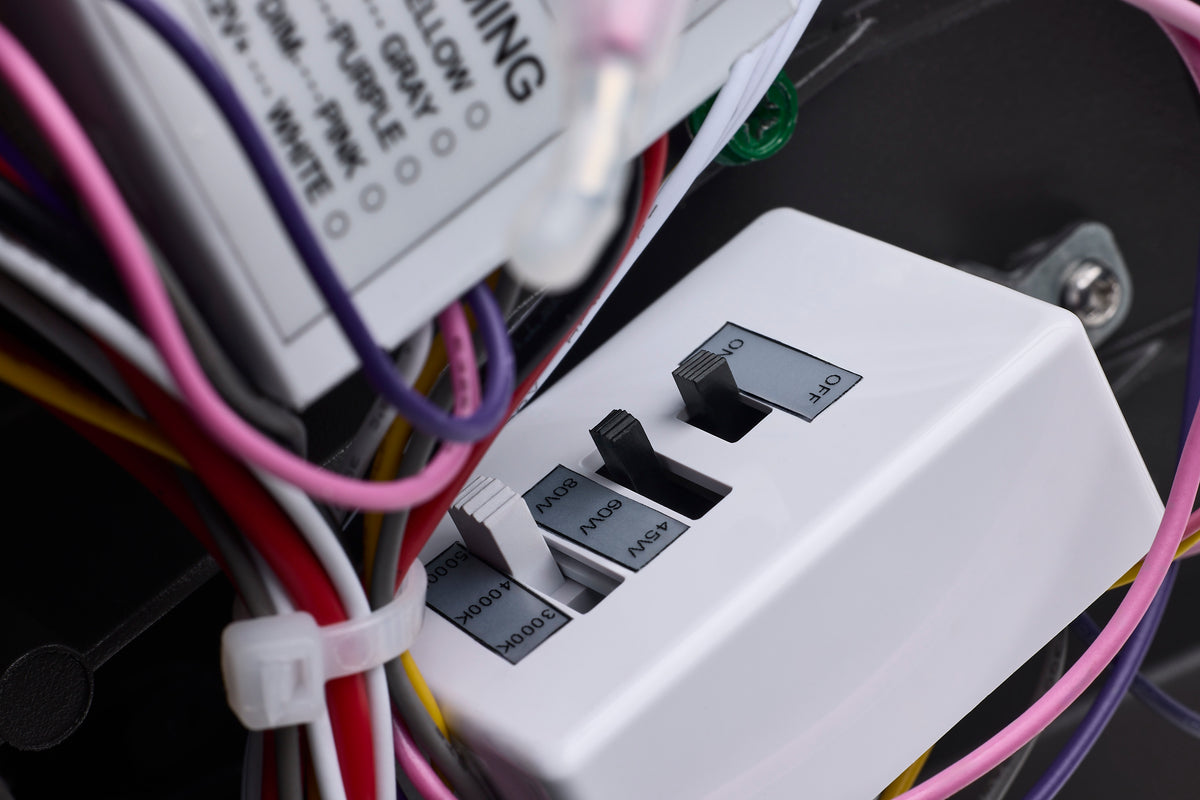

| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.375-0.162/0.500-0.217/0.667-0.289A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 90x100 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fixture Type | Wall Pack |
| Style | Utility |
| Finish | BRONZE |
| Finish Family | Bronze |
| Material | Die-cast Aluminum |
| Lens Finish | Opaque |
| Lens Material | Impact Resistant PC |
| Bulb Included | Integrated |
| Mounting Procedure | Wall |
| Indoor Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Certified |
| Operating Temp | -40F to +104F (-40C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | 8.97% |
| Surge Protection | Built-in surge protection - 4KV |
| Warranty | 5-Years |
| Web Width | 12.61 |
| Web Height | 6.86 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923410277 |
| Case Quantity | 4 |
| Pack Type | Box |
65-941 Instructions (PDF) · 65-941 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-941
Brand
SATCO
Product Code
65-941
UPC
045923410277
Specifications
Technology
LED
Wattage
45
Input Voltage
120V-277V
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
6972.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
90
