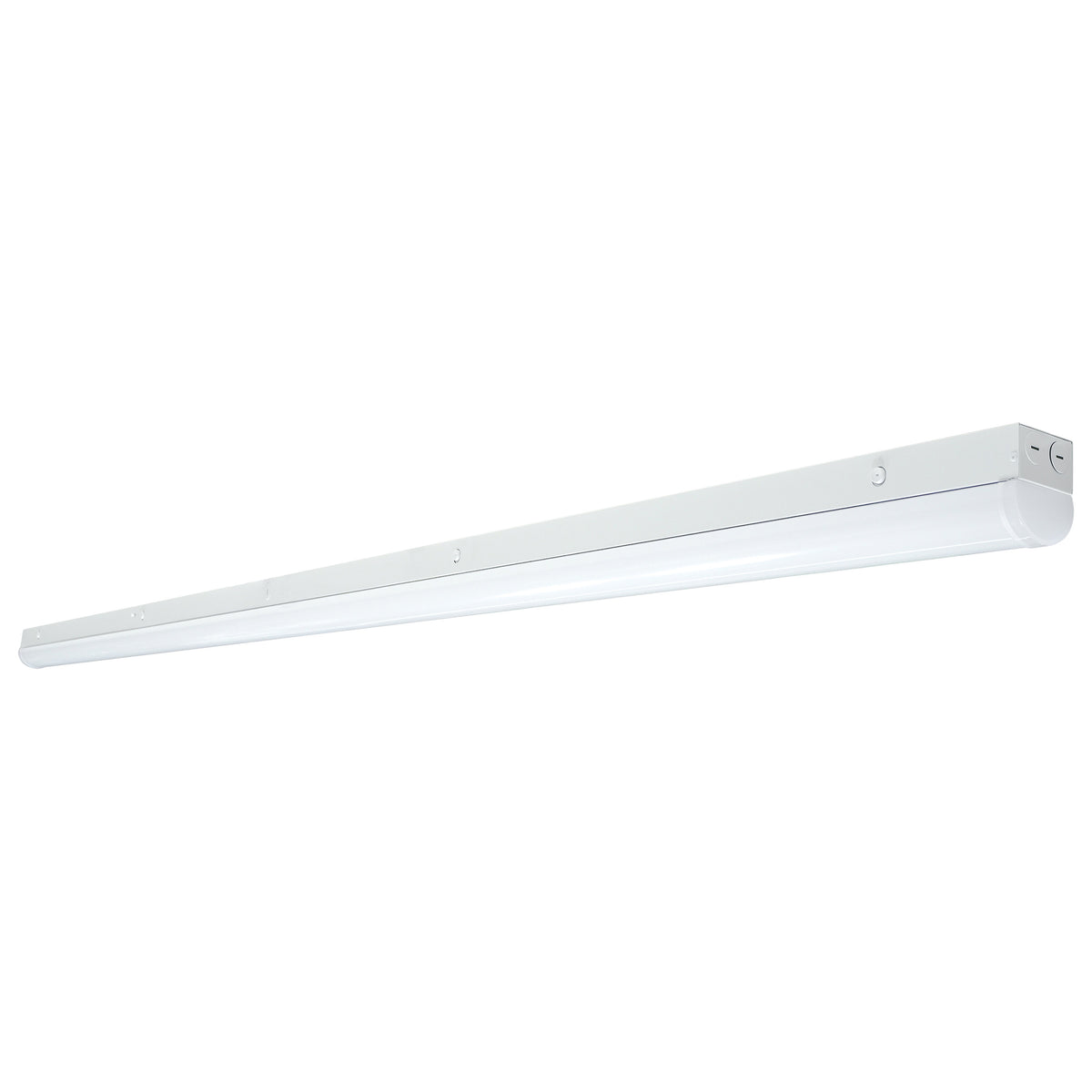

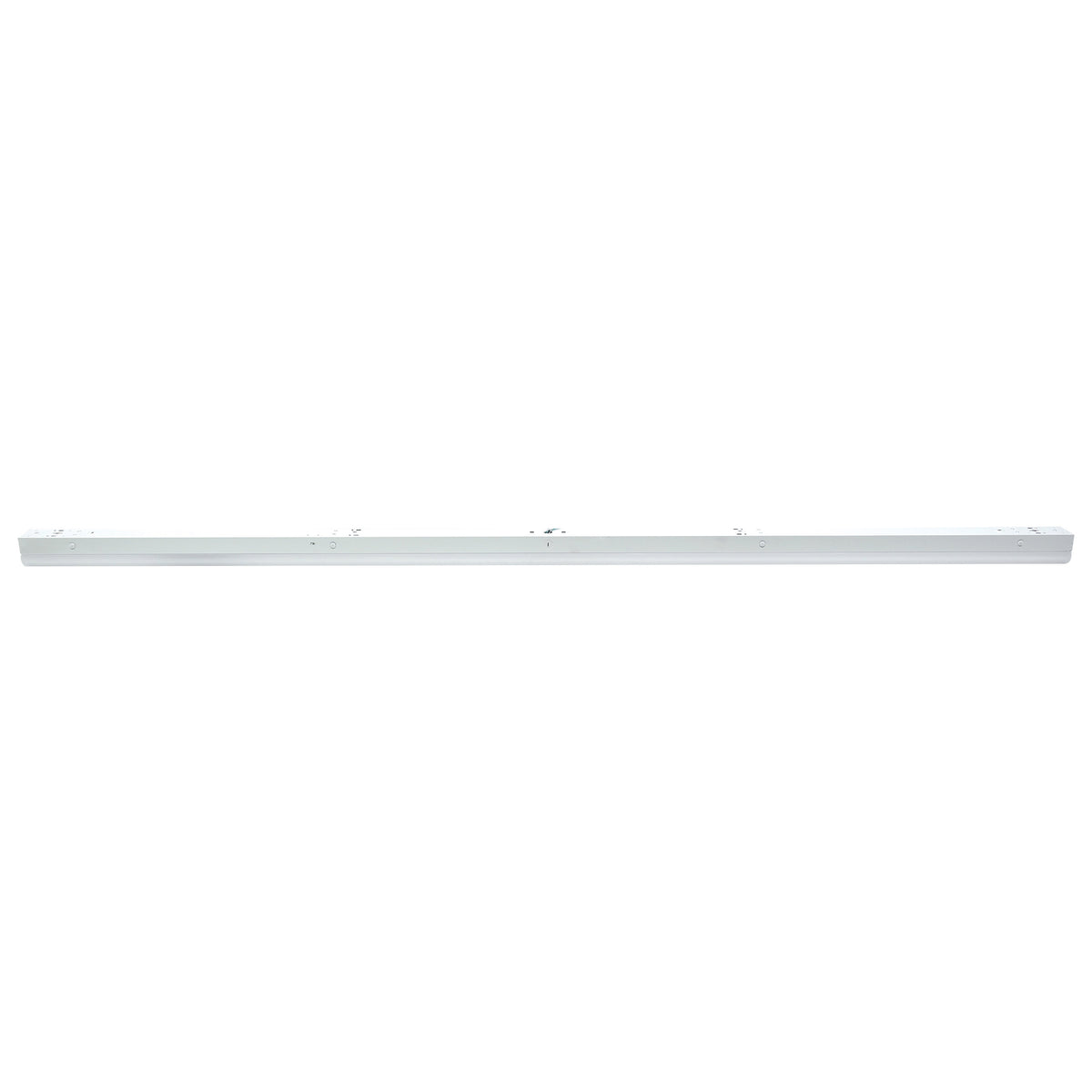

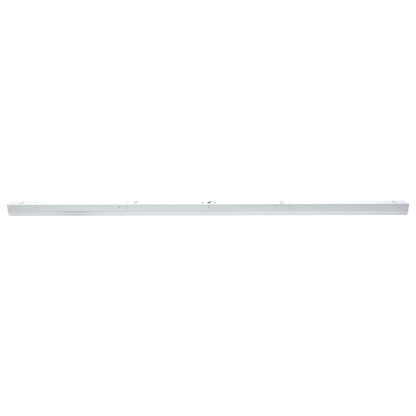

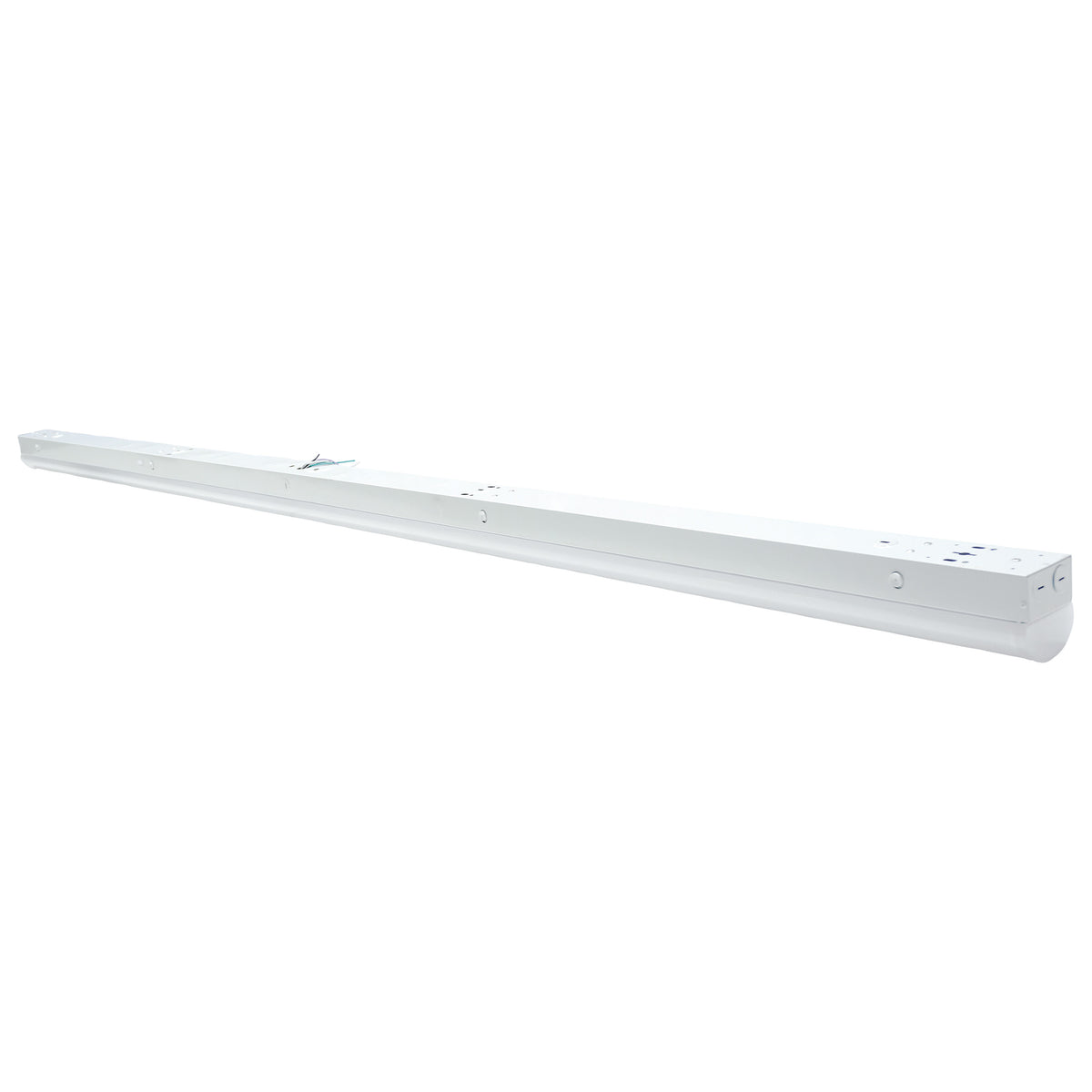

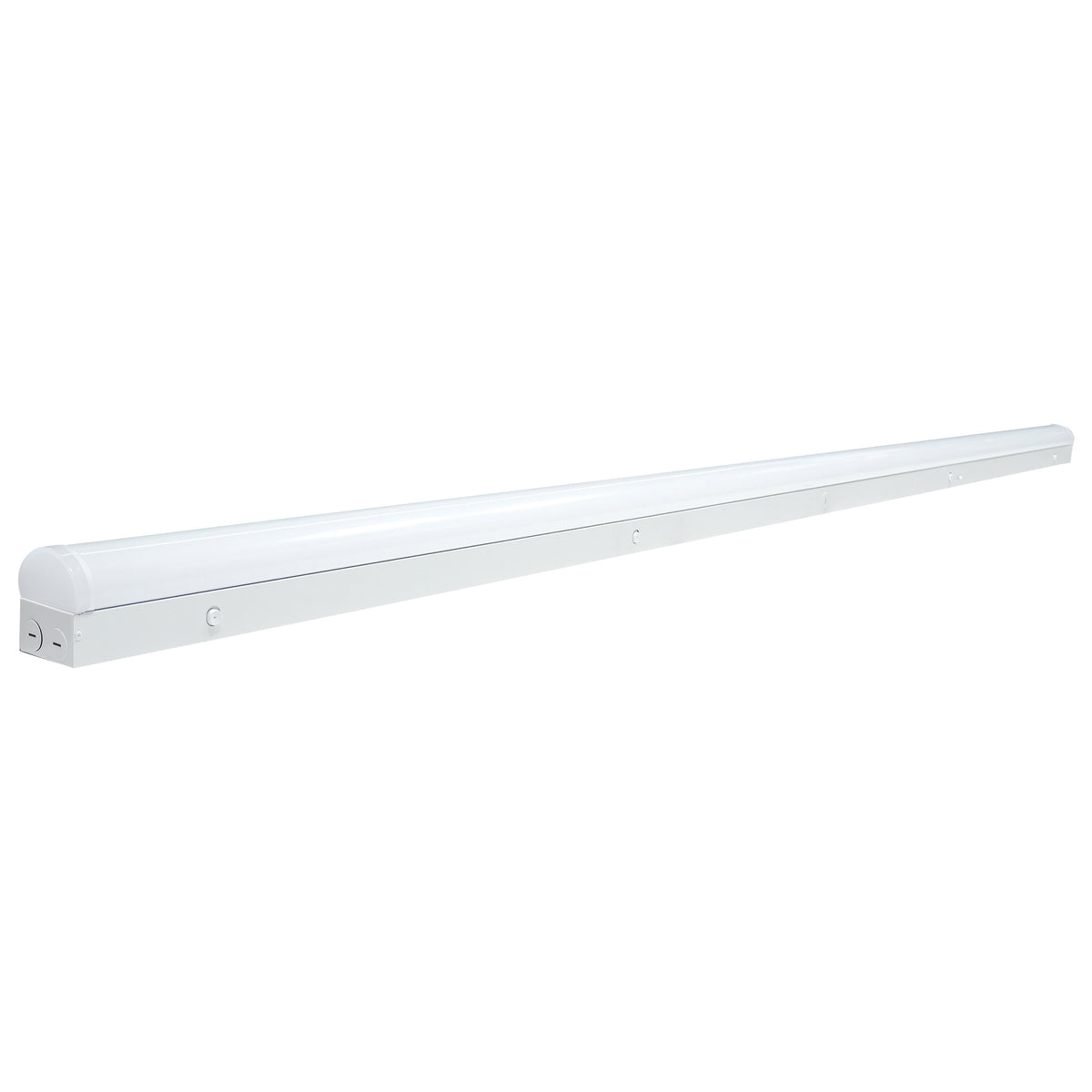

Nuvo 65-703R1 8 Foot LED Linear Strip Light, Field Selectable, White Finish
Nuvo 65-703R1 8 Foot LED Linear Strip Light, Field Selectable, White Finish
SATCO
Regular price
$159.99 USD
Regular price
Sale price
$159.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279077
Couldn't load pickup availability
8 Foot LED Linear Strip Light; Field Selectable; White Finish8' LINEAR STRIP WHITE FINISH (Nuvo 65-703R1) — Commercial Fixtures › Linear › Strips.Specifications
Watts
60W/70W/80W
Lumens
7800L-11...
Show More
8 Foot LED Linear Strip Light; Field Selectable; White Finish
8' LINEAR STRIP WHITE FINISH (Nuvo 65-703R1) — Commercial Fixtures › Linear › Strips.
Specifications
| Watts | 60W/70W/80W |
| Lumens | 7800L-11200L |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
| Color Temp | Neutral White to Daylight |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-347V |
| Amps | 0.500-0.173/0.583-0.202/0.667-0.231A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 120 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 550W |
| Fixture Type | Strip Light |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Steel |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling/Wall |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Certified |
| Operating Temp | -4F to +140F (-20C to +60C) |
| Power Factor | 0.9 |
| Total Harmonic Distortion | 15% |
| Surge Protection | Built-in surge protection - 3KV |
| Warranty | 5-Years |
| Web Length | 96.0 |
| Web Width | 2.95 |
| Web Height | 3.27 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923662324 |
| Case Quantity | 4 |
| Pack Type | Box |
65-703R1 Instructions (PDF) · 65-703R1 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-703R1
Brand
SATCO
Product Code
65-703R1
UPC
045923662324
Specifications
Technology
LED
Wattage
60
Input Voltage
120V-347V
Color Temperature
3500K/4000K/5000K
Lamp Base
Integrated
Lumens
7800.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
120
