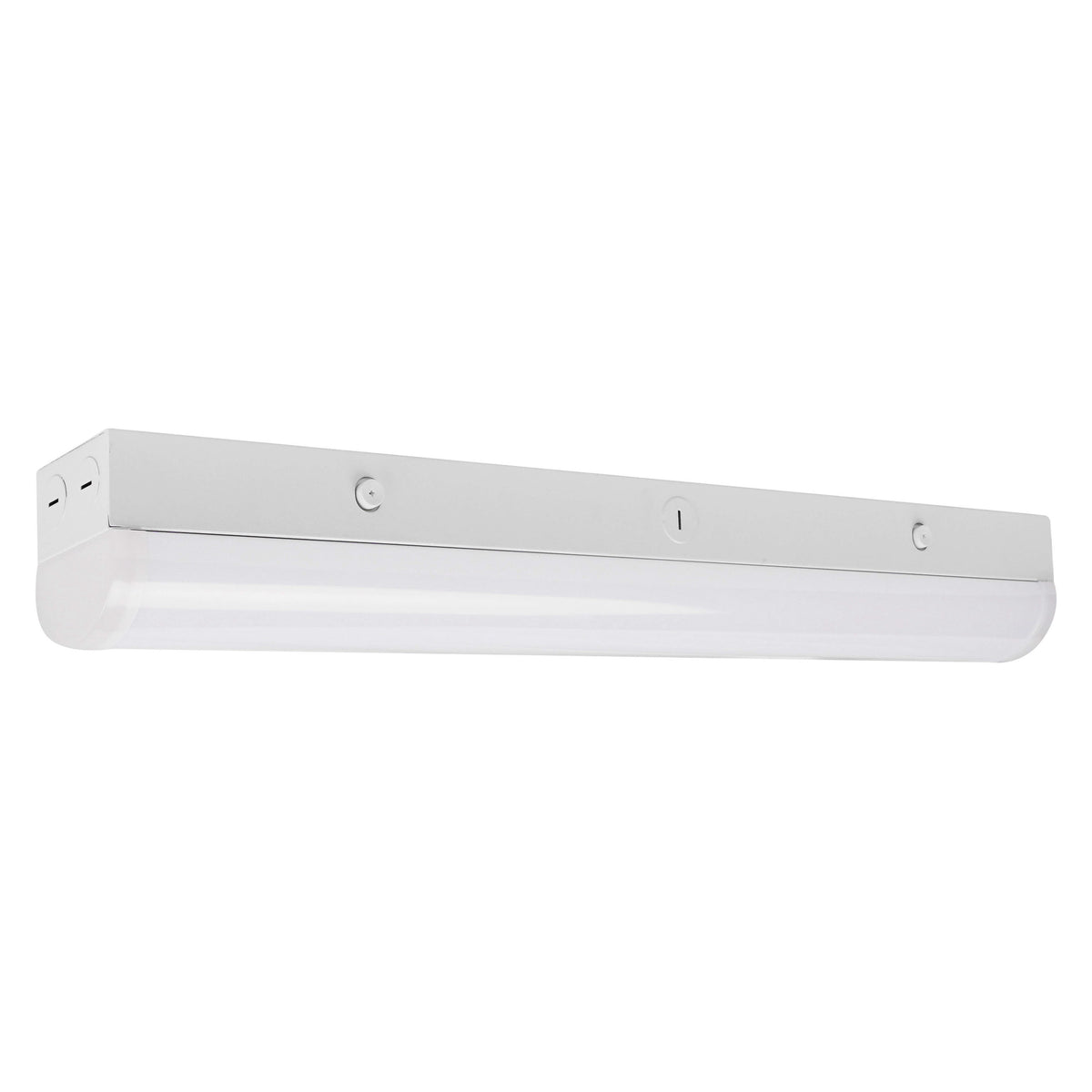

Nuvo 65-698R1 LED 2 ft., Linear Strip Light, 15/20/25 Watt
Nuvo 65-698R1 LED 2 ft., Linear Strip Light, 15/20/25 Watt
SATCO
Regular price
$230.99 USD
Regular price
Sale price
$230.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0279075
Couldn't load pickup availability
LED 2 ft.; Linear Strip Light; 15/20/25 Watt; 35K/40K/50K CCT Selectable; White Finish; 120-277V; Integrated EM & Sensor2' LINEAR STRIP W/ EM & SENSOR (Nuvo 65-698R1) — Commercial Fixtures ...
Show More
LED 2 ft.; Linear Strip Light; 15/20/25 Watt; 35K/40K/50K CCT Selectable; White Finish; 120-277V; Integrated EM & Sensor
2' LINEAR STRIP W/ EM & SENSOR (Nuvo 65-698R1) — Commercial Fixtures › Linear › Strips.
Specifications
| Watts | 15W/20W/25W |
| Lumens | 1950L-3500L |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
| Color Temp | Neutral White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.125-0.054/0.167-0.072/0.208-0.090A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming, Bi-Level Dimmable |
| Beam Angle (degree) | 120 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 100W |
| Fluor Equiv | 32W |
| Fixture Type | Strip Light |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Steel |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling/Wall |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Listed |
| Operating Temp | -4F to +140F (-20C to +60C) |
| Power Factor | 0.9 |
| Total Harmonic Distortion | 10.60% |
| Surge Protection | Built-in surge protection - 2KV |
| Warranty | 5-Years |
| Web Length | 24.0 |
| Web Width | 2.95 |
| Web Height | 3.27 |
| Title 20 | Yes |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923412196 |
| Case Quantity | 8 |
| Pack Type | Box |
65-698R1 Wiring Instructions with two Neutrals (PDF) · 65-698R1 Instructions (PDF) · Satco product page
Product Information
Part Number
65-698R1
Brand
SATCO
Product Code
65-698R1
UPC
045923412196
Specifications
Technology
LED
Wattage
15
Input Voltage
120V-277V
Color Temperature
3500K/4000K/5000K
Lamp Base
Integrated
Lumens
1950.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
120
