80/100/120 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 VoltLED FULL CUTOFF WALL PACK (Nuvo 65-556) — Commercial Fixtures › Wall Mount › Wall Mount.Specifications
Wat...
Show More

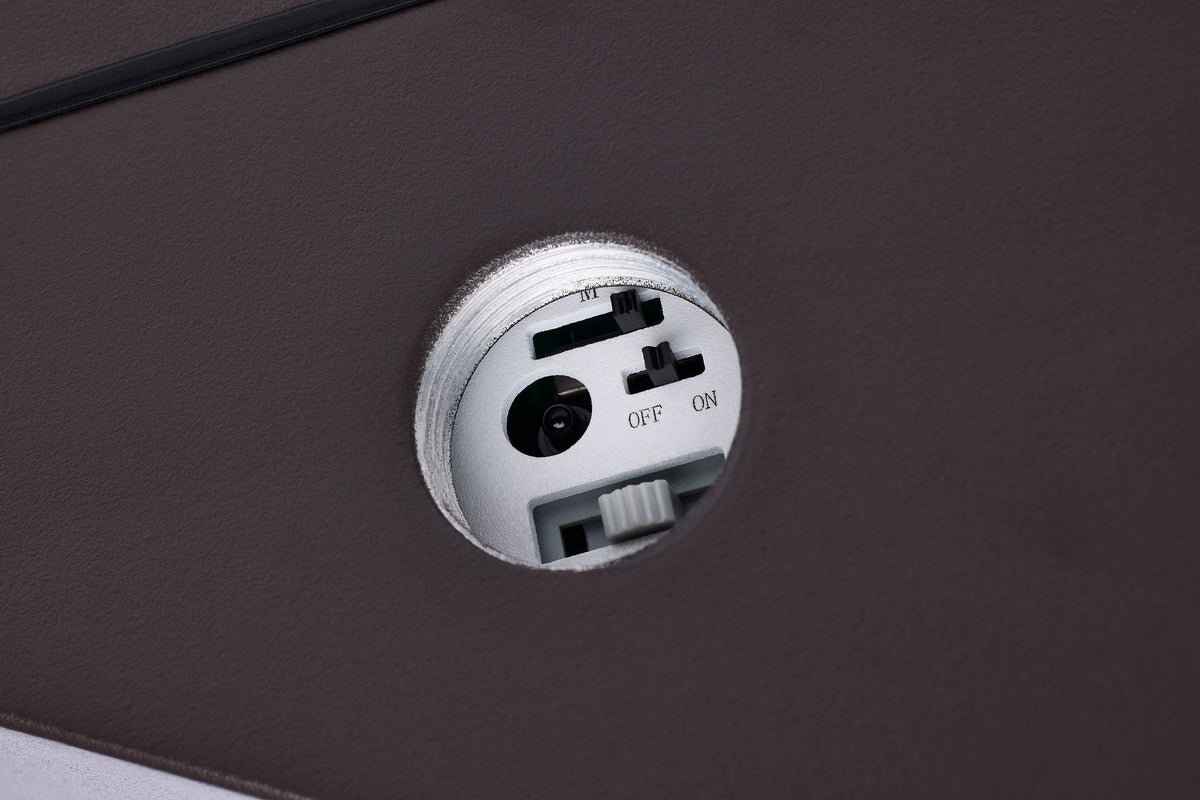

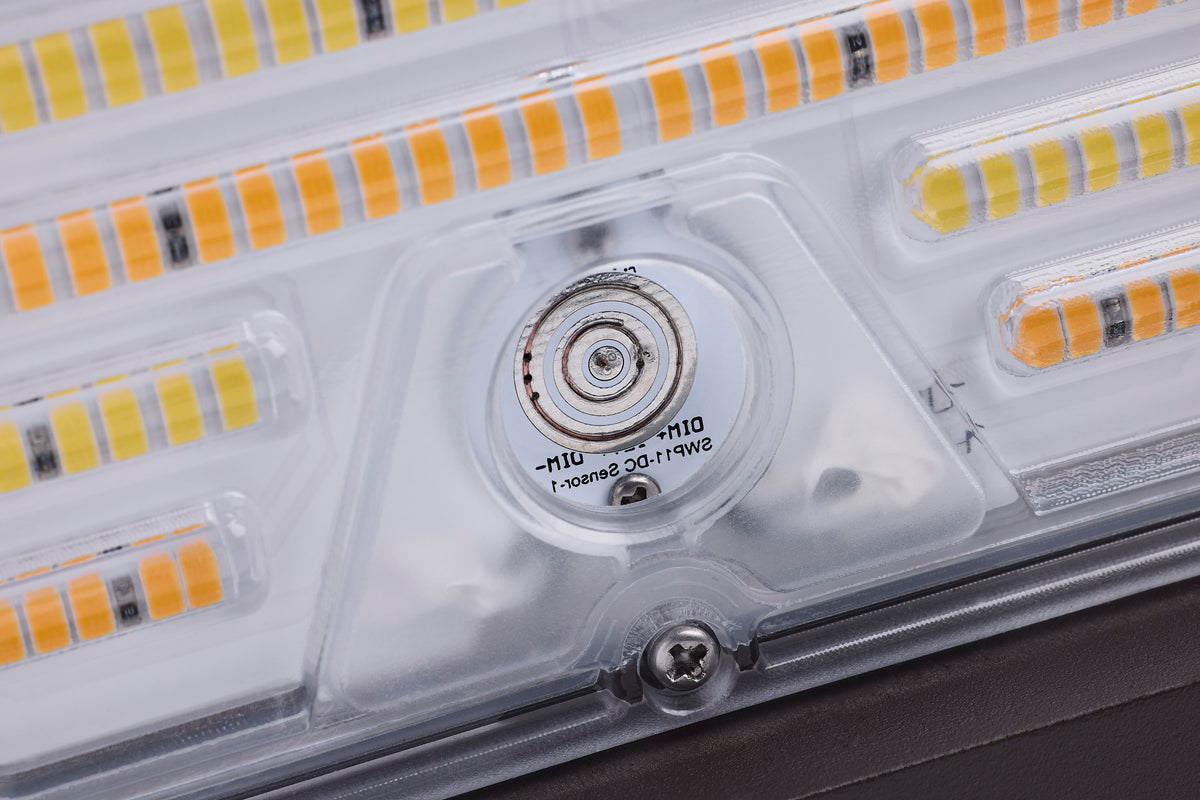

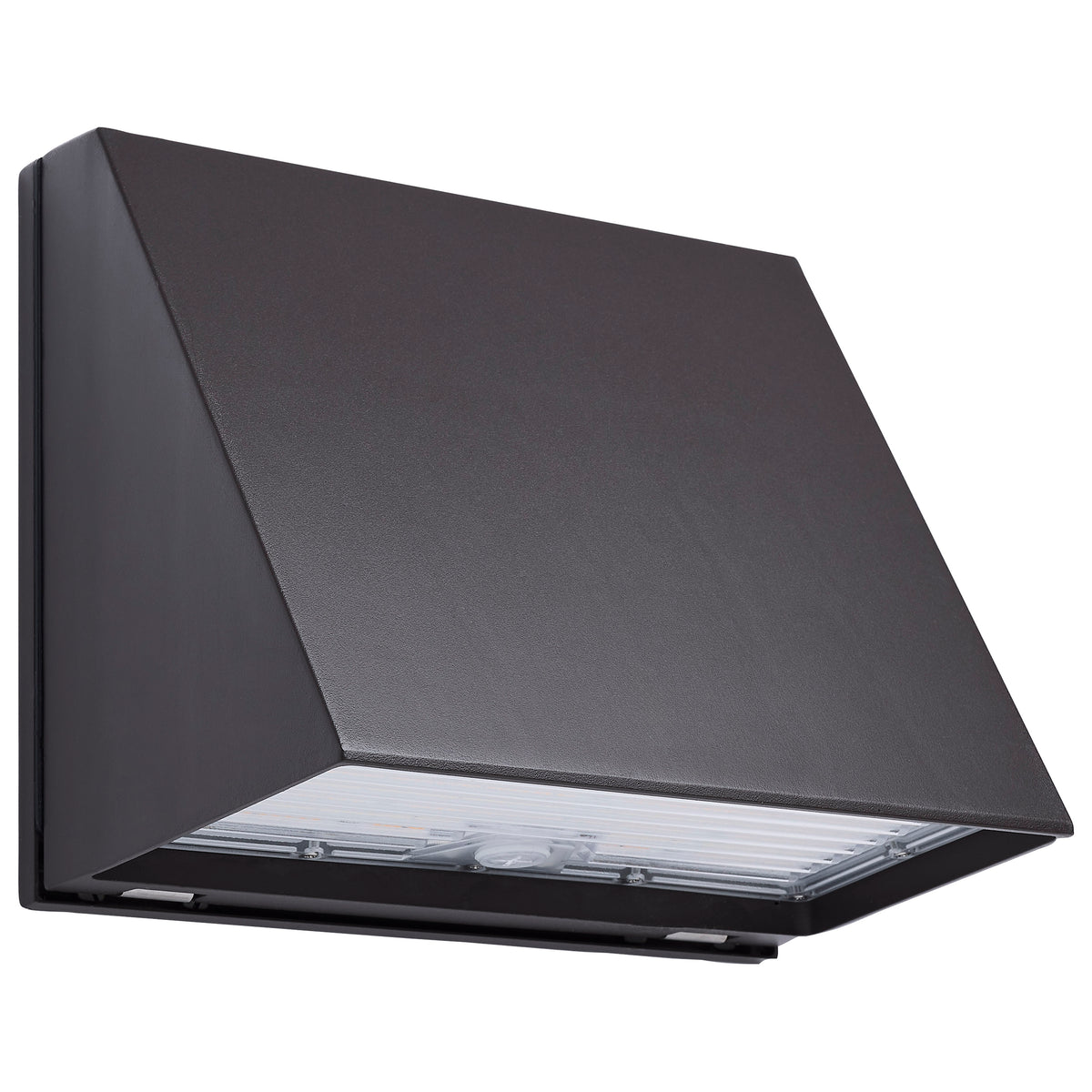

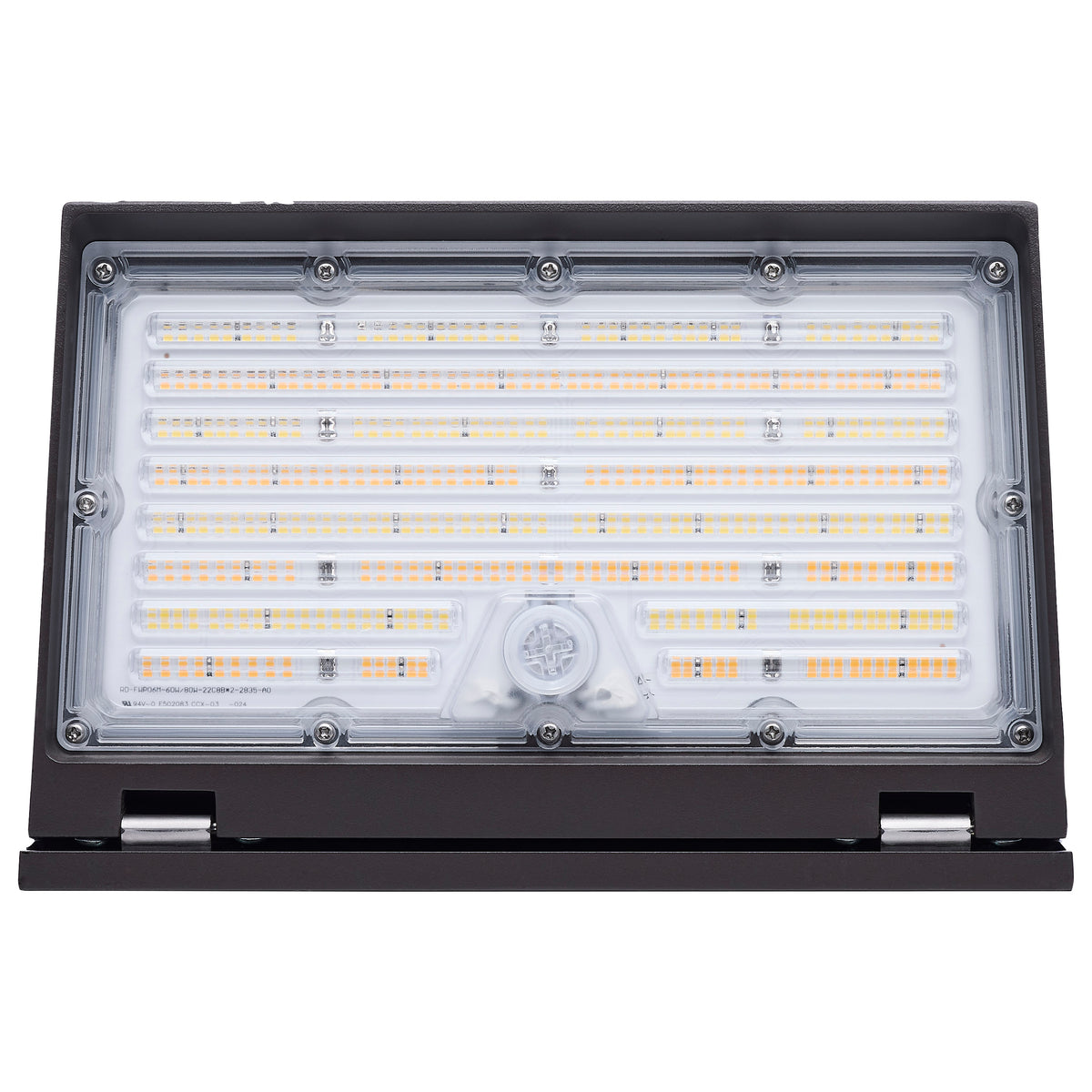

80/100/120 Watt LED Cutoff Wall Pack; 3K/4K/5K CCT; Field Selectable; Bronze; 120-347 Volt
LED FULL CUTOFF WALL PACK (Nuvo 65-556) — Commercial Fixtures › Wall Mount › Wall Mount.
Specifications
| Watts | 80W/100W/120W |
| Lumens | 12107L-17789L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-347V |
| Amps | 0.667-0.231/0.833-0.288/1.000-0.346A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 106 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fixture Type | Wall Pack |
| Style | Utility |
| Finish | BRONZE |
| Finish Family | Bronze |
| Material | Die-cast Aluminum |
| Lens Finish | Opaque |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Wall |
| Indoor Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus |
| Operating Temp | -40F to +122F (-40C to +50C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 6KV |
| Warranty | 5-Years |
| Web Width | 13.28 |
| Web Height | 9.36 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923434167 |
| Case Quantity | 1 |
| Pack Type | Box |
65-556 Instructions (PDF) · 65-556 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-556
Brand
SATCO
Product Code
65-556
UPC
045923434167
Specifications
Technology
LED
Wattage
80
Input Voltage
120V-347V
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
12107.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
106
