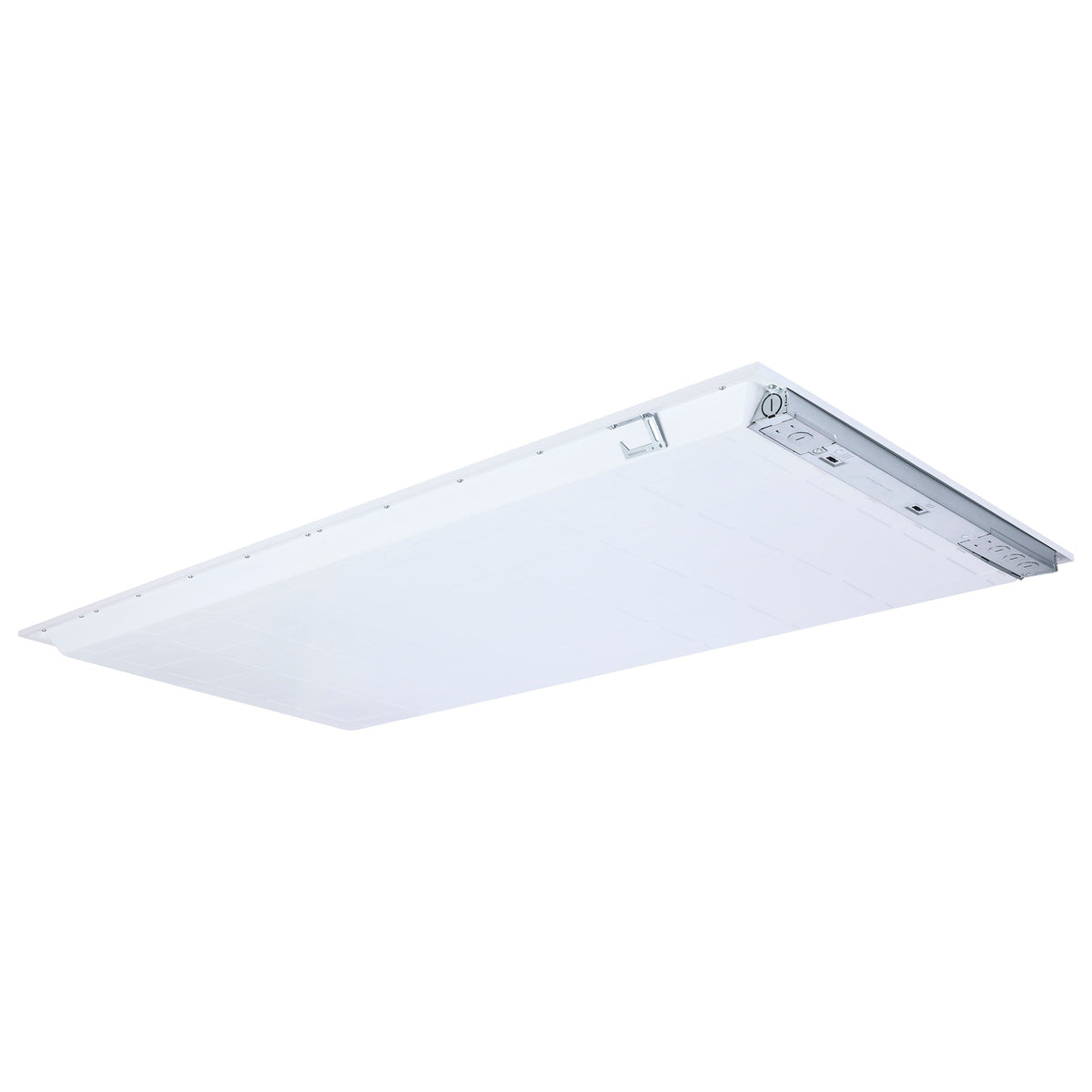

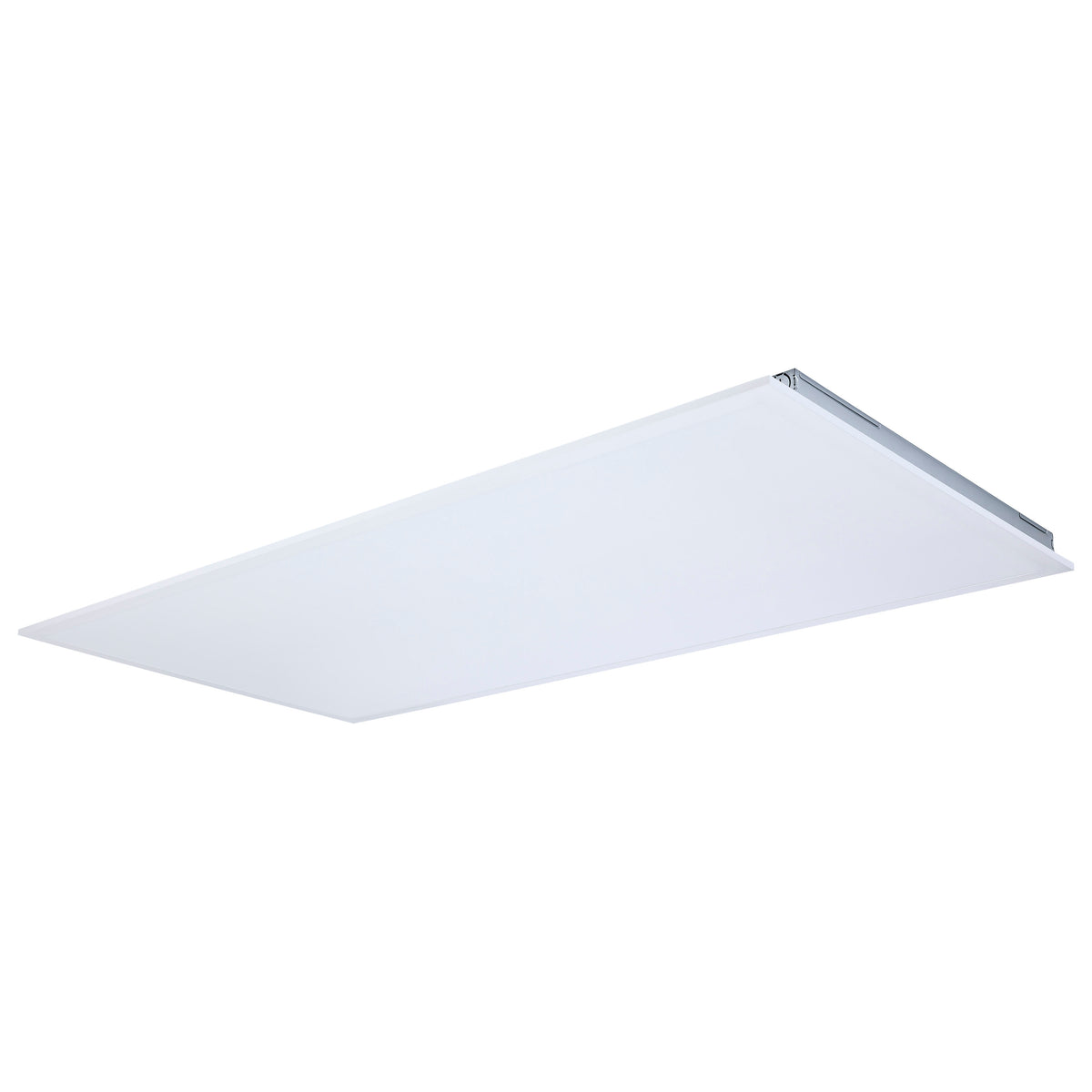

Nuvo 65-1672 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel, 35K/4K/5K CCT Selectable, 120-347 Range Voltage

Nuvo 65-1672 30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel, 35K/4K/5K CCT Selectable, 120-347 Range Voltage

SATCO
$72.99 USD
$72.99 USD
Sale Sold out
Shipping calculated at checkout.

CB-0279003
30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel; 35K/4K/5K CCT Selectable; 120-347 Range Voltage; White Finish2X4 LED BACKLIT FLAT PANEL (Nuvo 65-1672) — Commercial Fixtures › Troffers &... Show More
View full details

30/40/50 Wattage Selectable LED 2ft x 4ft Backlit Panel; 35K/4K/5K CCT Selectable; 120-347 Range Voltage; White Finish

2X4 LED BACKLIT FLAT PANEL (Nuvo 65-1672) — Commercial Fixtures › Troffers & Panels › Panels.

Specifications

Watts 30W/40W/50W
Lumens 3750L/4500L/6250L
CCT (Kelvin Temp) 3500K/4000K/5000K
Color Temp Neutral White to Natural Light

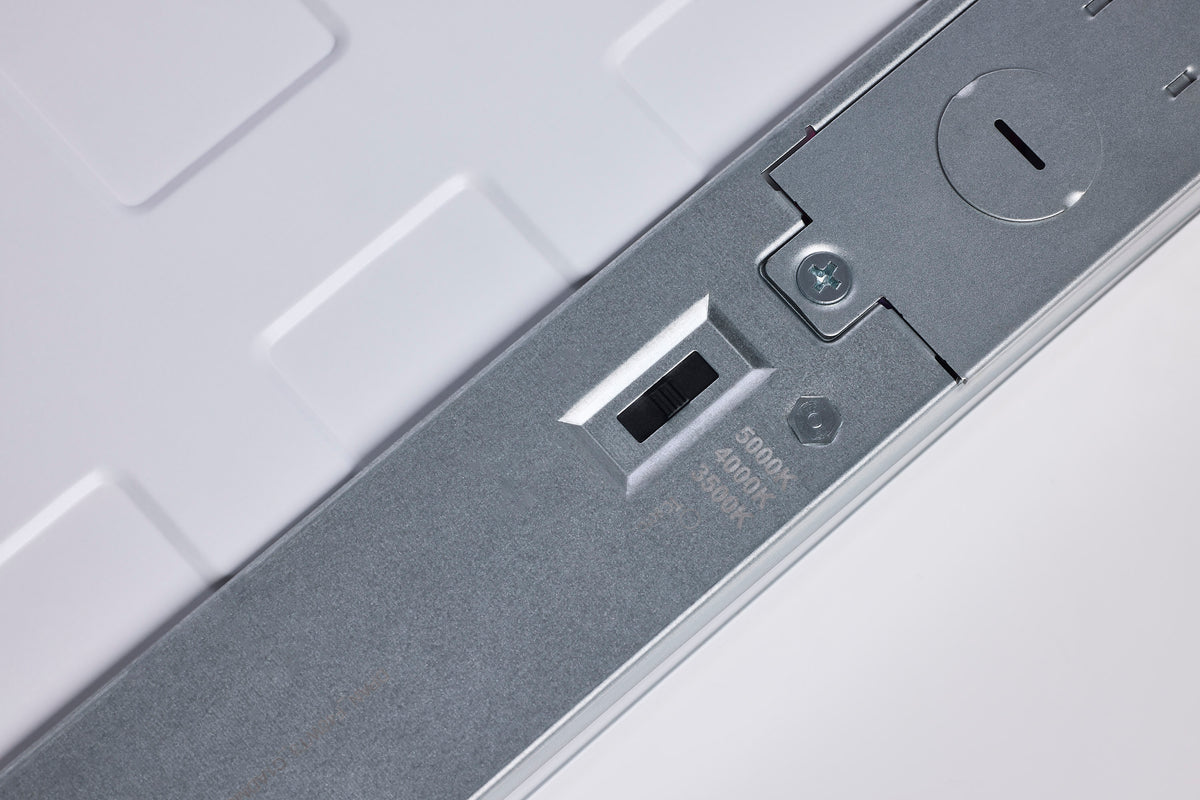

CCT Selectable Yes

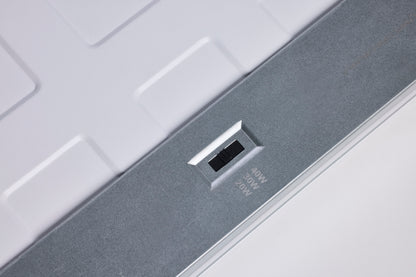

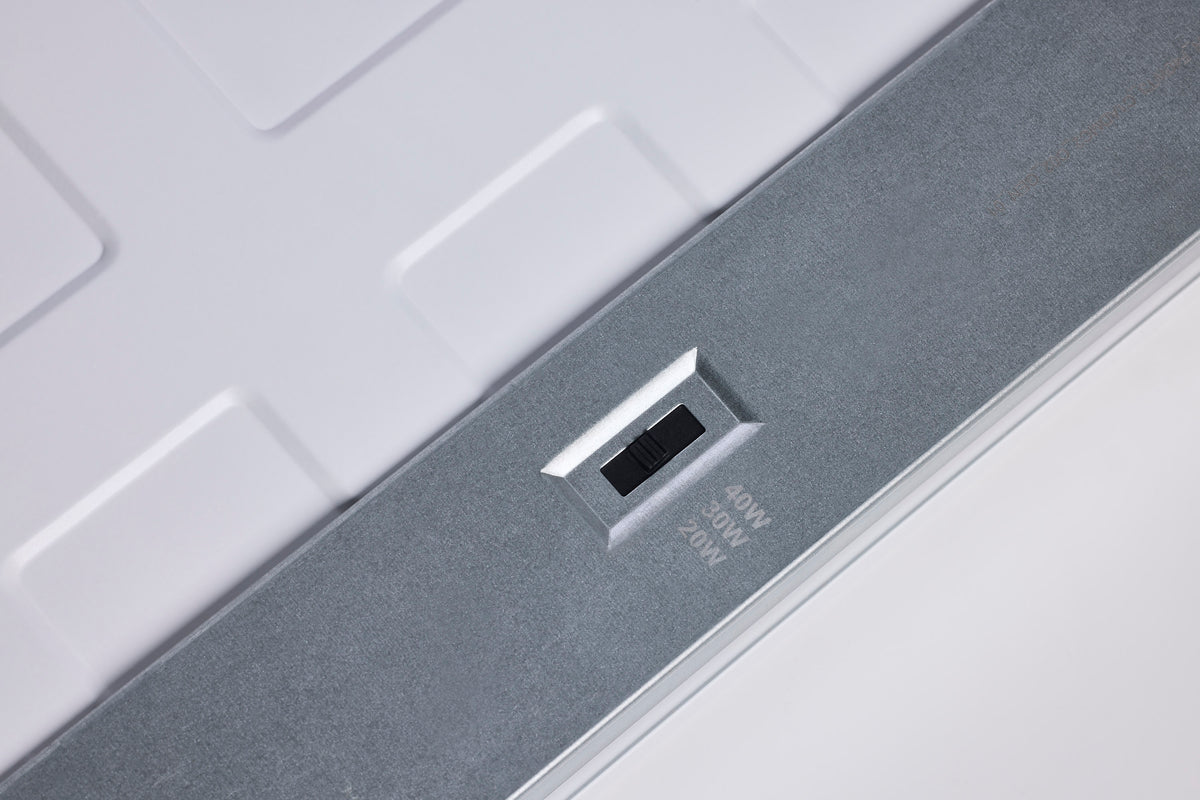

Wattage Selectable Yes
CRI 80+
Volts 120V-347V
Amps 0.080-0.420A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type 0-10V Dimming
Beam Angle (degree) 120
Lamp Base Integrated
ANSI Base Integrated
Lamp Type Integrated LED
Product Technology LED
Incandescent Equivalent 250W
Fixture Type Flat Panel
Style Utility
Finish WHITE
Finish Family White
Material Die-cast Aluminum
Lens Finish White
Lens Material Polystyrene (PS)
Bulb Included Integrated
Mounting Procedure Ceiling
Indoor Outdoor Indoor
Location Rating Damp
IP Rating IP20
Safety Listing cULus - Certified
Operating Temp +1.4F to +113F (-17C to +45C)
Power Factor 0.9
Total Harmonic Distortion <20%
Surge Protection Built-in surge protection - 2KV
Warranty 5-Years
Web Length 47.76
Web Width 23.74
Web Height 1.38
Title 20 Exempt
T24/JA8 Compliant No
California Ban Lawful for sale
UPC 045923411847
Case Quantity 2
Pack Type Box

65-1672 Instructions (PDF) · Satco product page

Product Information

Part Number 65-1672
Brand SATCO
Product Code 65-1672
UPC 045923411847

Specifications

Technology LED
Wattage 30
Input Voltage 120V-347V
Color Temperature 3500K/4000K/5000K
Lamp Base Integrated
Lumens 3750.0
Hours 50000
CRI 80
Dimmable true
Beam Spread 120
