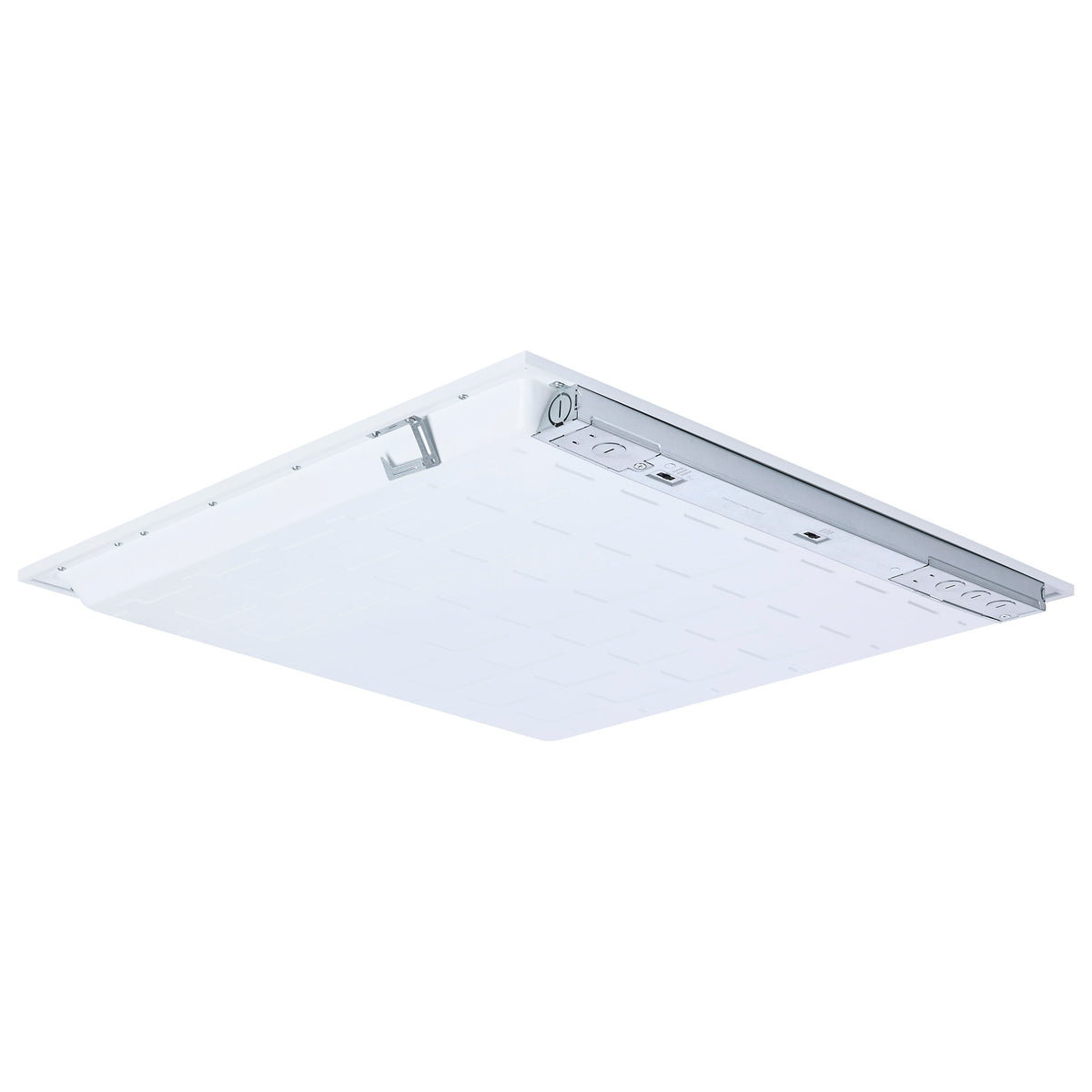

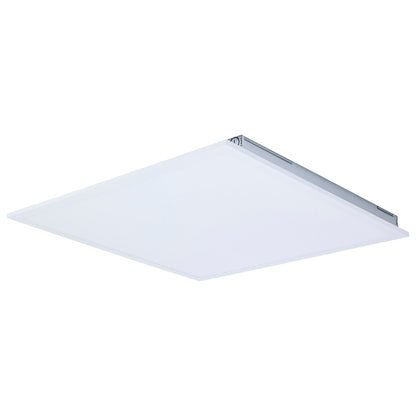

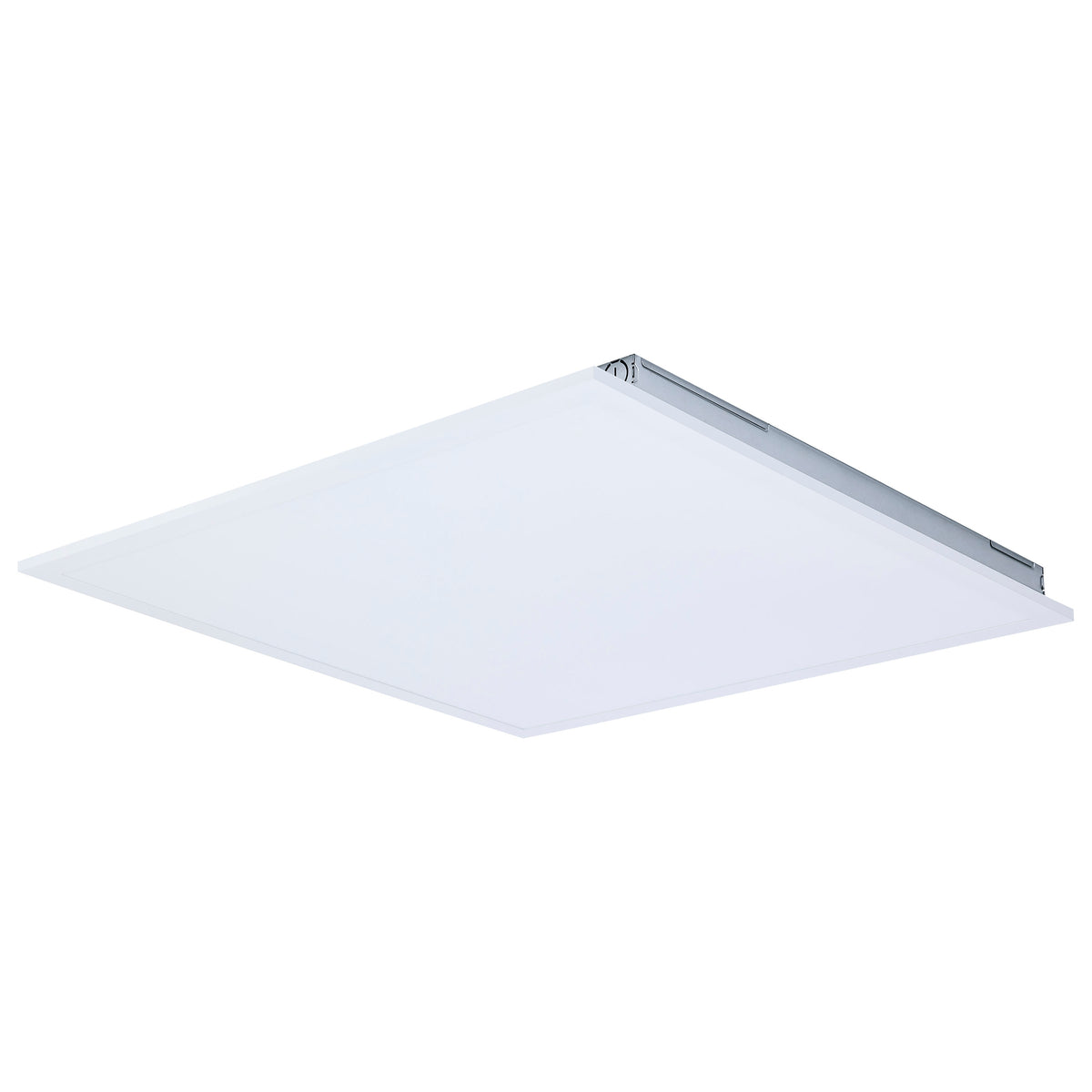

Nuvo 65-1671 20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel, 35K/4K/5K CCT Selectable, 120-347 Range Voltage

Nuvo 65-1671 20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel, 35K/4K/5K CCT Selectable, 120-347 Range Voltage

SATCO
$51.99 USD
$51.99 USD
Sale Sold out
Shipping calculated at checkout.

CB-0279002
20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel; 35K/4K/5K CCT Selectable; 120-347 Range Voltage; White Finish2X2 LED BACKLIT FLAT PANEL (Nuvo 65-1671) — Commercial Fixtures › Troffers &... Show More
View full details

20/30/40 Wattage Selectable LED 2ft x 2ft Backlit Panel; 35K/4K/5K CCT Selectable; 120-347 Range Voltage; White Finish

2X2 LED BACKLIT FLAT PANEL (Nuvo 65-1671) — Commercial Fixtures › Troffers & Panels › Panels.

Specifications

Watts 20W/30W/40W
Lumens 2500L/3750L/5000L
CCT (Kelvin Temp) 3500K/4000K/5000K
Color Temp Neutral White to Natural Light

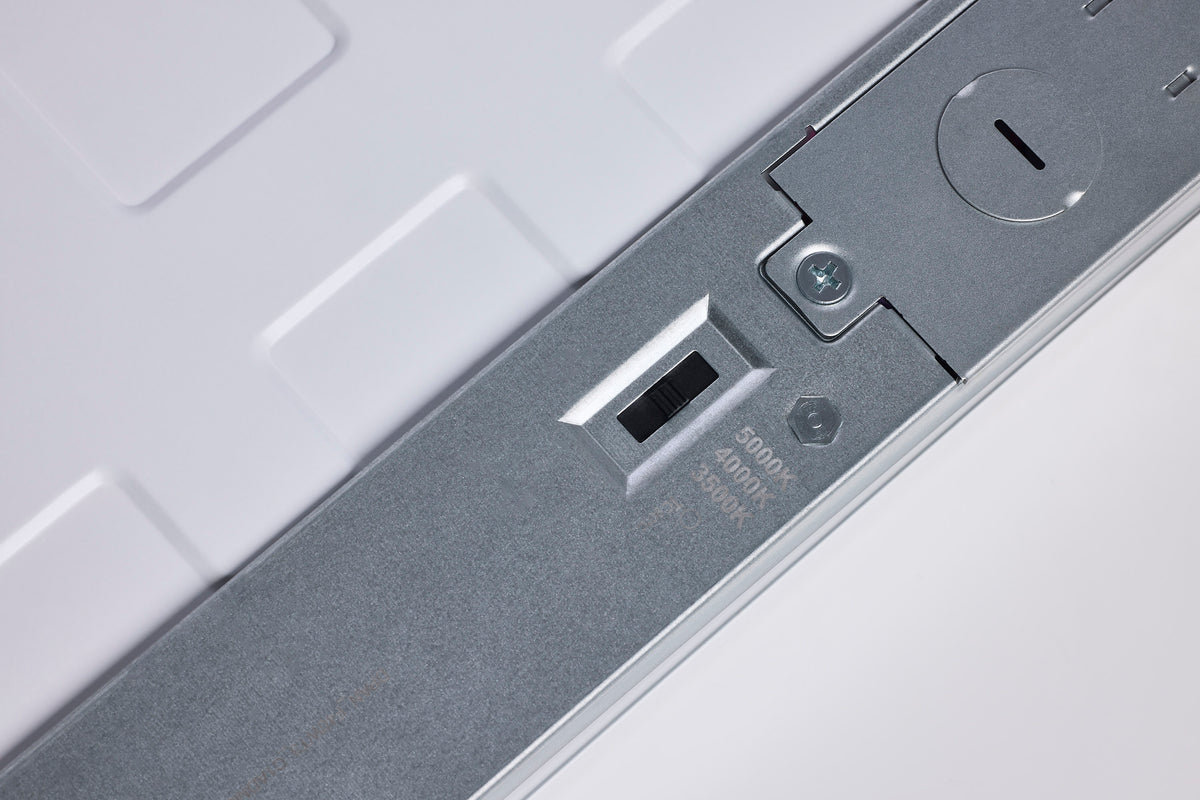

CCT Selectable Yes

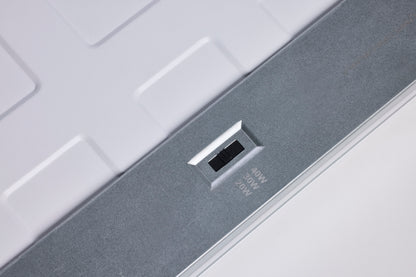

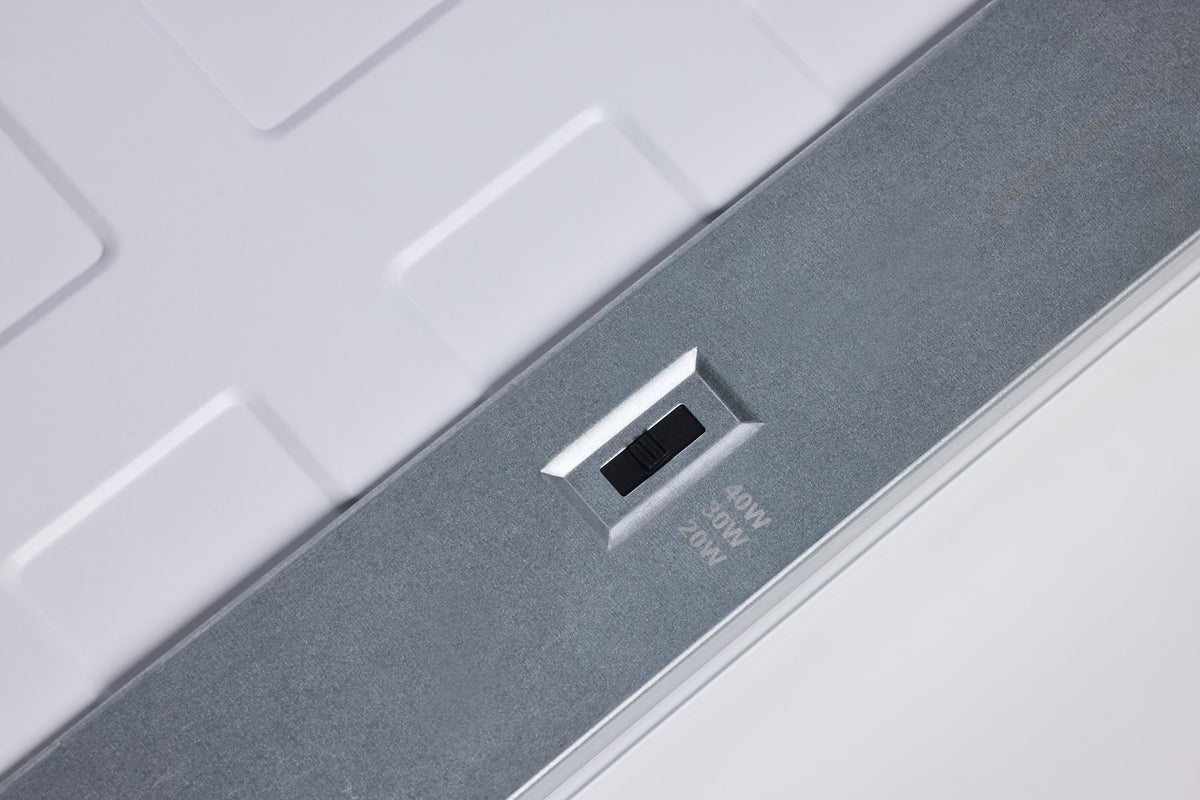

Wattage Selectable Yes
CRI 80+
Volts 120V-347V
Amps 0.050-0.340A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type 0-10V Dimming
Beam Angle (degree) 120
Lamp Base Integrated
ANSI Base Integrated
Lamp Type Integrated LED
Product Technology LED
Incandescent Equivalent 200W
Fixture Type Flat Panel
Style Utility
Finish WHITE
Finish Family White
Material Die-cast Aluminum
Lens Finish White
Lens Material Polystyrene (PS)
Bulb Included Integrated
Mounting Procedure Ceiling
Indoor Outdoor Indoor
Location Rating Damp
IP Rating IP20
Safety Listing cULus - Certified
Operating Temp +1.4F to +113F (-17C to +45C)
Power Factor 0.9
Total Harmonic Distortion <20%
Surge Protection Built-in surge protection - 2KV
Warranty 5-Years
Web Length 23.74
Web Width 23.74
Web Height 1.38
Title 20 Exempt
T24/JA8 Compliant No
California Ban Lawful for sale
UPC 045923411830
Case Quantity 2
Pack Type Box

65-1671 Instructions (PDF) · Satco product page

Product Information

Part Number 65-1671
Brand SATCO
Product Code 65-1671
UPC 045923411830

Specifications

Technology LED
Wattage 20
Input Voltage 120V-347V
Color Temperature 3500K/4000K/5000K
Lamp Base Integrated
Lumens 2500.0
Hours 50000
CRI 80
Dimmable true
Beam Spread 120
