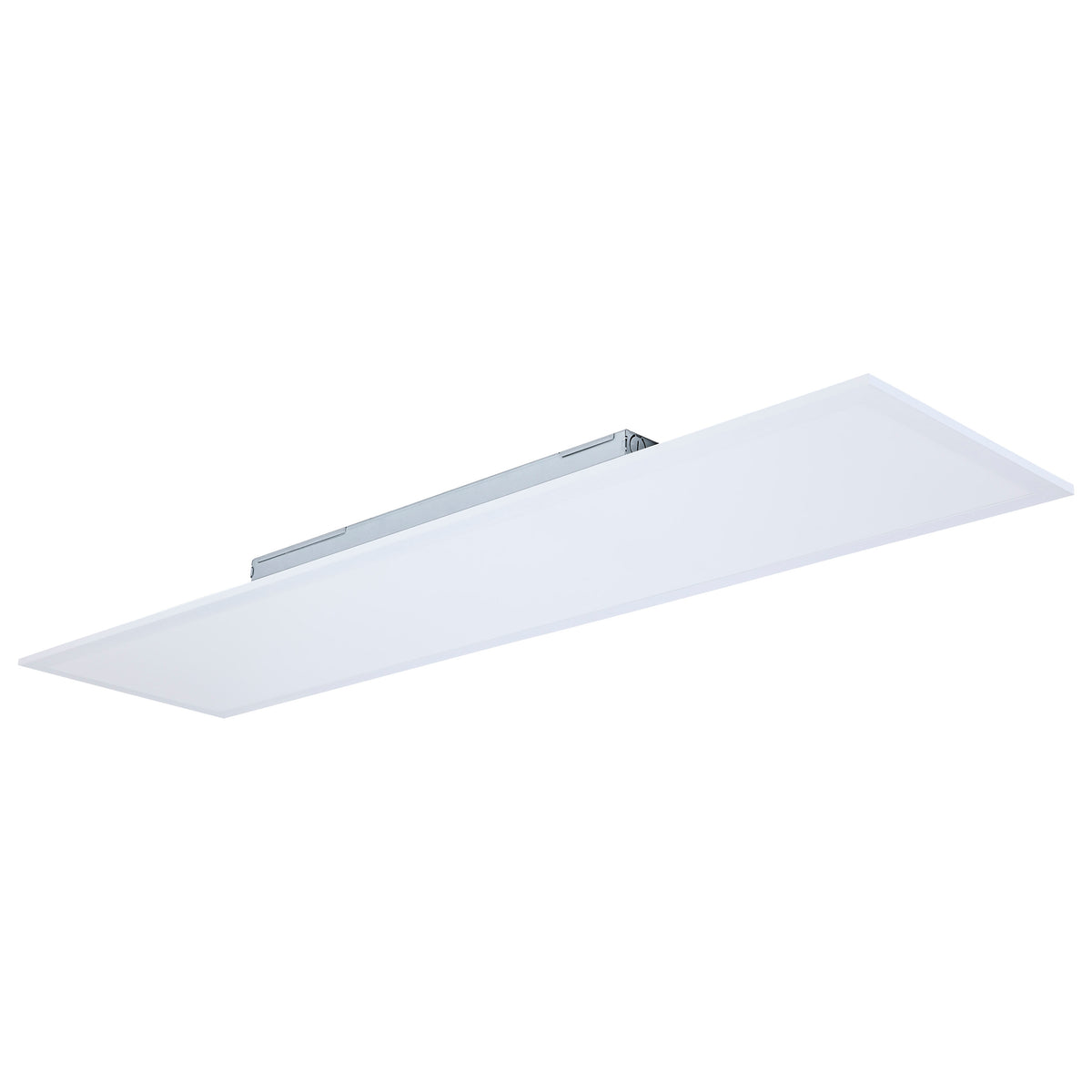

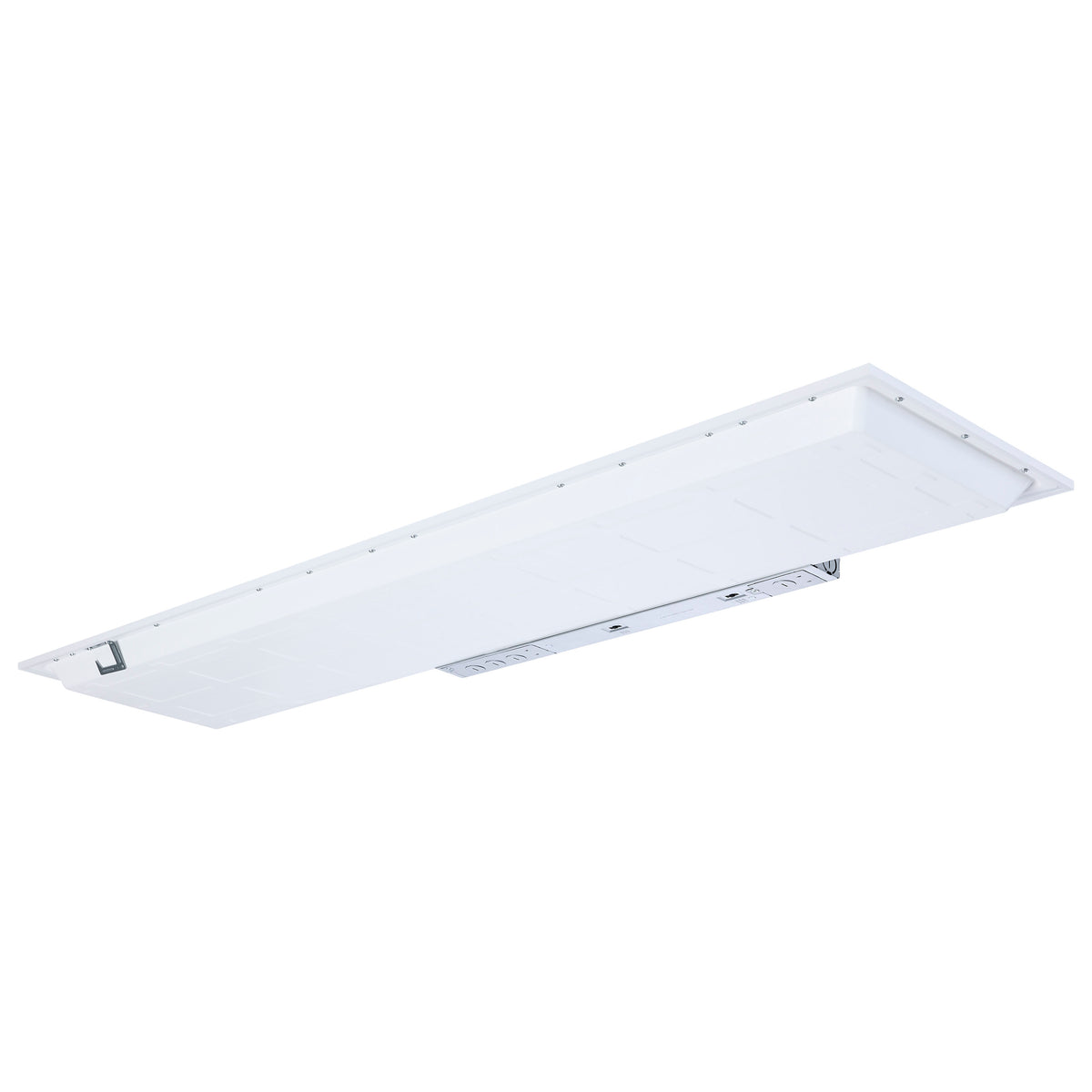

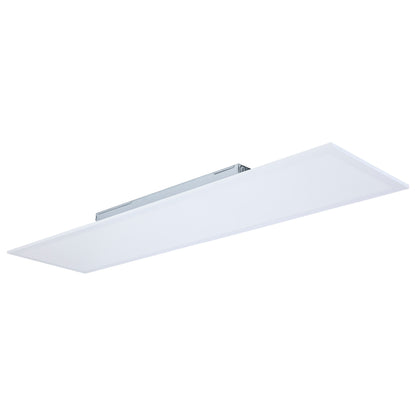

Nuvo 65-1663 20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel, 35K/4K/5K CCT Selectable, 120-277 Range Voltage

Nuvo 65-1663 20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel, 35K/4K/5K CCT Selectable, 120-277 Range Voltage

SATCO
$54.99 USD
$54.99 USD
Sale Sold out
Shipping calculated at checkout.

CB-0278998
20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel; 35K/4K/5K CCT Selectable; 120-277 Range Voltage; White Finish1X4 LED BACKLIT FLAT PANEL (Nuvo 65-1663) — Commercial Fixtures › Troffers &... Show More
View full details

20/30/40 Wattage Selectable LED 1ft x 4ft Backlit Panel; 35K/4K/5K CCT Selectable; 120-277 Range Voltage; White Finish

1X4 LED BACKLIT FLAT PANEL (Nuvo 65-1663) — Commercial Fixtures › Troffers & Panels › Panels.

Specifications

Watts 20W/30W/40W
Lumens 2500L/3750L/5000L
CCT (Kelvin Temp) 3500K/4000K/5000K
Color Temp Neutral White to Natural Light

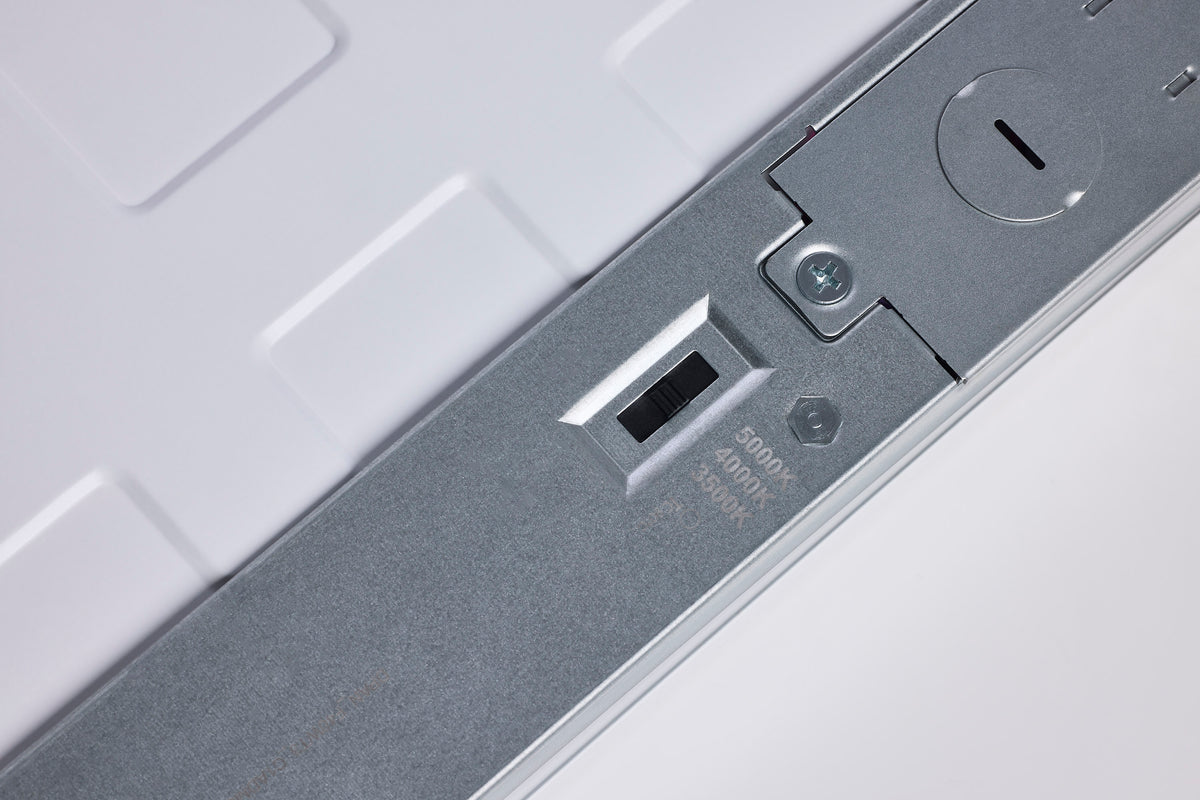

CCT Selectable Yes

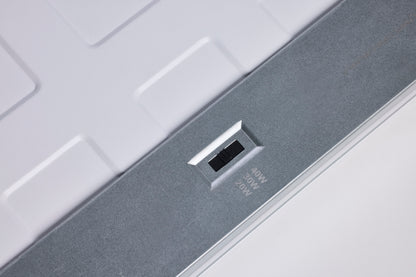

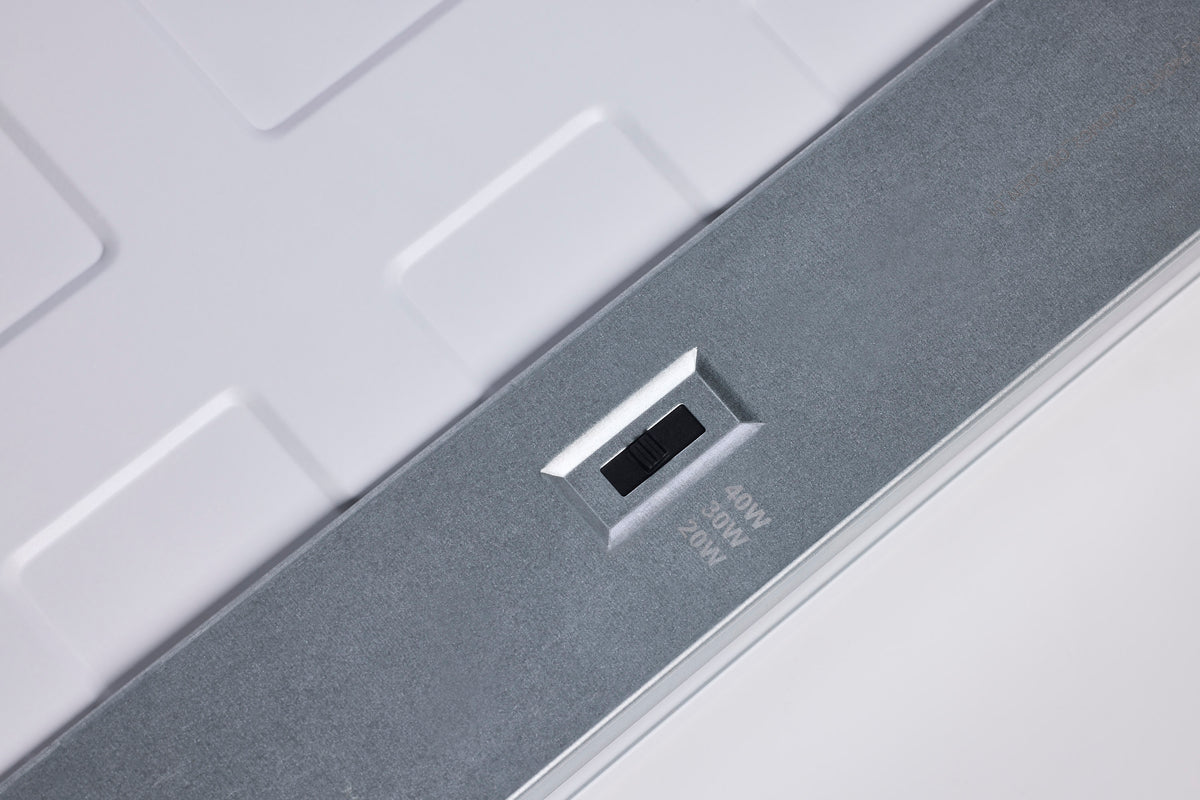

Wattage Selectable Yes
CRI 80+
Volts 120V-277V
Amps 0.070-0.340A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type 0-10V Dimming
Beam Angle (degree) 120
Lamp Base Integrated
ANSI Base Integrated
Lamp Type Integrated LED
Product Technology LED
Incandescent Equivalent 200W
Fixture Type Flat Panel
Style Utility
Finish WHITE
Finish Family White
Material Die-cast Aluminum
Lens Finish White
Lens Material Polystyrene (PS)
Bulb Included Integrated
Mounting Procedure Ceiling
Indoor Outdoor Indoor
Location Rating Damp
IP Rating IP20
Safety Listing cULus - Certified
Operating Temp +1.4F to +113F (-17C to +45C)
Power Factor 0.9
Total Harmonic Distortion <20%
Surge Protection Built-in surge protection - 2KV
Warranty 5-Years
Web Length 47.76
Web Width 11.93
Web Height 1.38
Title 20 Exempt
T24/JA8 Compliant No
California Ban Lawful for sale
UPC 045923411793
Case Quantity 2
Pack Type Box

65-1663 Instructions (PDF) · Satco product page

Product Information

Part Number 65-1663
Brand SATCO
Product Code 65-1663
UPC 045923411793

Specifications

Technology LED
Wattage 20
Input Voltage 120V-277V
Color Temperature 3500K/4000K/5000K
Lamp Base Integrated
Lumens 2500.0
Hours 50000
CRI 80
Dimmable true
Beam Spread 120
