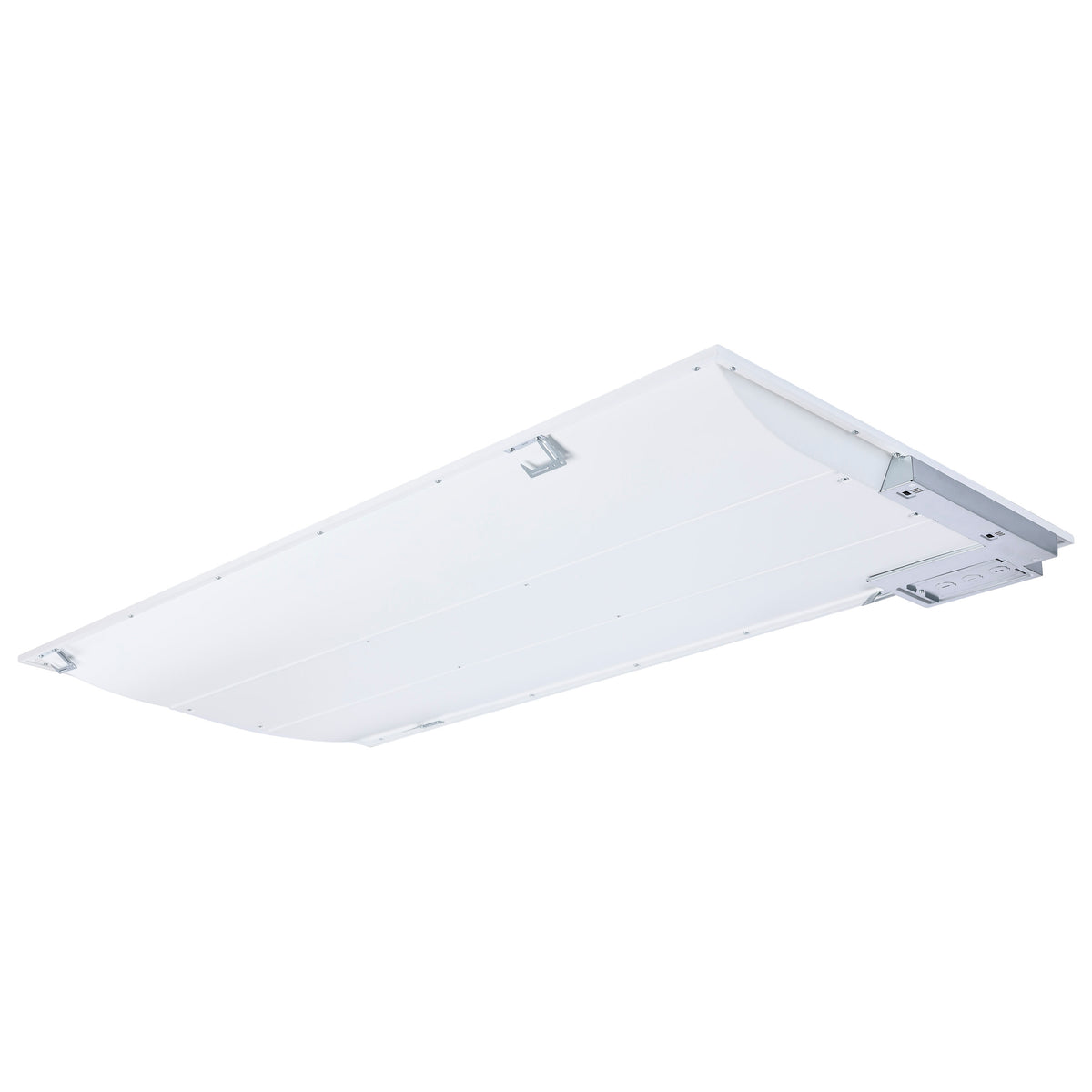

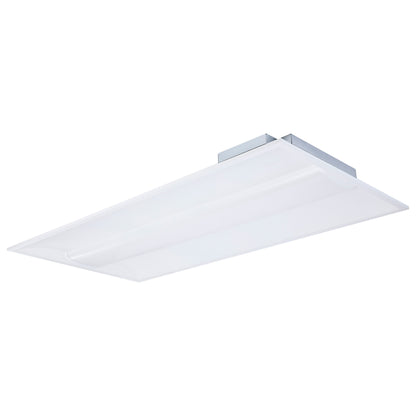

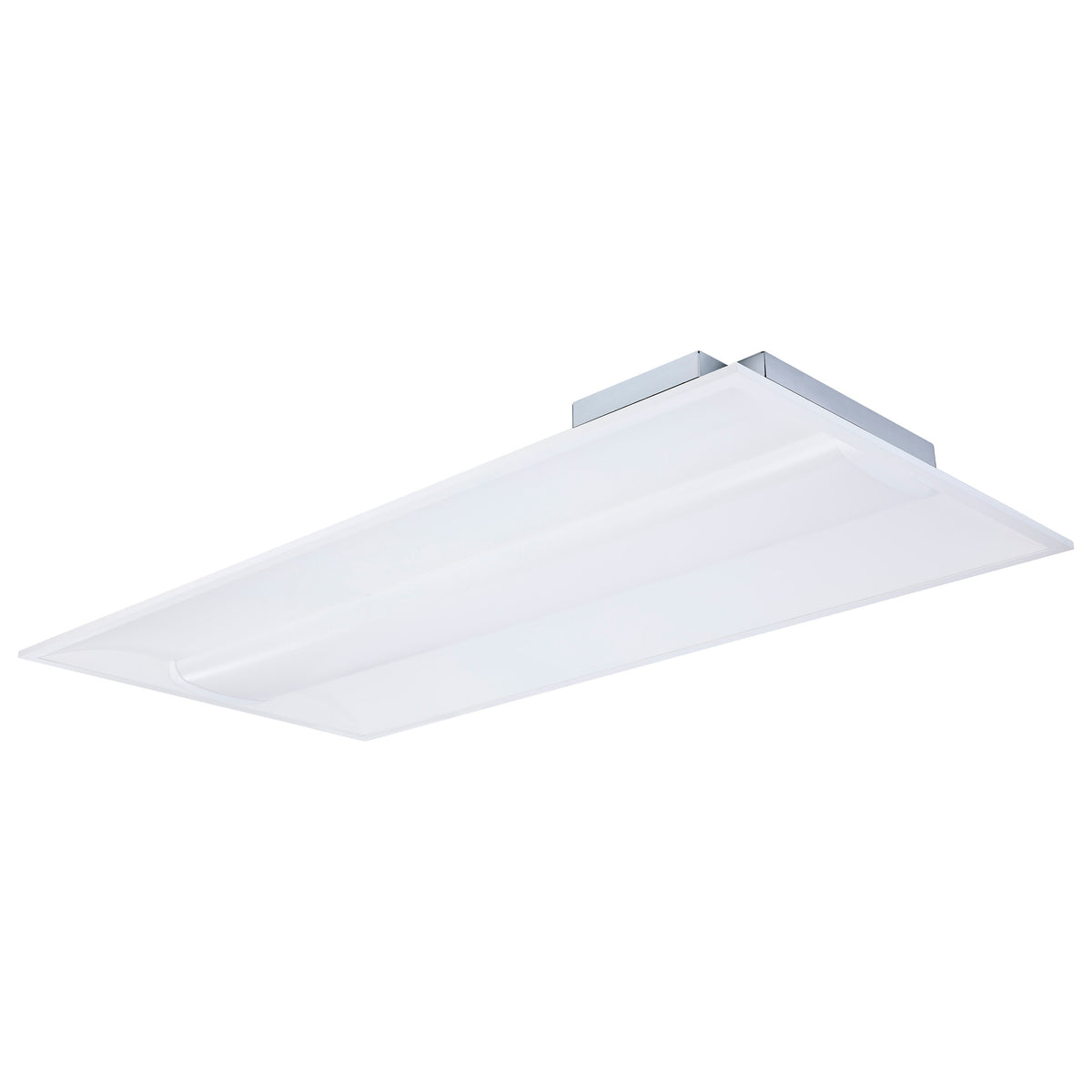

30/40/50 Watt; 35K/4K/5K CCT Selectable; 2X4 LED Single Basket Troffer; 120-277 Volt; White Finish
2X4 SINGLE BASKET TROFFER (Nuvo 65-1601) — Commercial Fixtures › Troffers & Panels › Troffers.
Specifications
| Watts | 30W/40W/50W |
| Lumens | 3750L/4500L/6250L |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
| Color Temp | Neutral White to Natural Light |

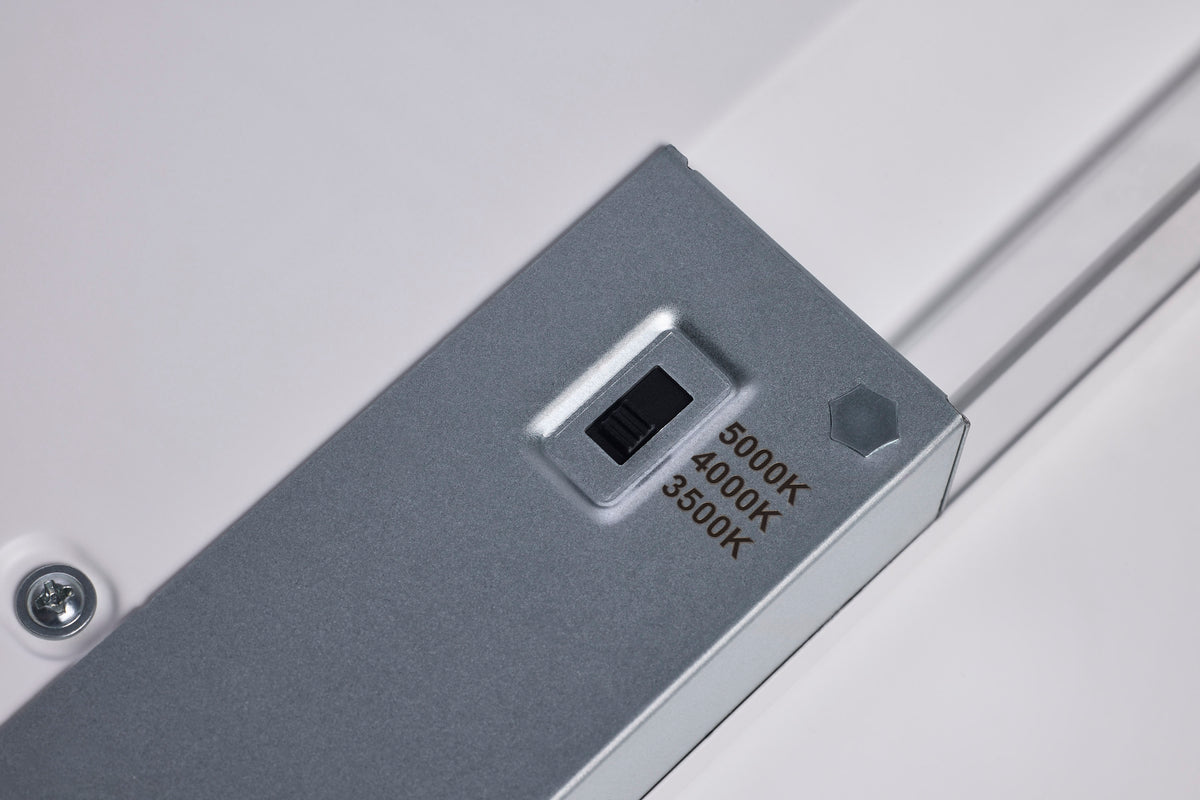

| CCT Selectable | Yes |

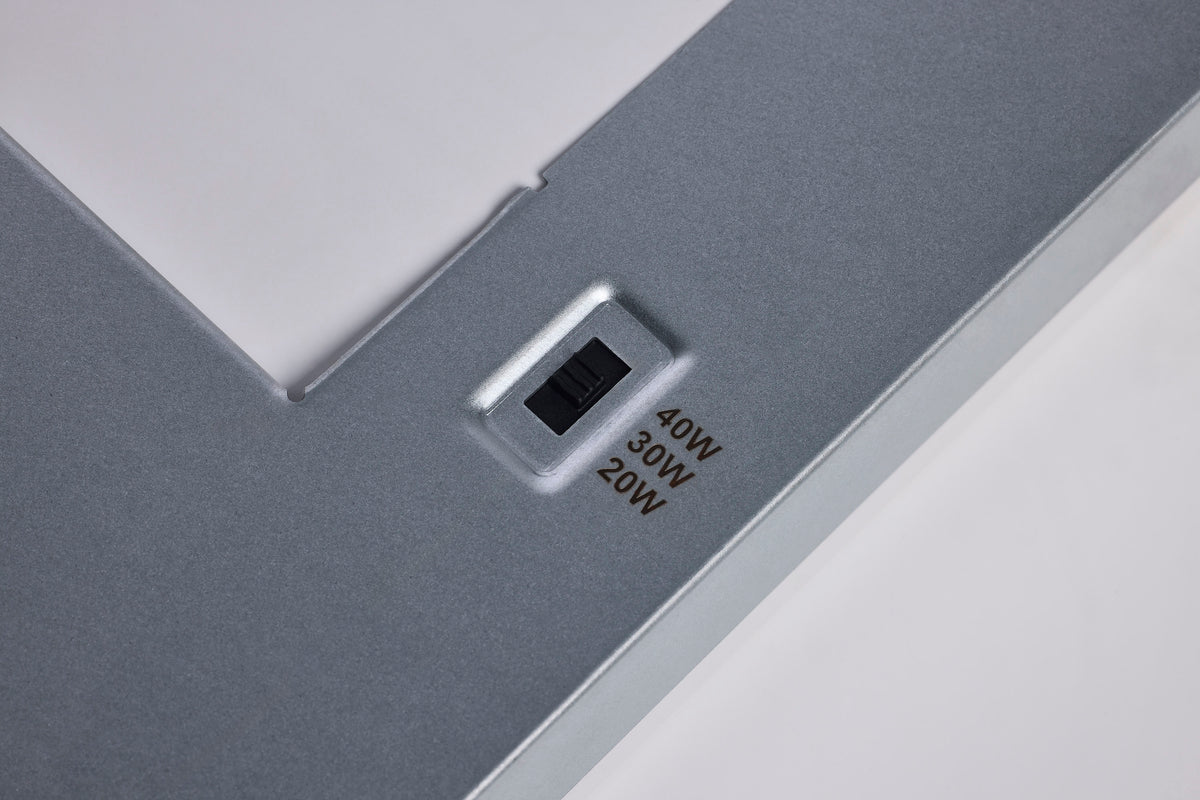

| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.100-0.420A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 120 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 250W |
| Fixture Type | Troffer |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Steel |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Certified |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | 0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 2KV |
| Warranty | 5-Years |
| Web Length | 47.76 |
| Web Width | 23.74 |
| Web Height | 1.42 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923516016 |
| Case Quantity | 2 |
| Pack Type | Box |
Product Information
Part Number
65-1601
Brand
SATCO
Product Code
65-1601
UPC
045923516016
Specifications
Technology
LED
Wattage
30
Input Voltage
120V-277V
Color Temperature
3500K/4000K/5000K
Lamp Base
Integrated
Lumens
3750.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
120
