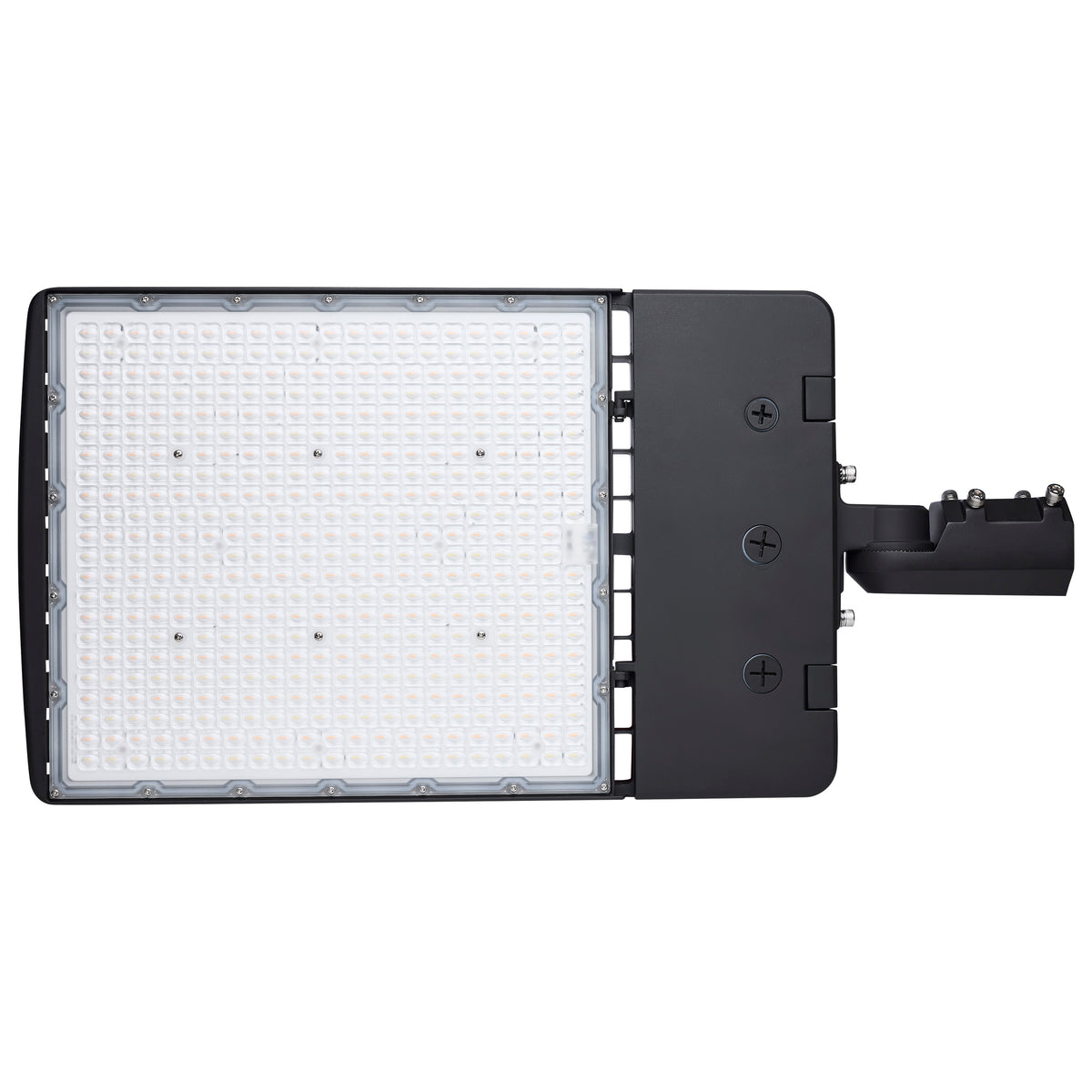

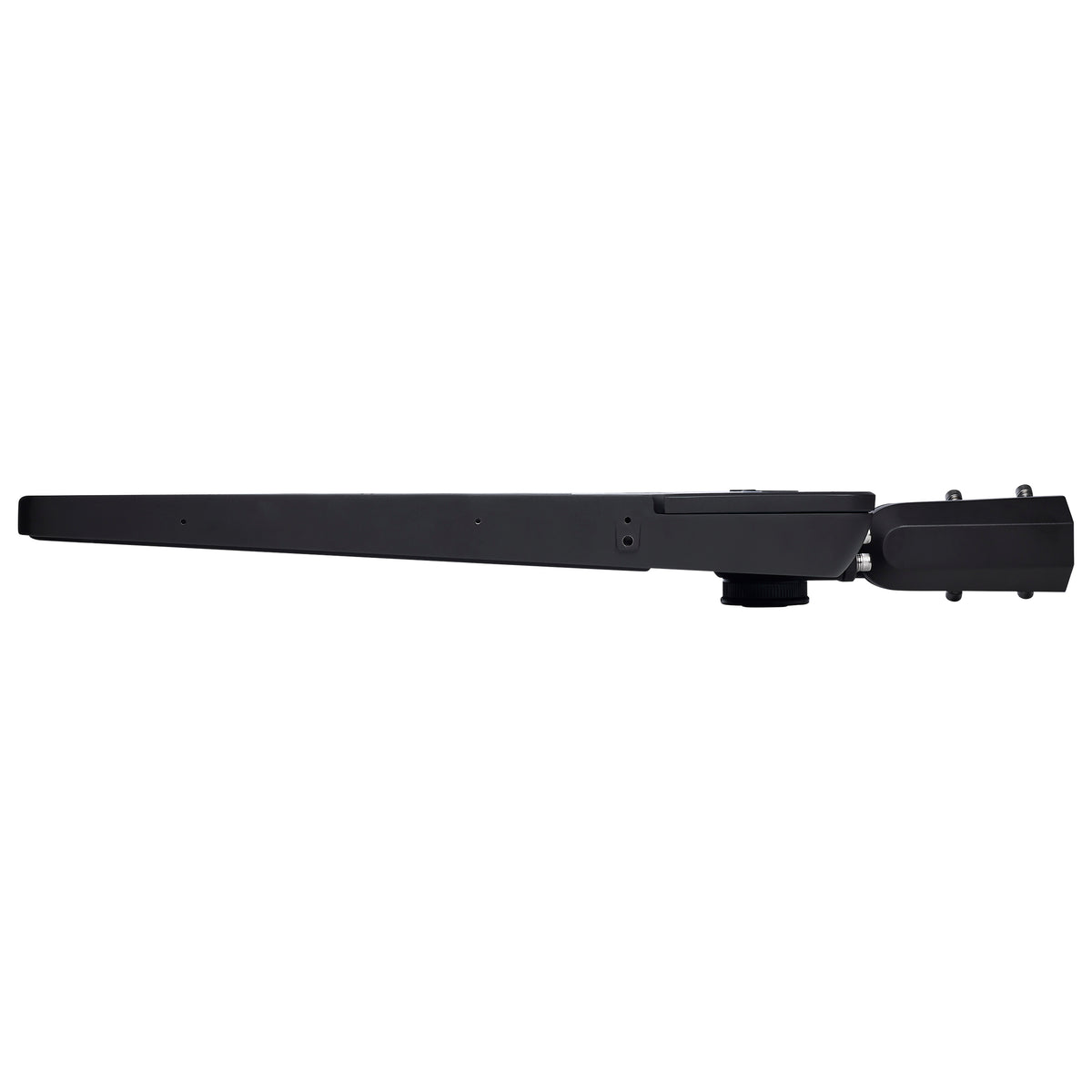

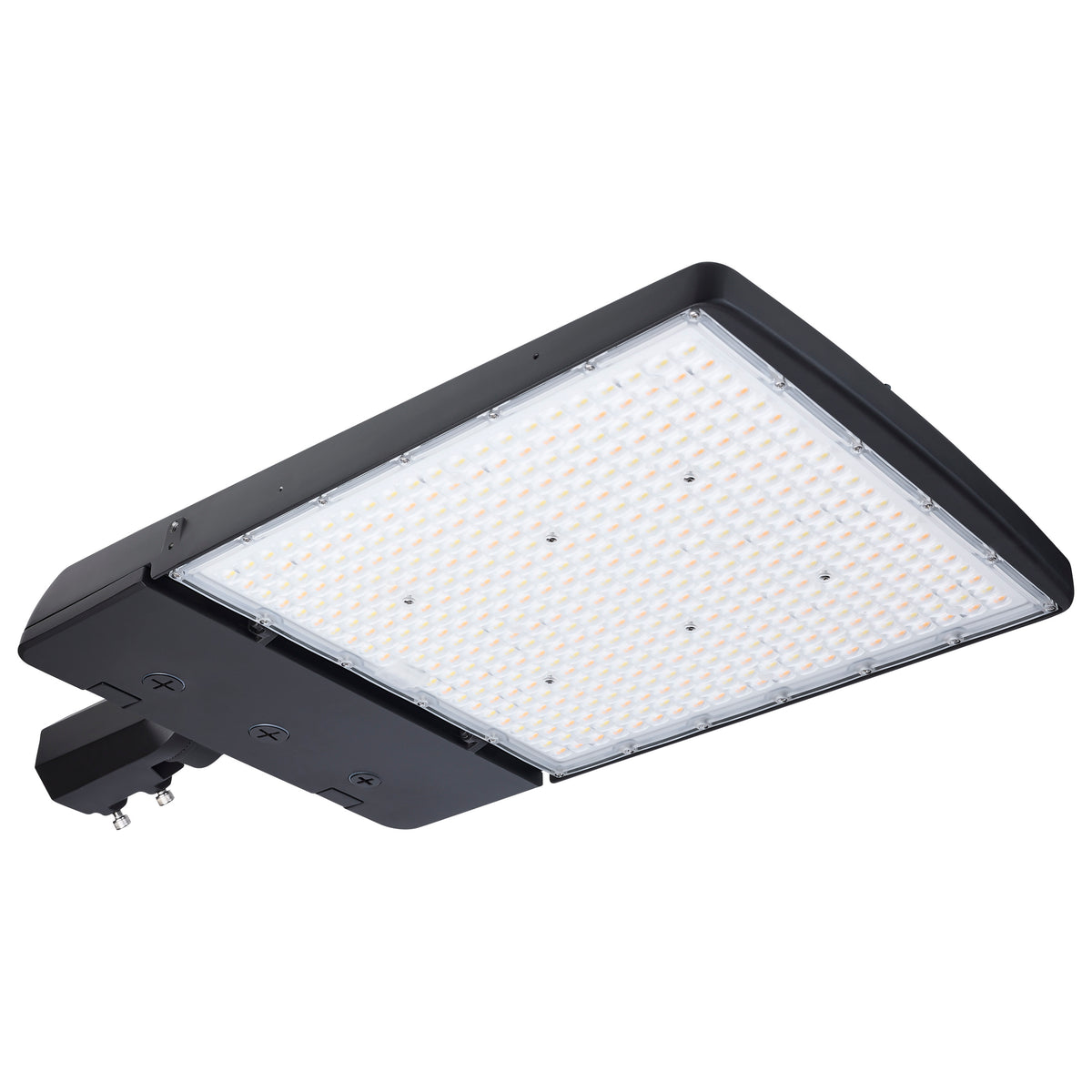

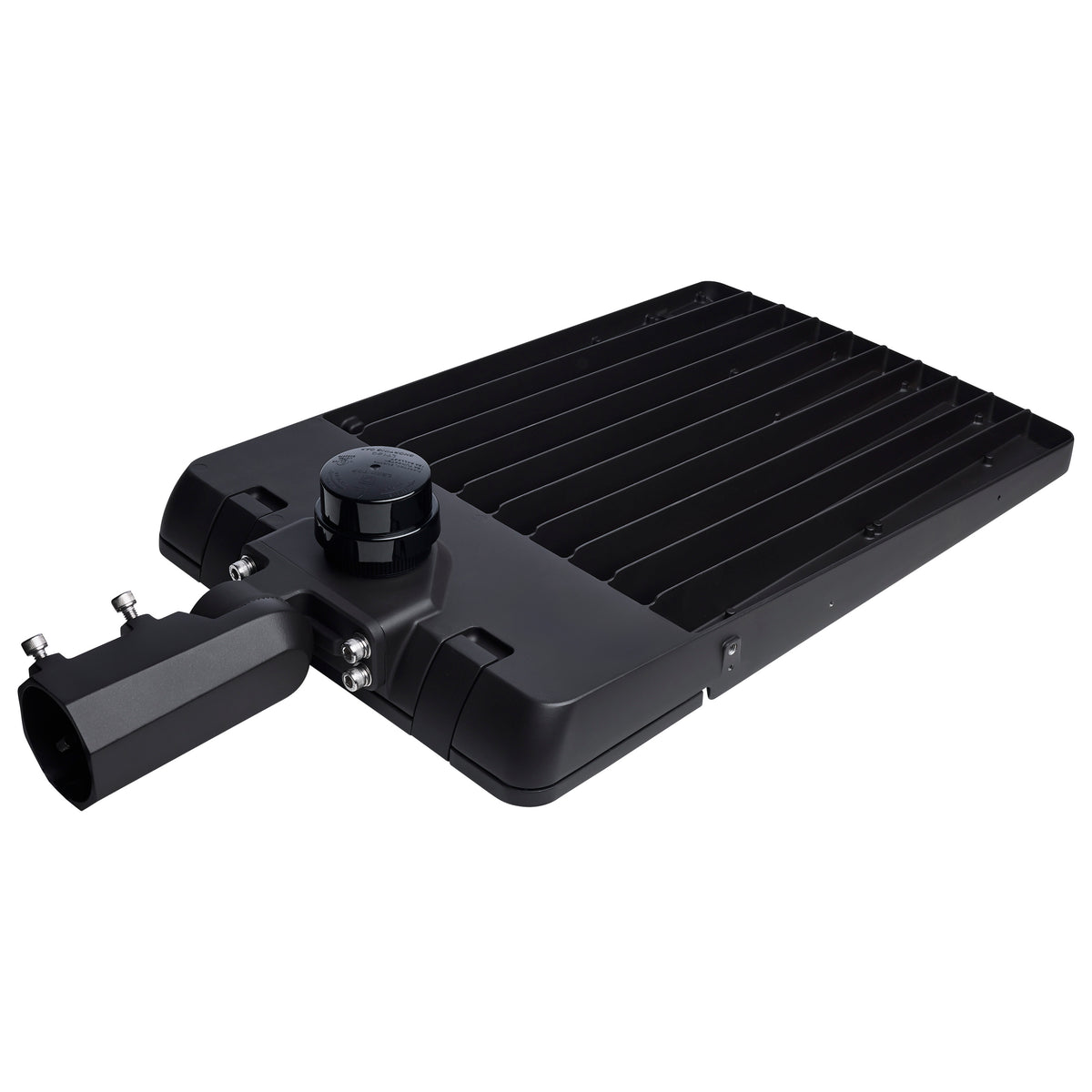

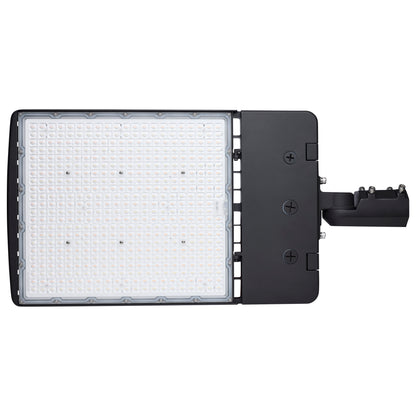

Nuvo 65-1528 LED Area Light, 300/240/200 Wattage Selectable, 3K/4K/5K CCT Selectable
Nuvo 65-1528 LED Area Light, 300/240/200 Wattage Selectable, 3K/4K/5K CCT Selectable
SATCO
Regular price
$321.99 USD
Regular price
Sale price
$321.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0278965
Couldn't load pickup availability
LED Area Light; 300/240/200 Wattage Selectable; 3K/4K/5K CCT Selectable; Beam Angle Selectable; Bronze; 277-480 VoltLED AREA LIGHT BRNZ 277V-480V (Nuvo 65-1528) — Commercial Fixtures › Site & A...
Show More
LED Area Light; 300/240/200 Wattage Selectable; 3K/4K/5K CCT Selectable; Beam Angle Selectable; Bronze; 277-480 Volt
LED AREA LIGHT BRNZ 277V-480V (Nuvo 65-1528) — Commercial Fixtures › Site & Area › Site & Area.
Specifications
| Watts | 300W/240W/200W |
| Lumens | 31289L-47198L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 277V-480V |
| Amps | 1.080-0.630/0.870-0.500/0.720-0.420A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 155x70/155x120/155x145 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 1500W-2500W |
| Fixture Type | Area Light |
| Style | Utility |
| Finish | BRONZE |
| Finish Family | Bronze |
| Material | Die-cast Aluminum |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Indoor Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Listed |
| Operating Temp | -40F to +122F (-40C to +50C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 6KV |
| Warranty | 5-Years |
| Web Length | 29.2 |
| Web Width | 14.0 |
| Web Height | 3.2 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923412578 |
| Case Quantity | 1 |
| Pack Type | Brown Box |
65-1528 EPA Rating Report (PDF) · 65-1528 Instructions (PDF) · 65-1528 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-1528
Brand
SATCO
Product Code
65-1528
UPC
045923412578
Specifications
Technology
LED
Wattage
300
Input Voltage
277V-480V
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
31289.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
155
