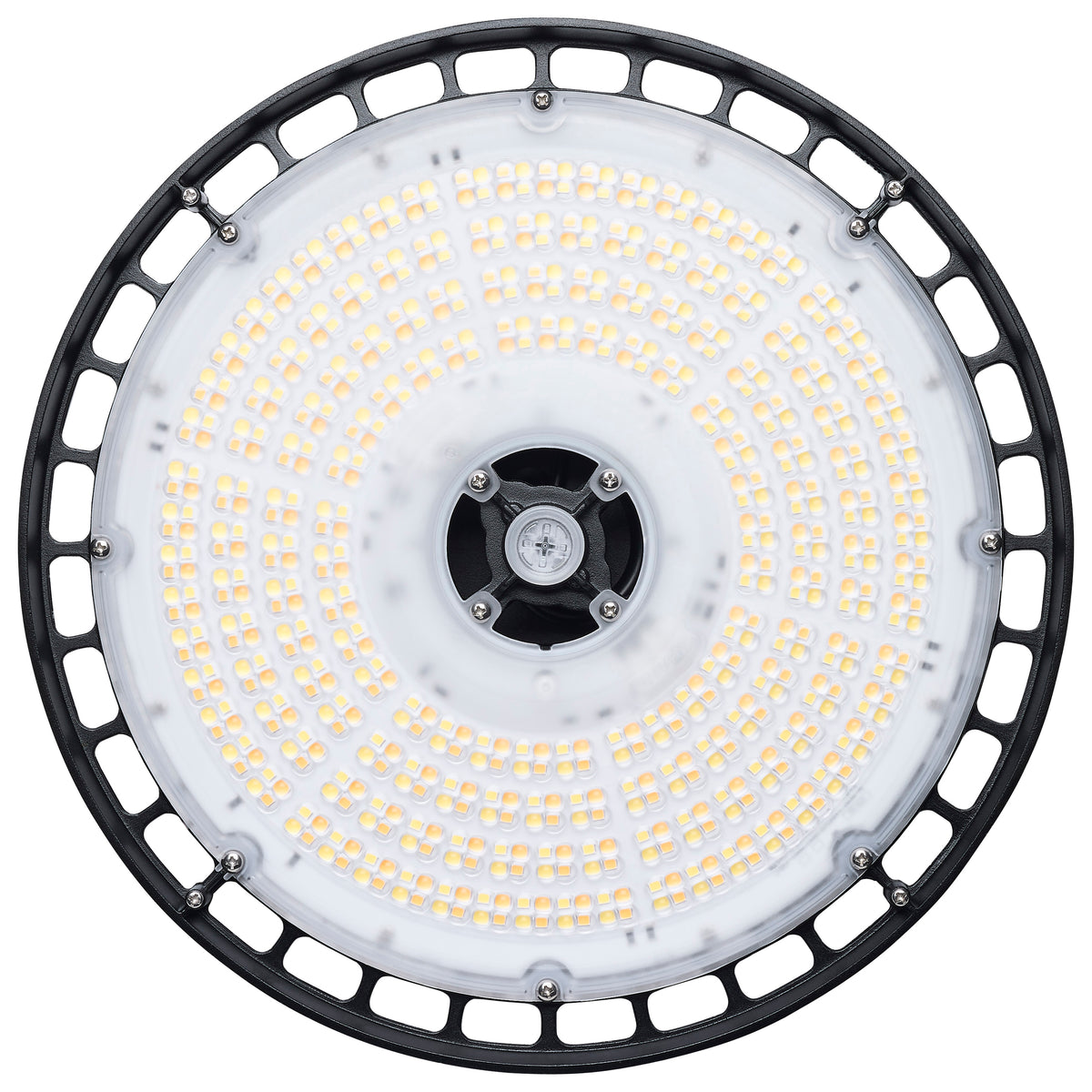

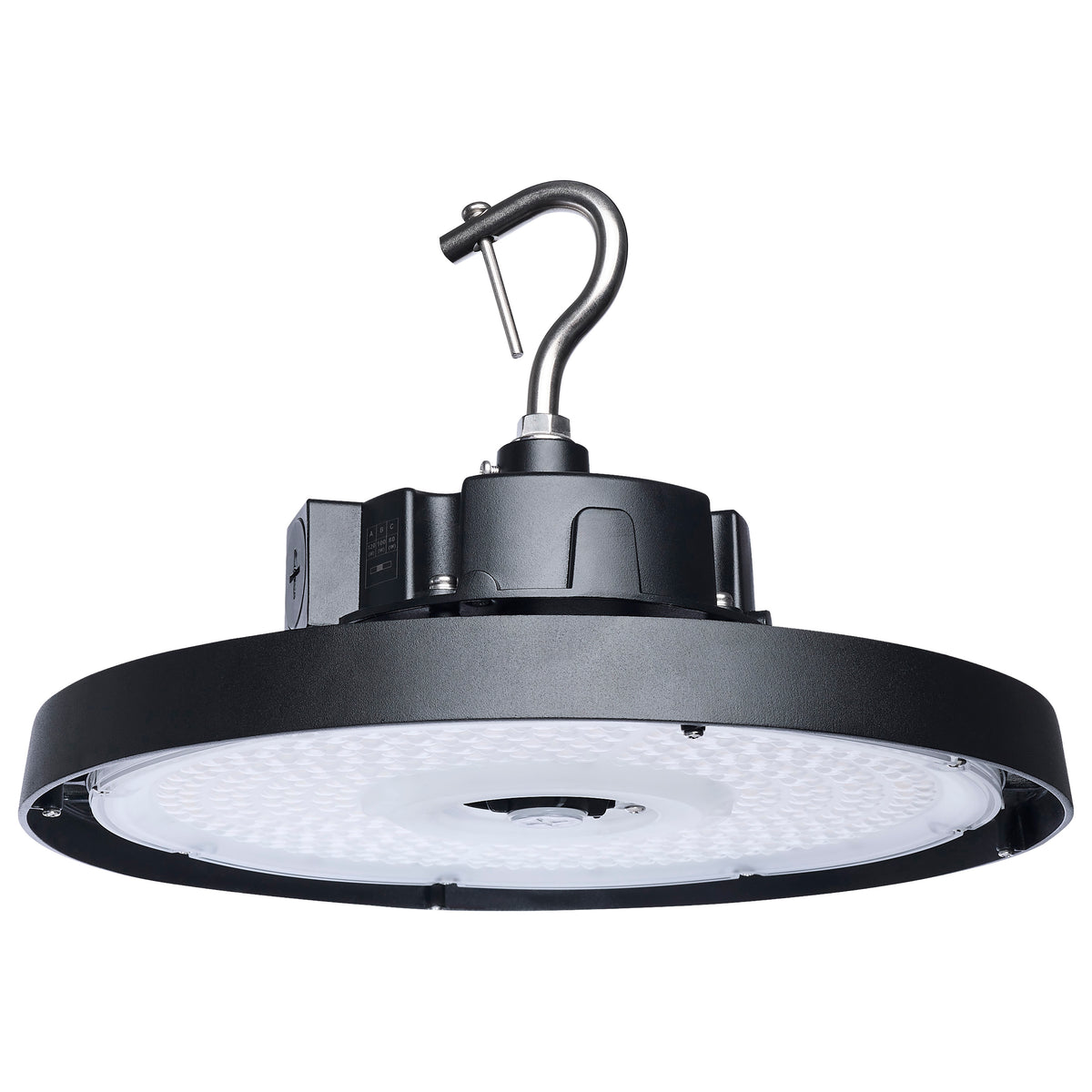

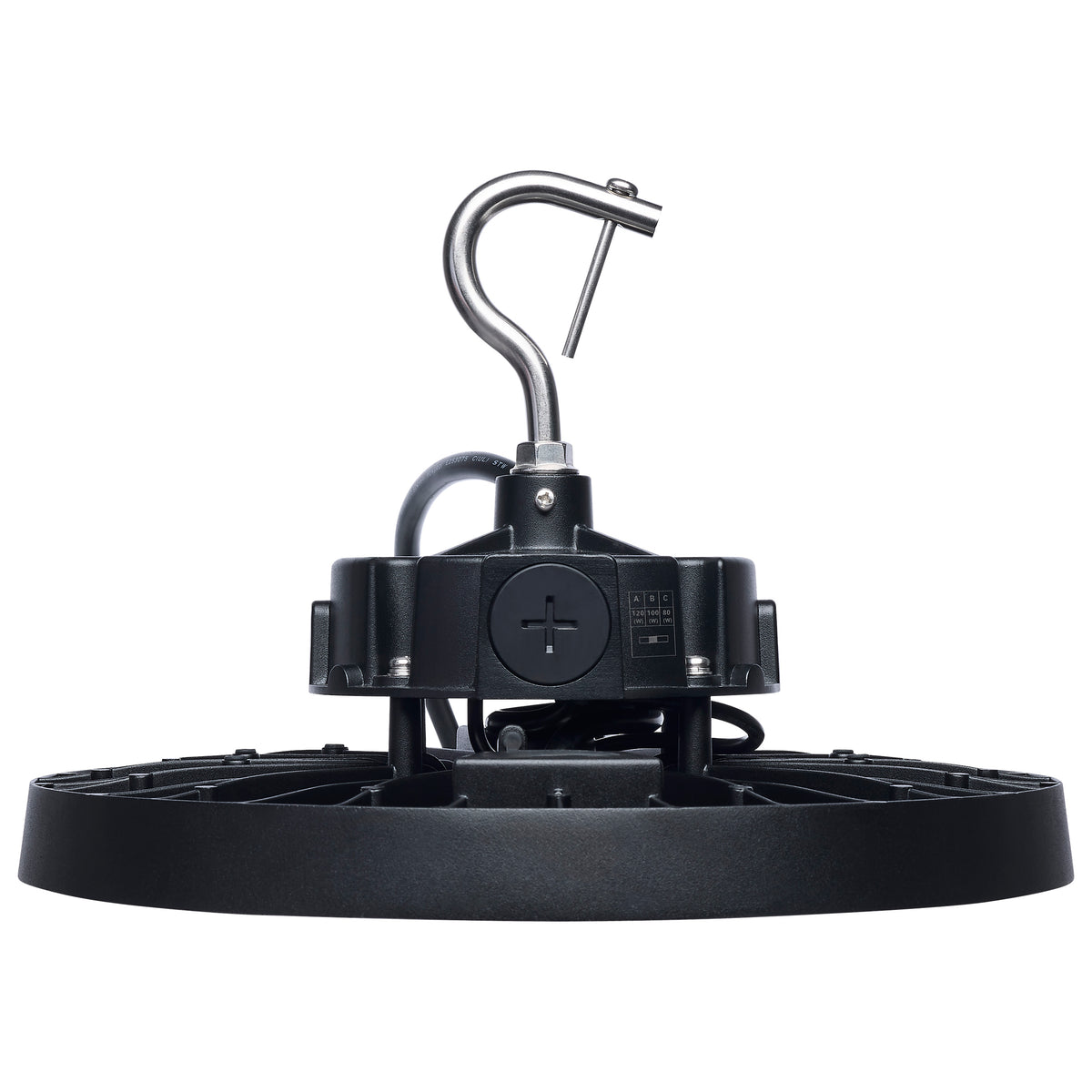

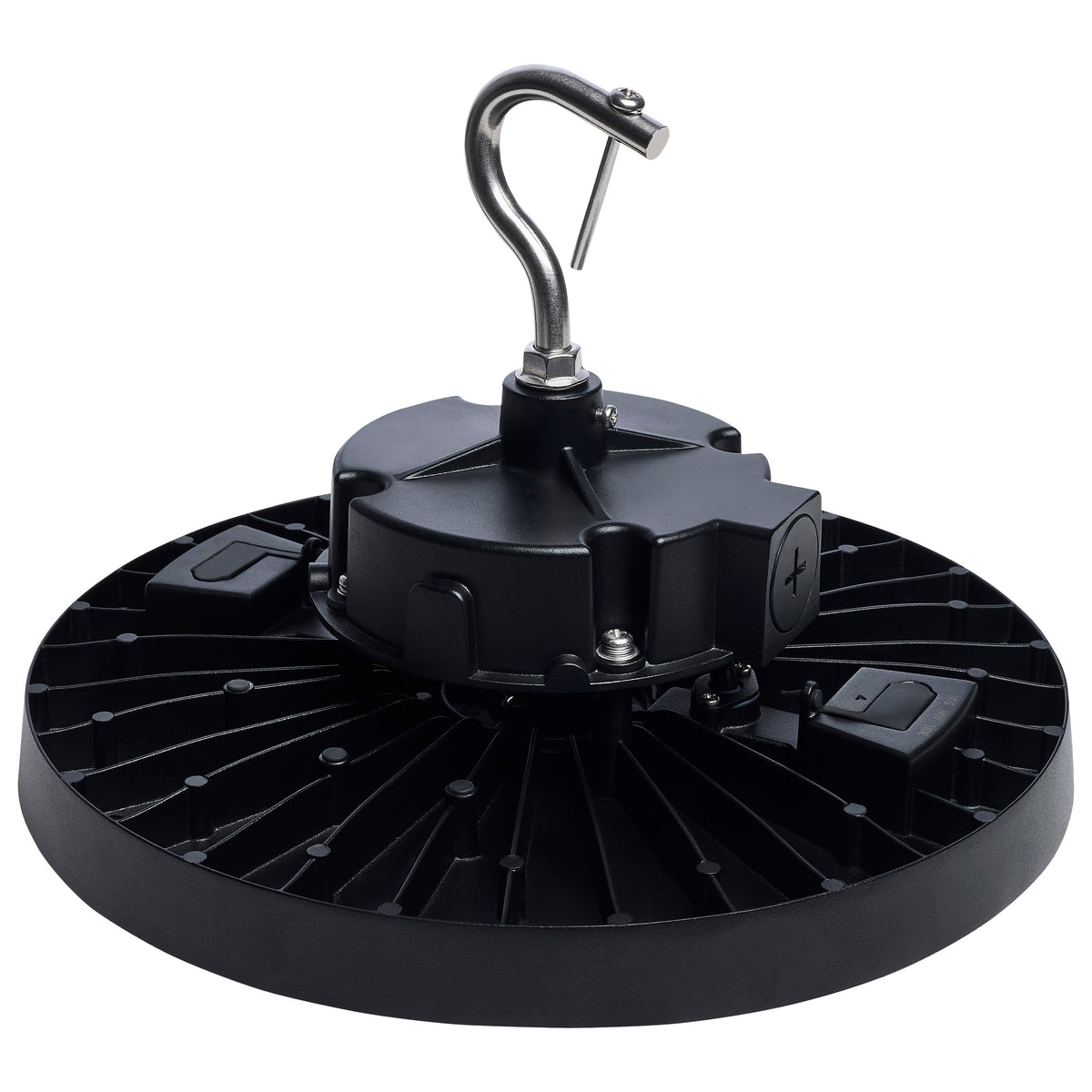

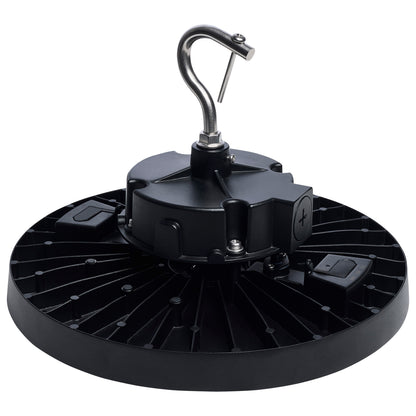

120/100/80 Wattage Selectable LED UFO High Bay; 3K/4K/5K CCT Selectable; 60/80/100 Beam Angle Selectable; Black Finish; 120-347 Volt
LED SELECTABLE HIGH BAY BLACK (Nuvo 65-1520) — Commercial Fixtures › High Bays › High Bays.
Specifications
| Watts | 120W/100W/80W |
| Lumens | 12501L-19837L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-347V |
| Amps | 1.000-0.350/0.830-0.290/0.670-0.230A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 60/80/100 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 500W-800W |
| Fixture Type | UFO Hi-Bay |
| Style | Utility |
| Finish | BLACK |
| Finish Family | Black |
| Material | Die-cast Aluminum |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling |
| Indoor Outdoor | Indoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Listed |
| Operating Temp | -40F to +122F (-40C to +50C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 6KV |
| Warranty | 5-Years |
| Web Width | 11.81 |
| Web Height | 7.84 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923412509 |
| Case Quantity | 1 |
| Pack Type | Box |
65-1520 Instructions (PDF) · 65-1520 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-1520
Brand
SATCO
Product Code
65-1520
UPC
045923412509
Specifications
Technology
LED
Wattage
120
Input Voltage
120V-347V
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
12501.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
60
