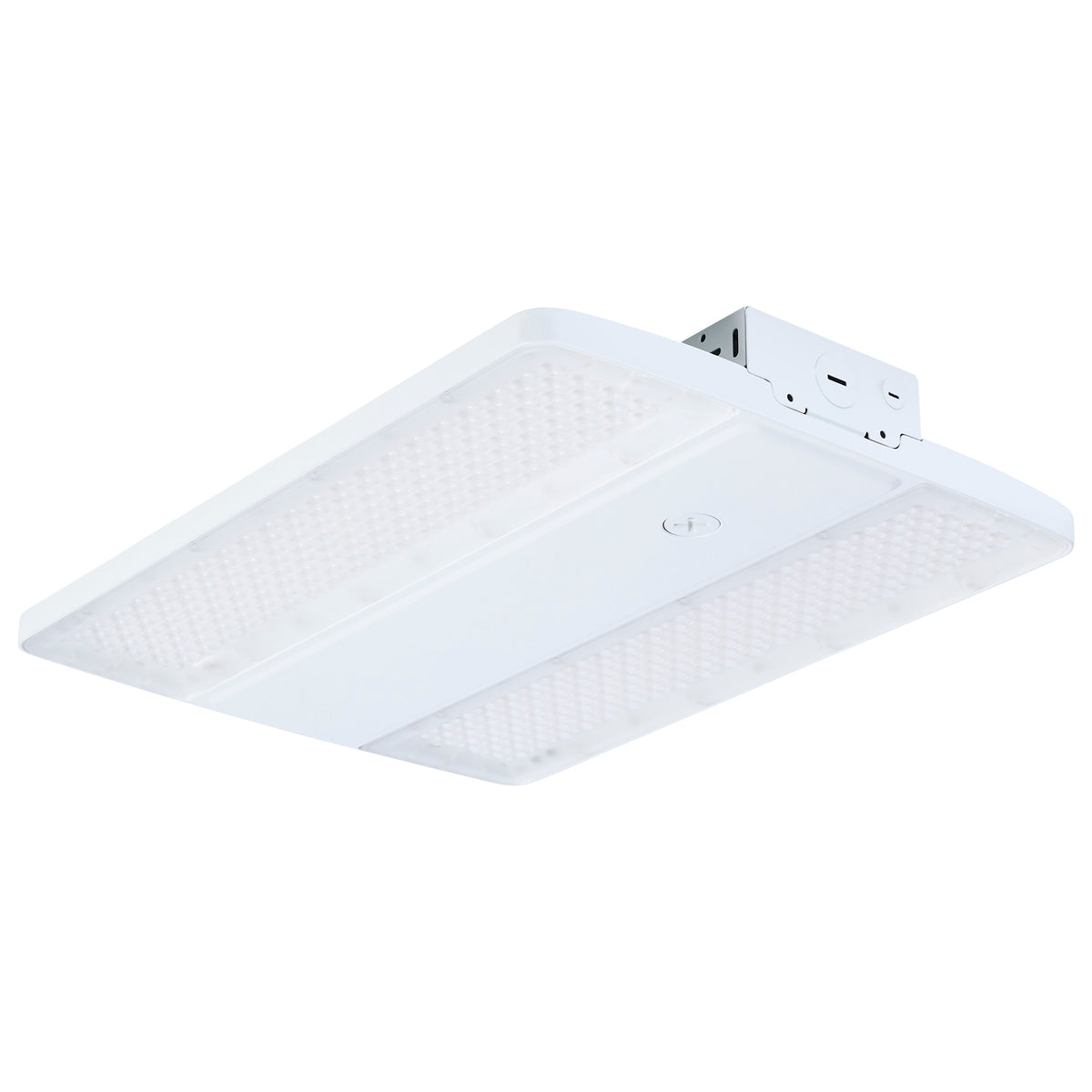

Nuvo 65-1510 LED Linear High Bay, 105/90/70 Wattage Selectable, 3K/4K/5K CCT Selectable
Nuvo 65-1510 LED Linear High Bay, 105/90/70 Wattage Selectable, 3K/4K/5K CCT Selectable
SATCO
Regular price
$119.99 USD
Regular price
Sale price
$119.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0278951
Couldn't load pickup availability
LED Linear High Bay; 105/90/70 Wattage Selectable; 3K/4K/5K CCT Selectable; Beam Angle Selectable; White Finish; 120-347 VoltLED SELECTABLE LINEAR HIGH BAY (Nuvo 65-1510) — Commercial Fixtures › Hi...
Show More
LED Linear High Bay; 105/90/70 Wattage Selectable; 3K/4K/5K CCT Selectable; Beam Angle Selectable; White Finish; 120-347 Volt
LED SELECTABLE LINEAR HIGH BAY (Nuvo 65-1510) — Commercial Fixtures › High Bays › High Bays.
Specifications
| Watts | 105W/90W/70W |
| Lumens | 9870L-15600L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-347V |
| Amps | 0.880-0.300/0.750-0.260/0.580-0.200A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 45x100/65x95/90x90 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fluor Equiv | 135W-190W |
| Fixture Type | Linear Hi-Bay |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Die-cast Aluminum |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus - Listed |
| Operating Temp | -40F to +122F (-40C to +50C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 6KV |
| Warranty | 5-Years |
| Web Length | 15.0 |
| Web Width | 11.2 |
| Web Height | 1.89 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923412462 |
| Case Quantity | 1 |
| Pack Type | Box |
65-1510 Instructions (PDF) · 65-1510 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-1510
Brand
SATCO
Product Code
65-1510
UPC
045923412462
Specifications
Technology
LED
Wattage
105
Input Voltage
120V-347V
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
9870.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
45
