Nuvo 65-1500 60/40/29 Wattage Selectable LED Wall Pack, 3K/4K/5K CCT Selectable, 60/90/110 Beam Angle Selectable
Nuvo 65-1500 60/40/29 Wattage Selectable LED Wall Pack, 3K/4K/5K CCT Selectable, 60/90/110 Beam Angle Selectable
SATCO
Regular price
$149.99 USD
Regular price
Sale price
$149.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0278947
Couldn't load pickup availability
60/40/29 Wattage Selectable LED Wall Pack;3K/4K/5K CCT Selectable; 60/90/110 Beam Angle Selectable; 120-347 Volt; Bronze FinishLED TRAD WALL PACK 120-347V (Nuvo 65-1500) — Commercial Fixtures › Wal...
Show More

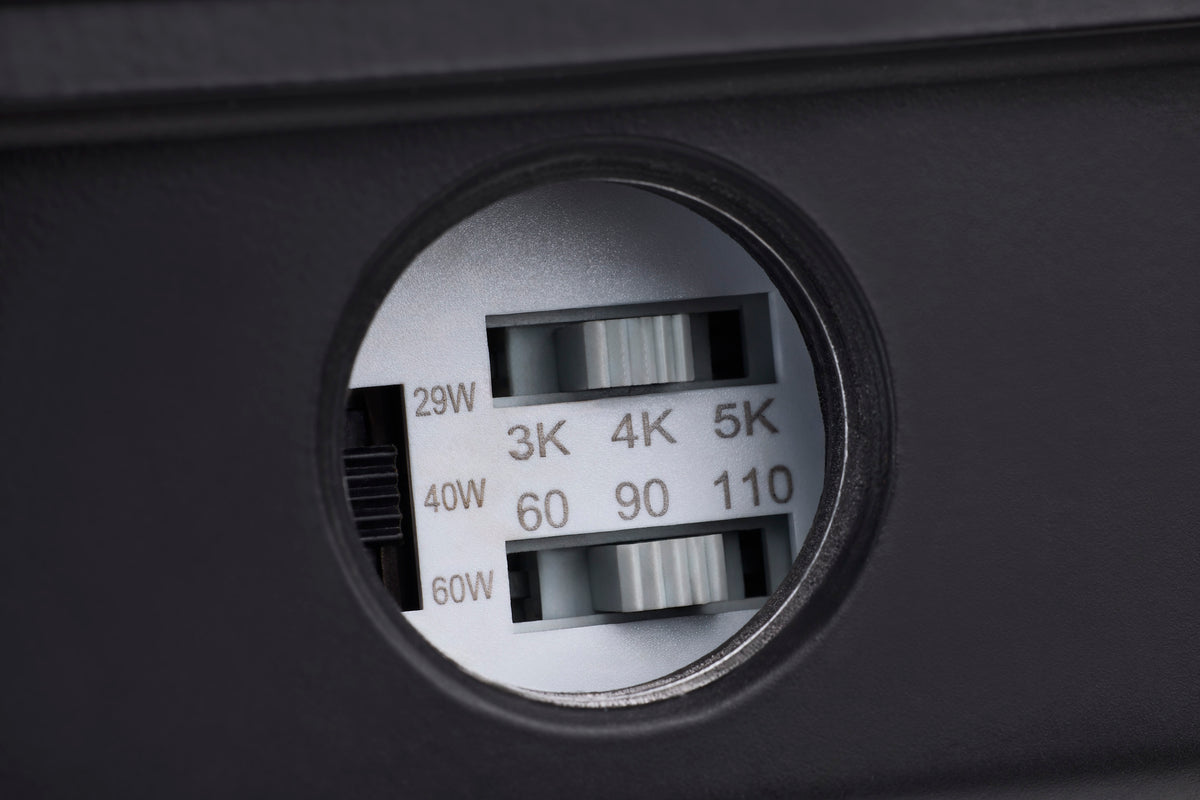

60/40/29 Wattage Selectable LED Wall Pack;3K/4K/5K CCT Selectable; 60/90/110 Beam Angle Selectable; 120-347 Volt; Bronze Finish
LED TRAD WALL PACK 120-347V (Nuvo 65-1500) — Commercial Fixtures › Wall Mount › Wall Mount.
Specifications
| Watts | 60W/40W/29W |
| Lumens | 4225L-9193L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-347V |
| Amps | 0.500-0.170/0.330-0.120/0.242-0.105A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 60/90/110 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fixture Type | Wall Pack |
| Style | Utility |
| Finish | BRONZE |
| Finish Family | Bronze |
| Material | Die-cast Aluminum |
| Lens Finish | Clear |
| Lens Material | Borosilicate Glass |
| Bulb Included | Integrated |
| Mounting Procedure | Wall |
| Indoor Outdoor | Outdoor |
| Location Rating | Wet |
| IP Rating | IP65 |
| Safety Listing | cULus - Listed |
| Operating Temp | -40F to +122F (-40C to +50C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 6KV |
| Warranty | 5-Years |
| Web Length | 14.36 |
| Web Width | 14.36 |
| Web Height | 9.3 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923412448 |
| Case Quantity | 1 |
| Pack Type | Box |
65-1500 Instructions (PDF) · 65-1500 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-1500
Brand
SATCO
Product Code
65-1500
UPC
045923412448
Specifications
Technology
LED
Wattage
60
Input Voltage
120V-347V
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
4225.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
60
