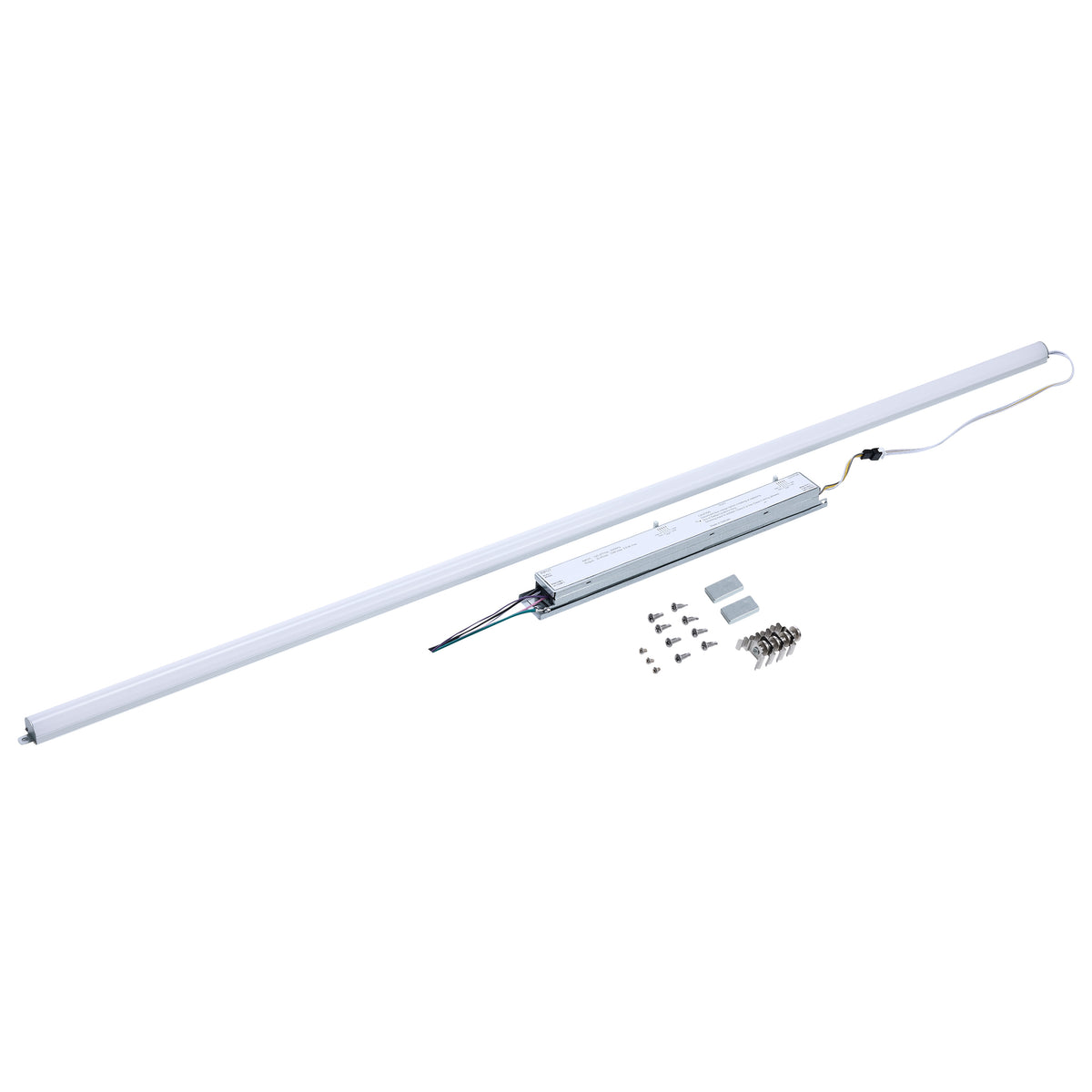

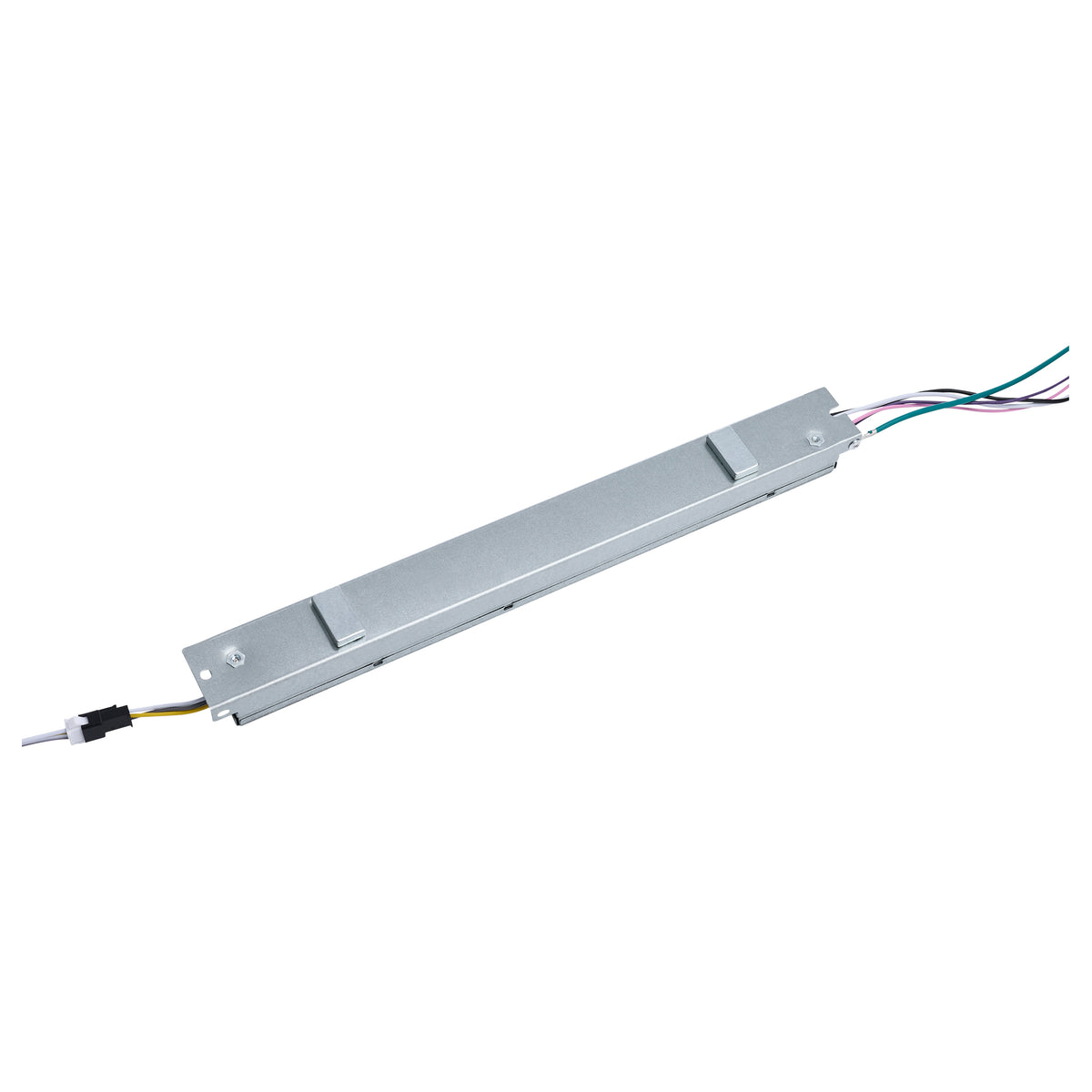

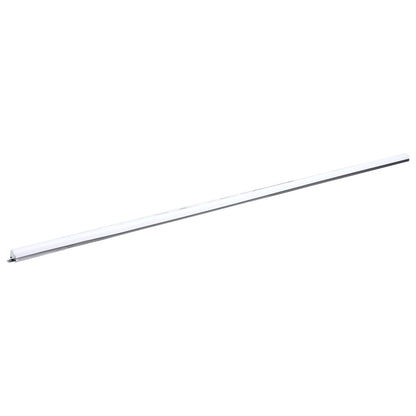

Nuvo 65-1333 30W/25W/20W/15W/10W Wattage Selectable LED Light Bar Retrofit Kit, 3000K/3500K/4000K/5000K/6500K CCT Selectable, 1-Bar
Nuvo 65-1333 30W/25W/20W/15W/10W Wattage Selectable LED Light Bar Retrofit Kit, 3000K/3500K/4000K/5000K/6500K CCT Selectable, 1-Bar
SATCO
Regular price
$51.99 USD
Regular price
Sale price
$51.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0278931
Couldn't load pickup availability
30W/25W/20W/15W/10W Wattage Selectable LED Light Bar Retrofit Kit; 3000K/3500K/4000K/5000K/6500K CCT Selectable; 1-Bar; 4 Feet; 120-277 Volt; Silver FinishLBR30WSL1B4/8CCT5/DIMU (Nuvo 65-1333) — Co...
Show More
30W/25W/20W/15W/10W Wattage Selectable LED Light Bar Retrofit Kit; 3000K/3500K/4000K/5000K/6500K CCT Selectable; 1-Bar; 4 Feet; 120-277 Volt; Silver Finish
LBR30WSL1B4/8CCT5/DIMU (Nuvo 65-1333) — Commercial Fixtures › Troffers & Panels › Retrofits.
Specifications
| Watts | 30W/25W/20W/15W/10W |
| Lumens | 3750L/3125L/2500L/1875L/1250L |
| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
| Color Temp | Soft White to Daylight |
| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.25-0.108/0.208-0.09/0.167-0.072/0.125-0.054/0.083-0.036A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 120 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fluor Equiv | 32W |
| Fixture Type | Backlit Flat Panel |
| Style | Utility |
| Finish | SILVER |
| Finish Family | Silver |
| Material | Aluminum |
| Housing Color | Silver |
| Lens Finish | Frosted |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling/Wall |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cULus - Certified |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 1KV |
| Warranty | 5-Years |
| Web Length | 41.73 |
| Web Width | 0.93 |
| Web Height | 1.19 |
| Rated For Enclosed Fixture | Yes |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923409868 |
| Case Quantity | 10 |
| Pack Type | Kraft Box |
Product Information
Part Number
65-1333
Brand
SATCO
Product Code
65-1333
UPC
045923409868
Specifications
Technology
LED
Wattage
30
Input Voltage
120V-277V
Color Temperature
3000K/3500K/4000K/5000K/6500K
Lamp Base
Integrated
Lumens
3750.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
120
