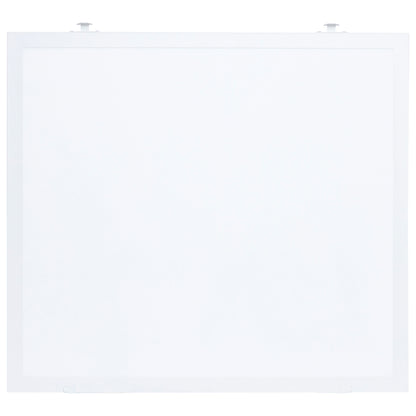

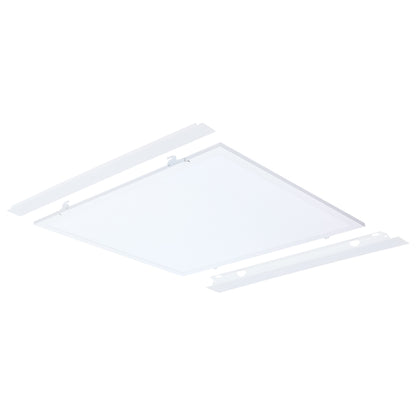

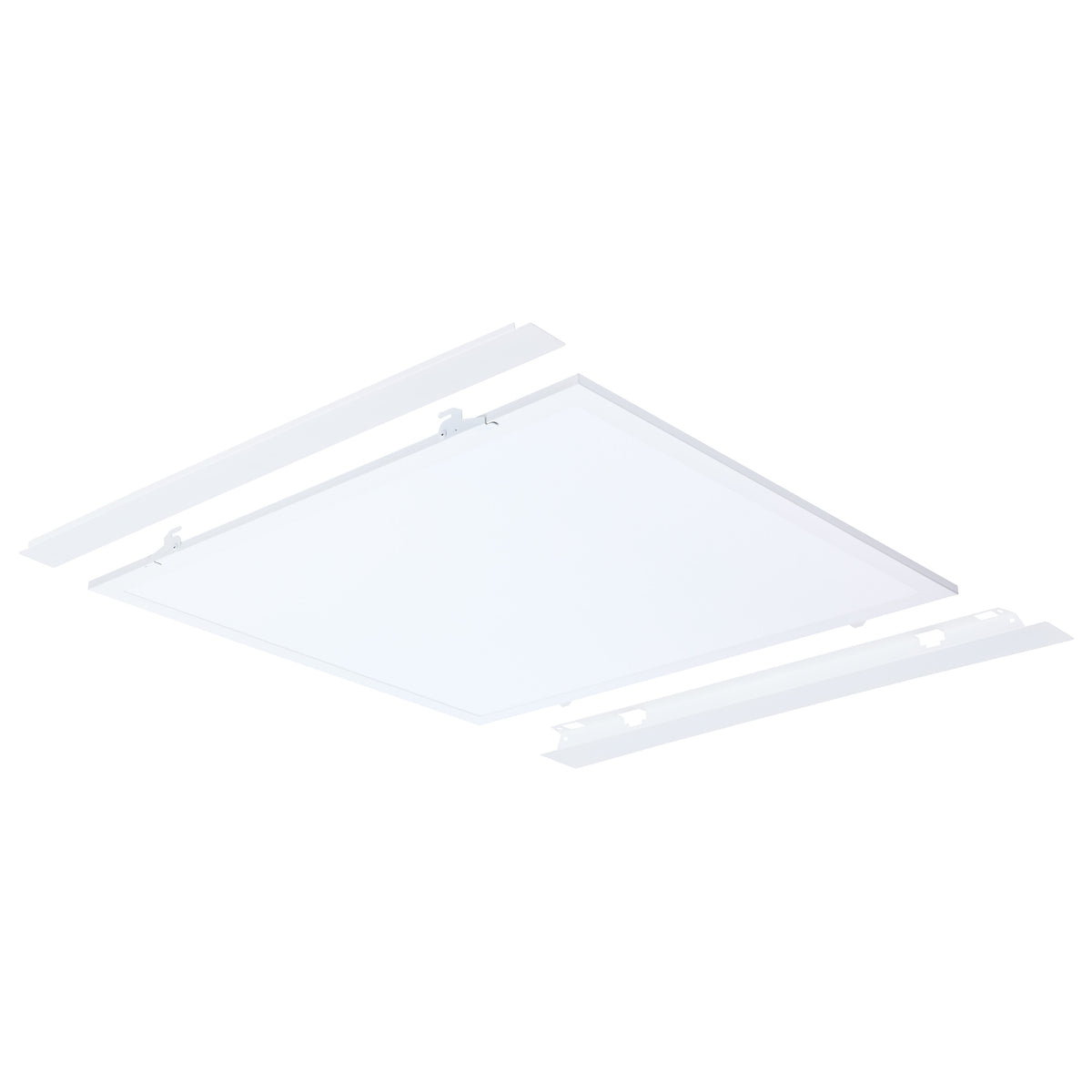

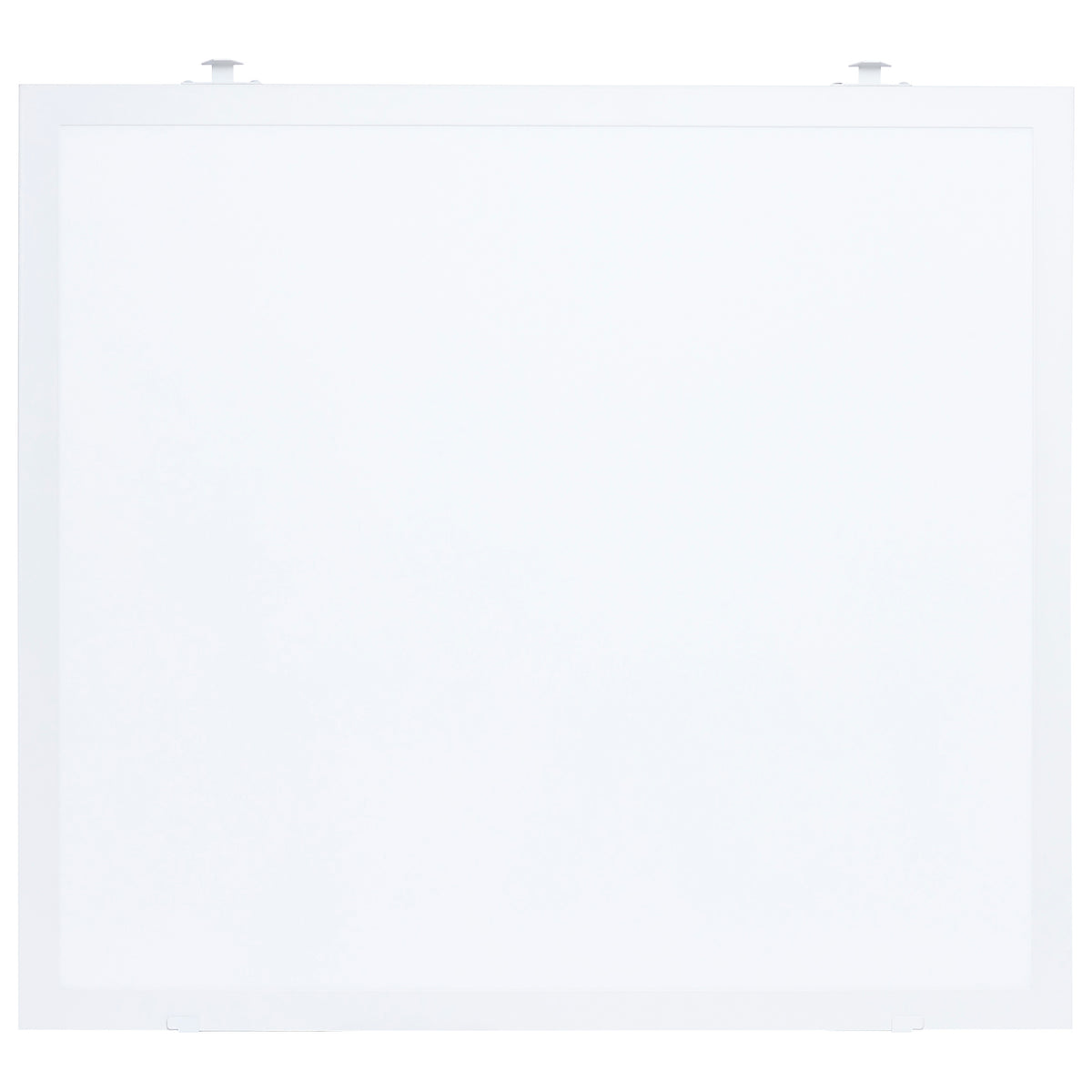

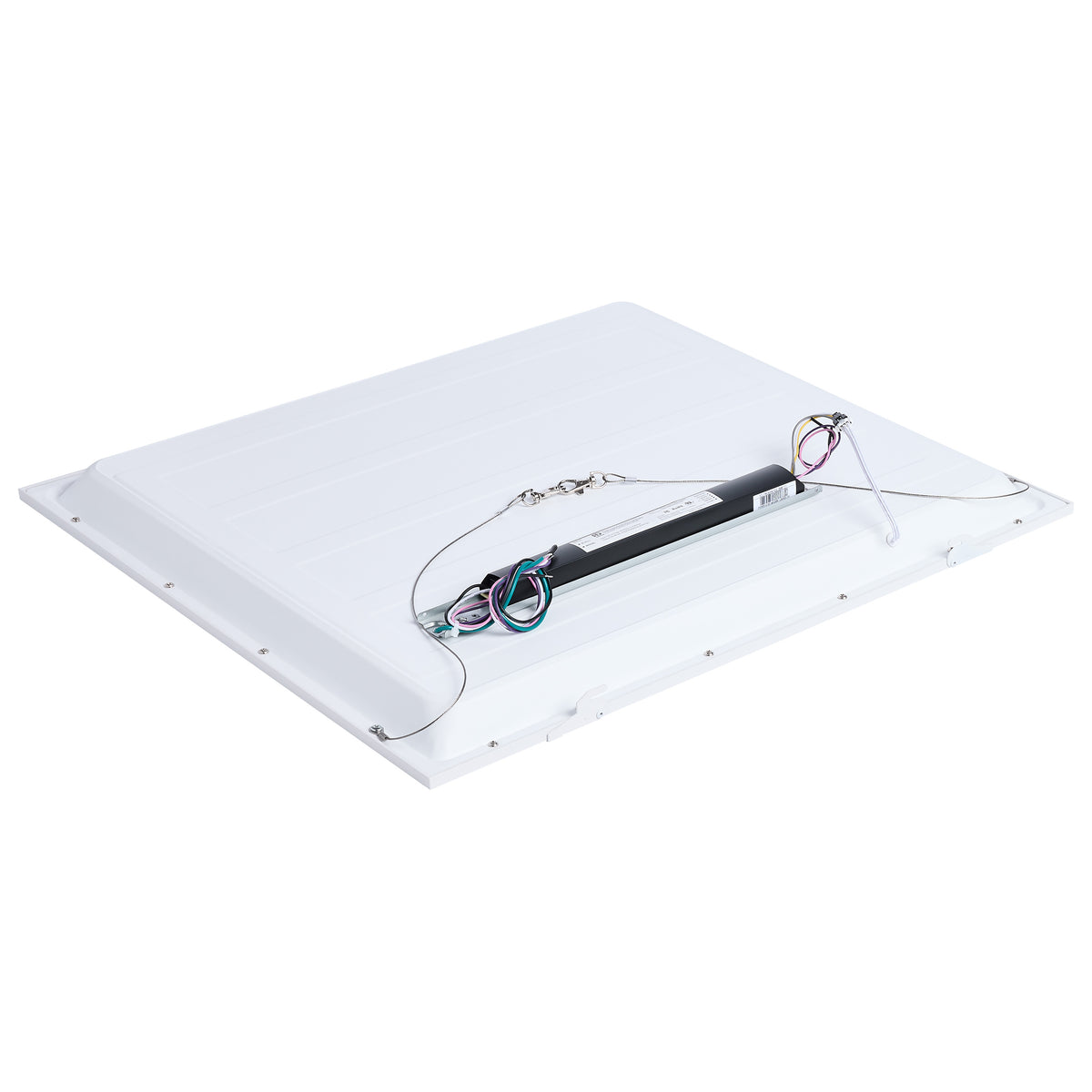

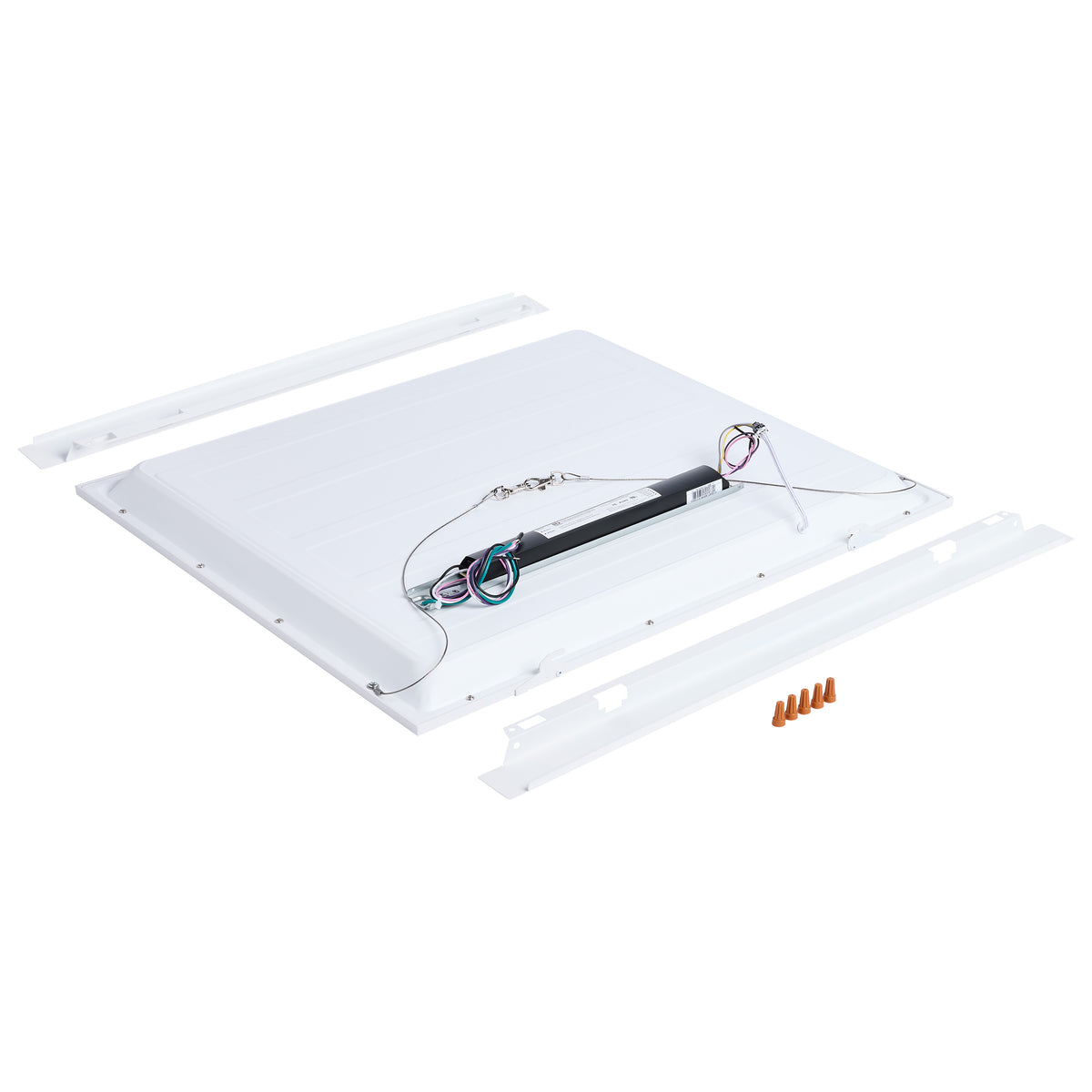

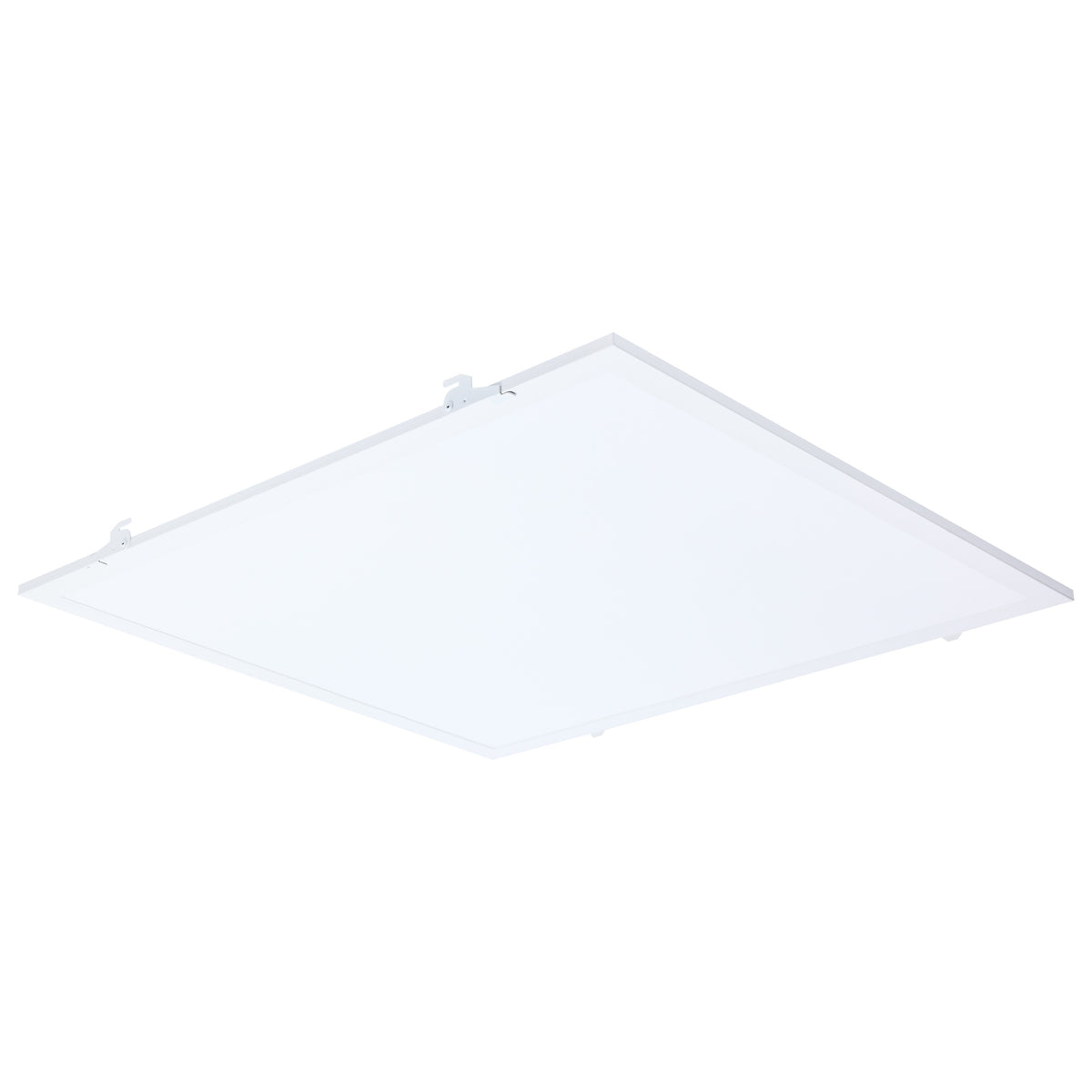

Nuvo 65-1321 40/30/20 Watt LED 2x2 Flat Panel Troffer Retrofit Kit, 35K/4K/5K CCT, Dimmable

Nuvo 65-1321 40/30/20 Watt LED 2x2 Flat Panel Troffer Retrofit Kit, 35K/4K/5K CCT, Dimmable

SATCO
$56.99 USD
$56.99 USD
Sale Sold out
Shipping calculated at checkout.

CB-0278927
40/30/20 Watt LED 2x2 Flat Panel Troffer Retrofit Kit; 35K/4K/5K CCT; Dimmable; 120-277 Volt; Matte White Finish2X2 FLAT PANEL RETROFIT (Nuvo 65-1321) — Commercial Fixtures › Troffers & Panels ... Show More
View full details

40/30/20 Watt LED 2x2 Flat Panel Troffer Retrofit Kit; 35K/4K/5K CCT; Dimmable; 120-277 Volt; Matte White Finish

2X2 FLAT PANEL RETROFIT (Nuvo 65-1321) — Commercial Fixtures › Troffers & Panels › Retrofits.

Specifications

Watts 40W/30W/20W
Lumens 4400L/3300L/2200L
CCT (Kelvin Temp) 3500K/4000K/5000K
Color Temp Neutral White to Natural Light
CCT Selectable Yes
Wattage Selectable Yes
CRI 80+
Volts 120V-277V
Amps 0.333-0.144/0.250-0.108/0.167-0.072A
Hours Rated 50000
Dimmable Yes-Dimmable
Dimming Type 0-10V Dimming
Beam Angle (degree) 120
Lamp Base Integrated
ANSI Base Integrated
Lamp Type Integrated LED
Product Technology LED
Incandescent Equivalent 125W
Fluor Equiv 3 x 17W T8
Fixture Type Troffer
Style Utility
Finish Matte White
Finish Family White
Material Steel
Housing Color Matte White
Lens Finish Frosted
Lens Material Polystyrene (PS)
Bulb Included Integrated
Mounting Procedure Ceiling
Indoor Outdoor Indoor
Location Rating Damp
IP Rating IP20
Safety Listing cETLus - Classified
Operating Temp -4F to +104F (-20C to +40C)
Power Factor >0.9
Total Harmonic Distortion <20%
Surge Protection Built-in surge protection - 2KV
Warranty 5-Years
Web Length 23.82
Web Width 23.81
Web Height 2.03
Title 20 Exempt
T24/JA8 Compliant No
California Ban Lawful for sale
UPC 045923411397
Case Quantity 1
Pack Type Kraft Box

65-1321 Instructions (PDF) · Satco product page

Product Information

Part Number 65-1321
Brand SATCO
Product Code 65-1321
UPC 045923411397

Specifications

Technology LED
Wattage 40
Input Voltage 120V-277V
Color Temperature 3500K/4000K/5000K
Lamp Base Integrated
Lumens 4400.0
Hours 50000
CRI 80
Dimmable true
Beam Spread 120
