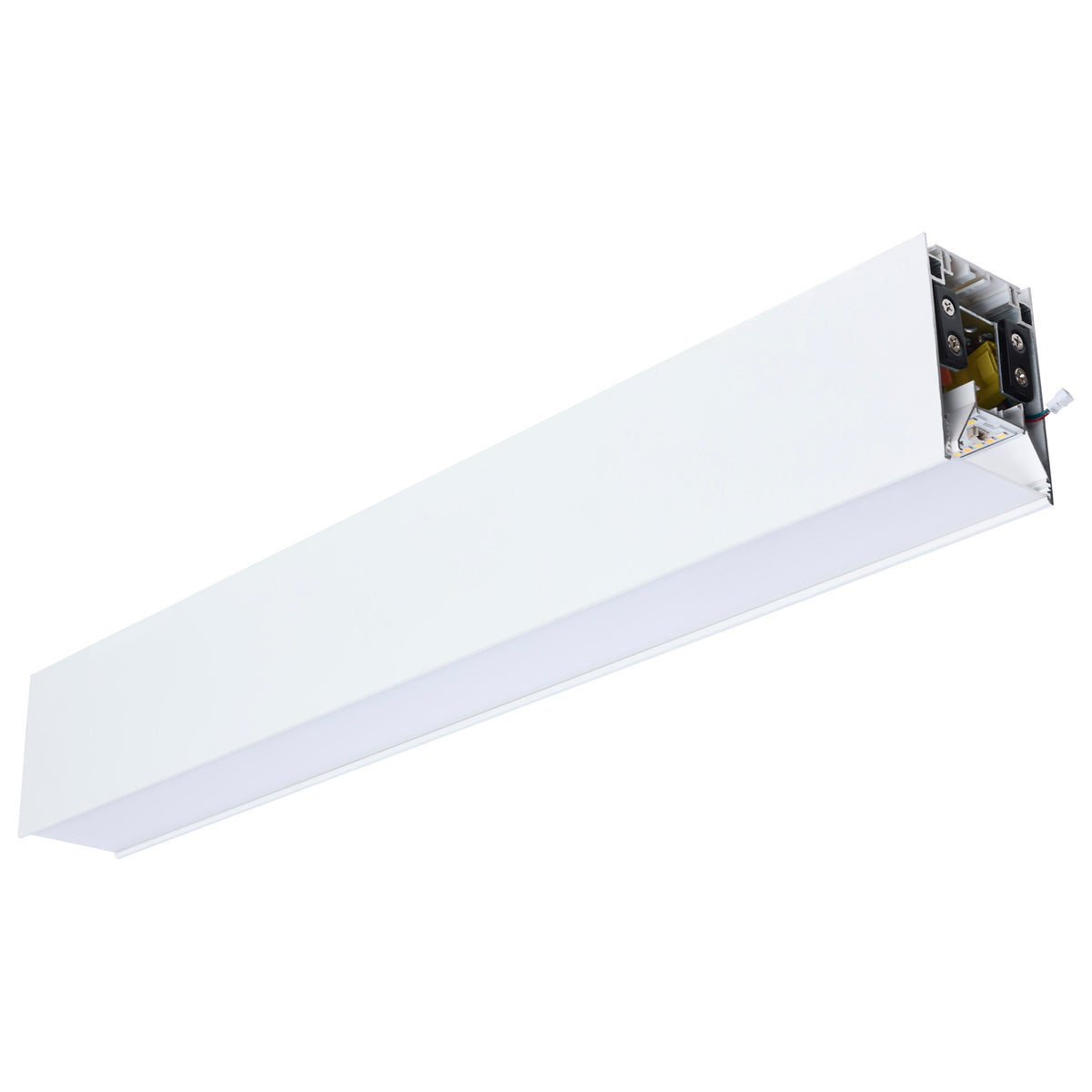

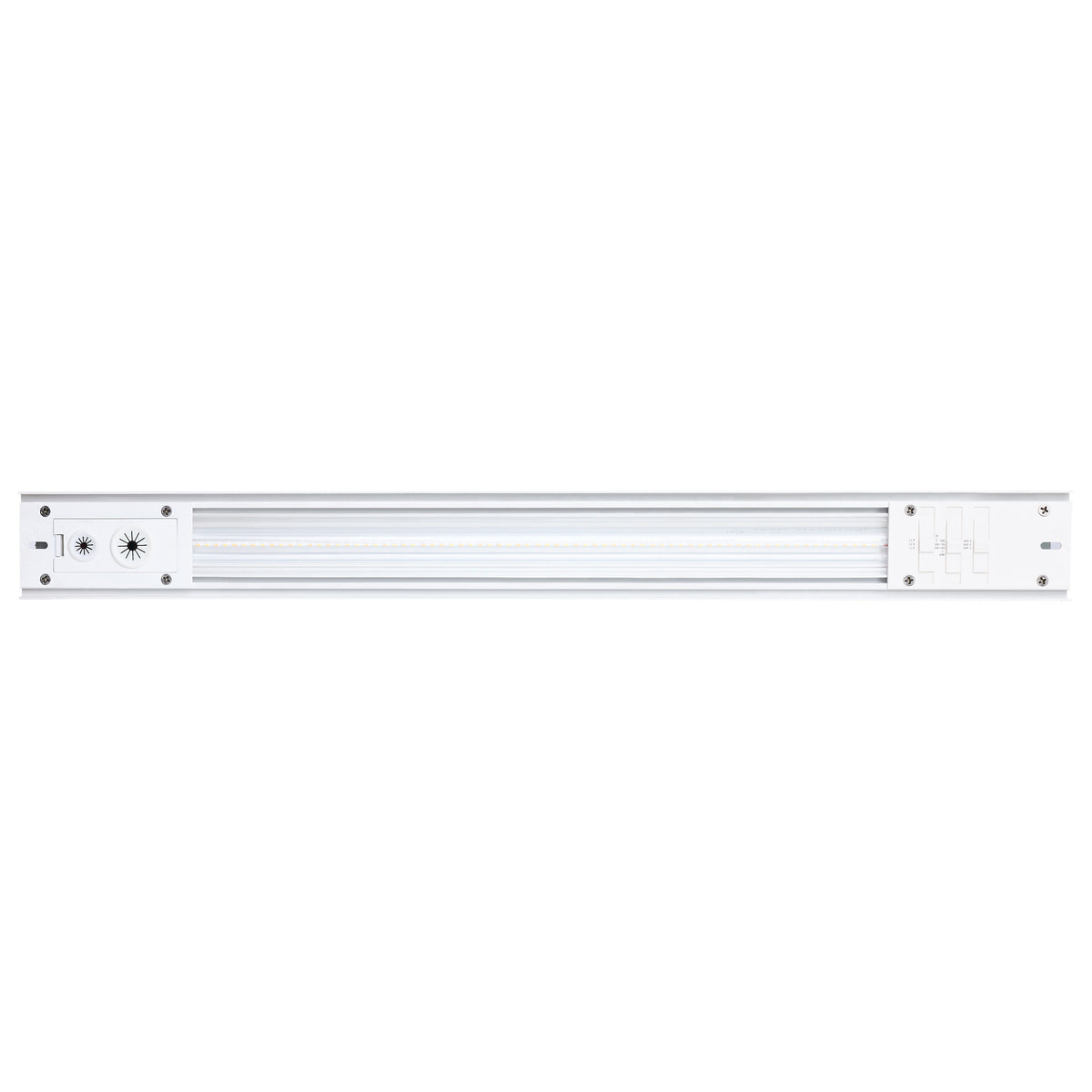

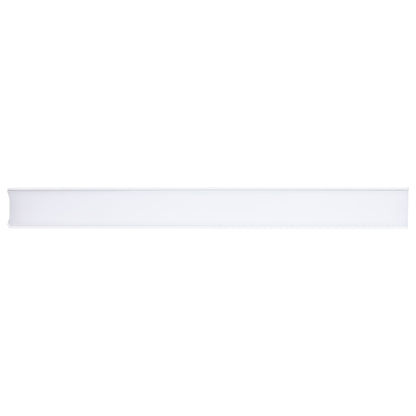

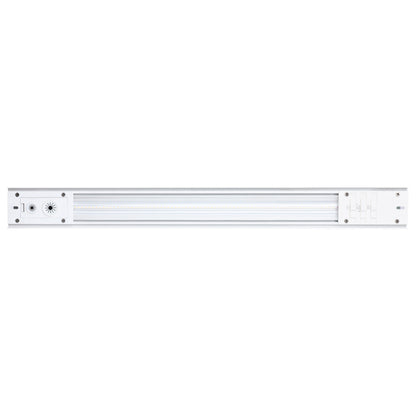

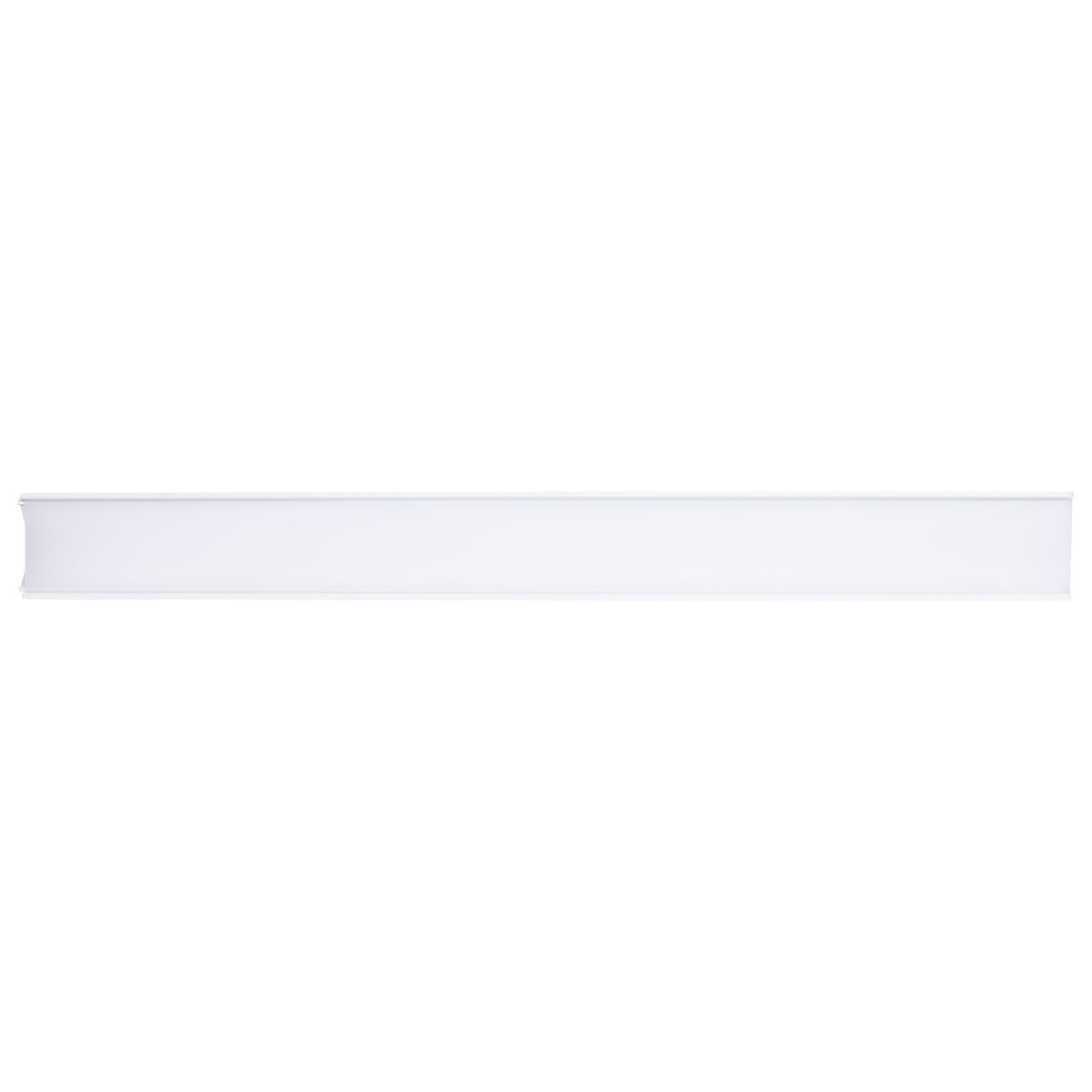

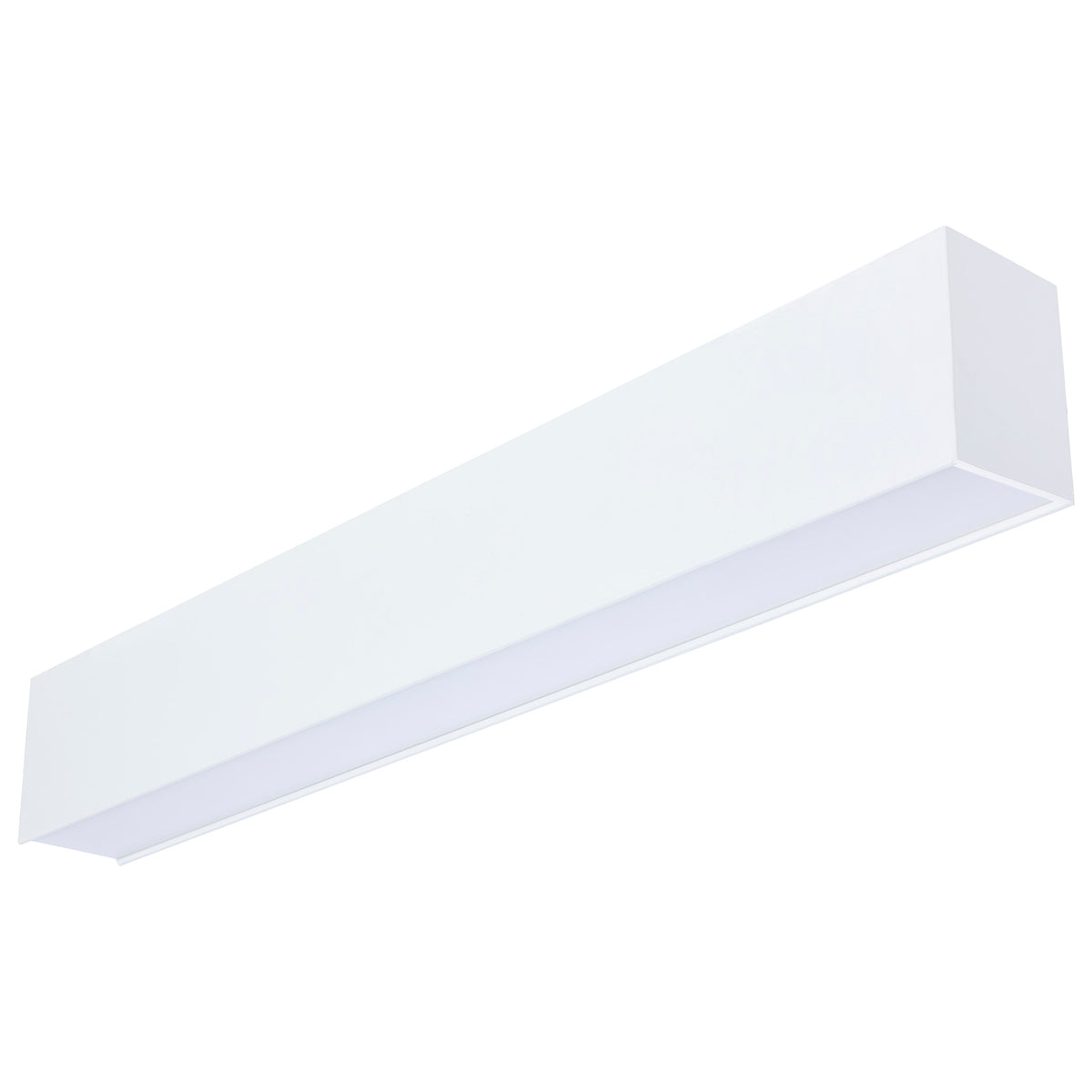

Nuvo 65-1180 Momentum, 2 Foot LED Connectable Linear Strip, Up and Down Selectable
Nuvo 65-1180 Momentum, 2 Foot LED Connectable Linear Strip, Up and Down Selectable
SATCO
Regular price
$117.99 USD
Regular price
Sale price
$117.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0278892
Couldn't load pickup availability
Momentum; 2 Foot LED Connectable Linear Strip; Up and Down Selectable; White Finish2' LED CONNECTABLE LINEAR (Nuvo 65-1180) — Commercial Fixtures › Linear › Architectural Linear.Specifications
Wat...
Show More
Momentum; 2 Foot LED Connectable Linear Strip; Up and Down Selectable; White Finish
2' LED CONNECTABLE LINEAR (Nuvo 65-1180) — Commercial Fixtures › Linear › Architectural Linear.
Specifications
| Watts | 15W/20W/25W |
| Lumens | 1650L/2200L/2750L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Soft White to Natural Light |

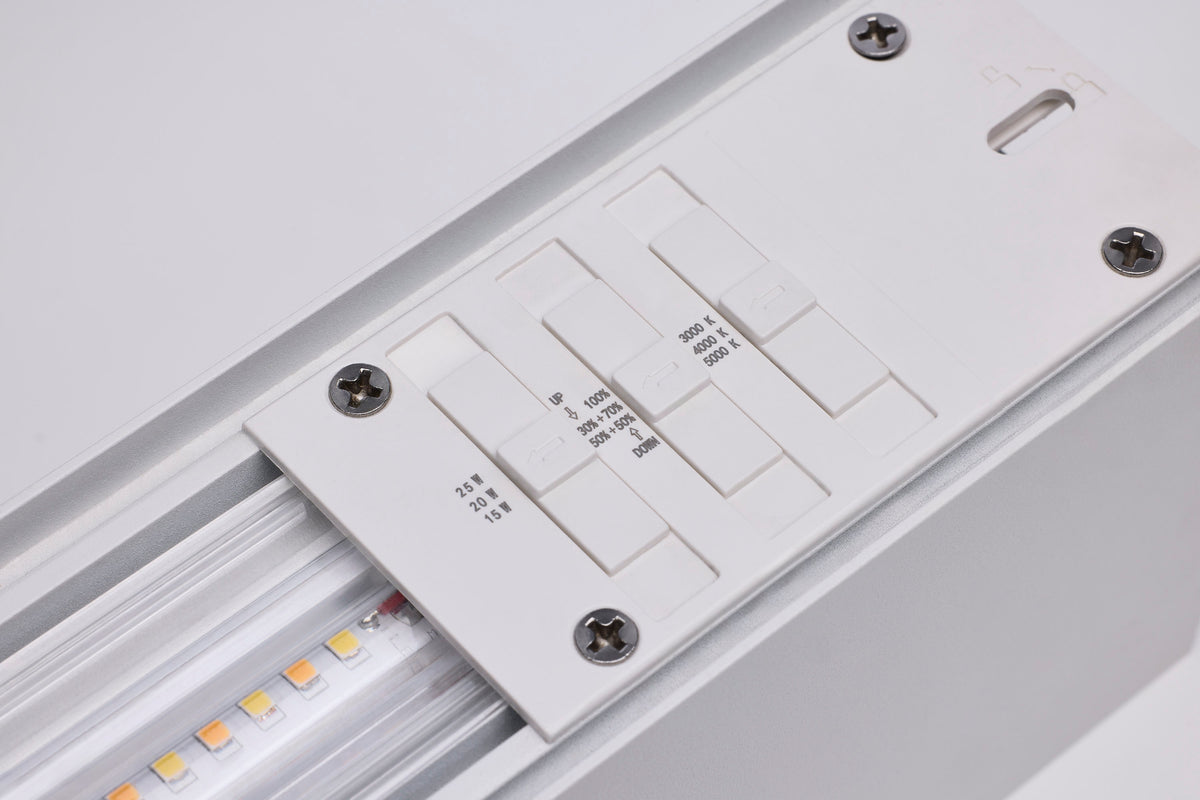

| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-347V |
| Amps | 0.125-0.043/0.167-0.058/0.208-0.072A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 120 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 150W-175W |
| Fixture Type | Linear |
| Finish | WHITE |
| Finish Family | White |
| Material | Aluminum |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |
| Mounting Procedure | Ceiling/Wall |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| Safety Listing | cETLus |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Power Factor | 0.93 |
| Total Harmonic Distortion | 10.8% |
| Surge Protection | Built-in surge protection - 2KV |
| Warranty | 5-Years |
| Web Length | 23.3 |
| Web Width | 2.36 |
| Web Height | 3.4 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923654107 |
| Case Quantity | 6 |
| Pack Type | Box |
65-1180 Instructions (PDF) · 65-1180 Spec Chart (PDF) · Satco product page
Product Information
Part Number
65-1180
Brand
SATCO
Product Code
65-1180
UPC
045923654107
Specifications
Technology
LED
Wattage
15
Input Voltage
120V-347V
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
1650.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
120
