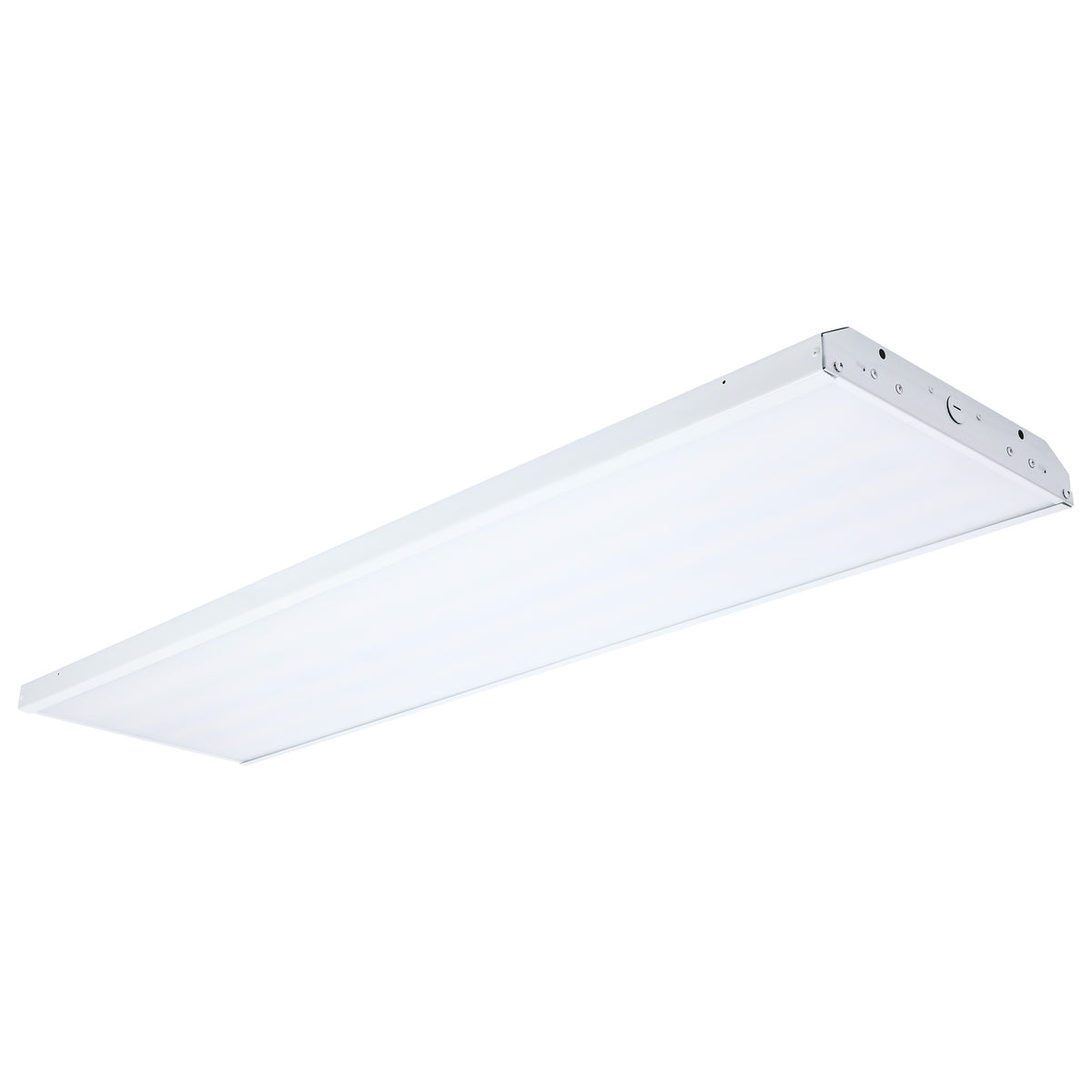

Nuvo 65-1040 200/150/100 Watt LED 4-Foot Linear High Bay, 3500K/4000K/5000K CCT, 120-277 Volt
Nuvo 65-1040 200/150/100 Watt LED 4-Foot Linear High Bay, 3500K/4000K/5000K CCT, 120-277 Volt
SATCO
Regular price
$267.99 USD
Regular price
Sale price
$267.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0278873
Couldn't load pickup availability
200/150/100 Watt LED 4-Foot Linear High Bay; 3500K/4000K/5000K CCT; 120-277 Volt; White FinishLED 4' LINEAR HIGH BAY (Nuvo 65-1040) — Commercial Fixtures › High Bays › High Bays.Specifications
Wat...
Show More
200/150/100 Watt LED 4-Foot Linear High Bay; 3500K/4000K/5000K CCT; 120-277 Volt; White Finish
LED 4' LINEAR HIGH BAY (Nuvo 65-1040) — Commercial Fixtures › High Bays › High Bays.
Specifications
| Watts | 200W/150W/100W |
| Lumens | 30000L/22500L/15000L |
| CCT (Kelvin Temp) | 3500K/4000K/5000K |
| Color Temp | Neutral White to Natural Light |

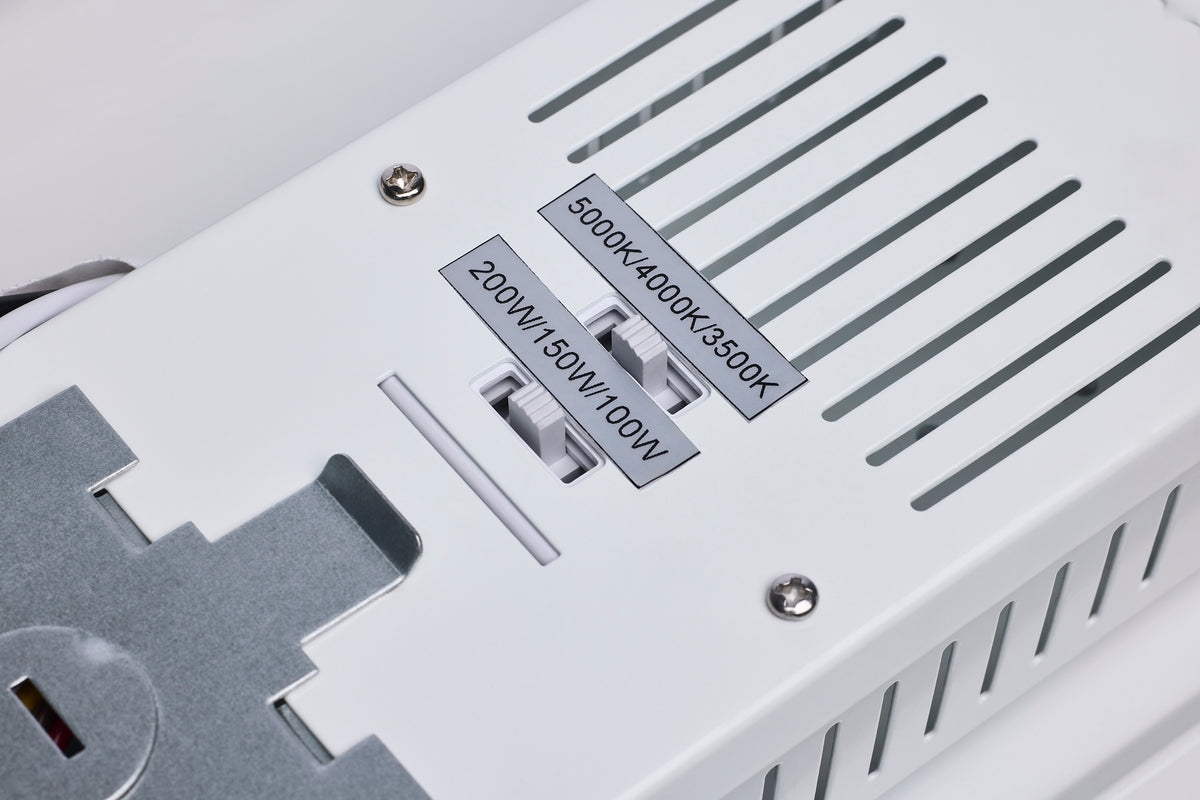

| CCT Selectable | Yes |
| Wattage Selectable | Yes |
| CRI | 80+ |
| Volts | 120V-277V |
| Amps | 0.917/1.375/1.833A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 0-10V Dimming |
| Beam Angle (degree) | 120 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Fluor Equiv | 135W-570W |
| Fixture Type | Linear Hi-Bay |
| Style | Utility |
| Finish | WHITE |
| Finish Family | White |
| Material | Steel |
| Lens Finish | White |
| Lens Material | Polystyrene (PS) |
| Bulb Included | Integrated |
| Mounting Procedure | Surface: Bracket, Suspension: CablesChain |
| Indoor Outdoor | Indoor |
| Location Rating | Damp |
| IP Rating | IP20 |
| Safety Listing | cULus |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Surge Protection | Built-in surge protection - 6KV |
| Warranty | 5-Years |
| Web Length | 45.83 |
| Web Width | 12.59 |
| Web Height | 2.8 |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| California Ban | Lawful for sale |
| UPC | 045923413346 |
| Case Quantity | 1 |
| Pack Type | Box |
Product Information
Part Number
65-1040
Brand
SATCO
Product Code
65-1040
UPC
045923413346
Specifications
Technology
LED
Wattage
200
Input Voltage
120V-277V
Color Temperature
3500K/4000K/5000K
Lamp Base
Integrated
Lumens
30000.0
Hours
50000
CRI
80
Dimmable
true
Beam Spread
120
