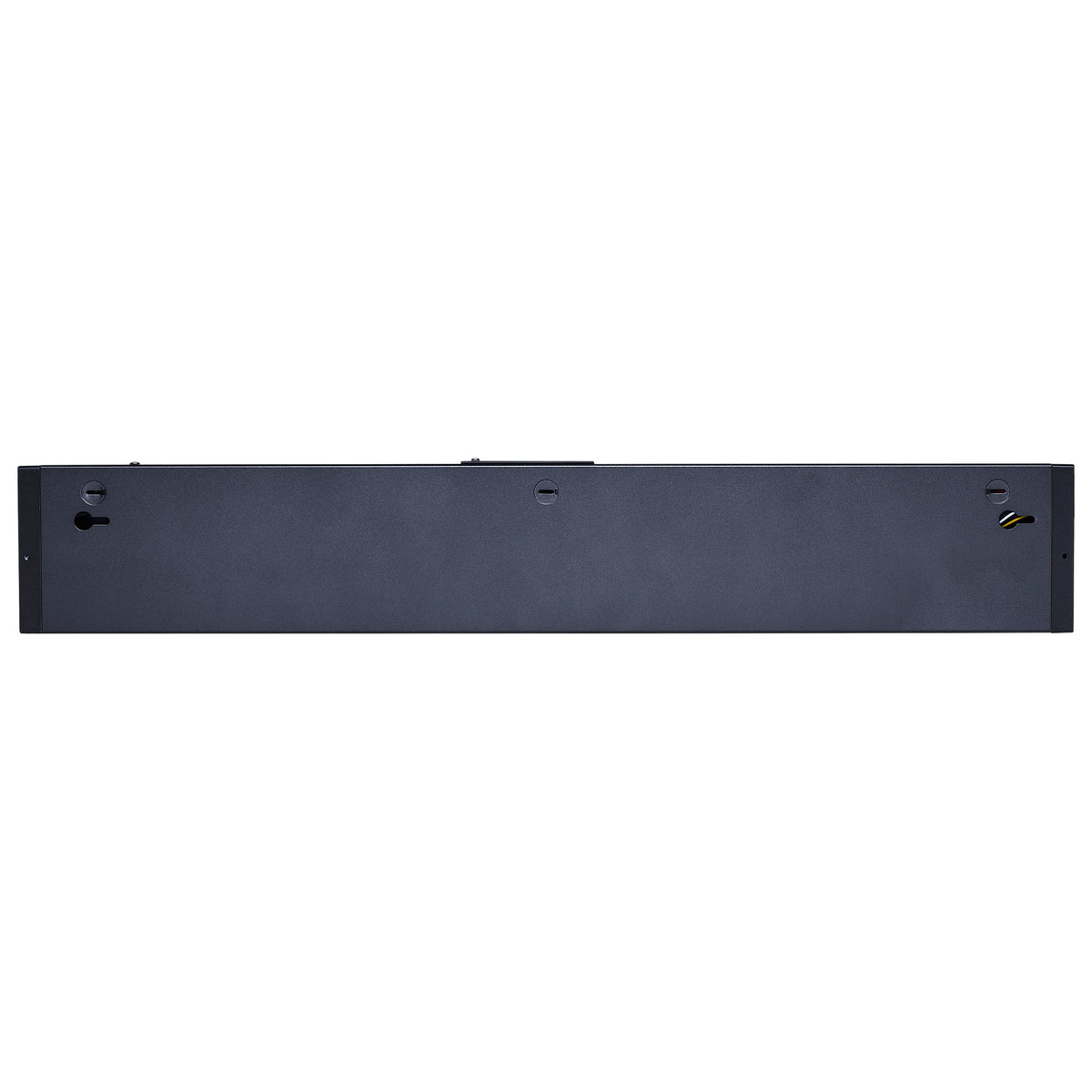

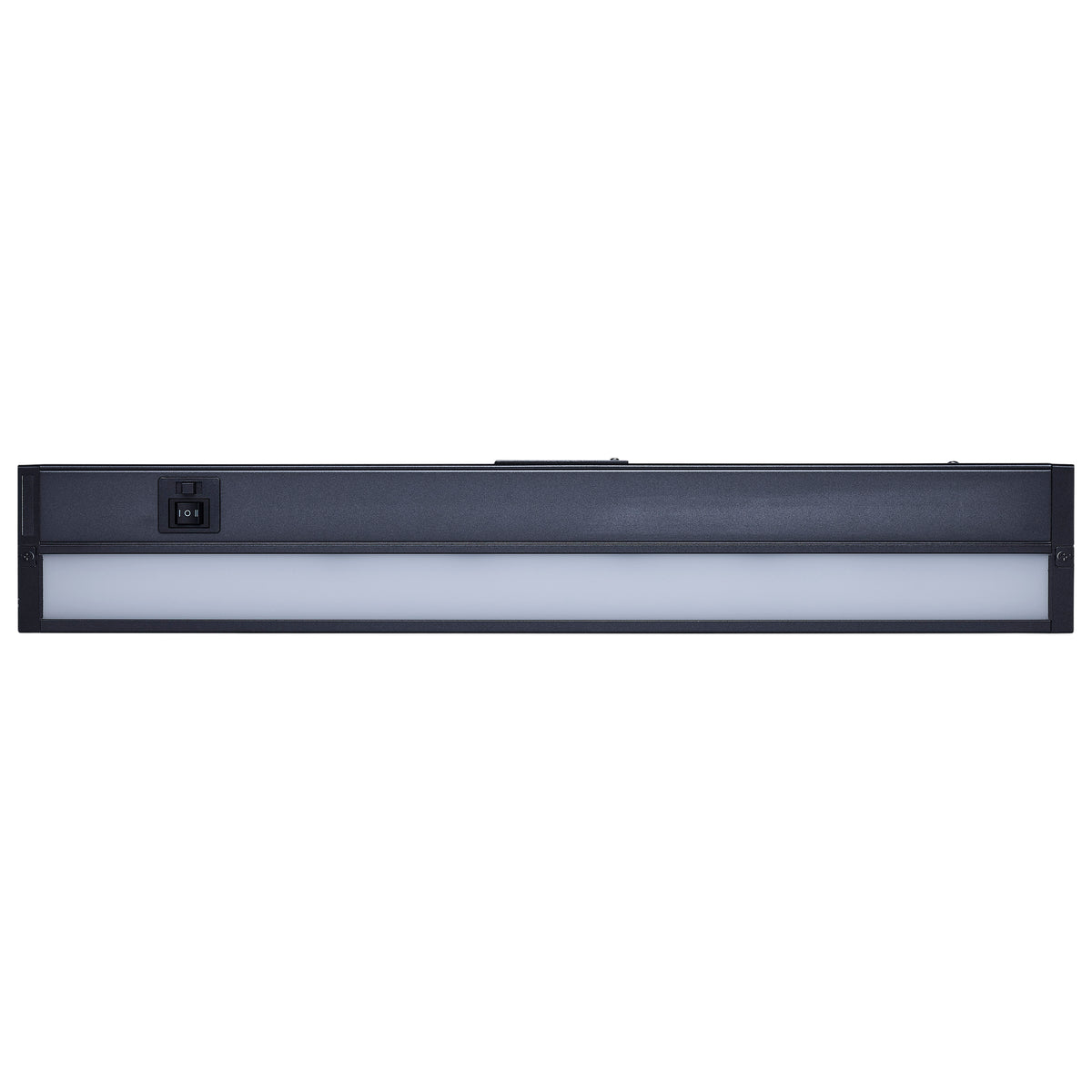

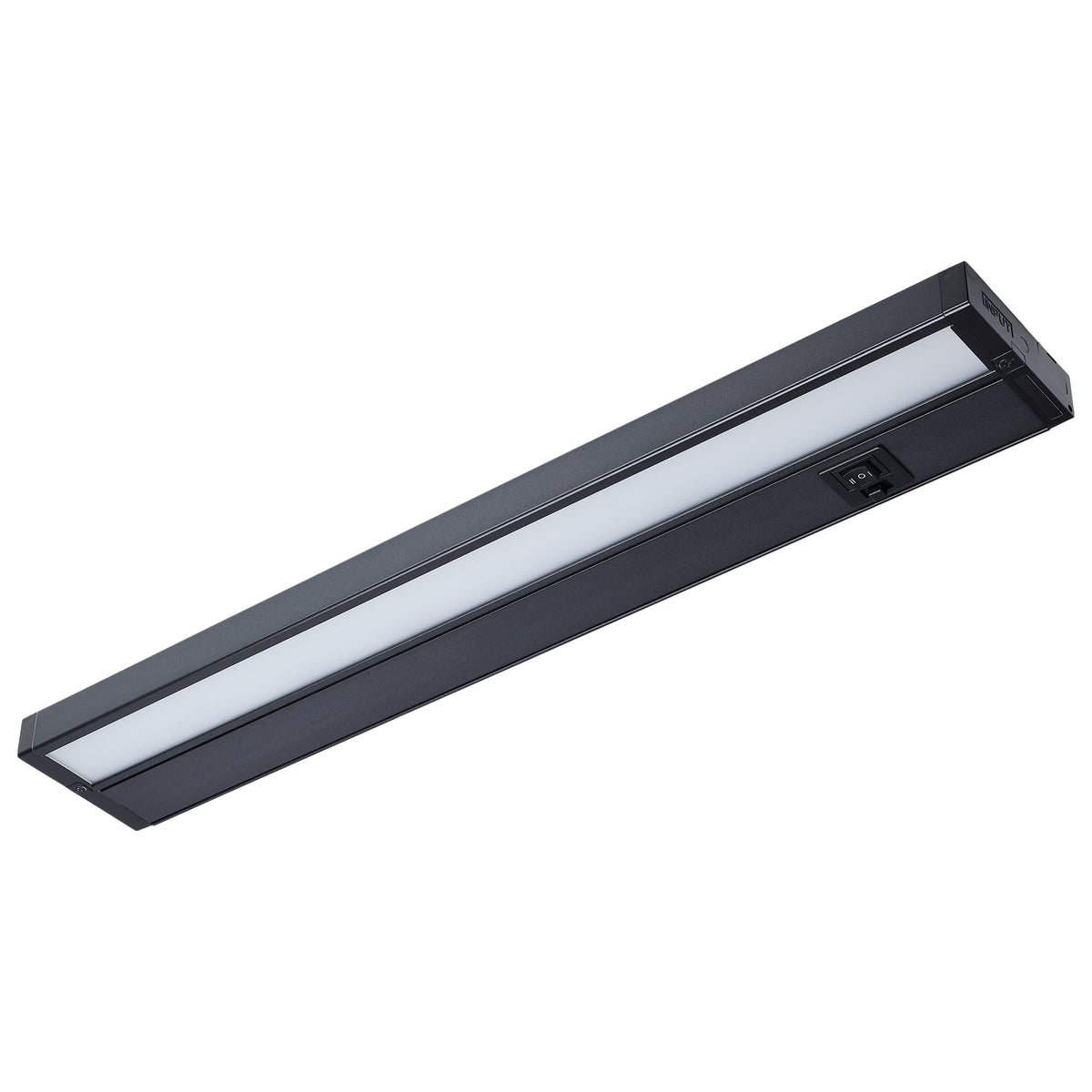

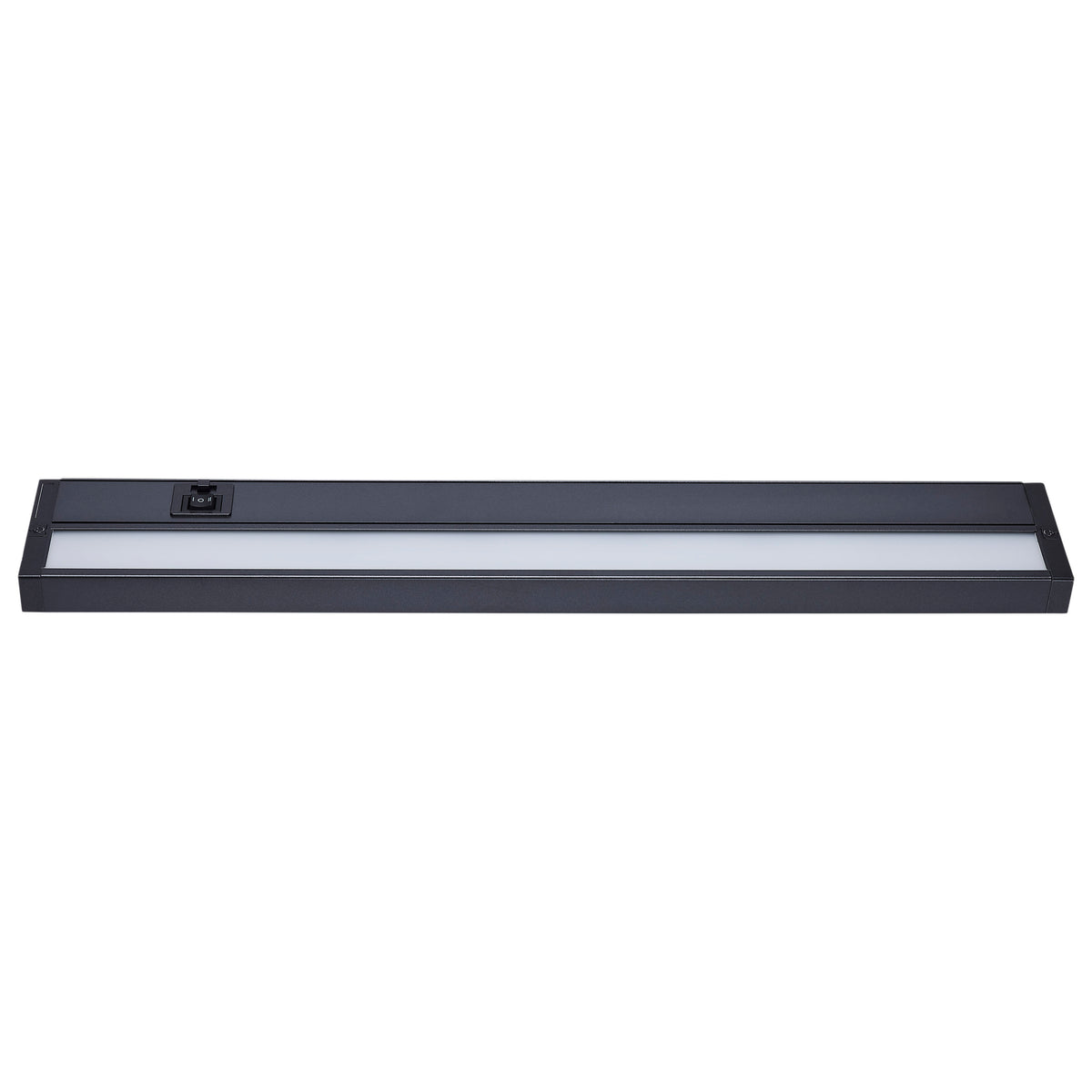

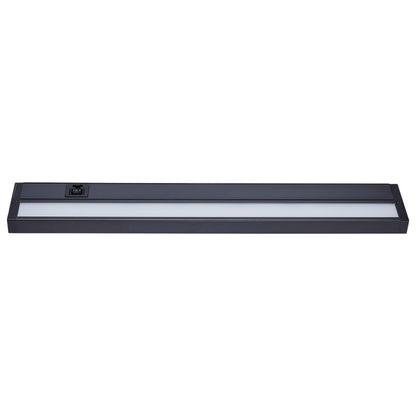

Nuvo 63-523 13 Watt 22-Inch LED Under Cabinet, 30K/40K/50K 3K/4K/5K CCT Selectable, Dark Bronze
Nuvo 63-523 13 Watt 22-Inch LED Under Cabinet, 30K/40K/50K 3K/4K/5K CCT Selectable, Dark Bronze
SATCO
Regular price
$79.99 USD
Regular price
Sale price
$79.99 USD
Shipping calculated at checkout.
Quantity
SKU:CB-0278828
Couldn't load pickup availability
13 Watt 22-Inch LED Under Cabinet; 30K/40K/50K 3K/4K/5K CCT Selectable; Dark Bronze; 120 VoltUNDER CAB LED 3CCT 22"-DK BRZ (Nuvo 63-523) — Commercial Fixtures › Under Cabinet › Under Cabinet.Specif...
Show More
13 Watt 22-Inch LED Under Cabinet; 30K/40K/50K 3K/4K/5K CCT Selectable; Dark Bronze; 120 Volt
UNDER CAB LED 3CCT 22"-DK BRZ (Nuvo 63-523) — Commercial Fixtures › Under Cabinet › Under Cabinet.
Specifications
| Watts | 13W |
| Lumens | 859L-955L |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
| Color Temp | Warm White to Natural Light |

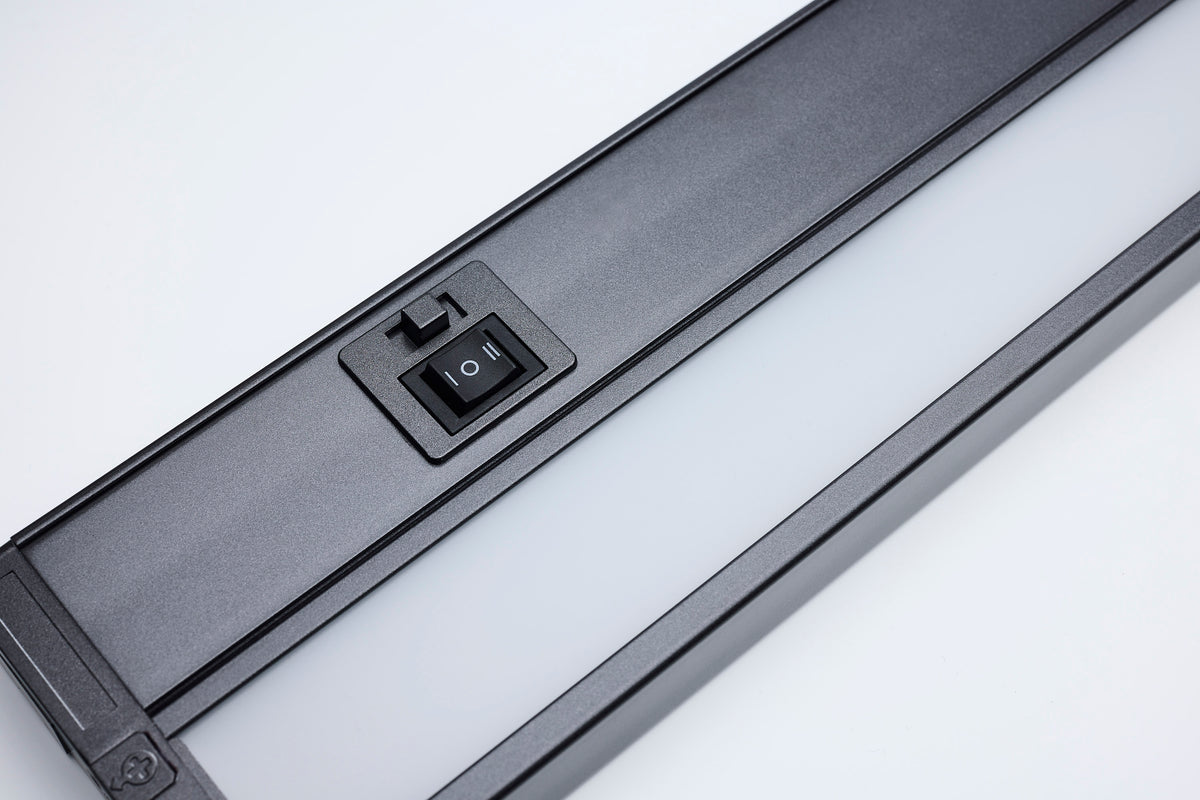

| CCT Selectable | Yes |
| Wattage Selectable | No |
| CRI | 90+ |
| Volts | 120v |
| Amps | 0.108A |
| Hours Rated | 50000 |
| Dimmable | Yes-Dimmable |
| Dimming Type | 120V only, Phase Cut (TRIAC) |
| Beam Angle (degree) | 105 |
| Lamp Base | Integrated |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Product Technology | LED |
| Incandescent Equivalent | 65W |
| Fixture Type | Under Cabinet |
| Style | Utility |
| Finish | Dark Bronze |
| Finish Family | Bronze |
| Material | Aluminum |
| Lens Finish | Frosted White |
| Lens Material | Polycarbonate (PC) |
| Bulb Included | Integrated |

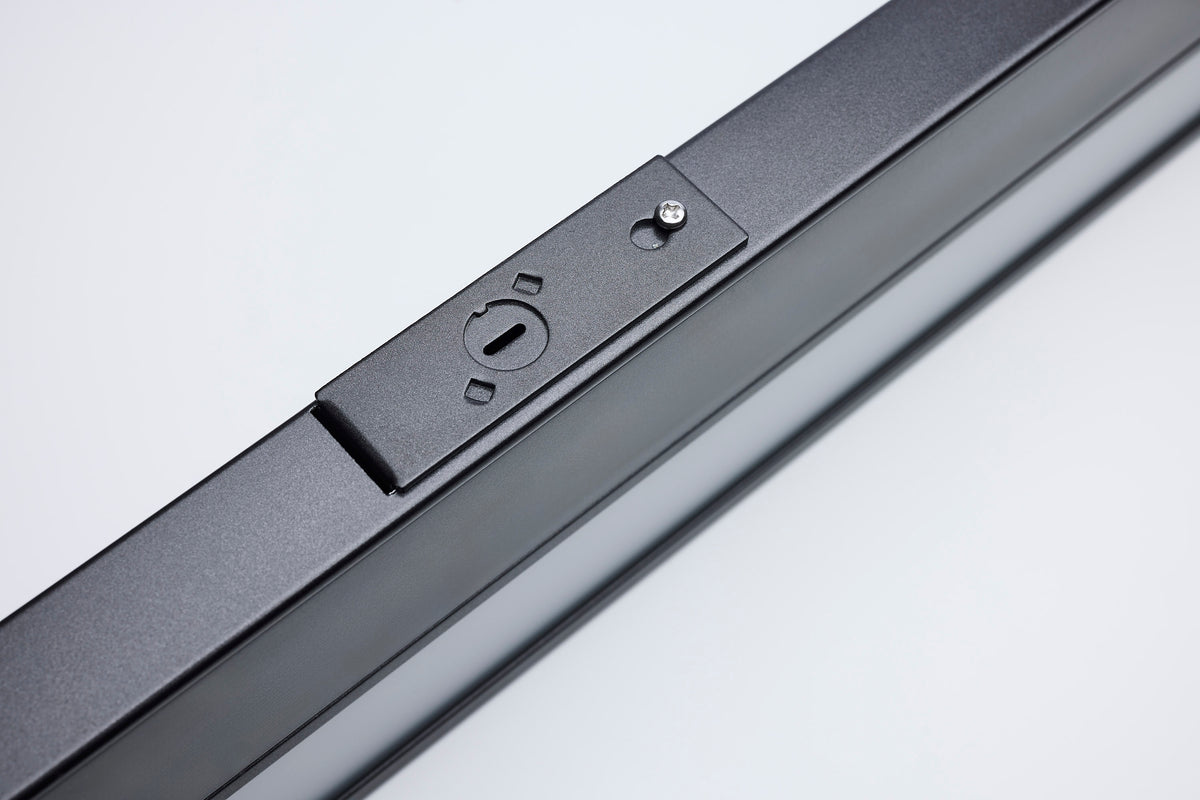

| Mounting Procedure | Under Cabinet: Screws |
| Indoor Outdoor | Indoor |
| Location Rating | Dry |
| IP Rating | IP20 |
| Safety Listing | cETLus - Listed |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Power Factor | >0.9 |
| Total Harmonic Distortion | <20% |
| Warranty | 5-Years |
| Web Length | 22.0 |
| Web Width | 3.5 |
| Web Height | 1.0 |
| Title 20 | Exempt |
| T24/JA8 Compliant | Yes |
| California Ban | Lawful for sale |
| UPC | 045923635236 |
| Case Quantity | 12 |
| Pack Type | Box |
Product Information
Part Number
63-523
Brand
SATCO
Product Code
63-523
UPC
045923635236
Specifications
Technology
LED
Wattage
13
Input Voltage
120v
Color Temperature
3000K/4000K/5000K
Lamp Base
Integrated
Lumens
859.0
Hours
50000
CRI
90
Dimmable
true
Beam Spread
105
