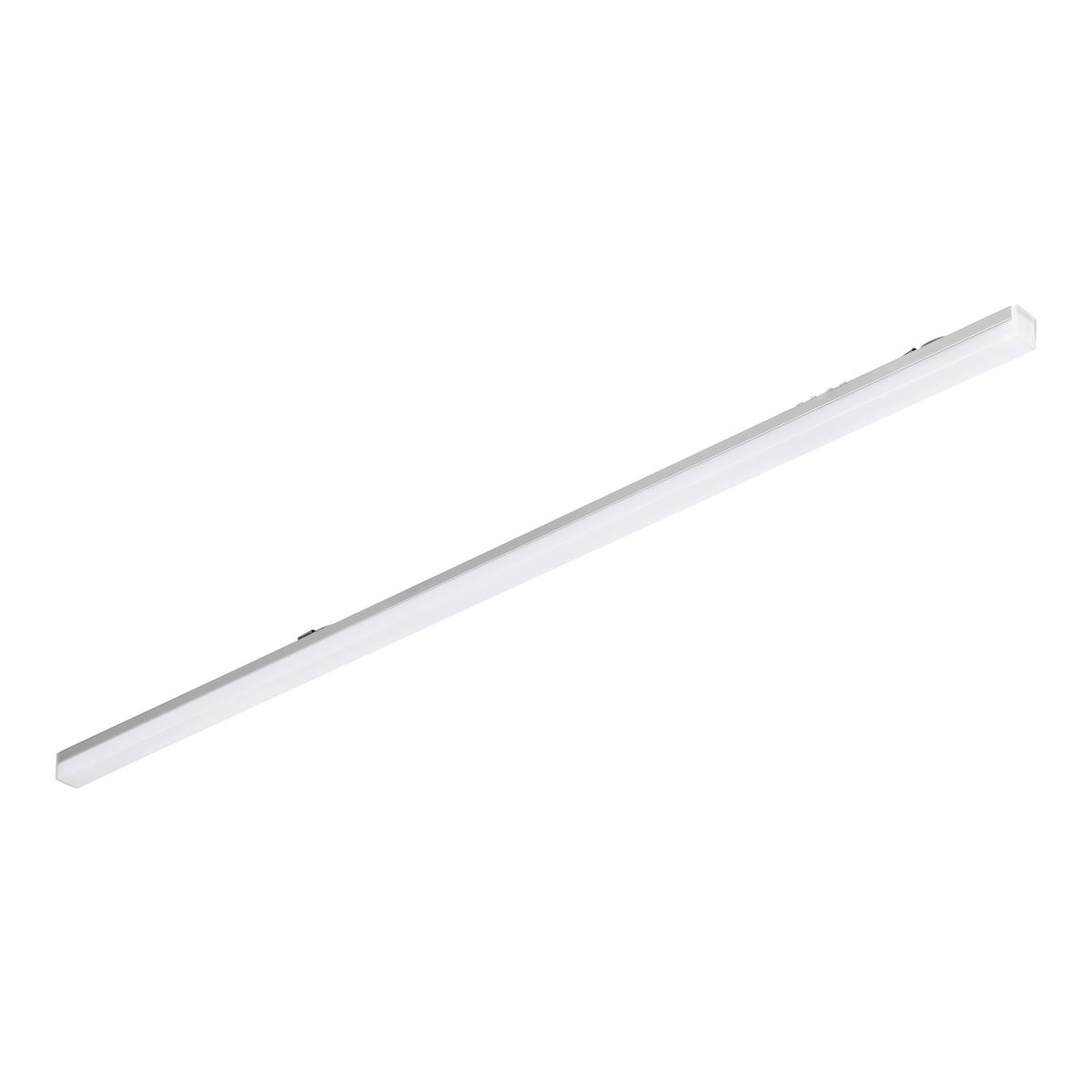

Luxrite LR42340 15W 24" Grid Smart Pro LED T-Bar Grid Light 9/16" Grid 5CCT Selectable Dimmable
Luxrite LR42340 15W 24" Grid Smart Pro LED T-Bar Grid Light 9/16" Grid 5CCT Selectable Dimmable
SKU:CB-0280089
Couldn't load pickup availability

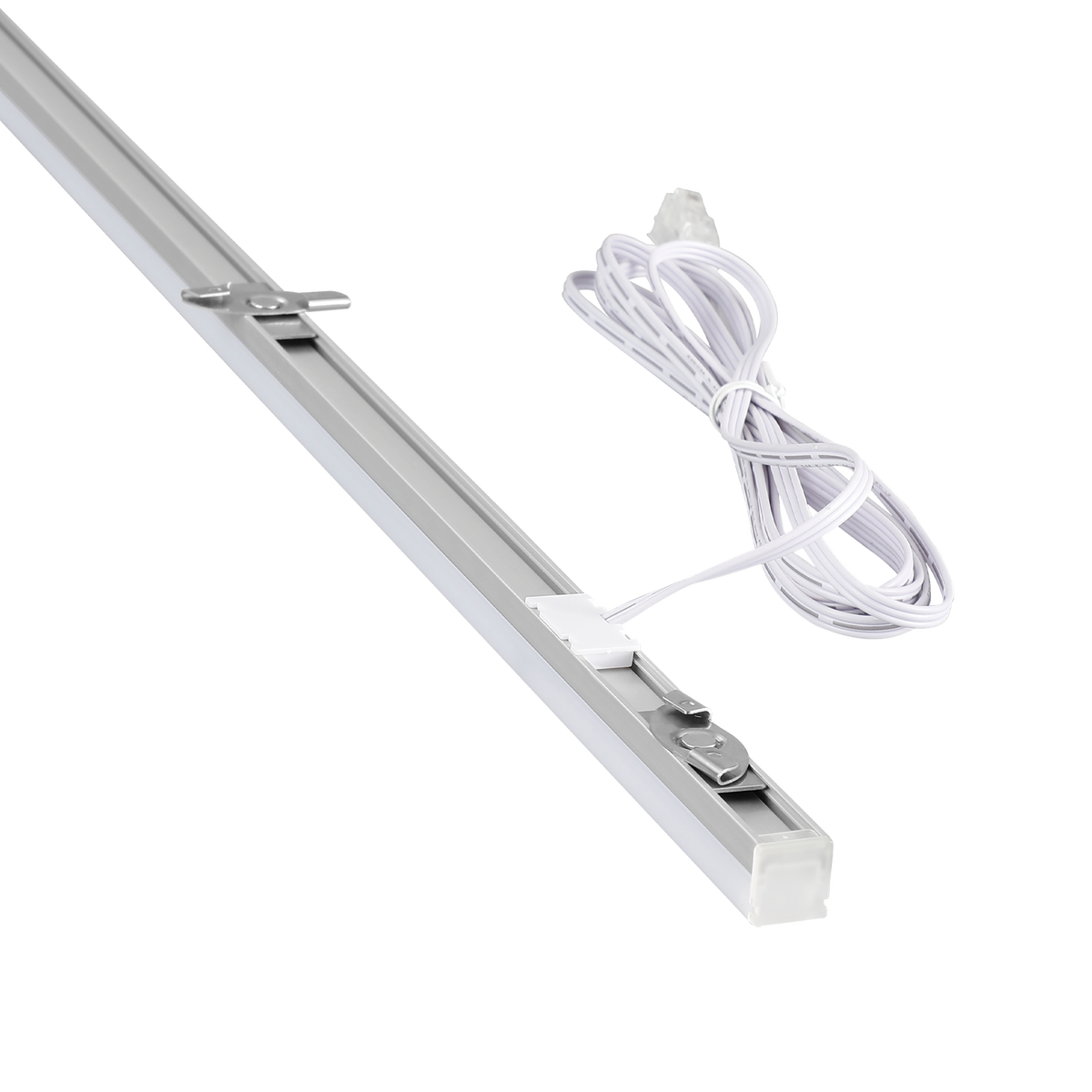

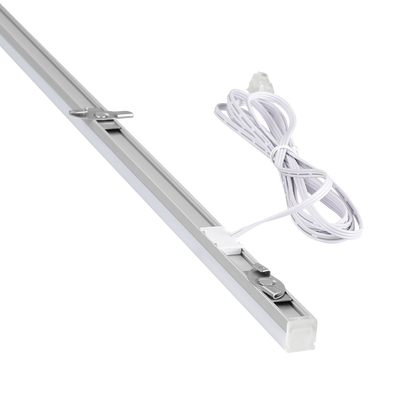

The Luxrite LR42340 is a 24" Grid Smart Pro LED bar that clips directly onto an existing 9/16" T-bar suspended ceiling, so no grid replacement is required. Twist-lock metal clips mount the bar on top of the T-bar or across support beams for fast installation and flexible layouts. Color temperature is selectable between 3000K, 3500K, 4000K, 5000K and 6500K.
Requires a Grid Smart Pro remote driver (sold separately): the LR42348 60W driver runs up to four 2 ft, two 4 ft, or one 8 ft bar; the LR42349 120W driver runs up to four 4 ft or two 8 ft bars. Do not overload the driver. An 8.3 ft power feed and adjustable clips are included. Optional accessories: LR42346 16 ft wire extender, LR42347 Silhouette 9/16" clip, LR42339 surface mount kit.
Additional specifications
| Ordering code | LEDGS/SM/24/UNV/D/5CCT/916 |

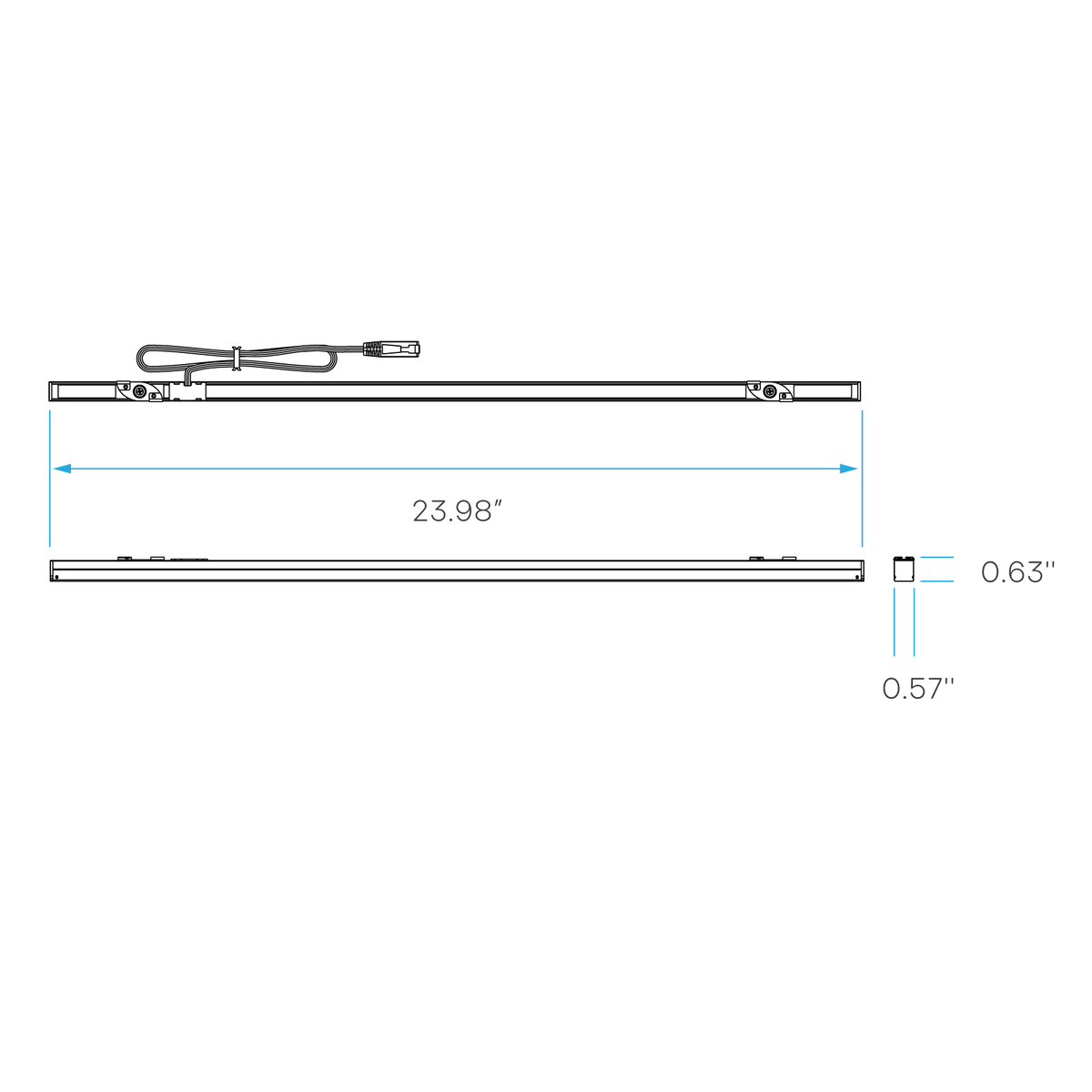

| Maximum overall length | 23.98" |
| Power factor | 0.9 |
| Input current | 0.17A |
| Frequency | 50/60Hz |
| Efficacy (lm/W) | 130 |

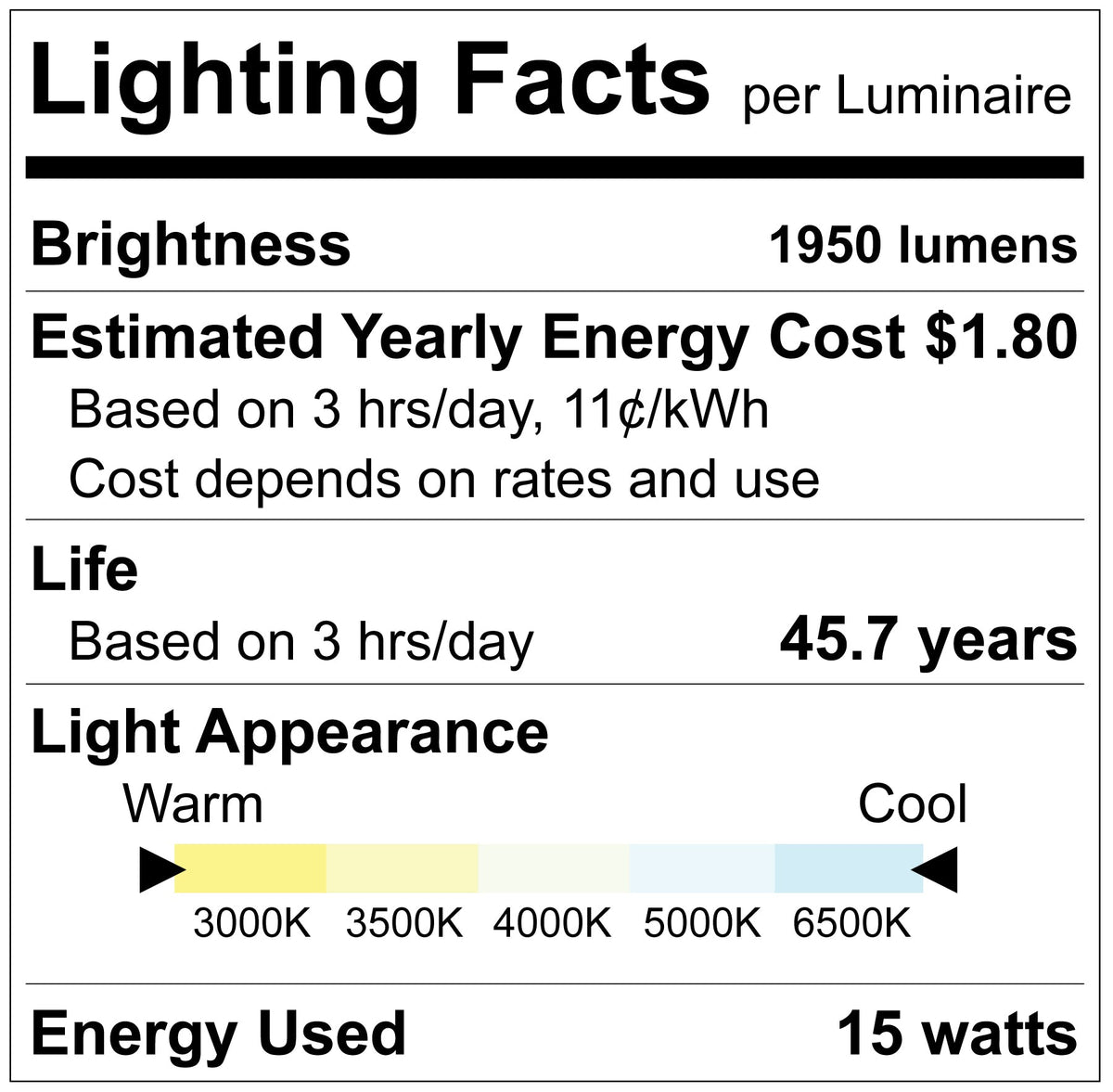

| Estimated yearly energy cost | $1.80 |
| Case quantity | 32 |
| Master carton barcode | 10732388963468 |
| Operating temperature | -4ºF to 113ºF |
| Listing | ETL listed |
