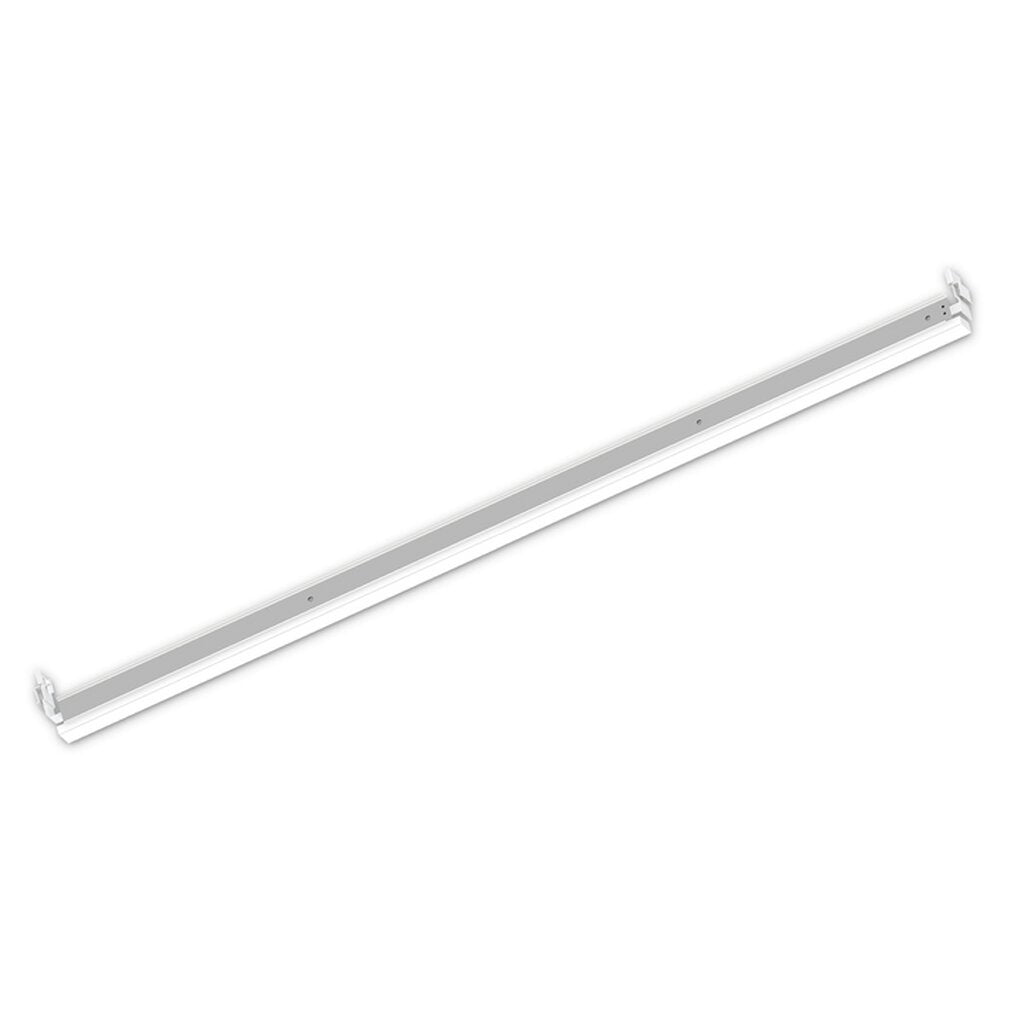

The Luxrite AS42312 is a 48" Grid Smart LED light module that integrates seamlessly into a 9/16" T-grid suspended ceiling by replacing a cross tee between the main runners. The slim profile sits almost flush with the grid and modules can be run continuously or arranged in custom patterns.
Uses a remote driver with quick-connect cable (sold separately). One driver supports up to three units; for this 48" module use the AK42325 60W Grid Smart driver. One-piece main runners cannot be replaced by modules. Backed by a 5-year warranty.
Additional specifications
| Ordering code | LEDGS/48/D/40K/U/916 |
| Power factor | 0.9 |
| Efficacy (lm/W) | 130 |
| Estimated yearly energy cost | $1.20 |
Documents
Product Information
Part Number
AS42312
Brand
Luxrite
Product Code
LEDGS/48/D/40K/U/916
UPC
644216067411
Specifications
Technology
LED
Wattage
20
Input Voltage
100-277V
Color Temperature
4000K
Lumens
2600.0
Hours
50000
CRI
80
Dimmable
true
Bulb Finish
Frosted White
Beam Spread
120
Dimensions
Length
47.96 in
Width
0.56 in
