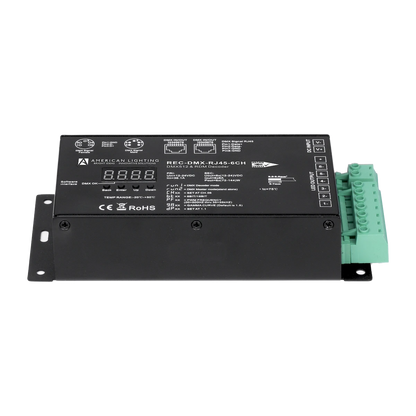

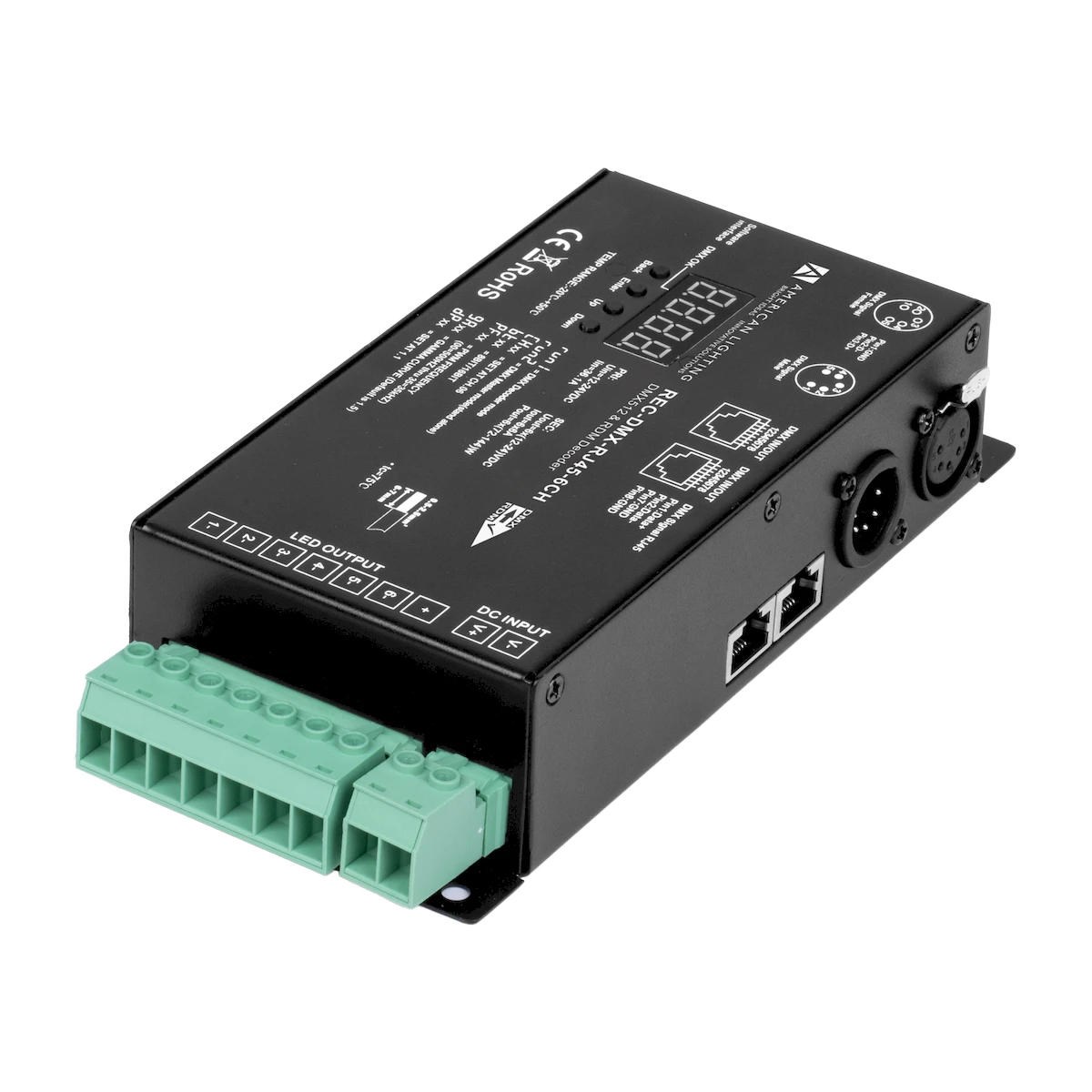

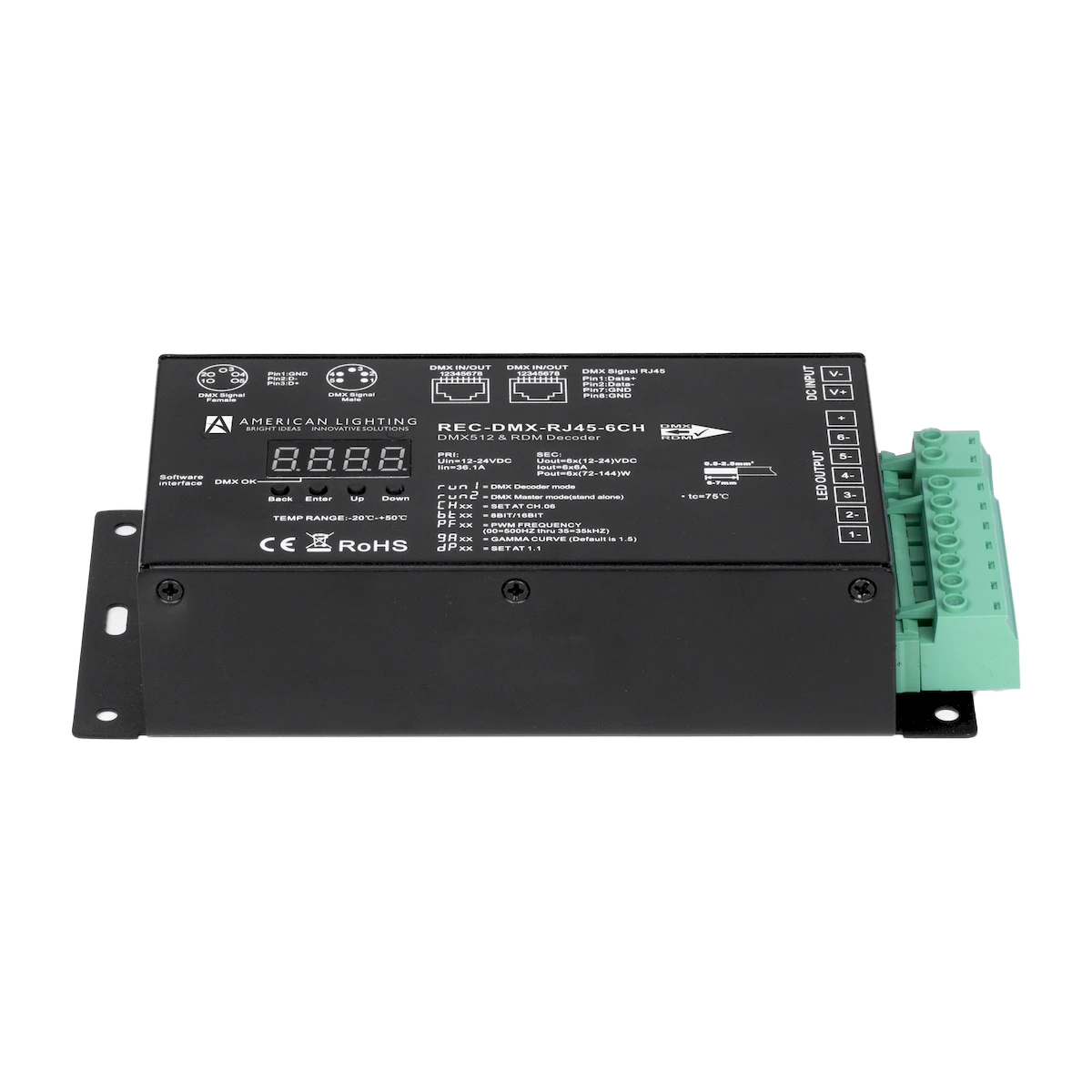

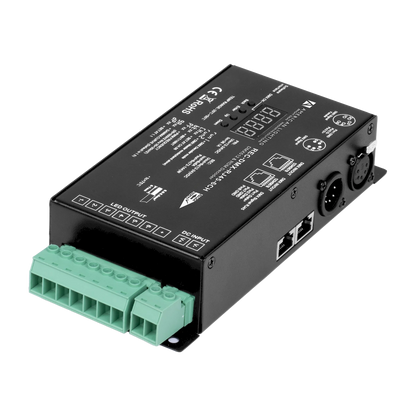

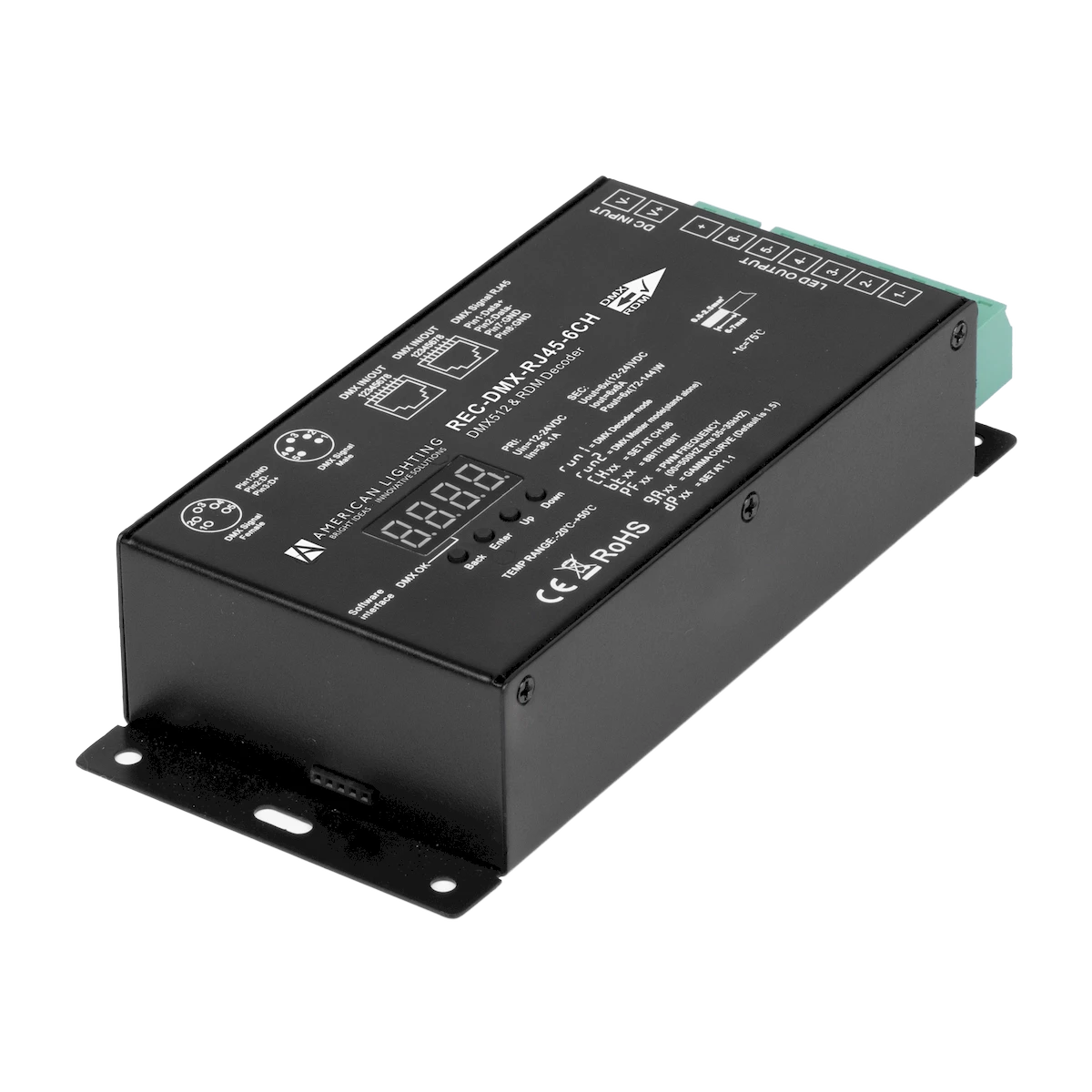

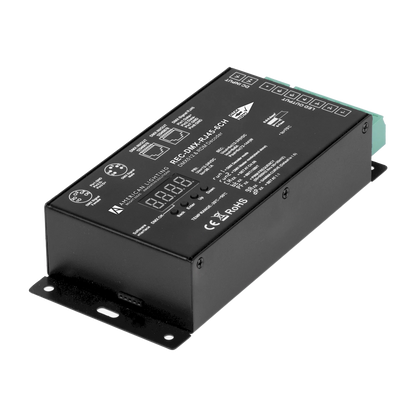

American Lighting REC-DMX-RJ45-6CH DMX Decoder: 6-Channel w/RJ45

6 Channel DMX signal receiver/decoder for use with DMX controllers and tape light. DMX 512 RDM decoder RJ45, XLR5, or direct wire capable 8 bit or 16 bit PWM output resolution ratio 500Hz - 30KHz o... Show More

6 Channel DMX signal receiver/decoder for use with DMX controllers and tape light.

• DMX 512 RDM decoder
• RJ45, XLR5, or direct wire capable
• 8 bit or 16 bit PWM output resolution ratio
• 500Hz - 30KHz output PWM frequency
• 0.1 - 9.9 gamma value output dimming curve range
• Metal housing with digital display
• 6A max per channel (6 channels: 72W @12VDC, 144W @ 24VDC)
• Standalone mode or decoder mode operation
• Requires 12-24V DC driver (sold separately) for operation

The American Lighting REC-DMX-RJ45-6CH is a lighting control. Output: 12-24V DC. Operating temperature range -4°F - 122°F(-20°C - 50°C). Suitable for indoor use. Sold per Each. Manufacturer part number REC-DMX-RJ45-6CH. Full electrical and photometric specifications are listed in the product details, and the manufacturer's specification sheet and installation resources are linked below.

Resources

• SpecSheet AML-REC-DMX-RJ45A-6CH
