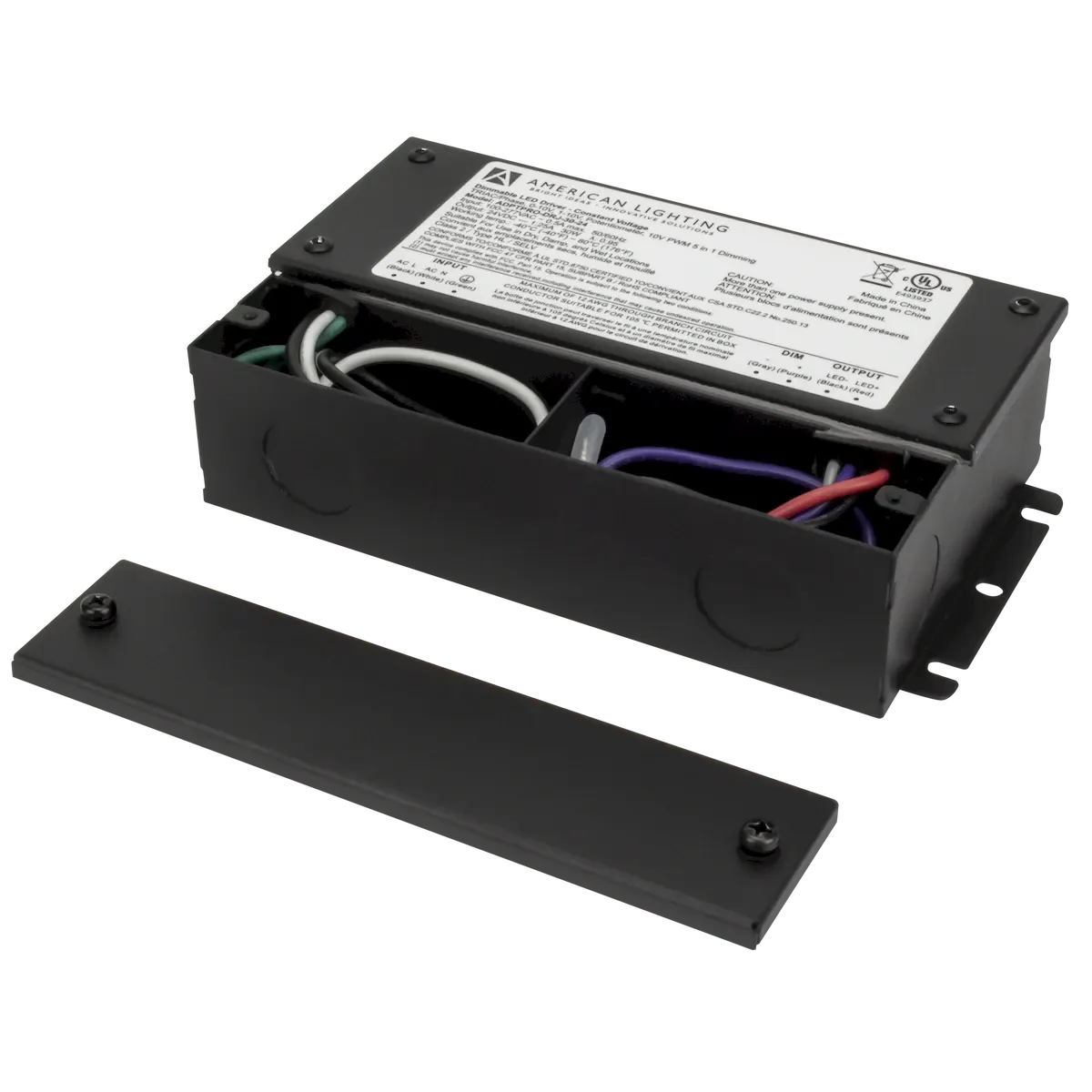

American Lighting ADPTPRO-DRJ-30-24 Adaptive PRO Driver with Enclosed Leads and Knockouts 30 Watts 24V DC Black 5.98 Inch 30 W
American Lighting ADPTPRO-DRJ-30-24 Adaptive PRO Driver with Enclosed Leads and Knockouts 30 Watts 24V DC Black 5.98 Inch 30 W
SKU:CB-0265191
Couldn't load pickup availability
The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.
- 24V DC Constant voltage 30W hardwire LED drivers
- 5-in-1 Forward and Reverse Phase Dimming:
- ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer
- Dedicated line voltage and low voltage wiring compartments
- Short circuit, over-load, and over temperature protections
- Class 2 / Type HL / FCC Compliant
- cULus Listed - Wet location rated
The American Lighting ADPTPRO-DRJ-30-24 is an LED driver from the Adaptive PRO Driver with Enclosed Leads and Knockouts 30 Watts 24V DC series. Output: 24V DC at 1.25A. Operating temperature range -40C (-40F) to 60C (140F) degrees. Suitable for indoor use. Power factor 0.99@120VAC 0.95@277VAC; minimum load 3 W. Sold per Each. Manufacturer part number ADPTPRO-DRJ-30-24. Full electrical and photometric specifications are listed in the product details, and the manufacturer's specification sheet and installation resources are linked below.
