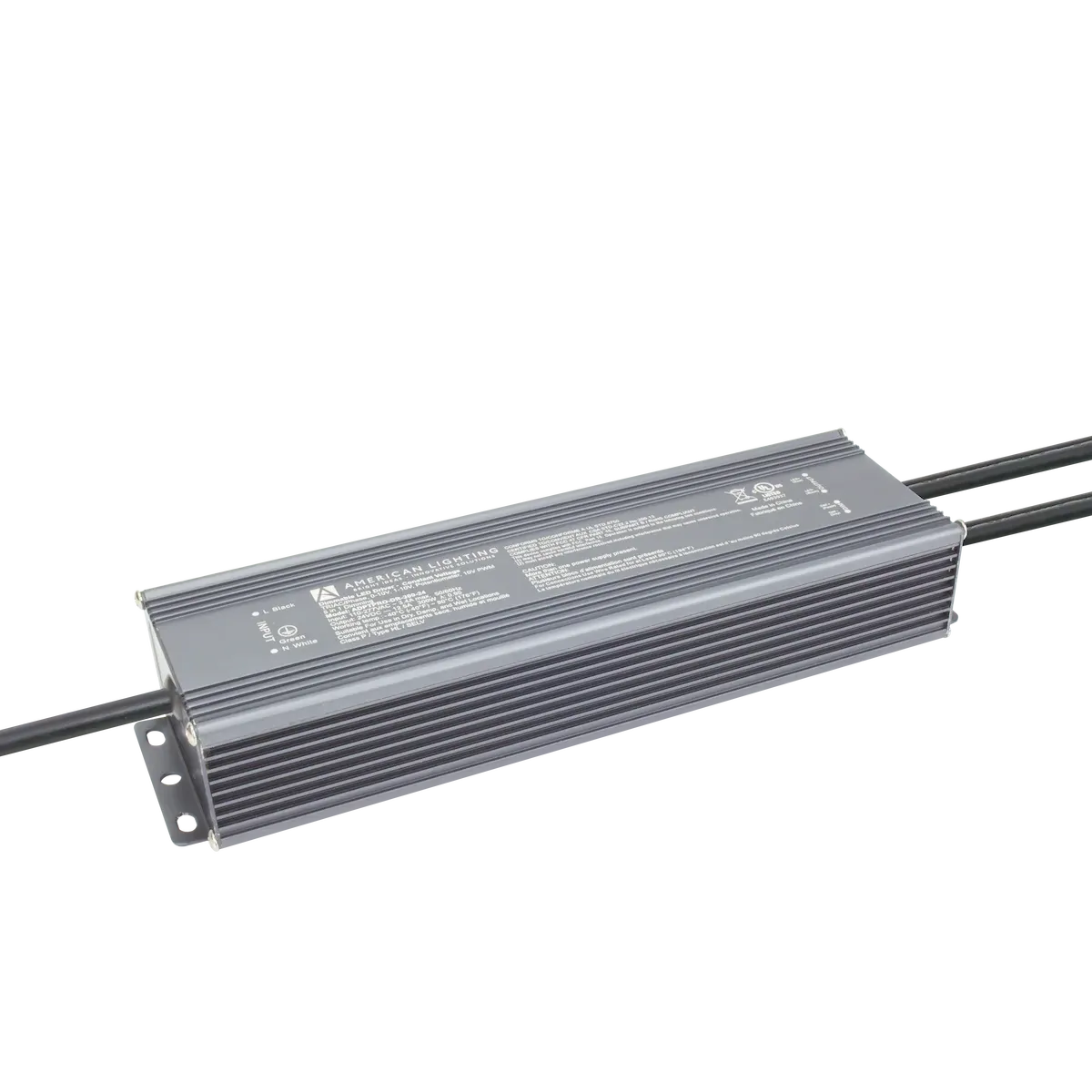

American Lighting ADPTPRO-DR-300-24 Adaptive PRO Driver 300 Watts 24V DC Black 10.8 Inch 300 W
American Lighting ADPTPRO-DR-300-24 Adaptive PRO Driver 300 Watts 24V DC Black 10.8 Inch 300 W
SKU:CB-0265187
Couldn't load pickup availability
The Adaptive Pro 5-in-1 dimmable drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a sealed low profile aluminum enclosure Suitable for outdoor locations.
- 24V DC Constant voltage 300W hardwire LED driver
- 5-in-1 Forward and Reverse Phase Dimming:
- ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer
- Class I metal housing (Type HL)
- 8” (SJTW) Lead & Tail Wire
- Short circuit, over-load, and over temperature protections
- Class P / Type HL / FCC Compliant
- cULus Listed - Wet location rated
The American Lighting ADPTPRO-DR-300-24 is an LED driver from the Adaptive PRO Driver 300 Watts 24V DC series. Output: 24V DC at 2.5A. Operating temperature range -40C (-40F) to 60C (140F) degrees. Suitable for indoor and outdoor use. Power factor 0.99@120VAC 0.95@277VAC; minimum load 30 W. Sold per Each. Manufacturer part number ADPTPRO-DR-300-24. Full electrical and photometric specifications are listed in the product details, and the manufacturer's specification sheet and installation resources are linked below.
